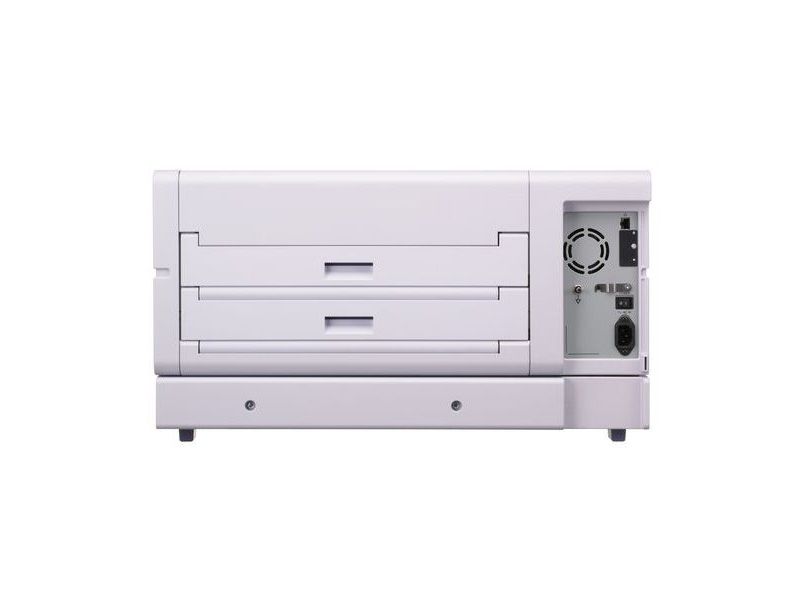

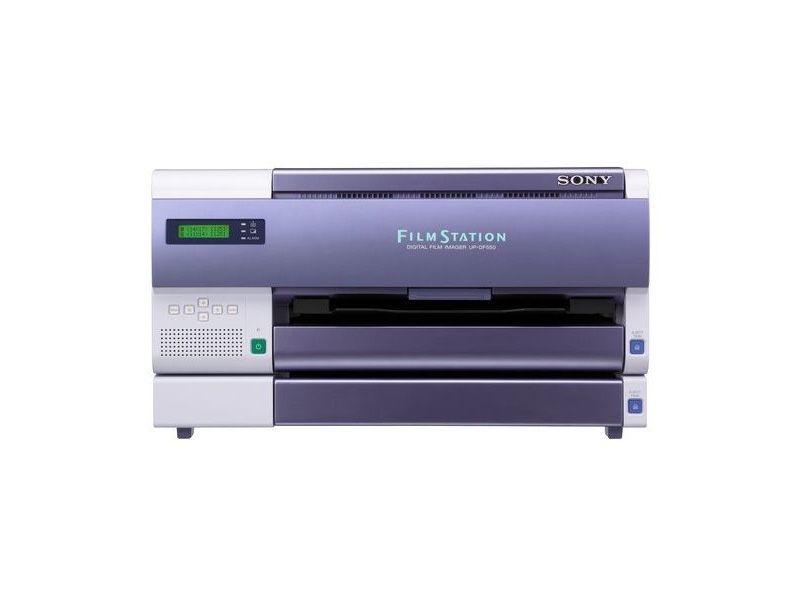

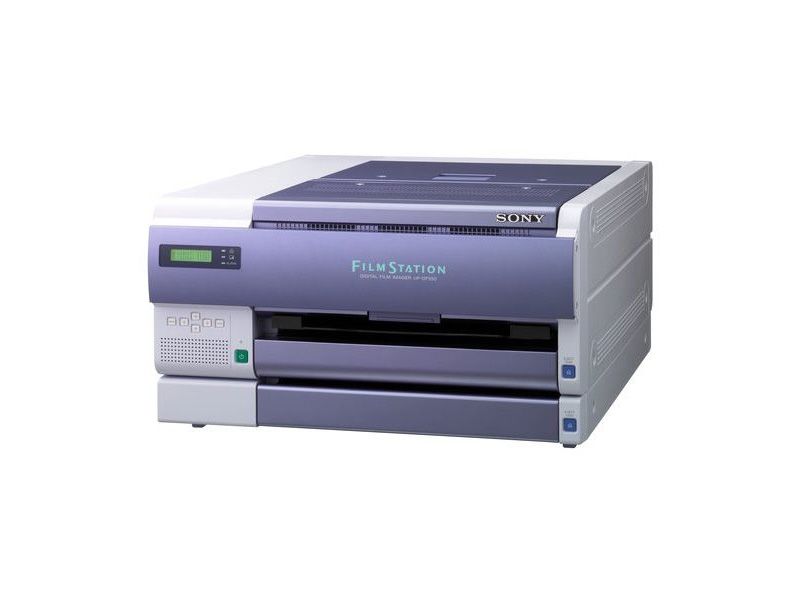

Sony UP-DF550 FilmStation Dual Tray Film Imager
Sony UP-DF550 FilmStation Dual Tray Film Imager
Sony UP-DF550 FilmStation™ Dual Tray Film Imager
- • Ideal for many modalities including CT, MR, DR, and X-Ray
- • Two trays accommodate multiple film sizes
- • Second tray supports 8 x 10", 10 x 12" and 11 x 14" film sizes
- • Fast throughput - 70 films per hour
- • Outputs economical patient referral copies
- • Built-in DICOM 3.0 Interface
- • Intelligent Memory - printer settings including IP address can be saved on a removable media
- • Unique vertical installation option saves space
This model is out of production
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Sony | Model: UP-DF550 | Part number: UP-DF550 (also written UPDF550)
The Sony UP-DF550 (UPDF550) is a refurbished FilmStation dual-tray dry film imager for radiology and clinical imaging documentation. Its dual-tray design enables continuous high-throughput workflow at up to 86 films per hour (UP-T510BL media) at 320 DPI via direct thermal printing in a 600 x 250 x 686 mm chassis on universal AC 100-240V power. Ampronix supplies refurbished UP-DF550 units tested and certified to OEM specifications.
Key capabilities
- 320 DPI | Direct thermal | Dual-tray continuous feed
- Up to 86 films/hr (UP-T510BL) | High-throughput radiology
- 600 x 250 x 686 mm | FilmStation chassis
- AC 100-240V | 50/60 Hz | Universal power
- Ampronix Certified Refurbished | Up to 1-Year Warranty
- Part# UP-DF550 / UPDF550 | Sales, service, repair & exchange
Where it is used
The Sony UP-DF550 FilmStation is deployed in high-volume radiology departments and diagnostic imaging centers where dual-tray design maintains continuous film output without interruption for media loading — supporting CR, DR, and DICOM imaging workflows.
Print speed by media
- UP-T517BL: 70 sheets per hour
- UP-T514BL: 75 films per hour
- UP-T512BL: 80 films per hour
- UP-T510BL: 86 films per hour
Specifications at a glance
- Resolution: 320 DPI | Method: Direct thermal
- Throughput: 70-86 films/hr (media dependent)
- Dimensions: 600 x 250 x 686 mm (23⅝ x 9⅞ x 27⅛ in)
- Power: AC 100-240V, 50/60 Hz
- Part number: UP-DF550 / UPDF550
Frequently asked questions
- Is the Sony UP-DF550 available refurbished? - Yes. Ampronix supplies refurbished UP-DF550 units tested and certified to OEM standards, with up to a 1-year warranty.
- How does the UP-DF550 compare to the UP-DF500? - The UP-DF550 adds a dual-tray design over the single-tray UP-DF500, enabling continuous film loading at up to 86 films per hour — better suited for high-volume radiology departments.
- Does Ampronix repair the Sony UP-DF550? - Yes. Ampronix provides sales, service, repair, and replacement exchange solutions for the Sony UP-DF550.
The Sony UP-DF550 is also referenced as the Sony UPDF550. Ampronix provides sales, service, repair, and replacement exchange solutions for the Sony UPDF550.
Model: UP-DF550 / UPDF550
Also referenced as: UPDF550, UP-DF550, Sony UPDF550, Sony FilmStation dual tray
