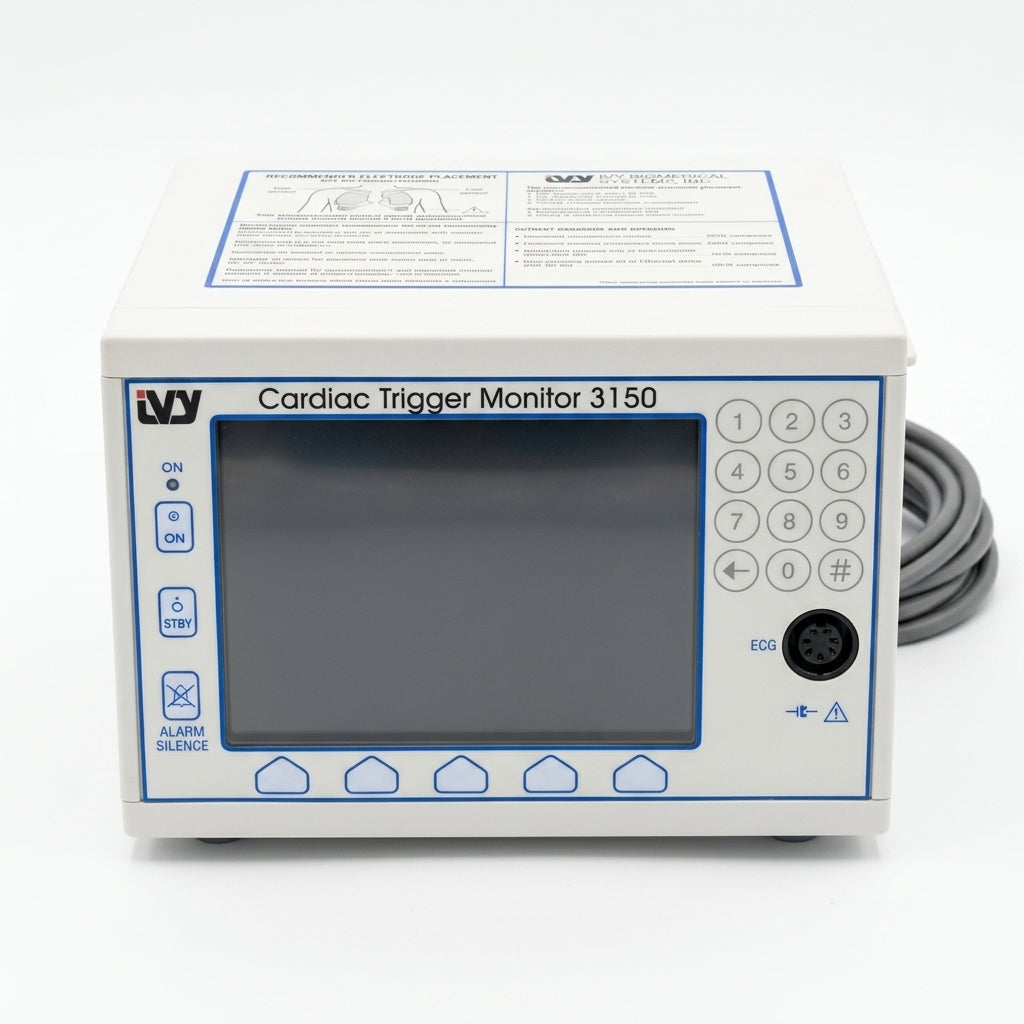

The Ivy Biomedical 3150 Cardiac Trigger Monitor is a highly reliable, compact medical device designed to provide precise electrocardiogram (ECG) monitoring for cardiac gating and triggering applications. Featuring a 6.5-inch Active Matrix TFT color LCD display, this monitor delivers a clear, single-trace ECG waveform with a freeze mode and selectable sweep speeds of 25 or 50 mm/sec, ensuring clinicians can accurately observe patient cardiac activity in real time.

Engineered for safety and performance, the Ivy 3150 offers comprehensive patient protection, including 4 kV RMS ground isolation and defibrillator protection against discharges up to 360 Joules. It supports standard LI, LII, and LIII lead selections via a 6-pin AAMI standard patient cable, and features advanced electrosurgical interference protection alongside an auto-sensing filter mode for 50 or 60 Hz environments.

With its lightweight design of just 6.5 lbs and a compact footprint, the Ivy Biomedical 3150 easily integrates into various clinical settings, including cardiology departments and imaging suites. Its robust construction and intuitive interface make it an essential tool for precise cardiac triggering synchronization during specialized medical imaging procedures.
