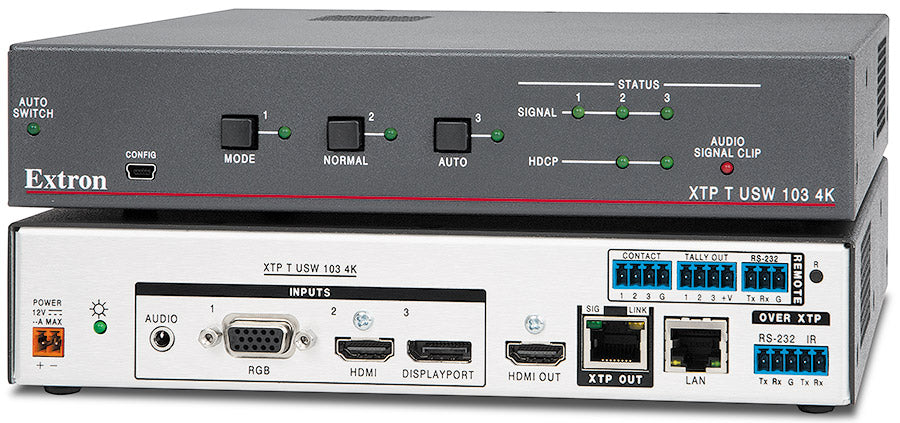

Extron XTP T USW 103 4K (part number 60-1717-12) is a 3-input HDMI, DisplayPort, and VGA switcher that transmits the switched signal up to 330 feet (100 m) over shielded twisted pair to an XTP-compatible receiver or matrix input.

The switcher accepts one analog RGBHV (VGA) source, one HDMI/DVI-D/DisplayPort source, and one DisplayPort source, switching video, embedded/analog audio, RS-232, and IR/contact-closure control over a single twisted-pair run. This part number (60-1717-12) draws remote power from a PI 140 or 26 W-capable XTP input board over the same twisted-pair cable, so no local power supply is required at the switcher; a separate part number (60-1550-12) instead requires its own locally connected external power supply.

Key Capabilities

3 inputs: 1 analog RGBHV, 1 HDMI (or DVI-D/DisplayPort), 1 DisplayPort
4K/UHD @ 30 Hz, or 4K/UHD @ 60 Hz with 4:2:0 chroma, over HDMI
330 ft (100 m) signal transmission over shielded twisted pair or XTP DTP 24 cable
RS-232, IR, contact closure, and Ethernet pass-through control
Remotely powered over twisted pair by a PI 140 or 26 W-capable XTP input board - no local power supply needed
Backed by Extron's 3-year parts-and-labor warranty (7-year on the Everlast power supply)

Where It Is Used

The XTP T USW 103 4K is used at a lectern, table, or credenza to switch between local HDMI, DisplayPort, and VGA sources and send the selected signal, plus audio and control, to a remote display or XTP matrix switcher over a single twisted-pair cable. The 60-1717-12 variant is the choice when the installation already provides remote power over that cable.

Specifications at a Glance

3 video inputs; 1 switched HDMI output over twisted pair
HDMI: 10.2 Gbps max data rate, up to 4K/UHD @ 60 Hz (4:2:0)
Transmission distance: 330 ft (100 m)
Power: 16.5 W (device only) / 18.6 W (device + local power supply)
3-year Extron parts-and-labor warranty; 7-year Everlast power supply warranty

Also referenced as Extron XTPTUSW1034K, XTP-T-USW-103-4K, part number 60171712.

Specifications

Part Number: 60-1717-12

Manufacturer: Extron

Condition: New

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Baud rate and protocol: 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity

Baud rates (pass-through): Up to 115200 baud

Bit depths: 16, 20, 24 bit

Cable recommendations: 400 MHz bandwidth, STP (shielded twisted pair)

Cable requirements: Solid conductor, 24 AWG or better

Chroma sampling: 4:4:4, 4:2:2, or 4:2:0 (4:2:0 applies to HDMI signals only)

Color bit depth: 8 bits per color

Connectors: 1 female 15-pin HD. 1 female HDMI type A. 1 female DisplayPort

Contact closure: (1) 3.5 mm captive screw connector, 4 pole

Contact closure pin configuration: 1 = input 1, 2 = input 2, 3 = input 3, 4 = GND

Cooling: Convection, vents on sides and top

Crosstalk: ≤-80 dB @ 1 kHz, fully loaded

Default (audio gain): Unbalanced output: 0 dB; balanced output +6 dB

Device power consumption: 16.5 watts, 12 VDC, local power supply

Device and local power supply consumption: 18.6 watts, 12 VDC

DisplayPort: 10.8 Gbps (2.7 Gbps per lane); DisplayPort 1.1, HDCP 1.3, Single Stream Transport (SST) only

Enclosure dimensions: 1.66" H x 8.68" W x 8.5" D (half rack wide) (4.2 cm H x 22.1 cm W x 21.5 cm D) (Depth excludes connectors.)

Enclosure type: Metal

Ethernet data rate: 10/100Base-T, half/full duplex with autodetect

Ethernet pass-through port: 1 female RJ-45 connector

Everlast power supply warranty: 7 years parts and labor

Formats: RGB and YCbCr digital video

Frame rate: 24, 25, 30, 50, or 60 fps (50/60 fps apply to HDMI signals only)

Frequency response: 20 Hz to 20 kHz, ±0.5 dB

Furniture mount: Yes, with optional under-desk mounting kit

Gain: Unity

HDMI: 10.2 Gbps (3.4 Gbps per color); maximum pixel clock 300 MHz

Horizontal frequency: 30 kHz to 100 kHz

IR control pin configuration: 3 = GND, 4 = IR Tx, 5 = IR Rx

IR control port: (1) 3.5 mm, captive screw connector, 5 pole (uses 3 poles) (connector is shared with the RS-232 control port). TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 56 kHz

Impedance (video input): 75 ohms

Impedance (audio input): >10k ohms, unbalanced, DC coupled

Maximum level (audio): +7 dBV unbalanced

Minimum/maximum levels (video input): 0.3 V to 1.45 Vp-p

Nominal level (video input): 0.7 Vp-p for RGB

Nominal level (audio input): -10 dBV (316 mVrms) unbalanced

Number/signal type (video input): 1 analog RGBHV. 1 single link HDMI (or DVI-D or DisplayPort). 1 DisplayPort

Power supply: External. Input: 100-240 VAC, 50-60 Hz. Output: 12 VDC, 1.5 A, 18 watts. This part number (60-1717-12) requires a PI 140 or 26 W-capable XTP input board for remote power over twisted pair.

Product warranty: 3 years parts and labor

Product weight: 2.7 lbs (1.2 kg)

Program control: Extron control/configuration program for Windows®. Extron Simple Instruction Set (SIS™)

Protocol (pass-through): Data bits = 5-8. Stop bits = 1 or 2. Parity = odd, even, none. Flow control = XON, XOFF, none

Rack mount: Yes, with optional 1U high rack shelf

Range (audio gain): Adjustable, -18 dB to +24 dB

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI. Complies with the appropriate requirements of RoHS, WEEE.

Resolution range (VGA): Up to 1920x1200* or 1080p (HDTV) (* reduced blanking)

Resolution range (HDMI): Up to 2560x1600 @ 60 Hz* (reduced blanking), 1080p @ 120 Hz, 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, or 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling

Resolution range (DisplayPort): Up to 2560x1600 @ 60 Hz* (reduced blanking), 4K (4096x2160) @ 30 Hz, or UHD (3840x2160) @ 30 Hz

S/N: >90 dB, at maximum output, balanced (unweighted)

Sampling rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

Serial control pass-through port: RS-232 (±5 V) via (1) 3.5 mm, 5 pole captive screw connector (uses 3 poles) (connector is shared with the IR control port)

Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd

Serial control port: 1 bidirectional RS-232: 1 rear panel 3.5 mm captive screw connector, 3 pole

Signal type: DisplayPort 1.1, DVI 1.0, HDMI 1.4, HDCP 2.3

Signal transmission distance: 330' (100 m) using shielded twisted pair or XTP DTP 24 cable

Source formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos™, Dolby TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio™, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel, analog stereo

Standards: DisplayPort 1.1, DVI 1.0, HDMI 1.4, HDCP 2.3

Stereo channel separation: >80 dB @ 1 kHz

THD + Noise: <0.1%, 20 Hz - 20 kHz at nominal level

Tally output: 3 tally outputs on (1) 3.5 mm captive screw connector, 4 pole

Tally pin configuration: 1 = Input 1 tally ground, 2 = Input 2 tally ground, 3 = Input 3 tally ground, 4 = +5 V

Termination standards: TIA/EIA T568B

Thermal dissipation (device only): 55.3 BTU/hr

Thermal dissipation (device + local power supply): 62.3 BTU/hr

USB control port: 1 front panel female mini USB B

USB standards: USB 2.0, low speed

Vertical frequency: 24 Hz to 120 Hz

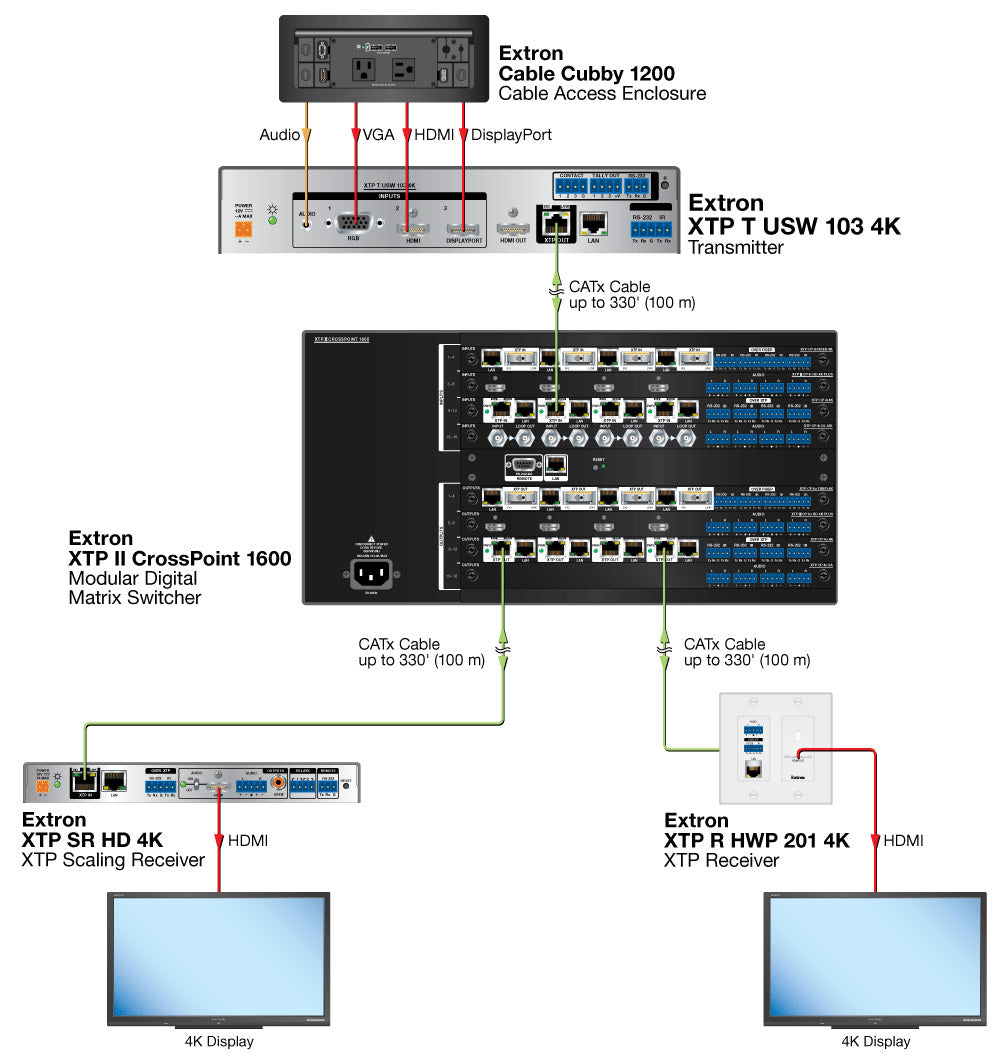

Diagram
