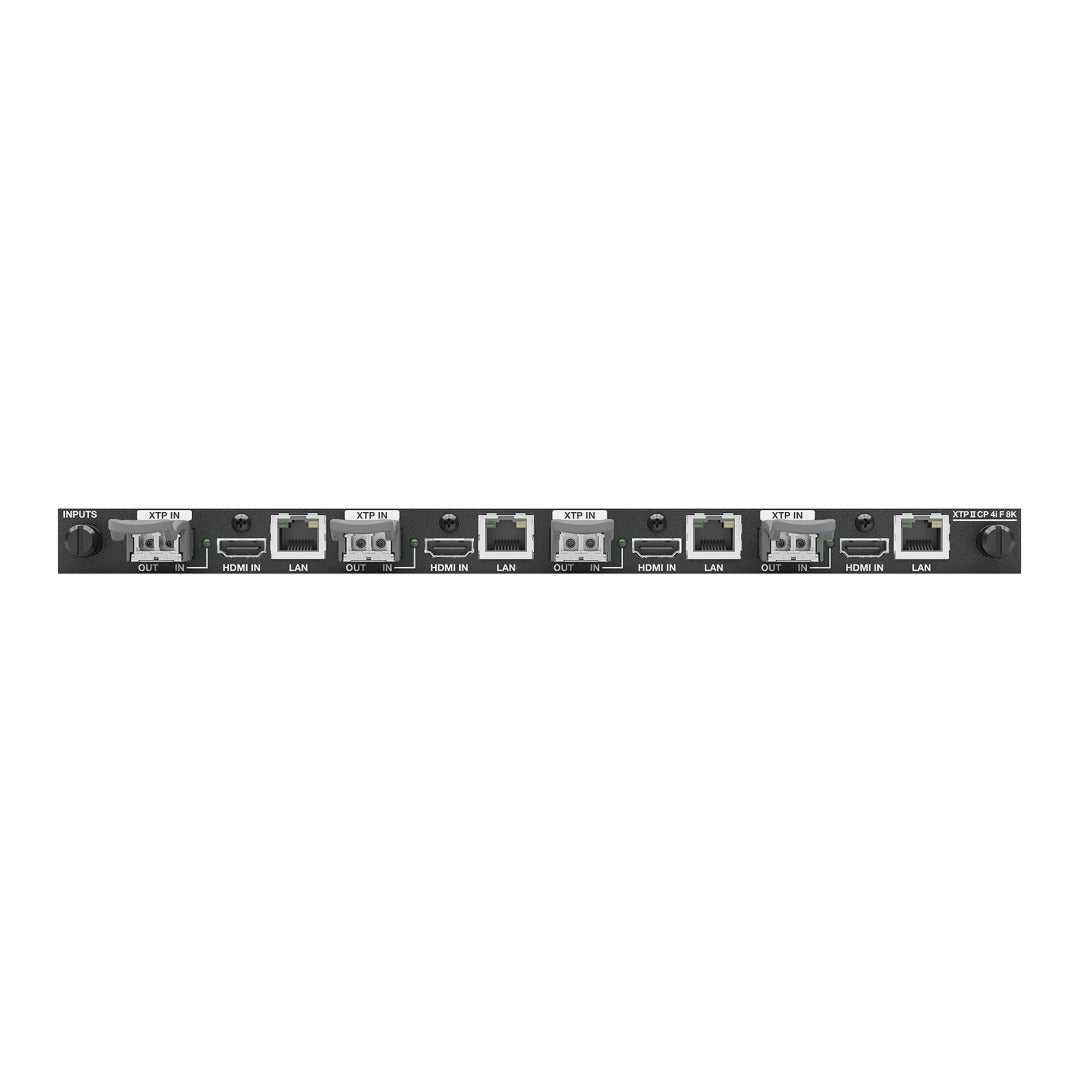

Extron XTP II CP 4o SF 8K SM (part number 70-1301-02) — a 4-output singlemode fiber board with built-in scaling for XTP II CrossPoint 8K matrix switching.

This board plugs into an XTP II CrossPoint frame and delivers four outputs on HDMI/DVI-D connectors or scaled XTP fiber, converting the switcher's internal signal to match each display's native resolution on the fly. Video, audio, RS-232, and Ethernet travel together across a pair of singlemode fiber links, and hot plug detect passes display status back through the system automatically, so distant displays connect the same way a local HDMI run would.

Key Capabilities

Four outputs switch between HDMI/DVI-D or scaled XTP fiber delivery
Supports 8K (7680x4320) at 60 Hz and 4K at up to 120 Hz over HDMI 2.1
Two singlemode fiber runs reach 10 km (6.2 miles) at 40 Gbps
Built-in scaler outputs VESA, SMPTE, and ultra-wide resolutions on demand
Re-embeds up to 7.1-channel digital audio, including Dolby Atmos and DTS-X

Where It Is Used

4o SF 8K SM output boards fit XTP II CrossPoint systems feeding 8K or mixed-resolution displays across production control rooms, medical imaging suites, and campus command centers, where the built-in scaler matches each downstream display without an external processor.

Specifications at a Glance

4 HDMI/XTP outputs, 8 LC fiber connectors
Max video data rate: 40.1 Gbps (10 Gbps per color)
Singlemode reach: 10 km (6.2 miles)
Power consumption: 40 watts
3-year Extron parts-and-labor warranty

Also referenced as Extron XTPIICP4oSF8KSM, XTP-II-CP-4o-SF-8K-SM, part number 70130102.

Specifications

Part Number: 70-1301-02

Manufacturer: Extron

Model: XTP II CP 4o SF 8K SM

Condition: New

Video Output - Number/Signal Type: 4 single-link HDMI (or DVI-D), 4 XTP (with scaling)

Video Output - Connectors: 4 female HDMI Type A, 8 LC fiber connectors

Video Output - Resolution Range: Up to 8K (7680x4320) @ 60 Hz, 5K (5120x2880) @ 60 Hz, 4K (4096x2160) @ 60 Hz, 4K (3840x2160) @ 120 Hz, 4K (3840x2160) @ 60 Hz (uncompressed 8K/30 at 4:4:4 requires installation in an XTP II CrossPoint frame)

Video Output - Signal Type: HDMI 2.1, HDCP 2.3

Video Output - Maximum Data Rate: 40.1 Gbps (10 Gbps per color)

Video Output - Maximum Pixel Clock: 2376 MHz

Video Output - Color Bit Depth: 8, 10, or 12 bits per color, subject to the maximum data rate limit

Video Output - Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Video Output - Frame Rate: 24, 25, 30, 50, 60, or 120 fps

Video Output - Video Formats: RGB and YCbCr digital video

Video Output - Gain: Unity

Video Output - Re-Clocking: Automatic

Video Output - Peripheral Device Power: 5 VDC, 55 mA per output

Video Output - HPD: Supports hot plug detect (HPD) of display as a pass-through signal

Video Output - EDID and DDC: Supports EDID and DDC data using DVI and HDMI standards. EDID and DDC signals are actively buffered.

Video Output - HDCP: Compliant with HDCP using DVI and HDMI standards

Video Output - HDR: HDR10, HDR10+, and Dolby Vision

Video Output - Standards: DVI 1.0; HDMI 2.1; HDCP 1.x, HDCP 2.3

Video Processing - Digital Sampling: 24 bit, 8 bits per color, 600 MHz standard

Video Processing - Colors: 16.78 million

Video Processing - Scaled Resolution (VESA): 1280x768, 1280x800, 1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1600x900, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536, 2560x1440, 2560x1600

Video Processing - Scaled Resolution (SMPTE): 720p, 1080i, 1080p, 2048x1080, 1920x2160, 3840x2160, 4096x2160

Video Processing - Scaled Resolution (Ultra Wide): 2560x1080

Video Processing - Note: Supported frame rates for scaled resolutions range from 23.98 Hz to 60 Hz depending on resolution; when output resolution is set to bypass, the input signal is output without being scaled.

Audio Output - Number/Signal Type: 4 digital audio, de-embedded from HDMI

Audio Output - Connectors: 4 female HDMI Type A (shared with video input)

Audio Output - Supported Formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Digital EX, Dolby Digital Plus, Dolby Digital 5.1, Dolby Digital 2.0 Surround, Dolby Digital 2.0, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS-X, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS-Digital Surround 5.1, DTS 2-Channel

Optical - Number/Signal Type: 4 sets of proprietary signals

Optical - Connectors: 8 LC connectors

Optical - Operating Distance (Singlemode): 10 km (6.21 miles) with singlemode (SM) cables

Optical - Nominal Peak Wavelength (Singlemode): 1270 nm, 1290 nm, 1310 nm, 1330 nm

Optical - Data Rate: 40 Gbps

Optical - Transmission Power (Singlemode): -4 dBm, maximum

Optical - Maximum Receiver Sensitivity (Singlemode): -11.5 dBm, maximum

Optical - Optical Loss Budget (Singlemode): 7.5 dB, maximum

Control - Serial Control: RS-232 can be transmitted to and from XTP Tx via Ethernet insertion

Control - Baud Rate: Up to 115200 baud

Control - Protocol: Data bits = 5-8; Stop bits = 1 or 2; Parity = odd, even, none; Flow Control = XON, XOFF, none

Control - Ethernet Pass-Through Port: 4 female RJ-45 connectors

Control - Ethernet Data Rate: 10/100/1000Base-T, half/full duplex with auto-detect

General - Power: Supplied by XTP CrossPoint or XTP II CrossPoint enclosure

General - Power Consumption: 40 watts

General - Product Weight: 2.90 lbs (1.31 kg)

Regulatory Compliance: UL, FCC Class A; complies with the appropriate requirements of RoHS, WEEE

Warranty: 3 years parts and labor
