Extron XTP II CP 4i F 8K SM 4-Input Fiber I/O Board 70-1114-02

Extron XTP II CP 4i F 8K SM 4-Input Fiber I/O Board 70-1114-02

Manufacturer: Extron

Type: XTP Systems

Extron XTP II CP 4i F 8K SM Fiber Input Board

  • • Four inputs switch between HDMI/DVI-D or XTP fiber, selectable per port
  • • Supports 8K (7680x4320) at 60 Hz and 4K at up to 120 Hz over HDMI 2.1
  • • Two singlemode fiber runs reach 10 km (6.2 miles) at 40 Gbps
  • • De-embeds up to 7.1-channel digital audio, including Dolby Atmos and DTS-X
  • • Passes RS-232 to XTP transmitters and 1 Gbps Ethernet over 4 RJ-45 ports
  • • Draws 40 watts, powered directly from the XTP II CrossPoint frame
  • • Backed by Extron's 3-year parts-and-labor warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-XTPIICP4IF8KSM-70111402

Details

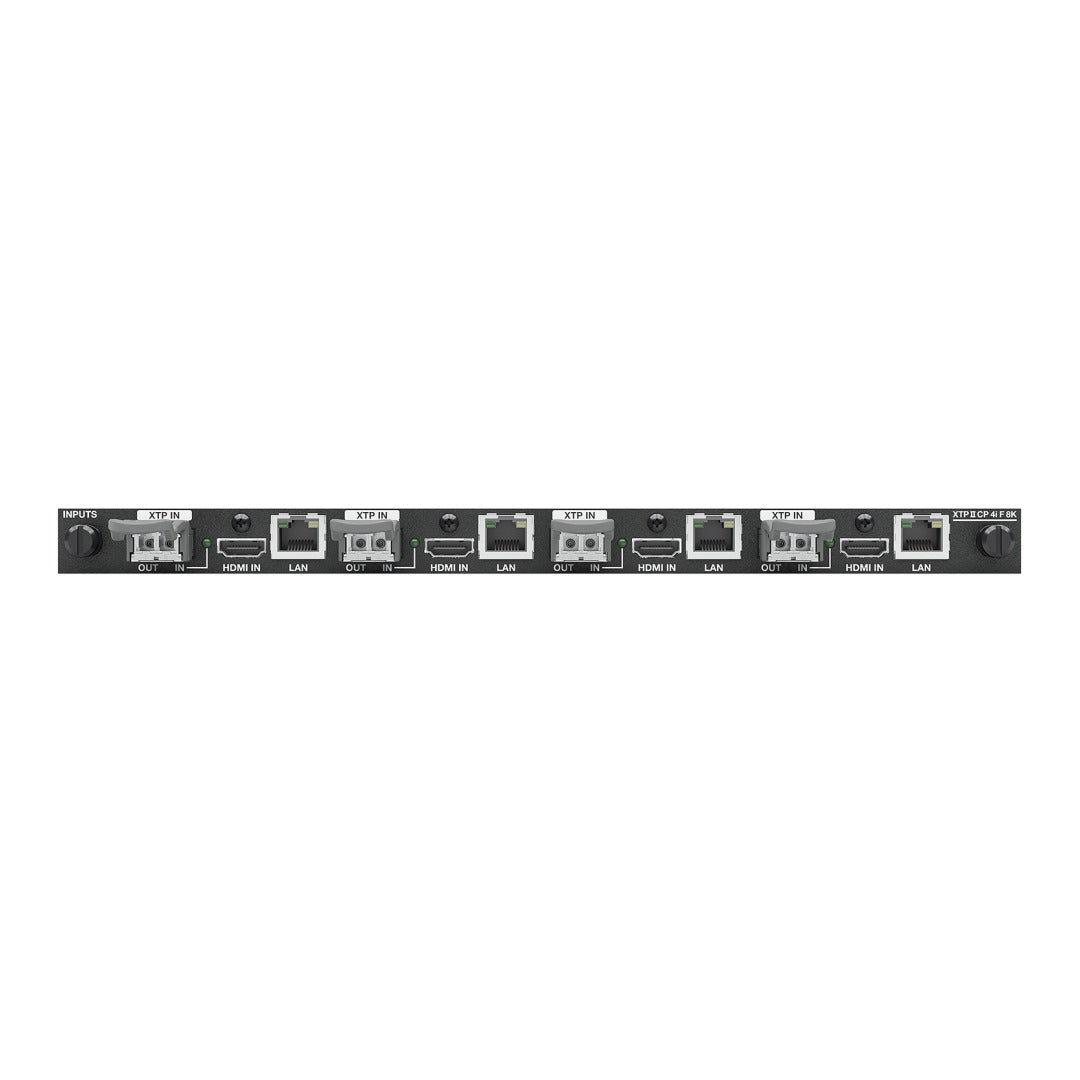

Extron XTP II CP 4i F 8K SM (part number 70-1114-02) — a 4-input singlemode fiber board for XTP II CrossPoint 8K matrix switching.

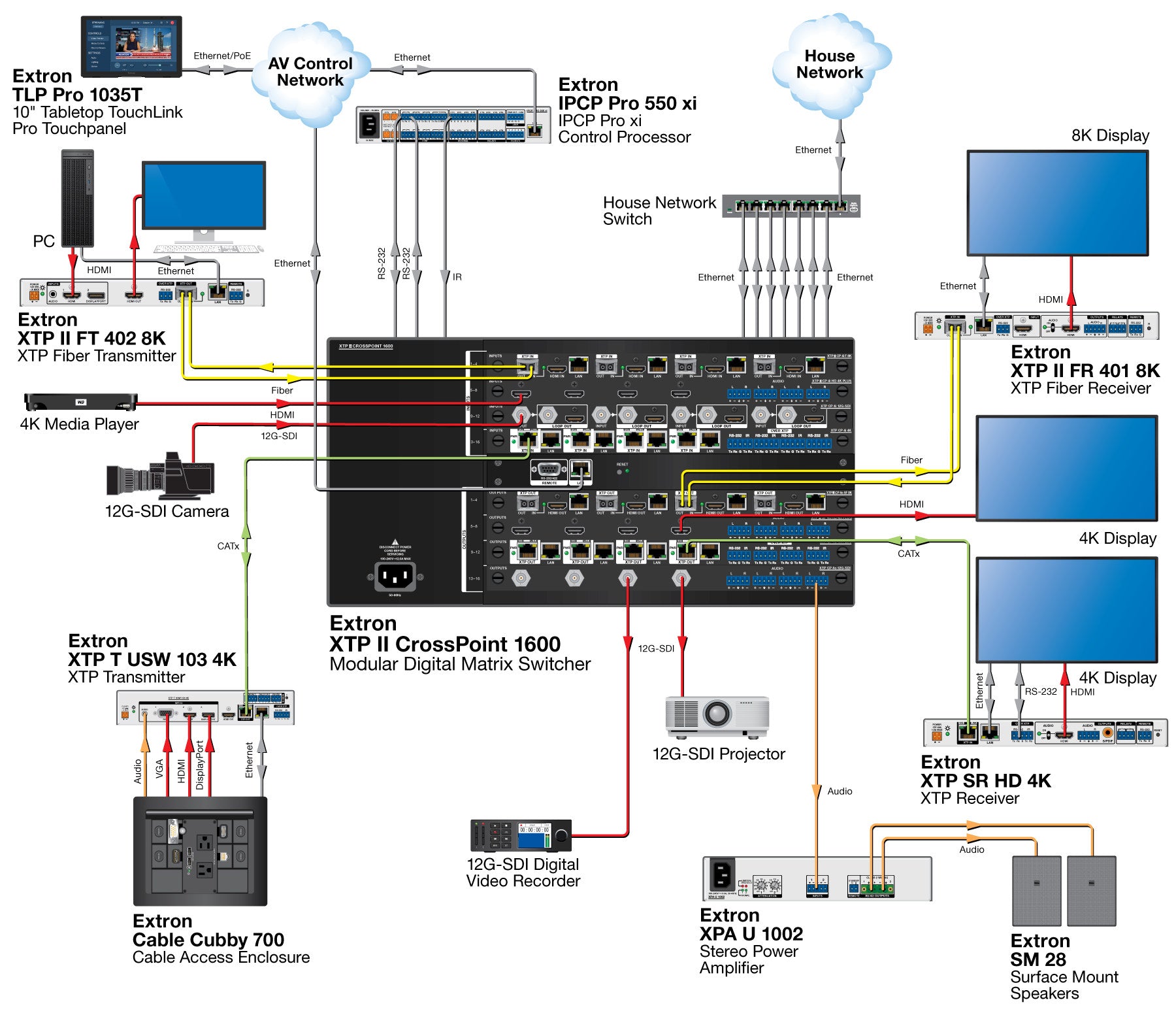

This board plugs into an XTP II CrossPoint frame and accepts four sources on HDMI/DVI-D connectors or over XTP fiber, selectable per input. Video, embedded audio, RS-232, and Ethernet all travel together across a pair of singlemode fiber links to the frame, letting an integrator place true 8K sources kilometers from the switcher without a separate control-wiring run. HDCP 2.3, HDR10, HDR10+, and Dolby Vision pass through intact for demanding production and command-room sources.

Key Capabilities

  • Four inputs switch between HDMI/DVI-D or XTP fiber, selectable per port
  • Supports 8K (7680x4320) at 60 Hz and 4K at up to 120 Hz over HDMI 2.1
  • Two singlemode fiber runs reach 10 km (6.2 miles) at 40 Gbps
  • De-embeds up to 7.1-channel digital audio, including Dolby Atmos and DTS-X
  • Passes RS-232 to XTP transmitters and 1 Gbps Ethernet over 4 RJ-45 ports

Where It Is Used

4i F 8K SM input boards fit XTP II CrossPoint deployments where 8K or high-frame-rate 4K sources — production control rooms, medical imaging suites, campus command centers — sit far beyond copper reach from the matrix frame and need fiber's distance and noise immunity.

Specifications at a Glance

  • 4 HDMI/XTP-selectable inputs, 8 LC fiber connectors
  • Max video data rate: 40.1 Gbps (10 Gbps per color)
  • Singlemode reach: 10 km (6.2 miles)
  • Power consumption: 40 watts
  • 3-year Extron parts-and-labor warranty

Also referenced as Extron XTPIICP4iF8KSM, XTP-II-CP-4i-F-8K-SM, part number 70111402.
