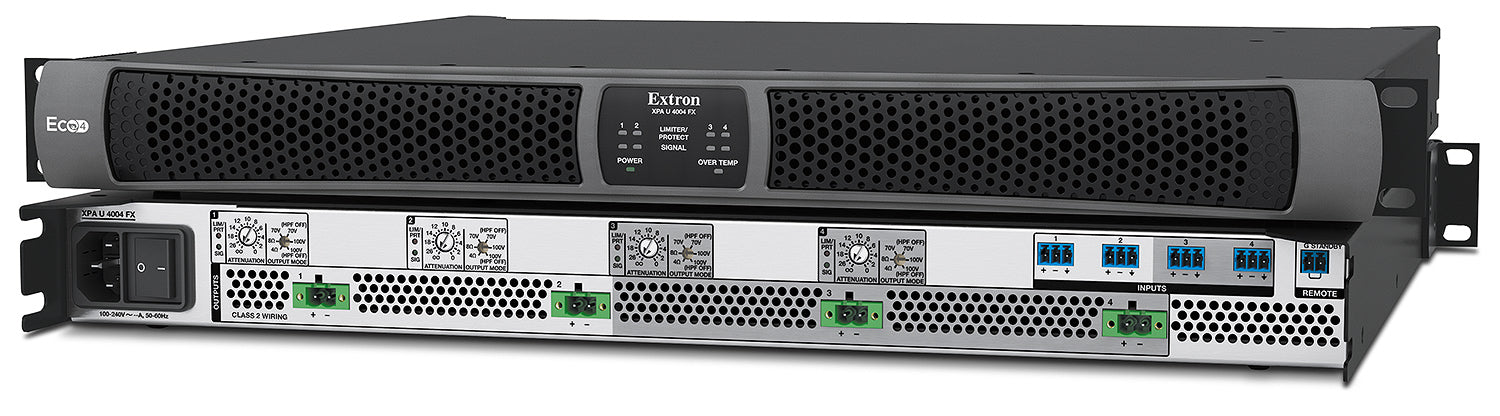

Extron XPA U 4004 FX (part number 60-2034-01) — a four-channel Class D power amplifier that drives 8 ohm, 4 ohm, 70 V and 100 V loads from a single 1U rack frame.

Most multi-zone rooms mix load types: low-impedance speakers over a conference table, a constant-voltage line feeding overhead speakers down a corridor. This amplifier handles both without outboard transformers. Each of its four outputs is rated 400 W with every channel working, and when one channel in a pair carries the load alone it can reach 800 W — headroom for a zone that needs more than its neighbors.

Key Capabilities

Four amplifier channels rated 400 W each with every channel driven, into 4 or 8 ohm, 70 V or 100 V loads (1 kHz, 0.2% THD).
Up to 800 W from one channel of a pair when the partner channel is not carrying load.
Audio performance of 20 Hz to 20 kHz ±1 dB, 100 dB unweighted signal-to-noise, and 0.1% THD+Noise measured 3 dB below clipping.
A switch-selectable 80 Hz high pass filter with 12 dB per octave rolloff for 70 V and 100 V operation.
Four 3-pin 3.5 mm captive screw inputs at +4 dBu nominal, plus a 2-pole control port for contact-closure standby.
Protection covering clip limiting, thermal events, short circuits and DC at the output, with LED indication.

Where It Is Used

Divisible ballrooms, lecture halls, houses of worship, hospital and clinic paging systems, retail floors and transport concourses — anywhere one rack space has to feed several speaker zones that do not share the same impedance or distribution voltage. Rear rack ears accommodate rails set 15.48 to 26.13 inches apart.

Specifications at a Glance

Output power: 400 W per channel, all channels driven
Amplifier type: Class D
Enclosure: 1.74 in H x 17.31 in W x 16.5 in D, 1U high, full rack wide, aluminum
Product weight: 14 lb (6.4 kg)
Warranty: 3 years parts and labor; 7 years on the Everlast power supply

Also referenced as Extron XPAU4004FX, XPA-U-4004-FX, part number 60203401.

Specifications

Part Number: 60-2034-01

Manufacturer: Extron

Model: XPA U 4004 FX

Condition: New

Amplifier type: Class D

Voltage gain, 8-ohm mode: 65x (36 dB)

Voltage gain, 4-ohm mode: 46x (33 dB)

Voltage gain, 70 V mode: 58x (35 dB)

Voltage gain, 100 V mode: 81x (38 dB)

CMRR: 75 dB (typical) @ 1 kHz

Audio inputs: 4 balanced/unbalanced

Audio input connectors: (4) 3-pin 3.5 mm captive screw connectors

Input impedance: >10k ohms balanced/unbalanced, DC coupled

Nominal input level: +4 dBu, balanced

Maximum input level: +20 dBu, balanced

Input sensitivity, 8 ohm/4 ohm modes: +4 dBu (1.23 Vrms) for 800 W @ 8/4 ohms; +1 dBu (0.87 Vrms) for 400 W @ 8/4 ohms

Input sensitivity, 70 V/100 V modes: +4 dBu (1.23 Vrms)

Input signal detection threshold: -65 dBu ±3 dB, balanced

Audio outputs: 4 channels, 8 ohm, 4 ohm, 70 V or 100 V

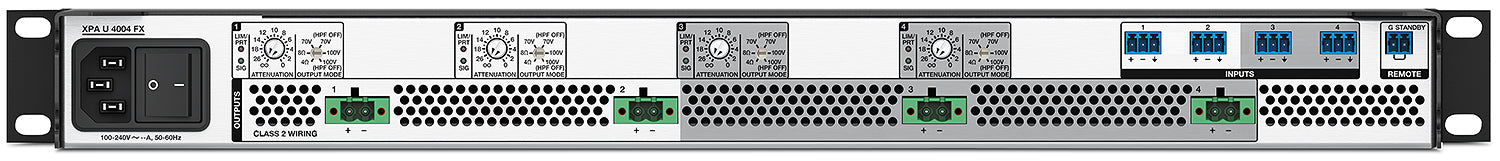

Audio output connectors: (4) 2-pole, 5 mm screw-lock captive screw connectors

Load impedance, 8-ohm mode: 8 ohms minimum

Load impedance, 4-ohm mode: 4 ohms minimum

Load impedance, 70 V mode: 6.25 ohms minimum for 800 W

Load impedance, 100 V mode: 12.5 ohms minimum for 800 W

Output power: 400 W per channel (all channels driven), 4Ω / 8Ω / 70 V / 100 V, 1 kHz, 0.2% THD; 800 W per channel (one channel driven per pair), 4Ω / 8Ω / 70 V / 100 V, 1 kHz

Frequency response: 20 Hz to 20 kHz, ±1 dB, 4Ω / 8Ω / 70 V / 100 V

THD + Noise: 0.1% @ 1 kHz, 8 ohms, at 3 dB below clipping

S/N: 100 dB, 20 Hz - 20 kHz, unweighted

High pass filter, 70 V or 100 V modes: 80 Hz, 12 dB per octave rolloff (switch selectable)

Control port: (1) 3.5 mm captive screw, 2-pole

Standby power control (contact closure): Pin 1 = GND, Pin 2 = Standby

Power: 100 VAC to 240 VAC, 50-60 Hz, internal

Power consumption, active (1/8 power, all channels driven, 8Ω): 3.2 A / 343.1 W @ 115 VAC, 60 Hz; 1.7 A / 335.7 W @ 230 VAC, 50 Hz

Power consumption, quiescent (idle): 21.4 W @ 115 VAC, 60 Hz; 19.7 W @ 230 VAC, 50 Hz

Power consumption, standby: <1 W

Operating temperature/humidity: +32 to +122 °F (0 to +50 °C) / 10% to 90%, non-condensing

Storage temperature/humidity: -40 to +158 °F (−40 to +70 °C) / 10% to 90%, non-condensing

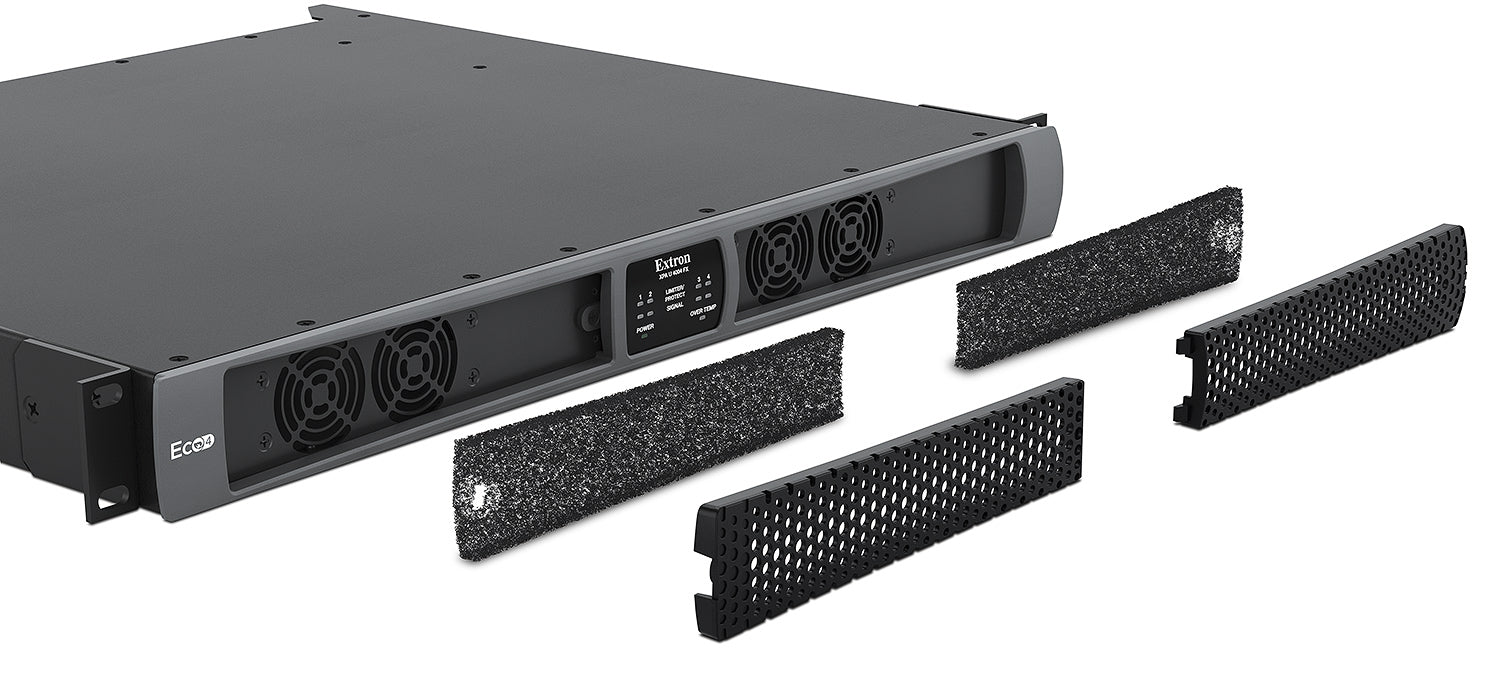

Cooling: Fan, front-to-rear, variable speed

Protection: Clip limiting, thermal, short circuit, DC output

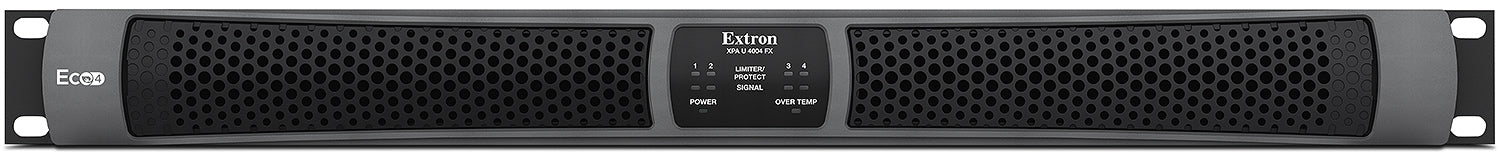

Indication: Limiter/Protect LED indicates the onset of clip limiting, thermal cycling, or a short circuit; Power LED indicates DC output protection

Rack mount: Yes, with included mounting brackets

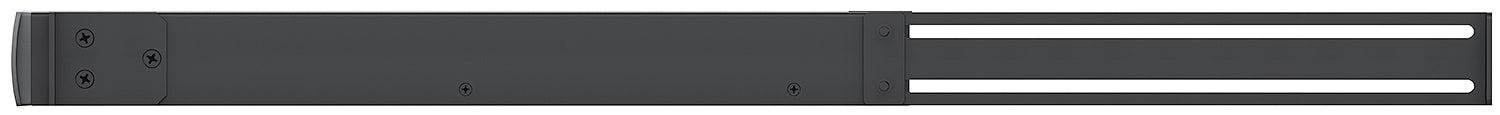

Rear rack ear mounting depth: 15.48 in to 26.13 in D (front rack rails to rear rack rails) (393 mm to 664 mm D)

Enclosure type: Metal (aluminum)

Enclosure dimensions: 1.74 in H x 17.31 in W x 16.5 in D (1U high, full rack wide) (44 mm H x 440 mm W x 419 mm D). Width excludes faceplate and rack ears; depth excludes rear rack ears.

Product weight: 14 lb (6.4 kg)

Regulatory compliance: CE, CEC, CISPR 22 Class B, C-Tick, c-UL, European Code of Conduct, FCC Class B, ICES, RoHS, UL, VCCI Class B; meets UL 62368-1, IEC 62368-1, and EN 62368-1 for AV equipment; ENERGY STAR qualified amplifier

Warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

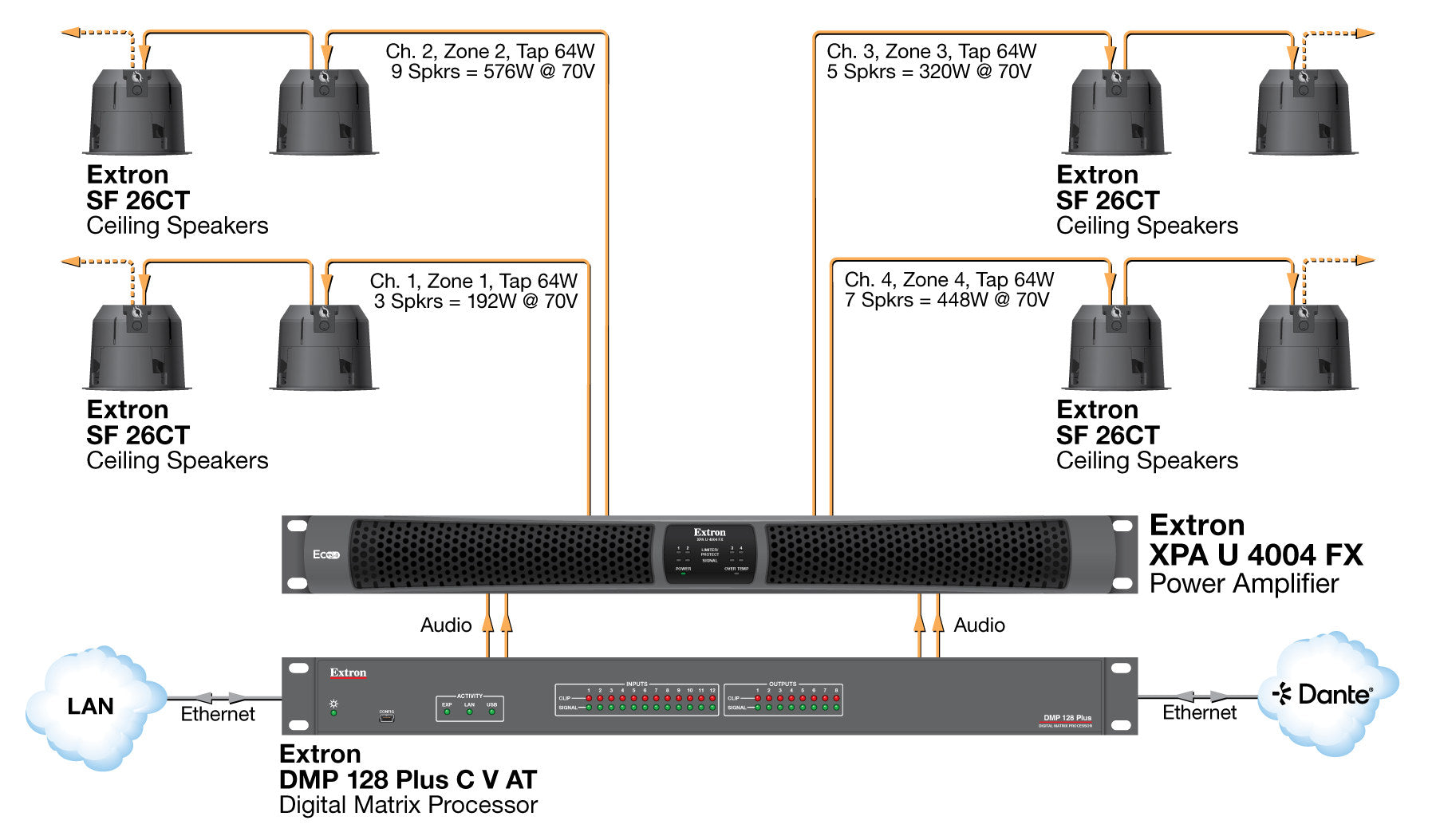

Diagram
