Details

Part number 60-2025-02 — 8 Ch Flexible Output Amp w/ ECO Standby, 200 Watts

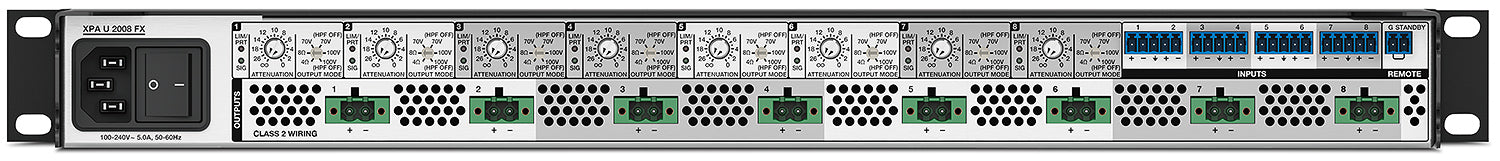

60-2025-02 is the 3.0 in (7.6 cm) version of an eight-channel amplifier that accepts independent rear-panel mode selection for each output. An integrator can therefore drive separate zones with 8 ohm, 4 ohm, 70 V or 100 V loads from a single chassis while routing the combined power of any two adjacent channels to reach 400 W on one output when required.

The amplifier is placed in multi-zone constant-voltage or low-impedance systems where all eight channels must deliver 200 W simultaneously. Selection requires awareness of the listed gains (46x / 33 dB in 8-ohm mode, 33x / 30 dB in 4-ohm mode, 58x / 35 dB in 70 V mode, 81x / 38 dB in 100 V mode), the +4 dBu (1.23 Vrms) input sensitivity for rated power, the switchable 80 Hz 12 dB/octave high-pass filter available only in distributed-voltage modes, and the fan-cooled enclosure supplied with front and rear rack hardware that exits standby in under 5 ms.

Specifications

Part Number: 60-2025-02

Manufacturer: Extron

Condition: New

Amplifier Type: Class D

Voltage Gain - 8-ohm Mode: 46x (33 dB)

Voltage Gain - 4-ohm Mode: 33x (30 dB)

Voltage Gain - 70V Mode: 58x (35 dB)

Voltage Gain - 100V Mode: 81x (38 dB)

CMRR: 75 dB (typical) @ 1 kHz

Audio Input Number/Signal Type: 8 balanced/unbalanced

Audio Input Connectors: (4) 5-pin 3.5 mm captive screw connectors

Audio Input Impedance: >10k ohms balanced/unbalanced, DC coupled

Nominal Level: +4 dBu, balanced

Maximum Level: +20 dBu, balanced

Input Sensitivity (8/4 ohm Modes): +4 dBu (1.23 Vrms) for 400 W @ 8/4 ohms; +1 dBu (0.87 Vrms) for 200 W @ 8/4 ohms

Input Sensitivity (70V/100V Modes): +4 dBu (1.23 Vrms)

Input Signal Detection Threshold: -65 dBu ±3 dB, balanced

Audio Output Number/Signal Type: 8 channels, 8 ohm, 4 ohm, 70V or 100V

Audio Output Connectors: (8) 2-pole, 5 mm screw-lock captive screw connectors

Load Impedance - 8-ohm Mode: 8 ohms minimum

Load Impedance - 4-ohm Mode: 4 ohms minimum

Load Impedance - 70V Mode: 12.5 ohms minimum for 400 W

Load Impedance - 100V Mode: 25 ohms minimum for 400 W

Output Power: 200 W per channel (all channels driven), 4Ω/8Ω/70V/100V, 1 kHz, 0.2% THD; 400 W per channel (one channel driven per pair), 4Ω/8Ω/70V/100V

Frequency Response: 20 Hz to 20 kHz, ±1 dB, 4Ω/8Ω/70V/100V

THD + Noise: 0.2% @ 1 kHz, 8 ohm, at 3 dB below clipping

S/N Ratio: 100 dB, 20 Hz - 20 kHz, unweighted

High Pass Filter (70V or 100V Modes): 80 Hz, 12 dB per octave rolloff (switch selectable)

Control Port: (1) 3.5 mm captive screw, 2-pole

Standby Power Control (Contact Closure): Pin 1 = GND, Pin 2 = Standby

Power: 100-240 VAC, 50-60 Hz, internal

Power Consumption (115 VAC, Active 1/8 Power 8Ω): 311.7 W

Power Consumption (115 VAC, Quiescent): 49.1 W

Standby Power (115 VAC, ECO Standby): <1 W

Operating Temperature/Humidity: +32 to +122°F (0 to +50°C), 10% to 90% noncondensing

Storage Temperature/Humidity: -40 to +158°F (-40 to +70°C), 10% to 90% noncondensing

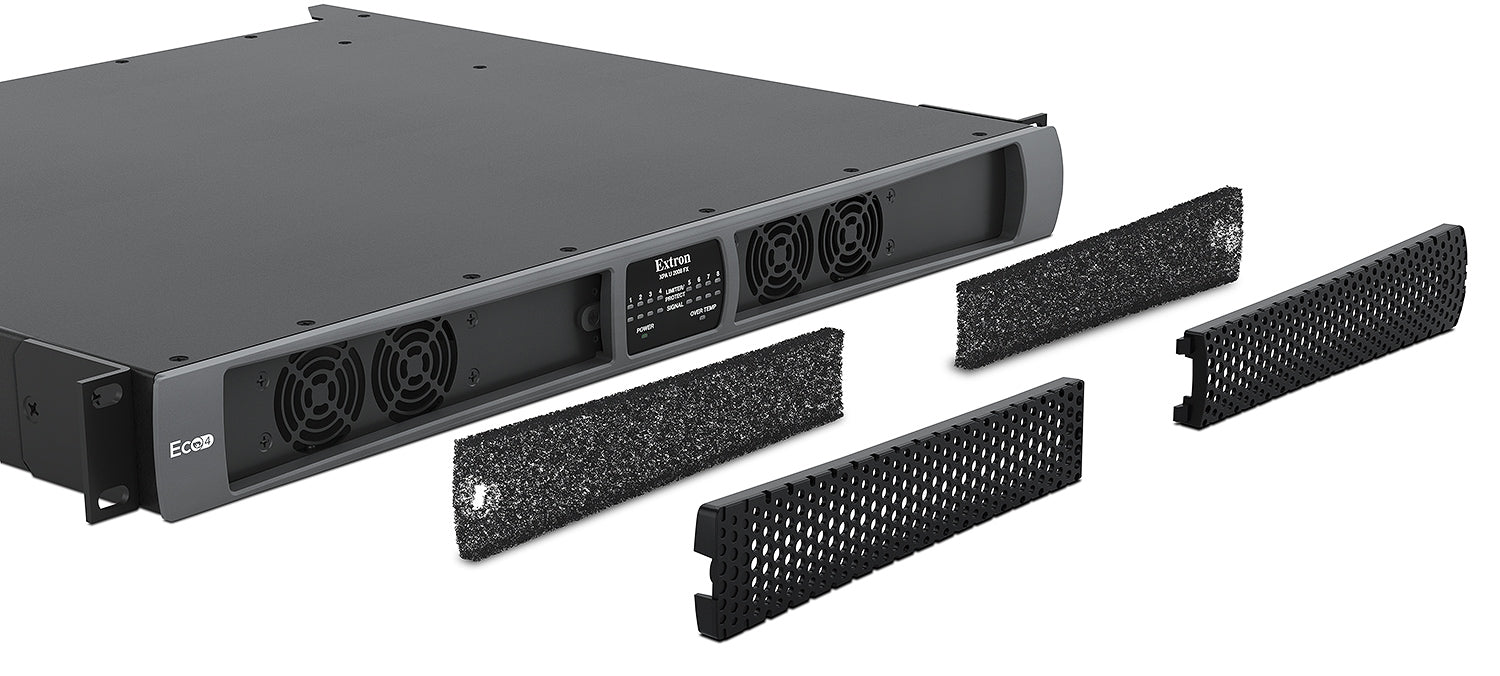

Cooling: Fan, front-to-rear, variable speed

Protection: Clip limiting, thermal, short circuit, DC output

Indication: Limiter/Protect LED indicates onset of clip limiting, thermal cycling, or a short circuit. Power LED indicates DC output protection.

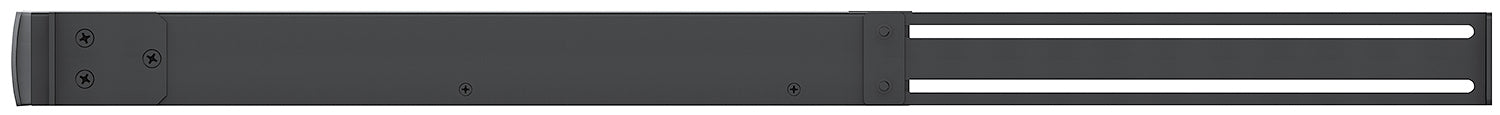

Rack Mount: Yes, with included mounting brackets

Rear Rack Ear Mounting Depth: 15.48" to 26.13" D (front rack rails to rear rack rails)

Enclosure Type: Metal (aluminum)

Enclosure Dimensions: 1.74" H x 17.31" W x 16.5" D (1U high, full rack wide)

Product Weight: 13.0 lbs (5.9 kg)

Regulatory Compliance: CE, CEC, CISPR 22 Class B, C-Tick, c-UL, Ecofficient Level 4, European Code of Conduct, FCC Class B, ICES, RoHS, UL, VCCI Class B. Meets UL 62368-1, IEC 62368-1, and EN 62368-1 for AV equipment.

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

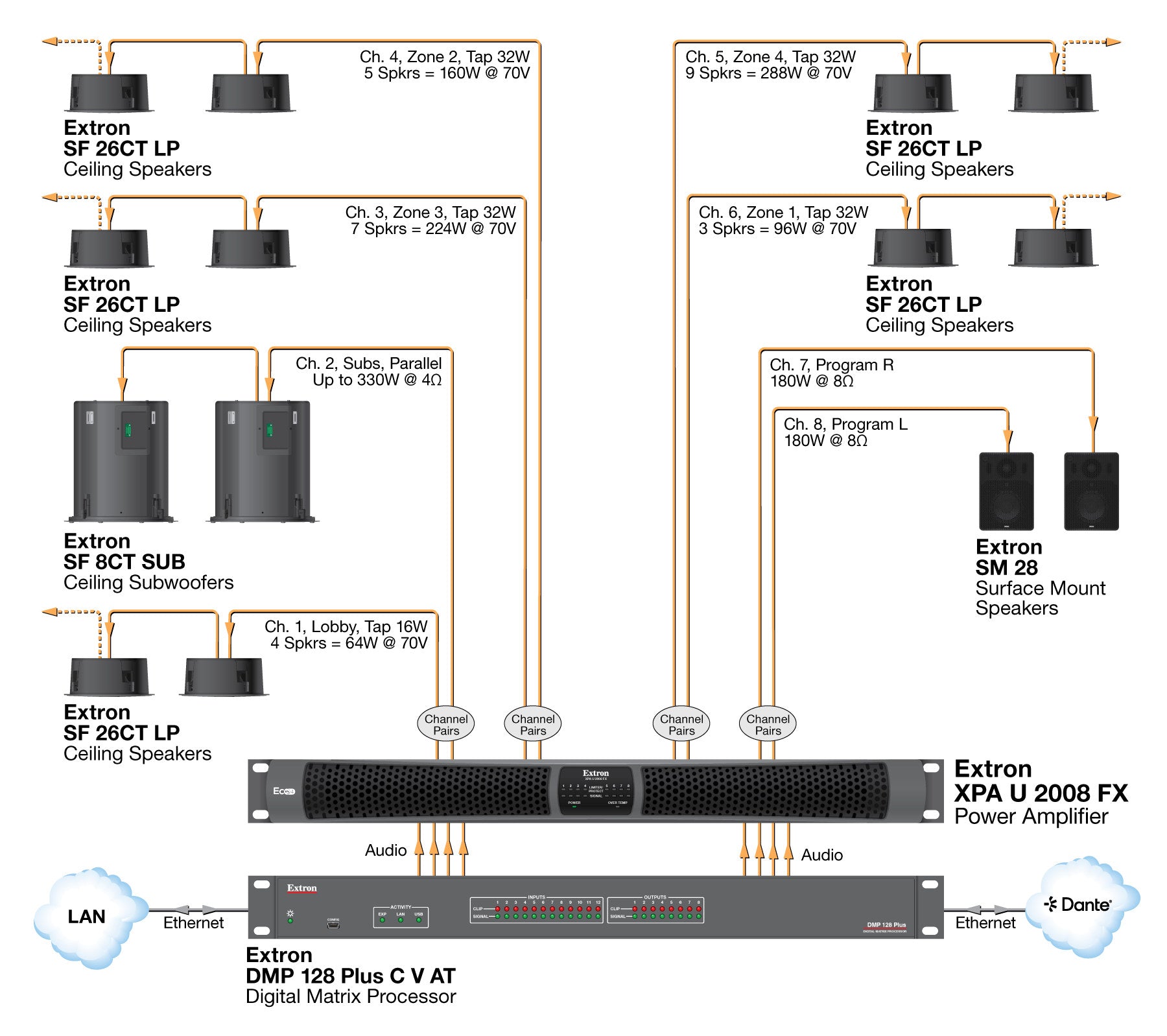

Diagram

Resources

Brochure | XPA U 2008 FX 60-2025-02 | XPA Ultra FX Series

Brochure | XPA U 2008 FX 60-2025-02 | Gamme XPA Ultra FX

Brochure | XPA U 2008 FX 60-2025-02 | Serie XPA Ultra FX (XPA-Ultra-FX-Series_BR_A4_IT_RevA2.pdf)

Brochure | XPA U 2008 FX 60-2025-02 | Serie XPA Ultra FX (XPA-Ultra-FX-Series_BR_A4_SP_RevA2.pdf)

Brochure | XPA U 2008 FX 60-2025-02 | XPA Ultra FX 系列

Brochure | XPA U 2008 FX 60-2025-02 | XPA Ultra FX-Serie

Manual | XPA U 2008 FX 60-2025-02 | XPA U Full Rack Series Audio Power Amplifiers Setup Guide

Manual | XPA U 2008 FX 60-2025-02 | XPA U Fx Series User Guide

Manual | XPA U 2008 FX 60-2025-02 | XPA Ultra Series Audio Power Amplifiers - Guía de configuración

Specifications | XPA U 2008 FX 60-2025-02 | XPA U 2004 FX and XPA U 2008 FX

Specifications | XPA U 2008 FX 60-2025-02 | XPA U 2004 FX and XPA U 2008 FX with ECO Standby

Panel Drawing | XPA U 2008 FX 60-2025-02 | XPA U 2008 FX

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron XPA U 2008 FX 60-2025-02

Name: Extron XPA U 2008 FX 60-2025-02
Brand: Extron
SKU: EXTRON-XPAU2008FX-60202502
Availability: InStock

Manufacturer: Extron

Type: Power Amplifiers

Extron XPA U 2008 FX Eight Channel Flexible Output Amplifier

• Delivers 200W per channel across all loads simultaneously
• Independent rotary switches for per-channel output selection
• Shared power between adjacent channels for up to 400W
• Rapid InstaWake+ recovery from standby mode
• 7-year Everlast power supply warranty
