Details

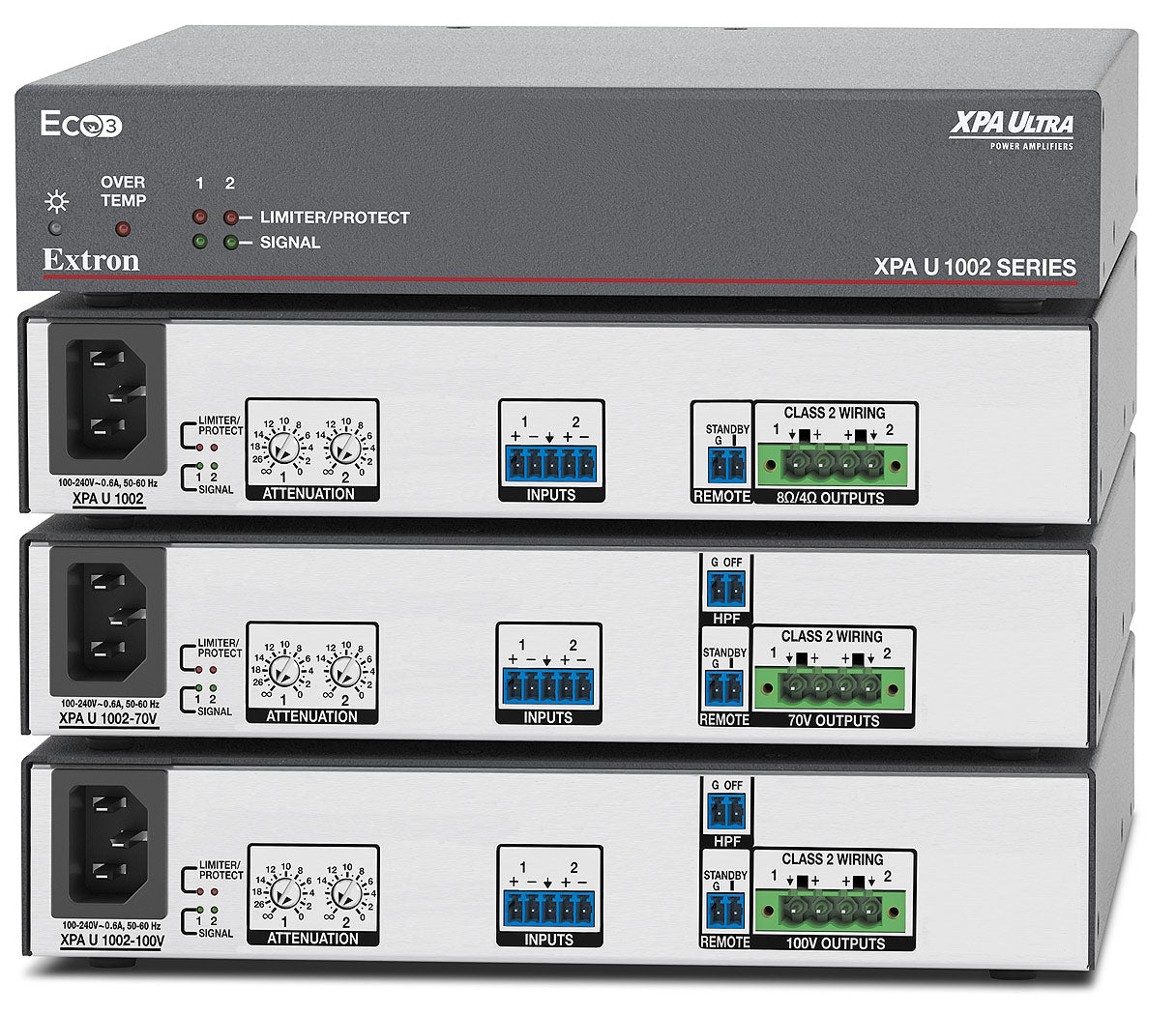

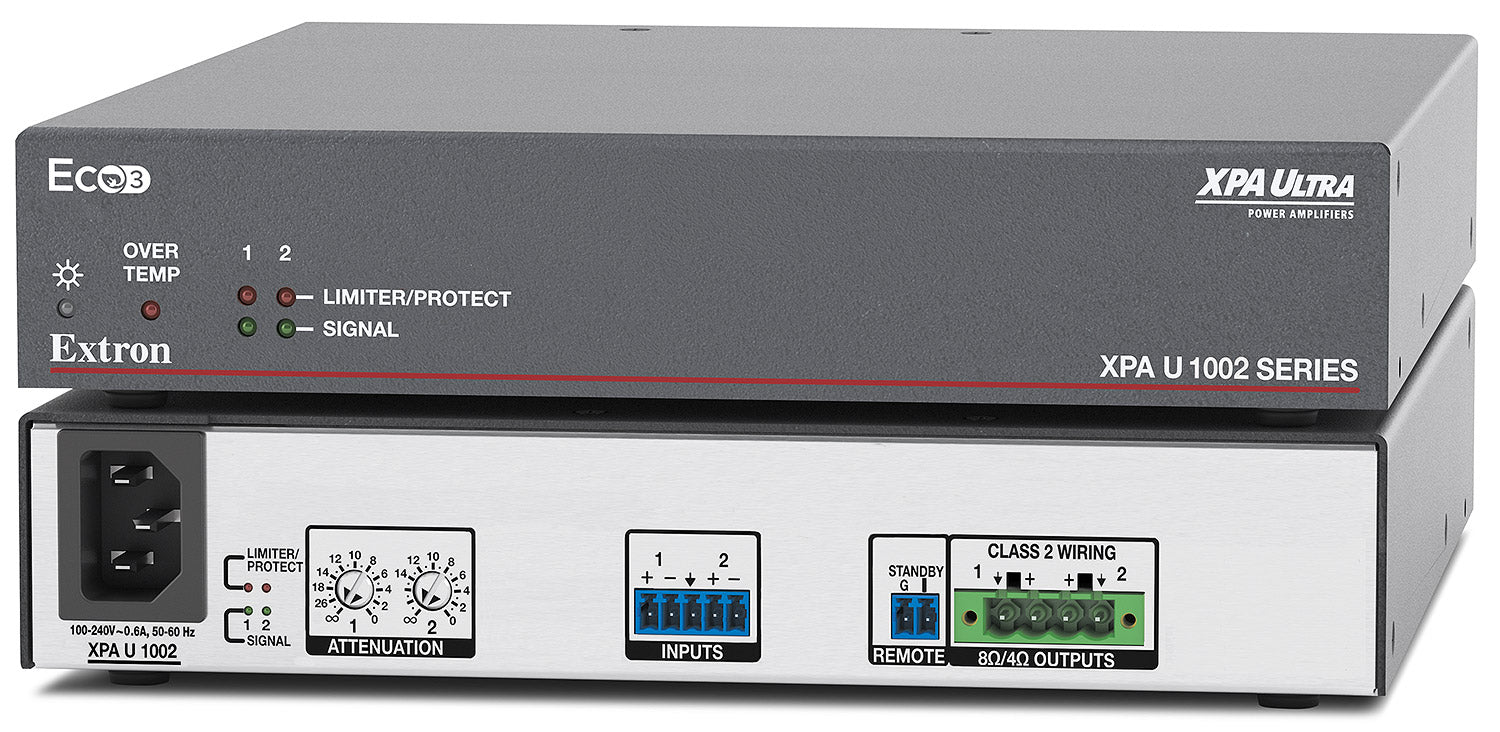

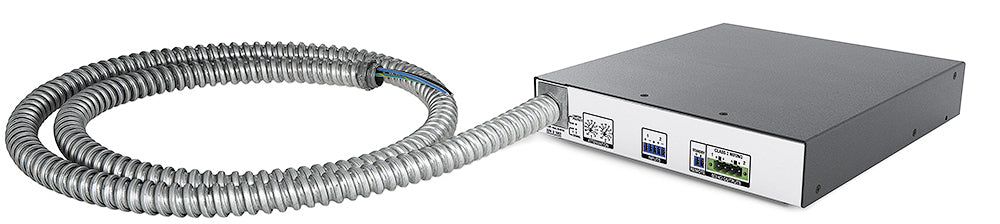

Part number 60-1761-01 — Two-channel Class D power amplifier from Extron's XPA Ultra series.

Each of the two channels drives 100 watts into an 8 or 4 ohm speaker load, packaged in a half-rack-width, 1U enclosure that runs on convection alone with no fan and no vents. That lets several units sit side by side without extra airflow clearance, a common constraint when amplifiers share rack space with other AV gear.

Audio arrives on a single 5-pole captive-screw input connector carrying both channels, with output on a matching 4-pole screw-lock terminal for 12-22 AWG wiring. A dedicated standby control port lets a contact closure drop the amplifier into a sub-1-watt idle state between uses. Extron rates the enclosure for plenum installation and backs the internal power supply with a 7-year Everlast warranty on top of standard product coverage. This model is speaker-load only — for constant-voltage 70V or 100V lines, see the XPA U 1002-70V or -100V variants.

Specifications

Part Number: 60-1761-01

Manufacturer: Extron

Condition: New

Amplifier Type: Class D

Voltage Gain: 23x (27 dB)

CMRR: 75 dB @ 1 kHz (typical)

Audio Input Number/Signal Type: 2 balanced/unbalanced

Audio Input Connectors: (1) 3.5 mm captive screw connector, 5 pole

Audio Input Impedance: >10k ohms balanced/unbalanced, DC coupled

Nominal Level: +4 dBu, balanced

Maximum Level: +20 dBu (7.75 Vrms), balanced

Input Sensitivity: +4 dBu

Input Signal Detection Threshold: -65 dBu ±3 dB, balanced

Audio Output Number/Signal Type: 2 channels, 4 or 8 ohms

Audio Output Connectors: (1) 5 mm screw lock captive screw connector, 4 pole (accepts 22-12 AWG)

Load Impedance: 4 ohms minimum

Output Power: 100 watts per channel @ 8 ohms; 100 watts per channel @ 4 ohms (1 kHz, 0.1% THD)

Frequency Response: 20 Hz to 20 kHz, ±1 dB

THD + Noise: 0.1% @ 1 kHz, at 3 dB below clipping

S/N Ratio: 100 dB, 20 Hz - 20 kHz, unweighted

Damping Factor: >100 @ 8 ohms

Control Port: (1) 3.5 mm captive screw connector, 2-pole

Standby Power Control (Contact Closure): Pin 1 = GND, pin 2 = Standby

Power Supply: Internal, 100-240 VAC, 50-60 Hz

Power Consumption (115 VAC, Active 1/8 Power 8Ω): 34.2 W

Power Consumption (115 VAC, Quiescent): 5.3 W

Standby Power (115 VAC): <1 W

Operating Temperature/Humidity: +32 to +122°F (0 to +50°C), 10% to 90% noncondensing

Storage Temperature/Humidity: -40 to +158°F (-40 to +70°C), 10% to 90% noncondensing

Cooling: Convection, no vents

Protection: Clip limiting, thermal, short circuit, DC output

Indication: Limiter/Protect LED indicates onset of clip limiting, thermal cycling, or a short circuit. Over Temp LED indicates when the amplifier exceeds recommended operating temperature. Power LED indicates power state and DC output protection.

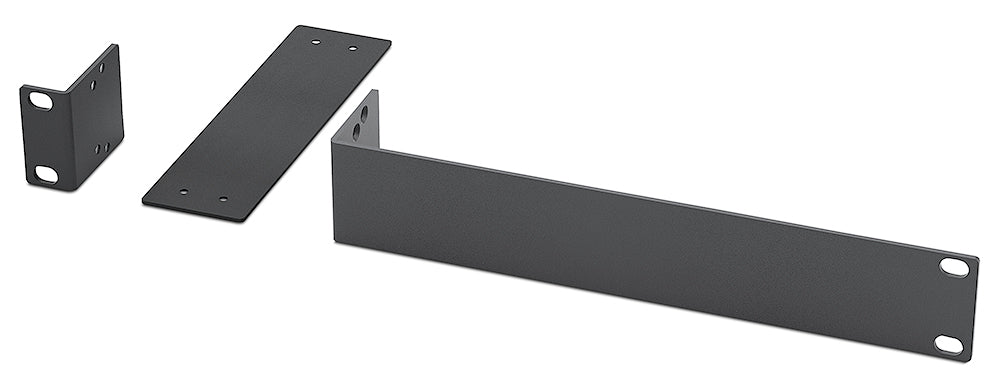

Rack Mount: Yes, with included mounting brackets or optional rack shelf

Enclosure: Metal

Enclosure Dimensions: 1.7" H x 8.7" W x 10.5" D (1U high, half rack wide)

Product Weight: 3.4 lbs (1.5 kg)

Regulatory Compliance: CCC, CE, C-tick, c-UL, EN55032, EN55035, Ecofficient Level 3, FCC Class B, ICES, KC, UL, VCCI Class B. Meets UL 62368-1, IEC 62368-1, and BSEN 62368-1 for multimedia equipment. RoHS, WEEE. UL rated for plenum airspaces (UL 2043).

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | XPA U 1002 60-1761-01 | Everlast Power Supplies

Brochure | XPA U 1002 60-1761-01 | In-Depth Independent Review of XPA Ultra Amplifier

Brochure | XPA U 1002 60-1761-01 | XPA Ultra - Power Amplifiers (xpa_ultra_series_rev_a4.pdf)

Brochure | XPA U 1002 60-1761-01 | XPA Ultra Series - Power Amplifiers (XPA_Ultra_Series_Rev_A4_CN_Online.pdf)

Brochure | XPA U 1002 60-1761-01 | XPA Ultra Series - Power Amplifiers (XPA-Ultra-Series_BR_A4_EN_RevA4_Japanese.pdf)

Brochure | XPA U 1002 60-1761-01 | Alimentatori Everlast

Brochure | XPA U 1002 60-1761-01 | Ausführliche, unabhängige Bewertung des XPA Ultra-Verstärkers

Brochure | XPA U 1002 60-1761-01 | Everlast 电源

Brochure | XPA U 1002 60-1761-01 | Everlast-Netzteile

Brochure | XPA U 1002 60-1761-01 | Fuentes de alimentación Everlast

Brochure | XPA U 1002 60-1761-01 | Sources d'alimentation Everlast

Brochure | XPA U 1002 60-1761-01 | XPA Ultra - Power Amplifiers (XPA-Ultra-PA_BR_A4_GE_RevA4.pdf)

Brochure | XPA U 1002 60-1761-01 | XPA Ultra - Power Amplifiers (XPA-Ultra-PA_BR_A4_IT_RevA4.pdf)

Brochure | XPA U 1002 60-1761-01 | XPA Ultra - Power Amplifiers (XPA-Ultra-PA_BR_A4_SP_RevA4.pdf)

Brochure | XPA U 1002 60-1761-01 | XPA Ultra - Power Amplifiers (XPA-Ultra-PA_BR_A4_FR_RevA4.pdf)

Brochure | XPA U 1002 60-1761-01 | XPA Ultra - Power Amplifiers (XPA-Ultra-PA_BR_A4_RU_RevA4.pdf)

Manual | XPA U 1002 60-1761-01 | Cleaning Instruction Card

Manual | XPA U 1002 60-1761-01 | XPA Ultra Series Audio Power Amplifiers Setup Guide

Manual | XPA U 1002 60-1761-01 | XPA Ultra Series Setup Guide

Manual | XPA U 1002 60-1761-01 | XPA Ultra Series User Guide

Manual | XPA U 1002 60-1761-01 | XPA Ultra

Manual | XPA U 1002 60-1761-01 | XPA Ultra Series Audio Power Amplifiers - Guía de configuración

Specifications | XPA U 1002 60-1761-01 | XPA Ultra Series 1002, 1002-70V, 1002-100V

Panel Drawing | XPA U 1002 60-1761-01 | XPA U 1002
