Details

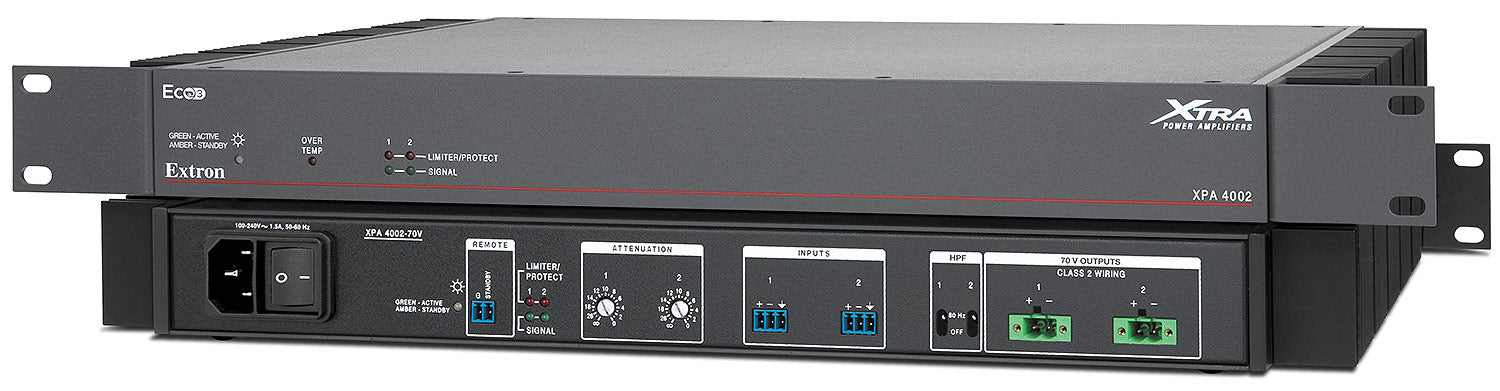

Part number 60-1245-01 — 70V constant-voltage version of the two-channel XPA 4002 Class D power amplifier.

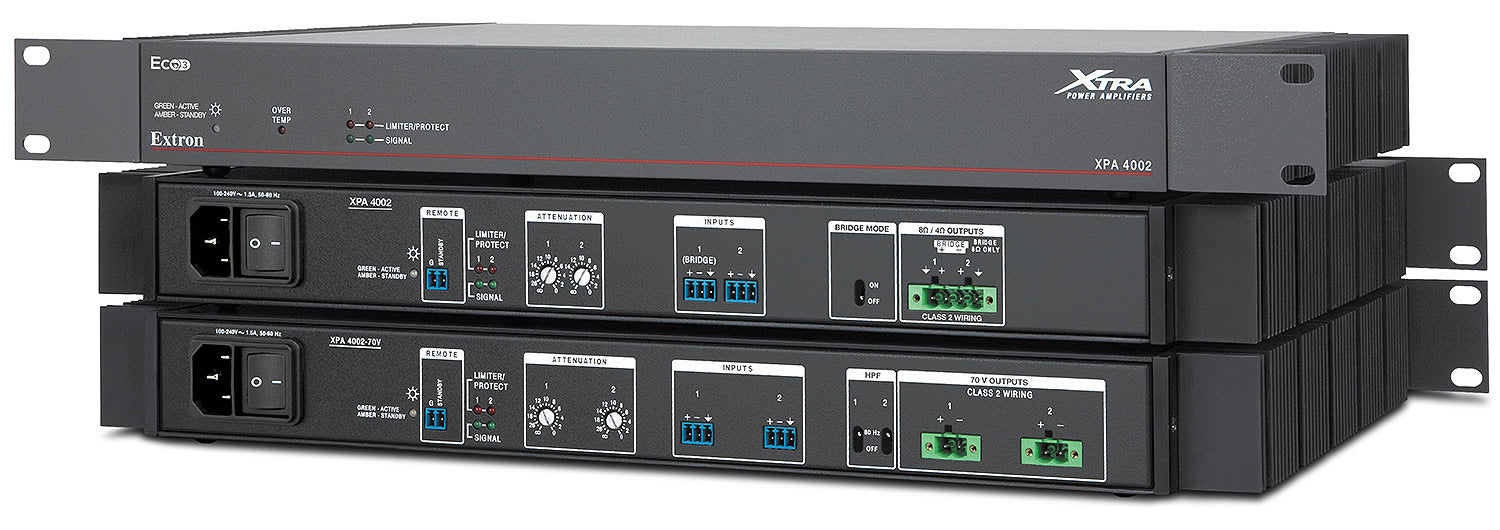

Both channels drive a 70-volt line at 400 watts each, with a switch-selectable 80 Hz high-pass filter that rolls off low frequencies at 12 dB per octave to protect distributed-audio loudspeakers. The same fanless, 1U full-rack-width enclosure as the standard XPA 4002 keeps installation footprint and thermal load down, using side heat sinks and convection alone.

Inputs are balanced/unbalanced on captive-screw connectors, while the two 70V outputs land on separate 2-pole screw-lock terminals rated for 12-22 AWG wire. A 2-pole control port supports a remote contact closure for standby switching, and the internal power supply carries Extron's 7-year Everlast warranty in addition to standard product coverage.

Specifications

Part Number: 60-1245-01

Manufacturer: Extron

Condition: New

Amplifier Type: Class D

Voltage Gain: 57x (35 dB)

Crosstalk: 75 dB (typical) @ 1 kHz

CMRR: 75 dB (typical) @ 1 kHz

Audio Input Number/Signal Type: 2 balanced/unbalanced

Audio Input Connectors: (2) 3.5 mm captive screw connectors, 3 pole

Audio Input Impedance: >10k ohms unbalanced/balanced, DC coupled

Nominal Level: +4 dBu (1.23 Vrms), balanced

Maximum Level: +21 dBu (8.69 Vrms), balanced

Input Sensitivity: +4 dBu (1.23 Vrms)

Input Signal Detection Threshold: -40 dBu ±3 dB, balanced

Audio Output Number/Signal Type: 2 channels, 70 V

Audio Output Connectors: (2) 5 mm screw lock captive screw connectors, 2 pole (accepts 22-12 AWG)

Load Impedance: 12.5 ohms minimum

Output Power: 400 watts RMS per channel @ 70 V, 1 kHz, 0.1% THD

Frequency Response: 20 Hz to 20 kHz, ±1 dB

THD + Noise: 0.1%, 1 kHz, 3 dB below clipping

S/N Ratio: 100 dB, 20 Hz - 20 kHz, unweighted

Damping Factor: >100 @ 12.5 ohms

High Pass Filter: 80 Hz, 12 dB per octave rolloff for 70 V line output (switch selectable)

Control Port: (1) 3.5 mm captive screw connector, 2 pole

Standby Power Control (Contact Closure): Pin 1 = GND, pin 2 = standby

Power Input: Internal, 100-240 VAC, 50-60 Hz

Power Consumption (115 VAC, Active 70V Line): 149.7 W

Power Consumption (115 VAC, Quiescent): 22.0 W

Standby Power (115 VAC): <1 W

Operating Temperature/Humidity: +32 to +122°F (0 to +50°C), 10% to 90% noncondensing

Storage Temperature/Humidity: -40 to +158°F (-40 to +70°C), 10% to 90% noncondensing

Cooling: Convection, no vents, with heat sinks on the sides

Protection: Clip limiting, thermal, short circuit, DC output

Indication: Limiter/Protect LED indicates onset of clip limiting, thermal cycling, or a short circuit

Rack Mount: Yes, with included mounting brackets

Enclosure Type: Metal

Enclosure Dimensions: 1.7" H x 17.4" W x 12.0" D (1U high, full rack wide; 19.0" W with rack ears)

Product Weight: 9.2 lbs (4.2 kg)

Regulatory Compliance: CE, C-tick, UL, c-UL, FCC, Ecofficient Level 3, VCCI, RoHS, WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

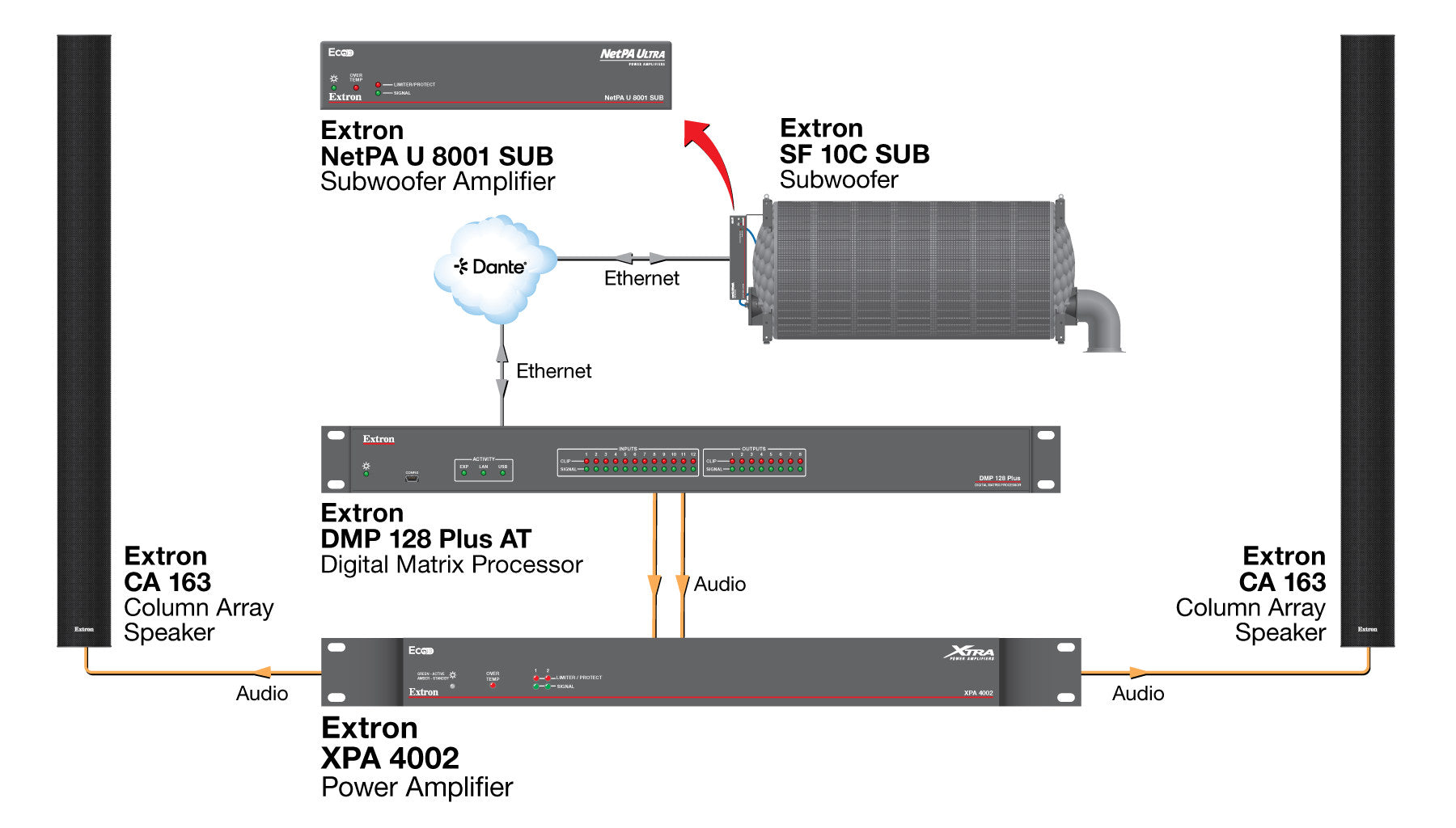

Diagram

Resources

Brochure | XPA 4002-70V 60-1245-01 | XPA 4002

Brochure | XPA 4002-70V 60-1245-01 | XPA 4002-70V

Brochure | XPA 4002-70V 60-1245-01 | XTRA Series

Brochure | XPA 4002-70V 60-1245-01 | Everlast Power Supplies

Brochure | XPA 4002-70V 60-1245-01 | Gamme XTRA

Brochure | XPA 4002-70V 60-1245-01 | Serie XTRA (xtraseries_spbro_revB.pdf)

Brochure | XPA 4002-70V 60-1245-01 | Serie XTRA (XtraSeries_BR_A4_IT_NP_RevB_LR.pdf)

Brochure | XPA 4002-70V 60-1245-01 | XTRA-Serie

Brochure | XPA 4002-70V 60-1245-01 | Alimentatori Everlast

Brochure | XPA 4002-70V 60-1245-01 | Everlast 电源

Brochure | XPA 4002-70V 60-1245-01 | Everlast-Netzteile

Brochure | XPA 4002-70V 60-1245-01 | Fuentes de alimentación Everlast

Brochure | XPA 4002-70V 60-1245-01 | Sources d'alimentation Everlast

Brochure | XPA 4002-70V 60-1245-01 | XTRA 系列

Brochure | XPA 4002-70V 60-1245-01 | XTRAシリーズ

Manual | XPA 4002-70V 60-1245-01 | Cleaning Instruction Card

Manual | XPA 4002-70V 60-1245-01 | XTRA Full Rack Series Setup Guide

Manual | XPA 4002-70V 60-1245-01 | XTRA Full Rack Series User Guide

Specifications | XPA 4002-70V 60-1245-01 | XPA 4002 Series

Panel Drawing | XPA 4002-70V 60-1245-01 | XPA 4002
