Details

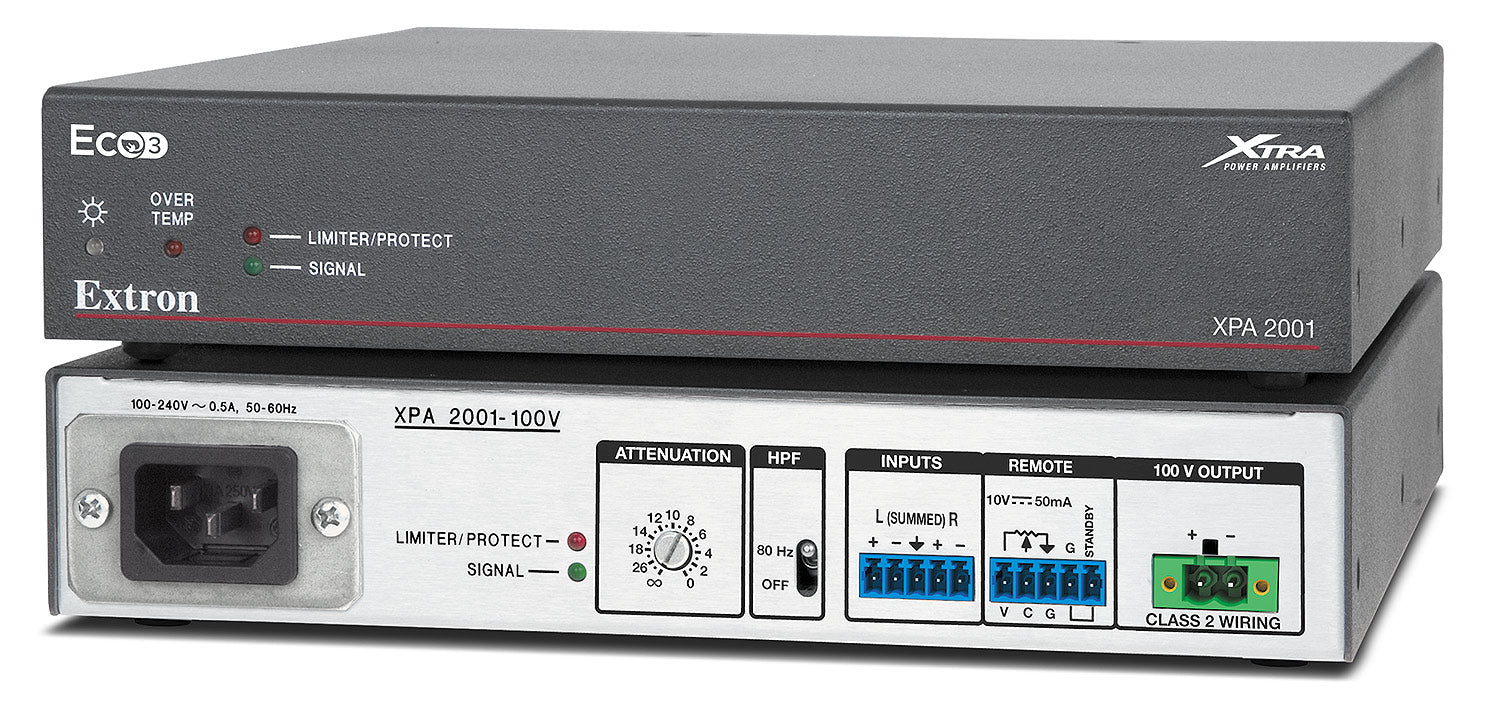

Extron XPA 2001-100V (part number 60-850-11) — a half-rack, single-channel power amplifier built for high-power 100V distributed speaker lines.

This convection-cooled, fanless amplifier delivers a full 200 watts rms into a 100V line from a compact half-rack chassis, giving integrators a single-zone, high-output option for large paging or program-audio runs. A switch-selectable 80 Hz high-pass filter protects speaker-line transformers, and the analog DC volume/mute control port lets the amplifier work with simple wall-mounted or contact-closure control systems.

Key Capabilities

200 W rms into a 100V line at 1 kHz, less than 0.1% THD
Switch-selectable 80 Hz high-pass filter protects speaker transformers
100 dB signal-to-noise ratio with damping factor greater than 100
Analog 0-10V DC volume/mute control plus contact-closure standby
Convection-cooled, fanless half-rack 1U enclosure at 2.5 lbs
Backed by a 3-year product warranty plus a 7-year Everlast power supply warranty

Where It Is Used

The single high-power 100V channel fits large paging zones, houses of worship, and auditoriums where one amplifier needs to drive a long run of 100V ceiling or horn speakers without stepping up to a multi-channel chassis.

Specifications at a Glance

Output: 200 W rms @ 100V, 1 kHz, <0.1% THD
Frequency response: 20 Hz to 20 kHz, ±1 dB
Enclosure: 1.7" H x 8.7" W x 9.5" D, half-rack 1U, metal, convection cooled
Warranty: 3 years parts and labor; Everlast power supply 7 years

Also referenced as Extron XPA2001100V, XPA-2001-100V, part number 6085011.

Specifications

Part Number: 60-850-11

Manufacturer: Extron

Model: XPA 2001-100V

Condition: New

Amplifier Type: Class D

Voltage Gain: 81x (38 dB)

Output Power: 200 W rms, 100 V, 1 kHz, <0.1% THD

Load Impedance: 50 ohms minimum

Damping Factor: >100 @ 50 ohms

Audio Output: 1 mono, 100 V line; (1) 5 mm captive screw connector, 2-pole (22-12 AWG)

High-Pass Filter: 80 Hz, 12 dB per octave rolloff, switch selectable

Stereo Channel Separation: >75 dB @ 1 kHz

CMRR: 75 dB @ 1 kHz (typical)

Audio Input: 1 stereo or 2 mono, balanced/unbalanced; (1) 3.5 mm captive screw connector, 5-pole

Input Impedance: >10k ohms unbalanced/balanced, DC coupled

Input Nominal Level: +4 dBu (1.23 Vrms), balanced

Input Maximum Level: +20 dBu (7.75 Vrms), balanced

Input Sensitivity: +4 dBu (1.23 Vrms) single input; -2 dBu (0.615 Vrms) if both inputs summed

Input Signal Detection Threshold: -40 dBu ±3 dB, balanced

Frequency Response: 20 Hz to 20 kHz, ±1 dB

THD+N: <0.1% @ 1 kHz at 3 dB below clipping

S/N: 100 dB, 20 Hz - 20 kHz, unweighted

Control Port: (1) 3.5 mm captive screw connector, 5-pole

DC Volume Control (Analog): Pin 1 = +10 VDC (50 mA max), Pin 2 = volume/mute (variable voltage), Pin 3 = GND

Volume Control Voltage Range: 0 V (mute) to 10 V (maximum volume)

Standby Power Control (Contact Closure): Pin 4 = GND, Pin 5 = standby

Protection: Clip limiting, thermal, short circuit, DC output

Power Supply: Internal, 100-240 VAC, 50-60 Hz

Power Consumption (Active, 100V): 0.4 A / 43.7 W / 18.7 W / 64 BTU/hr at 115 VAC; 0.4 A / 44.8 W / 19.8 W / 68 BTU/hr at 230 VAC

Power Consumption (Quiescent): 0.1 A / 11.9 W / 11.9 W / 41 BTU/hr at 115 VAC; 0.1 A / 11.9 W / 11.9 W / 40 BTU/hr at 230 VAC

Power Consumption (Standby): <0.1 A / <1 W / <1 W / <3 BTU/hr

Storage Temperature: -40° to +158°F (-40° to +70°C), 10% to 90% non-condensing

Operating Temperature: +32° to +122°F (0° to +50°C), 10% to 90% non-condensing

Cooling: Convection, no vents, with internal heat sinks

Mounting: Rack mountable with optional 1U rack shelf

Enclosure: Metal, half-rack 1U, 1.7" H x 8.7" W x 9.5" D (4.3 x 22.1 x 24.1 cm)

Weight: 2.5 lbs (1.1 kg)

Regulatory Compliance: CE, C-tick, UL, c-UL, FCC, Ecofficient Level 3, VCCI, RoHS, WEEE; UL rated for plenum airspaces, meets UL 2043

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | XPA 2001-100V 60-850-11 | XTRA Series

Brochure | XPA 2001-100V 60-850-11 | Everlast Power Supplies

Brochure | XPA 2001-100V 60-850-11 | Gamme XTRA

Brochure | XPA 2001-100V 60-850-11 | Serie XTRA (xtraseries_spbro_revB.pdf)

Brochure | XPA 2001-100V 60-850-11 | Serie XTRA (XtraSeries_BR_A4_IT_NP_RevB_LR.pdf)

Brochure | XPA 2001-100V 60-850-11 | XTRA-Serie

Brochure | XPA 2001-100V 60-850-11 | Alimentatori Everlast

Brochure | XPA 2001-100V 60-850-11 | Everlast 电源

Brochure | XPA 2001-100V 60-850-11 | Everlast-Netzteile

Brochure | XPA 2001-100V 60-850-11 | Fuentes de alimentación Everlast

Brochure | XPA 2001-100V 60-850-11 | Sources d'alimentation Everlast

Brochure | XPA 2001-100V 60-850-11 | XPA 2001 100V - Bid Sheet

Brochure | XPA 2001-100V 60-850-11 | XPA 2001 70V - Bid Sheet

Brochure | XPA 2001-100V 60-850-11 | XTRA 系列

Brochure | XPA 2001-100V 60-850-11 | XTRAシリーズ

Manual | XPA 2001-100V 60-850-11 | Cleaning Instruction Card

Manual | XPA 2001-100V 60-850-11 | XTRA Series Half-Rack Audio Power Amplifiers Setup Guide

Manual | XPA 2001-100V 60-850-11 | XTRA™ Series User Guide

Manual | XPA 2001-100V 60-850-11 | XTRA Series Half-Rack Audio Power Amplifiers SUG Simplified Chinese

Manual | XPA 2001-100V 60-850-11 | XTRA Series Half-Rack Audio Power Amplifiers SUG TCH

Manual | XPA 2001-100V 60-850-11 | XTRA Series Half-Rack Audio Power Amplifiers SUG Traditional Chinese

Specifications | XPA 2001-100V 60-850-11 | XPA 2001 Series

Panel Drawing | XPA 2001-100V 60-850-11 | XPA 2001
