Extron WC Pro 150 OCS Workspace Automation Controller
- • Preconfigured for CEC display power control straight out of the carton
- • Two PIR sensors plus one acoustic sensor cover 400 square feet
- • 142 degree horizontal by 24 degree vertical detection field of view
- • Inactivity timer adjusts from 1 second to 24 hours in the web page
- • Digital output 2 reports live room occupancy status to other systems
- • Runs on PoE 802.3af class 3 alone, so no outlet is required

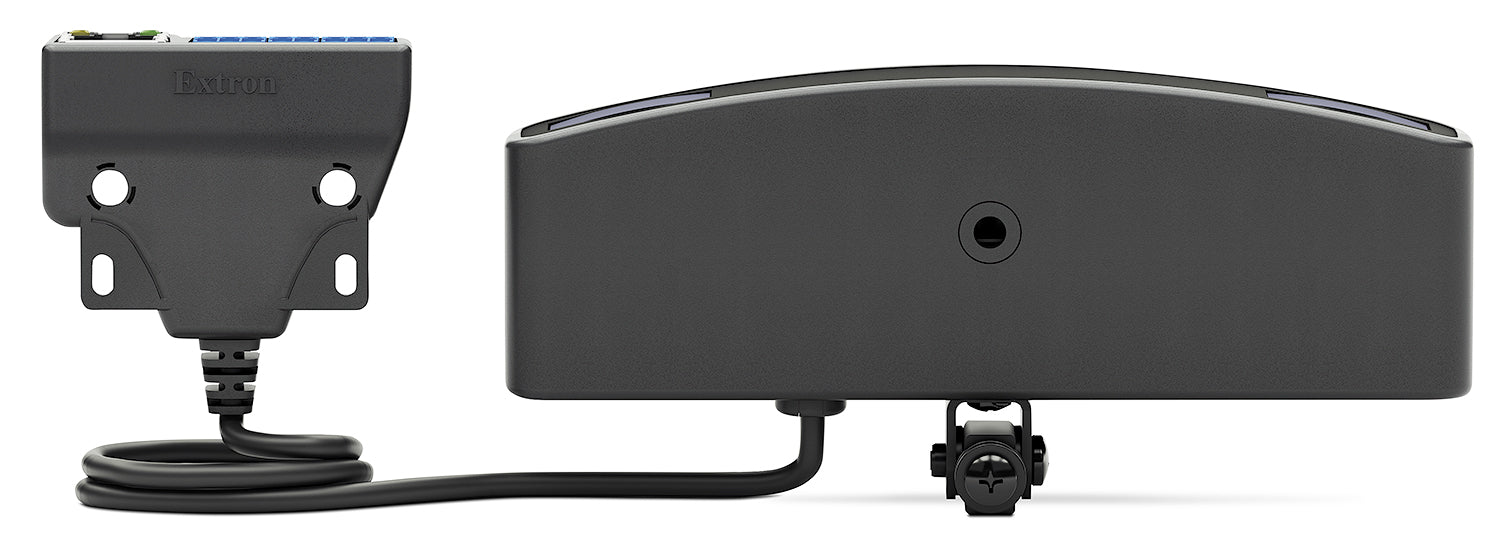

- • Control ports sit on a hub 3 ft away, tucked behind the display
- • Six inch enclosure at 0.53 lbs with a 3 year parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

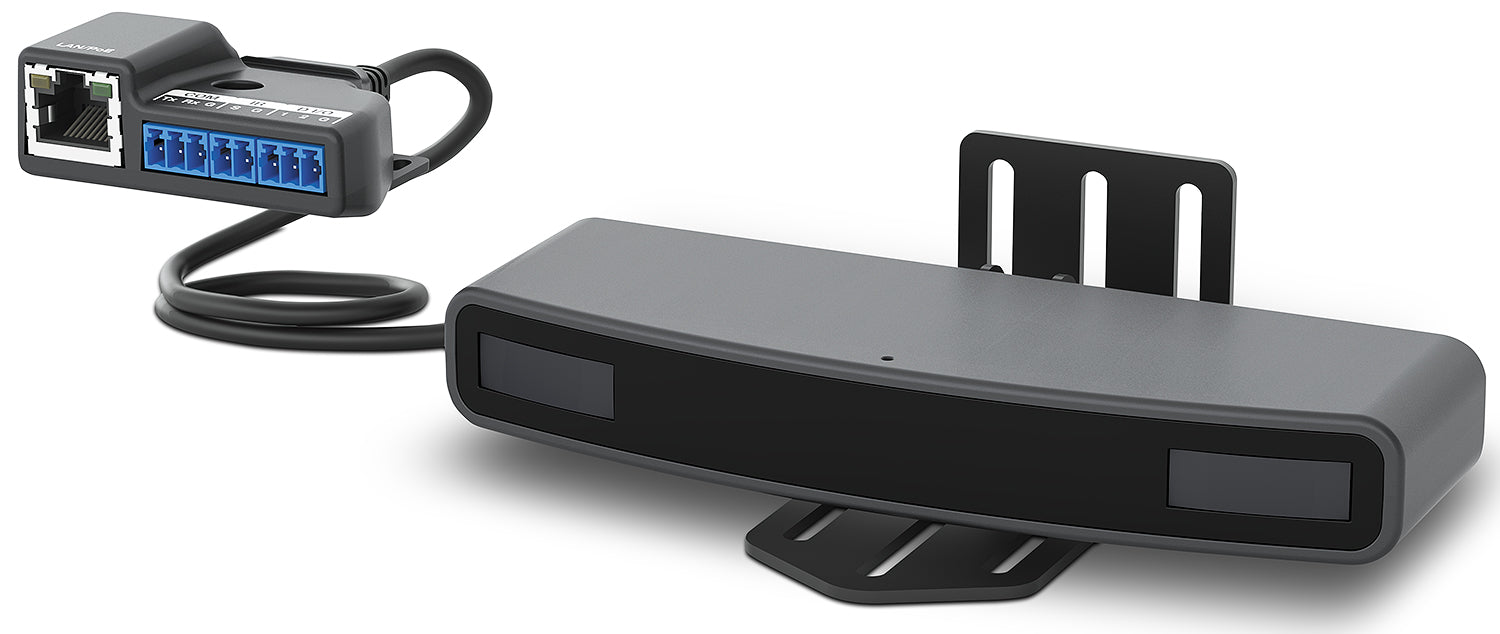

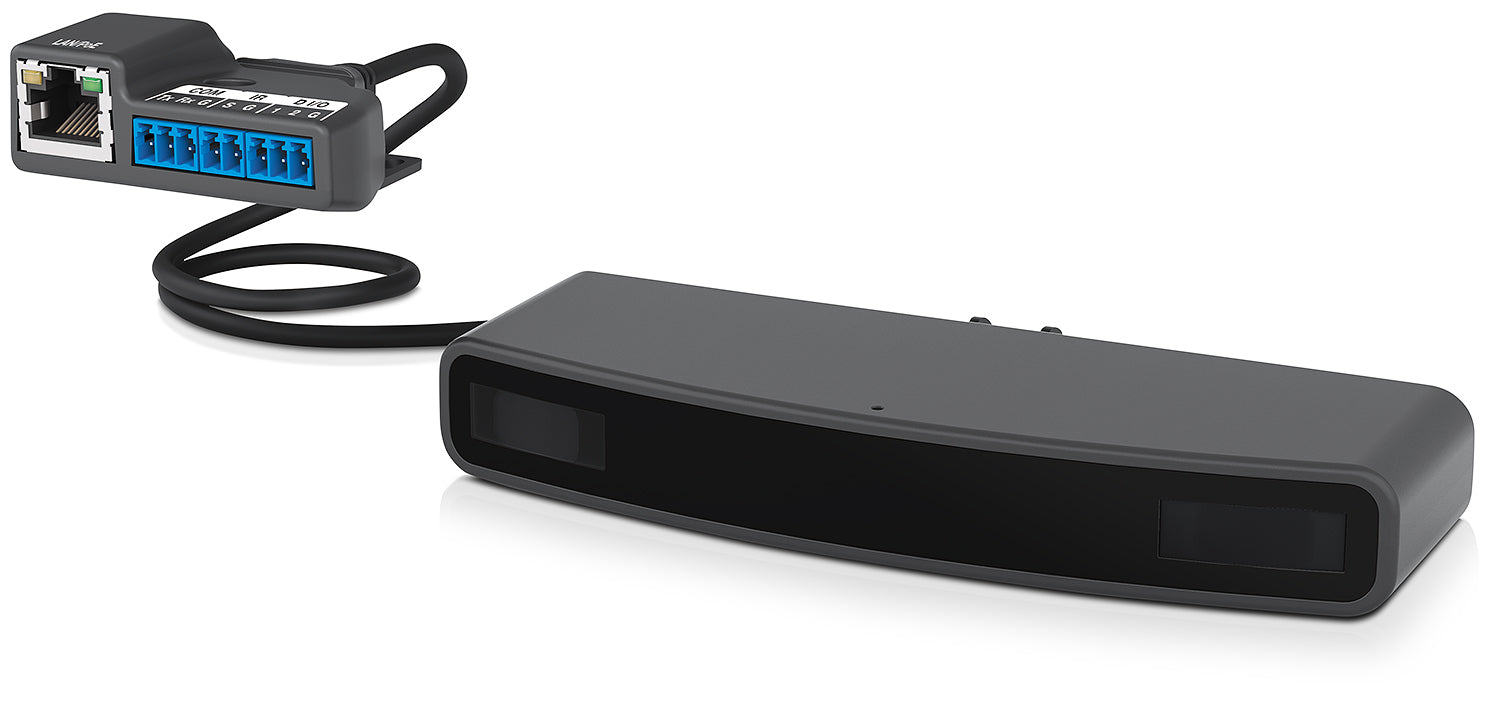

Extron WC Pro 150 OCS (part number 60-1803-01) — the base occupancy-sensing workspace automation controller, ready to run the moment it is plugged into a PoE switch.
Displays get left on. This controller fixes that without asking anyone to press anything: two passive infrared sensors and an acoustic sensor decide whether the room is occupied, and CEC commands travel out the HDMI port to power the display up on arrival and down once the inactivity timer expires. Extron ships it preconfigured for exactly that behavior. When a room needs more, the internal web page adjusts sensor sensitivity and timing and swaps the display control path between Ethernet, RS-232 and IR. Adding the LinkLicense for WC Pro Control Processor opens Global Configurator Plus and Professional for multi-device systems.
Key Capabilities
- Dual sensing across 400 square feet, with detection spanning 142 degrees horizontally and 24 degrees vertically.
- Preconfigured CEC display control means no project file is needed for on and off automation.
- Digital output 2 reports room occupancy status, which facilities systems can poll for scheduling or energy data.
- Inactivity timer is adjustable from one second all the way to 24 hours.
- Powered solely over Ethernet at 802.3af class 3, so a single Cat cable handles both power and control.
- 1 GB SDRAM with 8 GB of flash, in a six-inch plastic-and-metal body weighing 0.53 lbs.
Where It Is Used

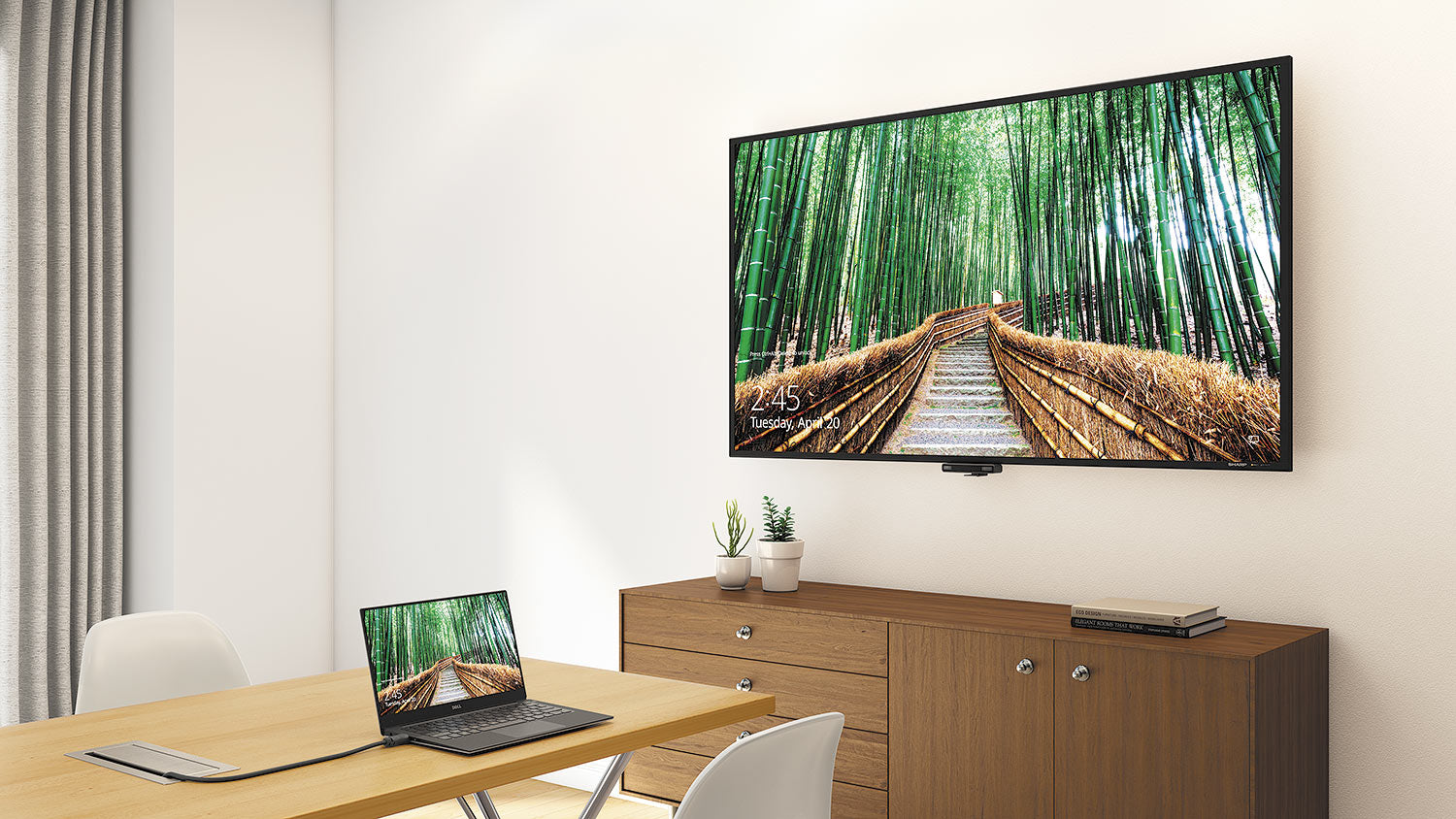

Huddle rooms, small and medium conference rooms, classrooms, training rooms and open collaboration corners all suit this controller, particularly where the AV budget will not stretch to a full control processor per room. The attached port hub mounts magnetically or with zip ties behind a flat panel, keeping wiring out of sight.
Specifications at a Glance
- Sensors: 2 passive infrared plus 1 acoustic, 400 sq ft coverage

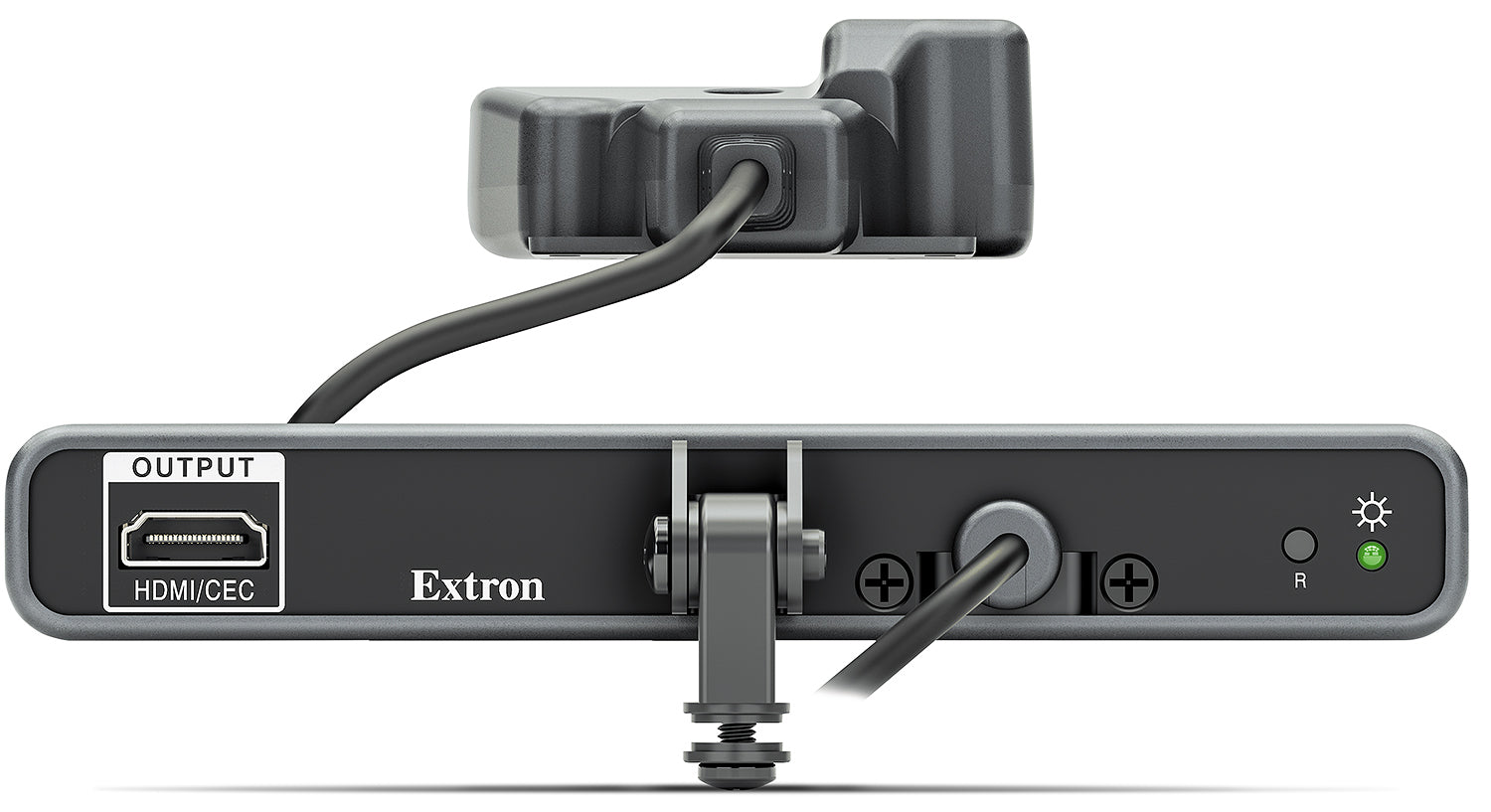

- Video: 1 female HDMI type A with CEC display control
- Control: 1 bidirectional RS-232, 1 IR output, 2 digital I/O, 1 RJ-45
- Power: Power over Ethernet only, 802.3af class 3
- Enclosure: 0.89" H x 6.00" L x 2.01" D, 0.53 lbs, 3 year warranty
Also referenced as Extron WCPro150OCS, WC-Pro-150-OCS, part number 60180301.
