Details

Extron VLS 3002P (part number 42-349-02) — a complete VoiceLift Pro classroom voice amplification system with two pendant microphones and the PVM 220 PlenumVault mounting kit.

Two pendants suit team teaching and pass-the-microphone lessons; the PVM 220 suits buildings where the ceiling grid is the obvious place to hide equipment. The composite enclosure carries a UL 2043 listing for air-handling spaces and an OSHPD anchorage pre-approval, so it clears both fire and seismic review on institutional projects.

Key Capabilities

Two VLP 302 pendant microphones on one 1900 MHz digital radio system
Rated for a 40 x 40 ft room, 1600 sq ft (148.6 sq m) minimum reception area
PVCA 452 amplifier gives 25 watts per channel into 4 or 8 ohms at 1% THD
PVM 220 enclosure is UL 2043 listed for plenum airspaces
FF 120 Flat Field speakers spread sound across 170 degrees of conical coverage
VLC 302 station charges two microphones at once
Each pendant runs at least 8 hours of continuous use on one AA cell

Where It Is Used

Team-taught classrooms, seminar rooms and inclusive learning spaces with suspended ceilings — school districts, colleges, corporate training centres and hospital education departments where nothing should hang on the wall.

Specifications at a Glance

Microphones: two VLP 302 pendants
Amplifier: PVCA 452, 25 W per channel, 4/8 ohms, 20 Hz to 20 kHz
Radio: 1900 MHz, 40 x 40 ft minimum coverage
Mounting: PVM 220, 15.0 lbs (6.8 kg) on door, 16.0 lbs (7.3 kg) kit weight
Warranty: 3 years parts and labor; 90 days on the microphone battery

Also referenced as Extron VLS3002P, VLS-3002P, part number 4234902.

Specifications

Part Number: 42-349-02

Manufacturer: Extron

Model: VLS 3002P

Condition: New

Configuration: Dual Pendant VoiceLift System - PVM 220

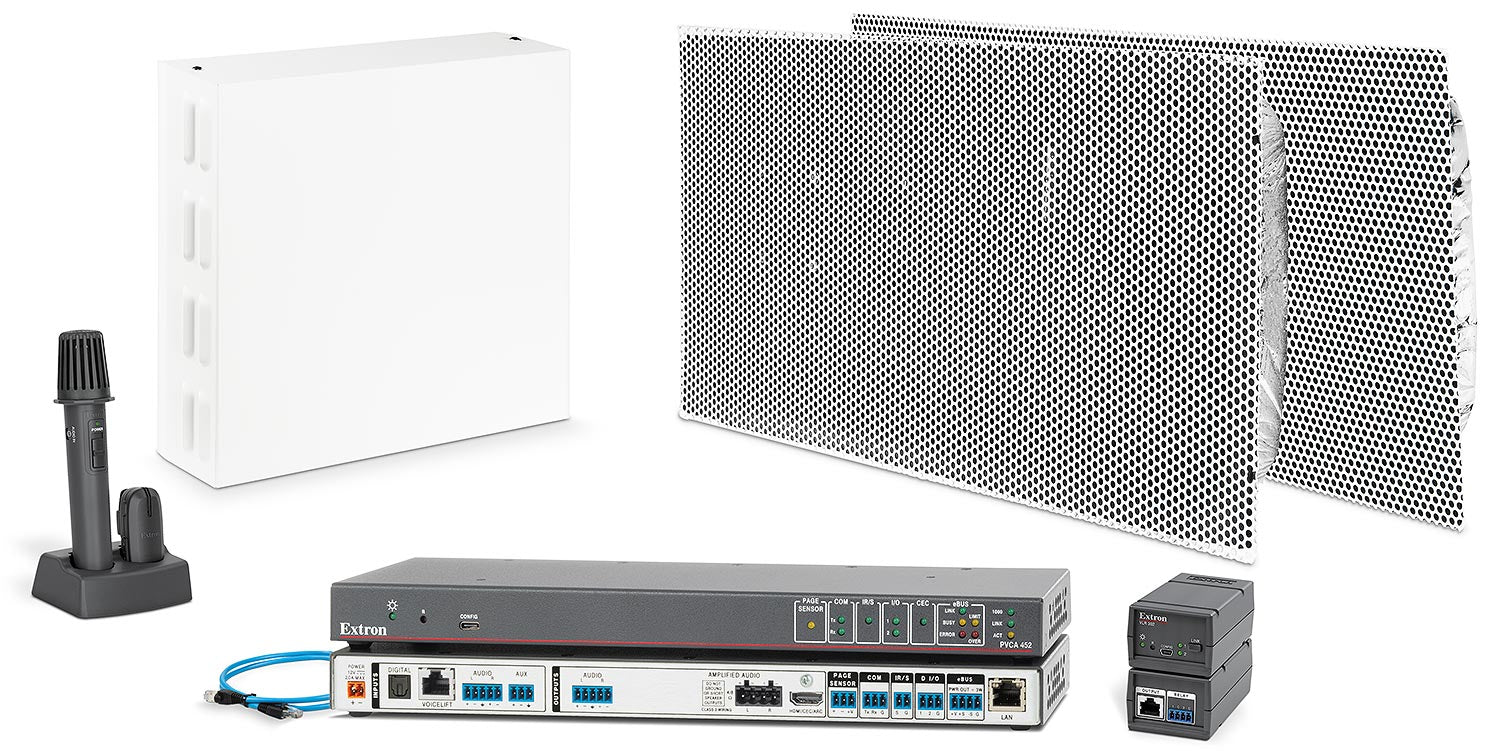

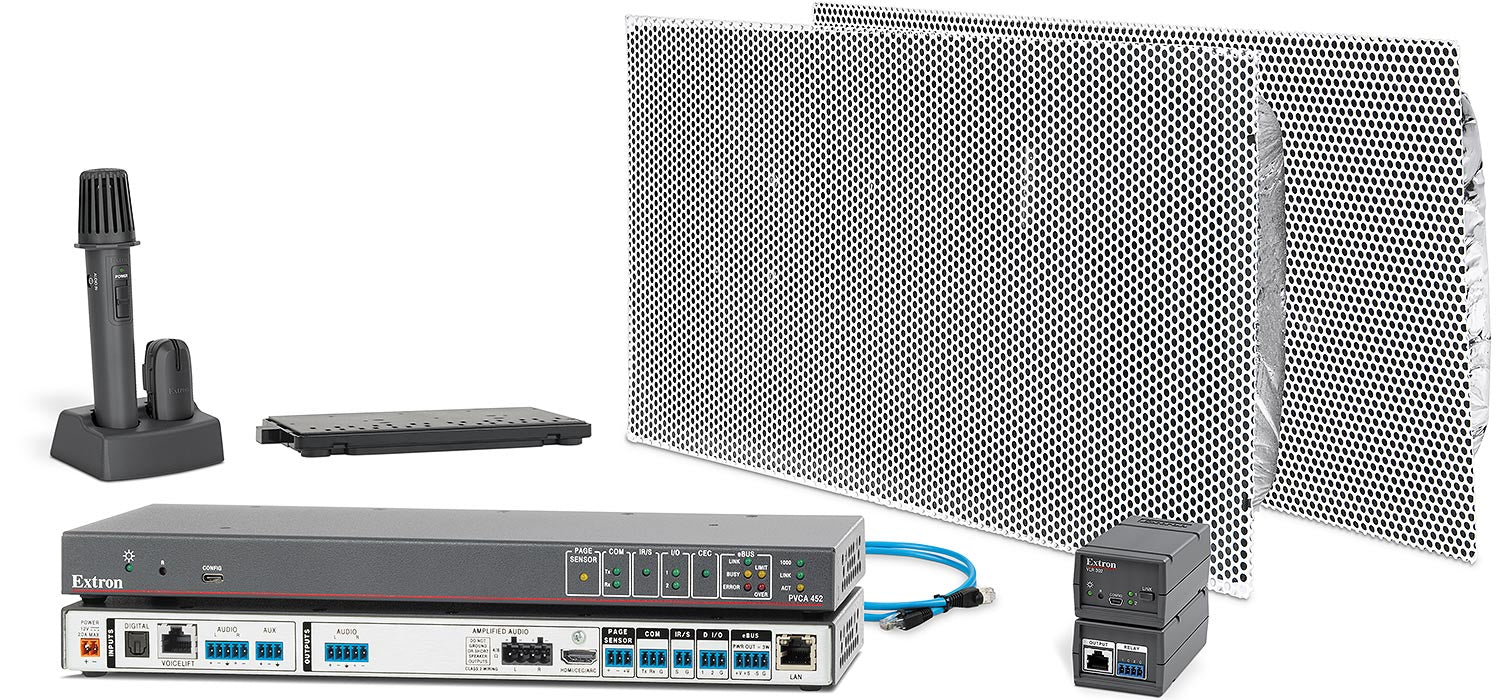

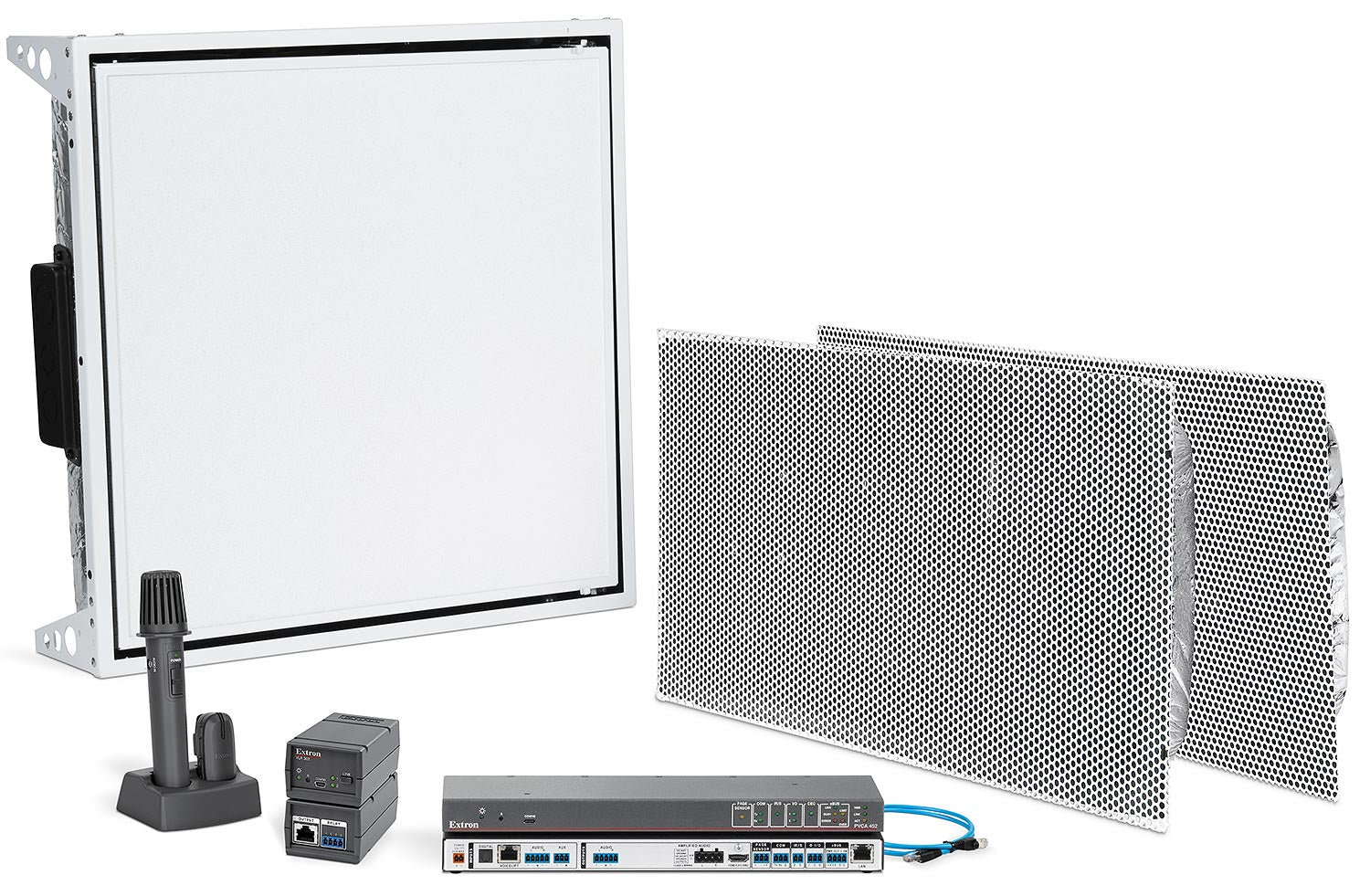

Included Components: Two VLP 302 pendant microphones, VLR 302 receiver, VLC 302 charging station, PVCA 452 controller amplifier, FF 120 Flat Field speakers (pair), PVM 220 PlenumVault mounting kit

Operating Range: 40' x 40' minimum coverage

Reception Area: 1600 square feet (148.6 square meters) minimum

Radio Frequency: 1900 MHz

Amplifier Output Power: 25 watts per channel, 4/8 ohms, 1 kHz, 1% THD

Amplifier Load Impedance: 4/8 ohms, single channel or stereo

Frequency Response: 20 Hz to 20 kHz, +1 dB / -3 dB at 1 watt output, 8 ohm load

THD + Noise: 0.1%, 1 kHz, 3 dB below clipping

Signal to Noise: Greater than 90 dB, 20 Hz to 20 kHz at maximum output (unweighted), 8 ohms

Damping Factor: Greater than 75 at 8 ohms

Crosstalk: Less than -85 dB at 1 kHz

Stereo Channel Separation: Greater than 80 dB at 1 kHz

PVCA 452 Control: 1 bidirectional RS-232; 1 front panel female USB type-C (USB 2.0, high speed); paging sensor on a 3.5 mm captive screw connector, 3 pole

PVCA 452 Software: Extron Global Configurator Plus and Professional for Windows

PVCA 452 Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 4.2 A, 50 watts

PVCA 452 Power Consumption: Device 18.16 watts; device and power supply 20.55 watts

PVCA 452 Enclosure: Metal; 1.00 in H x 13.1 in W x 3.5 in D (2.5 x 33.3 x 8.9 cm)

PVCA 452 Operating Temperature: +32 to +122 F (0 to +50 C), 10% to 90% noncondensing; convection cooled, no vents

VLP 302 Pendant Microphone: 1 mono via integrated MEMS microphones plus 1 mono unbalanced auxiliary mic input on a 3.5 mm jack; power, volume and function controls; 3.0 in H x 1.47 in W x 1.2 in D (7.6 x 3.7 x 3.0 cm); 2.2 oz (62 g) with battery

Microphone Battery: 1 AA size NiMH or alkaline; minimum 8 hours continuous use; about 5 hours to recharge a 2400 mAh NiMH cell

VLR 302 Receiver: Rack, ceiling or wall mountable; 2 normally open relays; 1 RS-232 port via RJ-45 (38400 baud, 8 data bits, 1 stop bit, no parity); 1 USB; 12 VDC, 0.2 A; 1.66 in H x 2.15 in W x 4.50 in D (4.2 x 5.5 x 11.4 cm); 0.25 lbs (0.11 kg)

VLC 302 Charging Station: External supply 110 to 130 VAC, 50-60 Hz to 5 VDC, 2.6 A regulated via USB Micro B; 5 VDC, 0.5 A; 1.5 in H x 4.4 in W x 3.4 in D (3.9 x 11.3 x 8.6 cm); 0.66 lbs (0.3 kg)

FF 120 Flat Field Speakers: 16 W (rms) continuous pink noise, 32 W (rms) continuous program; 170 degree conical coverage; 8 ohms per speaker; drops into a 2' x 2' or 2' x 4' suspended tile; 3.25 in H x 23.75 in W x 11.75 in D; 4.7 lbs (2.1 kg) each

Mounting Kit: PVM 220 PlenumVault mounting kit; drop ceiling mountable within air-handling space; 15.0 lbs (6.8 kg) maximum load on door; composite enclosure with aluminum door frame and mounting plate; 6.3 in H x 23.8 in W x 23.8 in D (16.1 x 60.5 x 60.5 cm); 16.0 lbs (7.3 kg); UL listed for plenum airspaces per UL 2043; OSHPD anchorage pre-approval

Regulatory Compliance: EMI/EMC: CE, FCC Class B; complies with the appropriate requirements of RoHS and WEEE

Vibration: ISTA 1A in carton (International Safe Transit Association)

Warranty: 3 years parts and labor; microphone battery 90 days
