Details

Extron VLS 3001W (part number 42-348-01) — a complete VoiceLift Pro classroom voice amplification system with one pendant microphone and the WMK 160 wall mount kit.

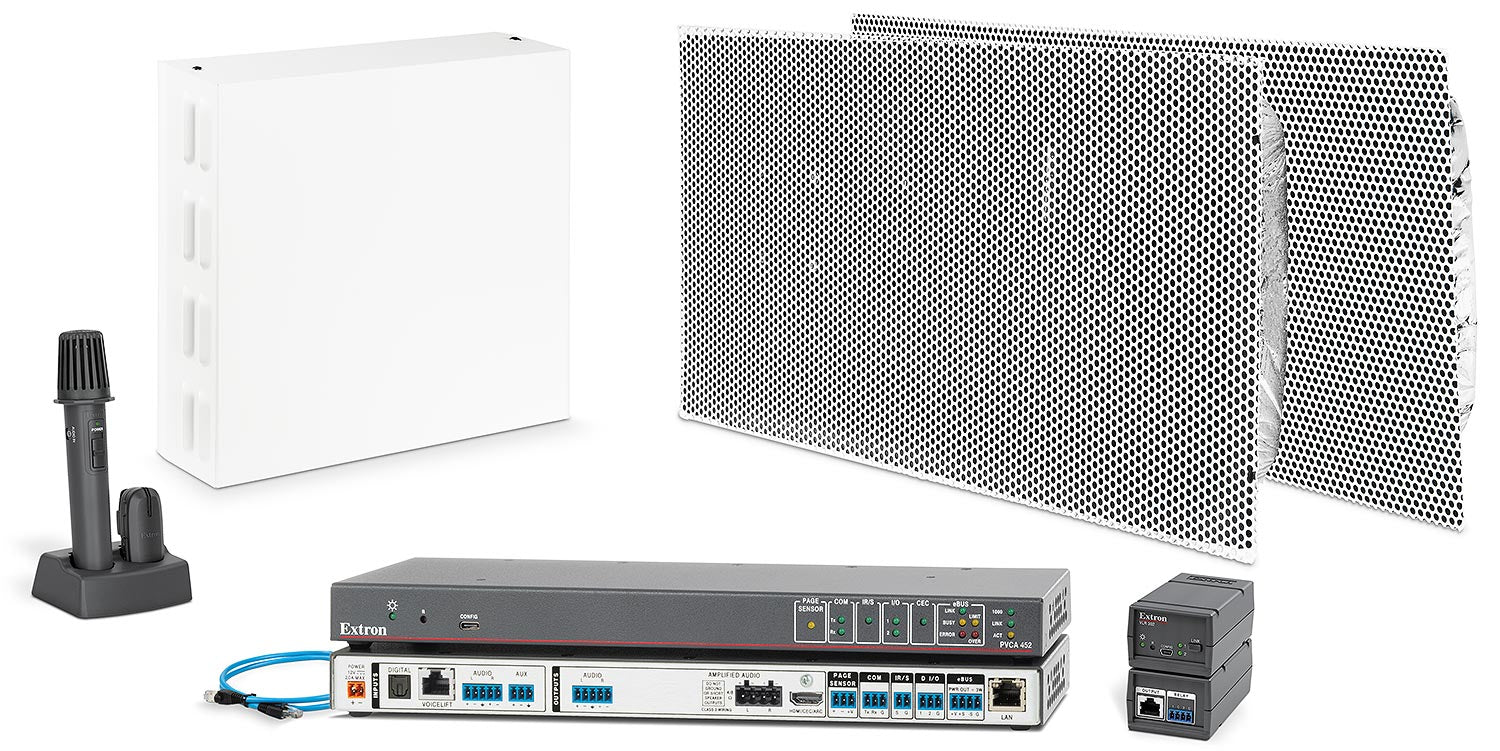

Rooms with hard ceilings or no equipment closet still need somewhere to put the amplifier and receiver. The WMK 160 answers that: a steel base plate screws to the wall, the electronics bolt to it, and an aluminium cover locks over the top. It carries up to 15 lbs and holds OSHPD anchorage pre-approval, which matters on healthcare and seismic-zone projects.

Key Capabilities

1900 MHz digital radio link — no line of sight required
Rated for a 40 x 40 ft room, 1600 sq ft (148.6 sq m) minimum reception area
PVCA 452 amplifier gives 25 watts per channel into 4 or 8 ohms at 1% THD
WMK 160 kit takes 15 lbs (6.8 kg) and weighs 5.5 lbs (2.5 kg)
FF 120 Flat Field speakers spread sound across 170 degrees of conical coverage
A single AA cell runs the pendant for at least 8 hours of continuous use
OSHPD anchorage pre-approval on the wall mount kit

Where It Is Used

Classrooms and training rooms in buildings with structural ceilings, exposed services or restricted ceiling access — refurbished schools, community colleges, corporate learning centres and hospital education rooms.

Specifications at a Glance

Microphones: one VLP 302 pendant
Amplifier: PVCA 452, 25 W per channel, 4/8 ohms, 20 Hz to 20 kHz
Radio: 1900 MHz, 40 x 40 ft minimum coverage
Mounting: WMK 160, base plate 17.1 x 16.4 x 1.5 in (43.5 x 41.6 x 3.8 cm)
Warranty: 3 years parts and labor; 90 days on the microphone battery

Also referenced as Extron VLS3001W, VLS-3001W, part number 4234801.

Specifications

Part Number: 42-348-01

Manufacturer: Extron

Model: VLS 3001W

Condition: New

Configuration: Single Pendant VoiceLift System - WMK 160

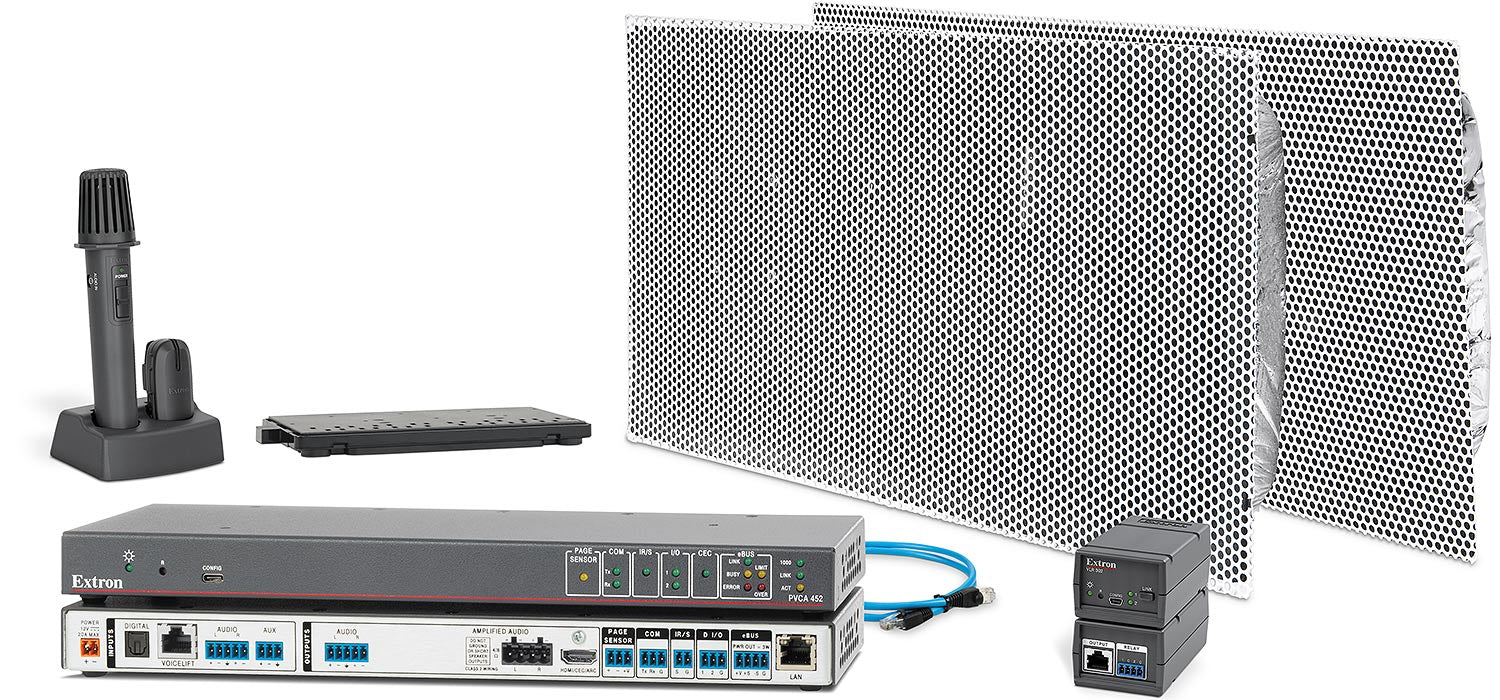

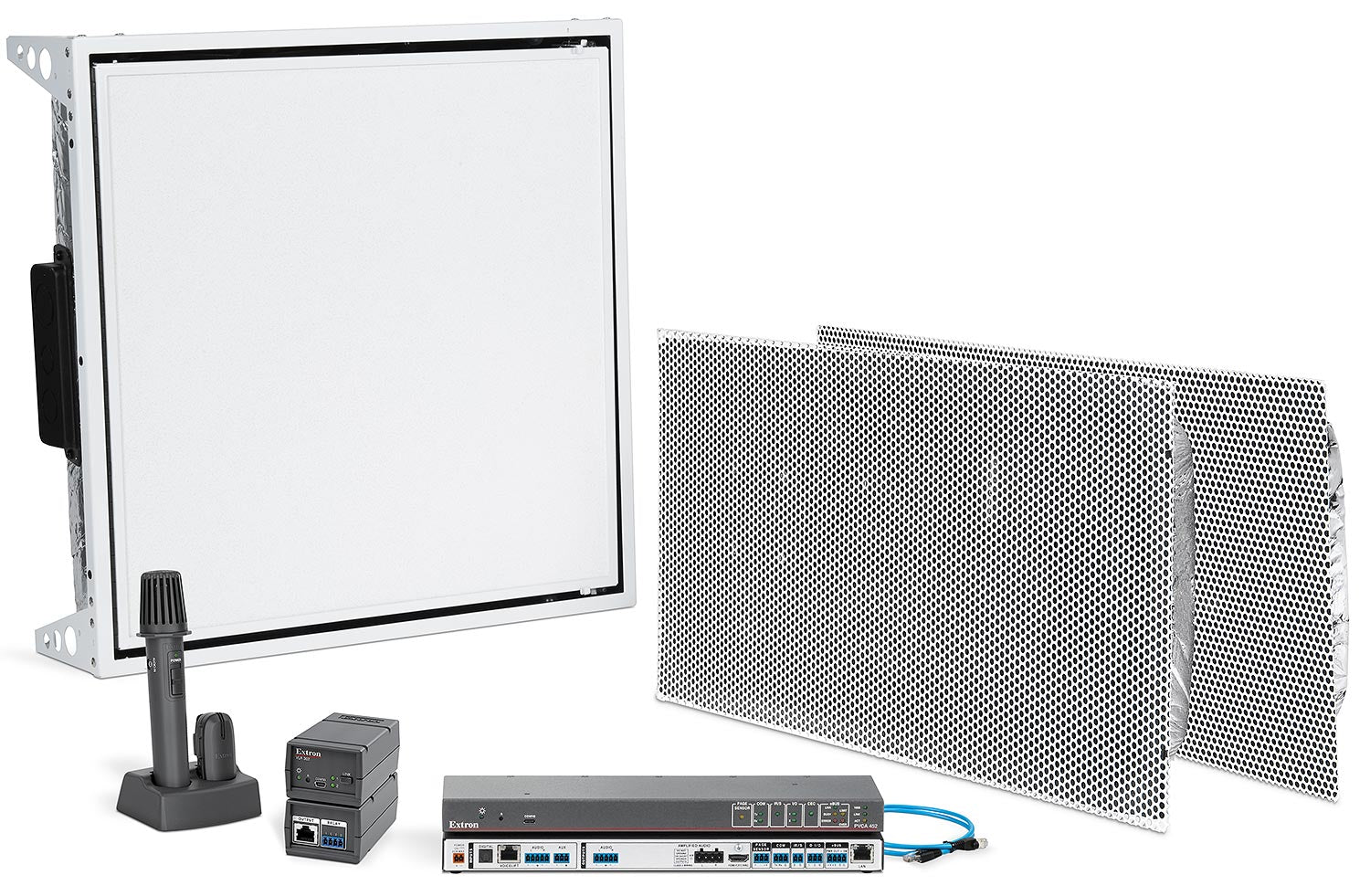

Included Components: VLP 302 pendant microphone, VLR 302 receiver, VLC 302 charging station, PVCA 452 controller amplifier, FF 120 Flat Field speakers (pair), WMK 160 wall mount kit

Operating Range: 40' x 40' minimum coverage

Reception Area: 1600 square feet (148.6 square meters) minimum

Radio Frequency: 1900 MHz

Amplifier Output Power: 25 watts per channel, 4/8 ohms, 1 kHz, 1% THD

Amplifier Load Impedance: 4/8 ohms, single channel or stereo

Frequency Response: 20 Hz to 20 kHz, +1 dB / -3 dB at 1 watt output, 8 ohm load

THD + Noise: 0.1%, 1 kHz, 3 dB below clipping

Signal to Noise: Greater than 90 dB, 20 Hz to 20 kHz at maximum output (unweighted), 8 ohms

Damping Factor: Greater than 75 at 8 ohms

Crosstalk: Less than -85 dB at 1 kHz

Stereo Channel Separation: Greater than 80 dB at 1 kHz

PVCA 452 Control: 1 bidirectional RS-232; 1 front panel female USB type-C (USB 2.0, high speed); paging sensor on a 3.5 mm captive screw connector, 3 pole

PVCA 452 Software: Extron Global Configurator Plus and Professional for Windows

PVCA 452 Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 4.2 A, 50 watts

PVCA 452 Power Consumption: Device 18.16 watts; device and power supply 20.55 watts

PVCA 452 Enclosure: Metal; 1.00 in H x 13.1 in W x 3.5 in D (2.5 x 33.3 x 8.9 cm)

PVCA 452 Operating Temperature: +32 to +122 F (0 to +50 C), 10% to 90% noncondensing; convection cooled, no vents

VLP 302 Pendant Microphone: 1 mono via integrated MEMS microphones plus 1 mono unbalanced auxiliary mic input on a 3.5 mm jack; power, volume and function controls; 3.0 in H x 1.47 in W x 1.2 in D (7.6 x 3.7 x 3.0 cm); 2.2 oz (62 g) with battery

Microphone Battery: 1 AA size NiMH or alkaline; minimum 8 hours continuous use; about 5 hours to recharge a 2400 mAh NiMH cell

VLR 302 Receiver: Rack, ceiling or wall mountable; 2 normally open relays; 1 RS-232 port via RJ-45 (38400 baud, 8 data bits, 1 stop bit, no parity); 1 USB; 12 VDC, 0.2 A; 1.66 in H x 2.15 in W x 4.50 in D (4.2 x 5.5 x 11.4 cm); 0.25 lbs (0.11 kg)

VLC 302 Charging Station: External supply 110 to 130 VAC, 50-60 Hz to 5 VDC, 2.6 A regulated via USB Micro B; 5 VDC, 0.5 A; 1.5 in H x 4.4 in W x 3.4 in D (3.9 x 11.3 x 8.6 cm); 0.66 lbs (0.3 kg)

FF 120 Flat Field Speakers: 16 W (rms) continuous pink noise, 32 W (rms) continuous program; 170 degree conical coverage; 8 ohms per speaker; drops into a 2' x 2' or 2' x 4' suspended tile; 3.25 in H x 23.75 in W x 11.75 in D; 4.7 lbs (2.1 kg) each

Mounting Kit: WMK 160 wall mount kit; wall mount with included hardware; 15.0 lbs (6.8 kg) maximum load; steel base plate with aluminum cover; base plate 17.1 in H x 16.4 in W x 1.5 in D (43.5 x 41.6 x 3.8 cm); cover 17.3 in H x 16.5 in W x 2.75 in D (43.9 x 41.9 x 7.0 cm); 5.5 lbs (2.5 kg); c-UL, UL, OSHPD anchorage pre-approval

Regulatory Compliance: EMI/EMC: CE, FCC Class B; complies with the appropriate requirements of RoHS and WEEE

Vibration: ISTA 1A in carton (International Safe Transit Association)

Warranty: 3 years parts and labor; microphone battery 90 days
