Details

Extron VLS 3001P (part number 42-349-01) — a complete VoiceLift Pro classroom voice amplification system with one pendant microphone and the PVM 220 PlenumVault mounting kit.

Where the room has a suspended ceiling, the tidiest place for the amplifier and receiver is above it. The PVM 220 is a composite enclosure with an aluminium door frame that drops into the ceiling grid and is UL 2043 listed, so it can legally sit in an air-handling void. The only hardware left in the room is the pendant microphone and a pair of Flat Field speaker tiles.

Key Capabilities

1900 MHz digital radio link — no line of sight required
Rated for a 40 x 40 ft room, 1600 sq ft (148.6 sq m) minimum reception area
PVCA 452 amplifier gives 25 watts per channel into 4 or 8 ohms at 1% THD
PVM 220 enclosure is UL 2043 listed for plenum airspaces
FF 120 Flat Field speakers spread sound across 170 degrees of conical coverage
A single AA cell runs the pendant for at least 8 hours of continuous use
OSHPD anchorage pre-approval on the plenum mounting kit

Where It Is Used

Classrooms, seminar rooms and training spaces with suspended ceilings where the client wants nothing visible on the walls — school districts, university campuses, corporate learning centres and hospital education departments.

Specifications at a Glance

Microphones: one VLP 302 pendant
Amplifier: PVCA 452, 25 W per channel, 4/8 ohms, 20 Hz to 20 kHz
Radio: 1900 MHz, 40 x 40 ft minimum coverage
Mounting: PVM 220, 6.3 x 23.8 x 23.8 in (16.1 x 60.5 x 60.5 cm), 16.0 lbs (7.3 kg)
Warranty: 3 years parts and labor; 90 days on the microphone battery

Also referenced as Extron VLS3001P, VLS-3001P, part number 4234901.

Specifications

Part Number: 42-349-01

Manufacturer: Extron

Model: VLS 3001P

Condition: New

Configuration: Single Pendant VoiceLift System - PVM 220

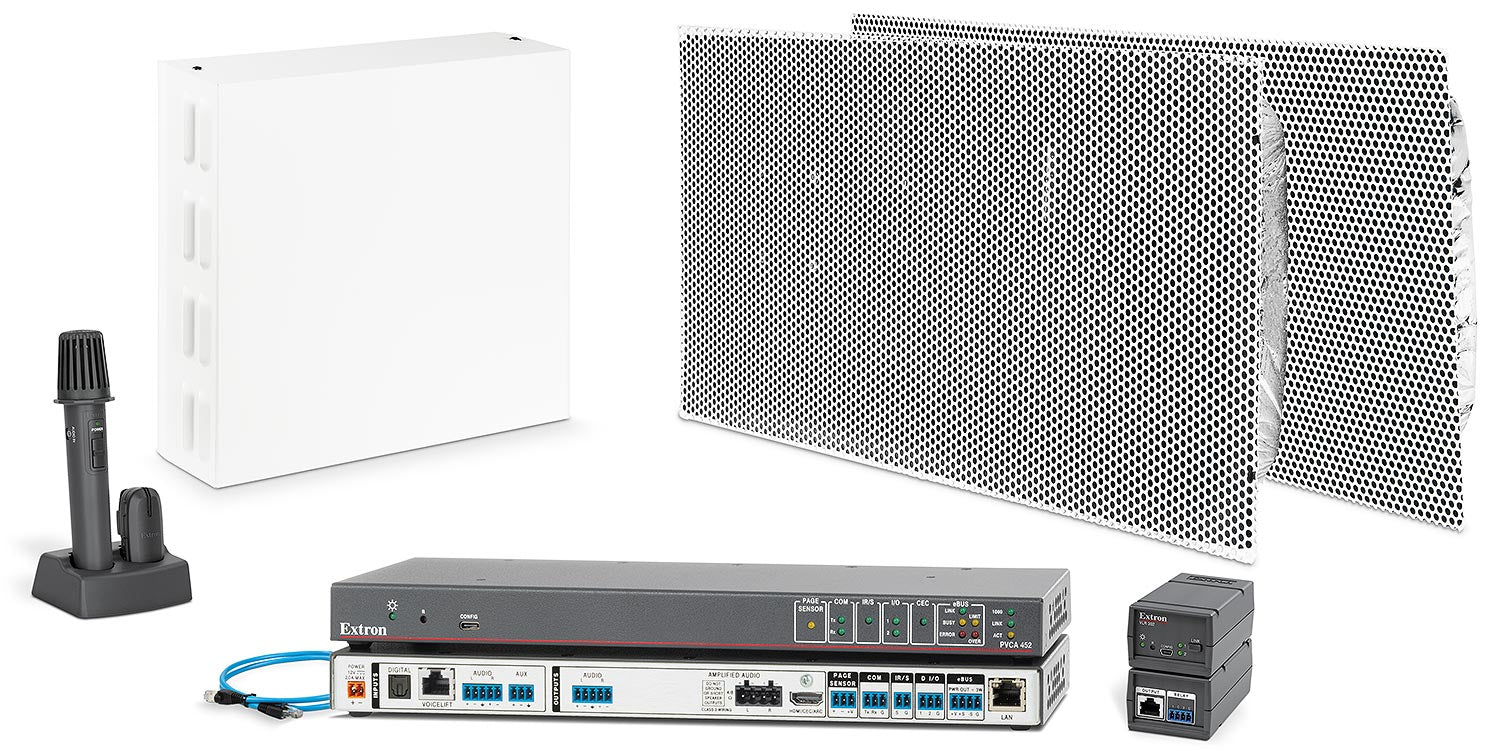

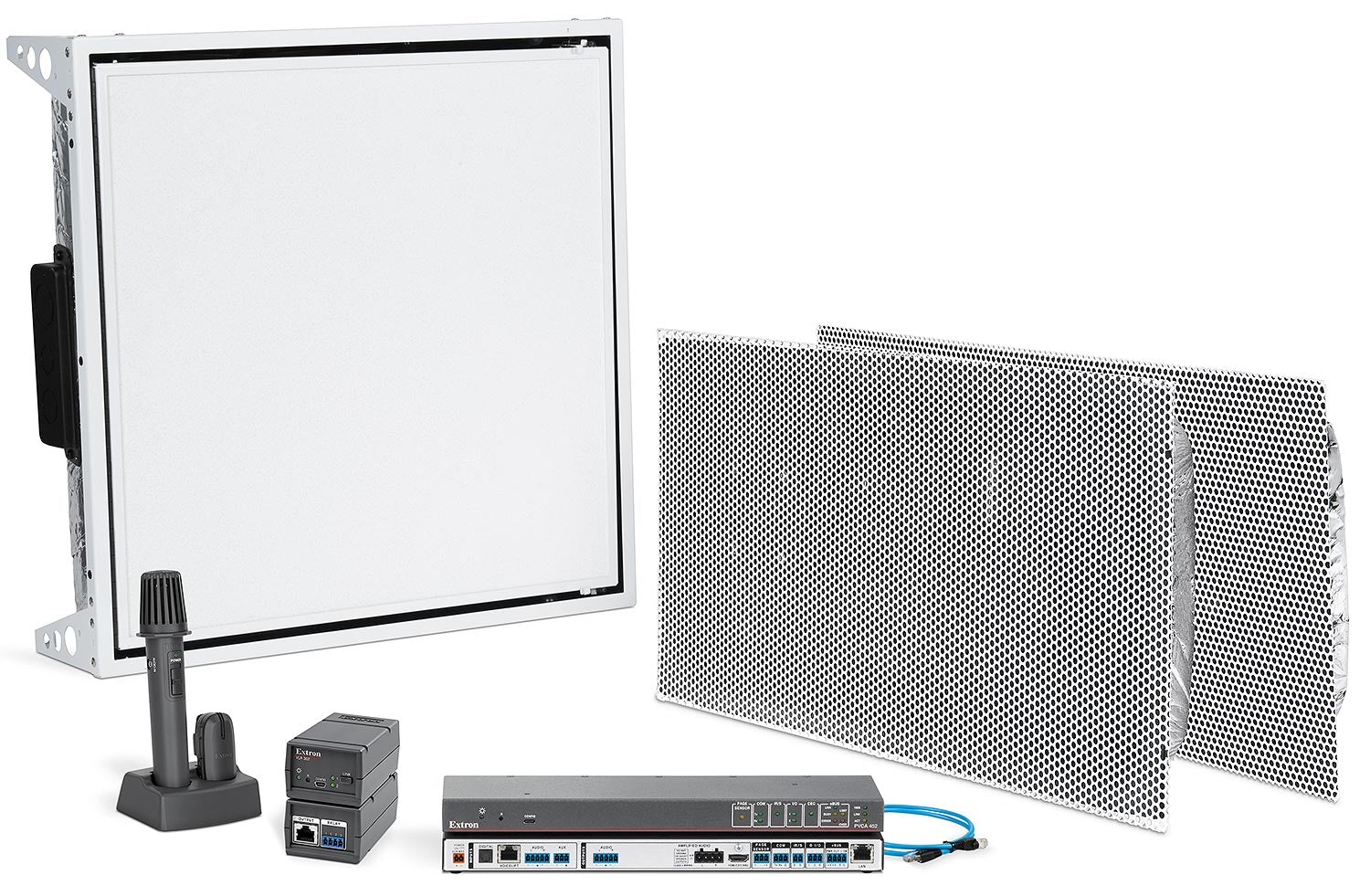

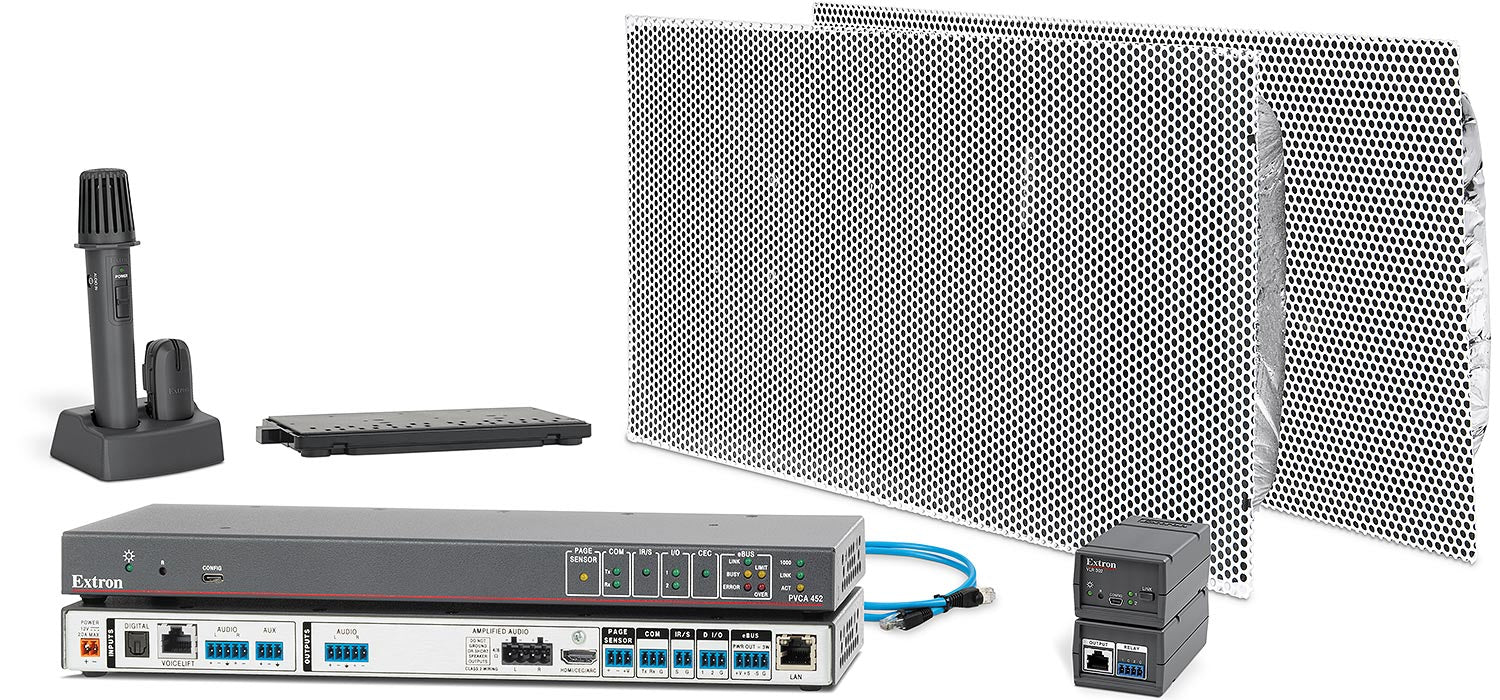

Included Components: VLP 302 pendant microphone, VLR 302 receiver, VLC 302 charging station, PVCA 452 controller amplifier, FF 120 Flat Field speakers (pair), PVM 220 PlenumVault mounting kit

Operating Range: 40' x 40' minimum coverage

Reception Area: 1600 square feet (148.6 square meters) minimum

Radio Frequency: 1900 MHz

Amplifier Output Power: 25 watts per channel, 4/8 ohms, 1 kHz, 1% THD

Amplifier Load Impedance: 4/8 ohms, single channel or stereo

Frequency Response: 20 Hz to 20 kHz, +1 dB / -3 dB at 1 watt output, 8 ohm load

THD + Noise: 0.1%, 1 kHz, 3 dB below clipping

Signal to Noise: Greater than 90 dB, 20 Hz to 20 kHz at maximum output (unweighted), 8 ohms

Damping Factor: Greater than 75 at 8 ohms

Crosstalk: Less than -85 dB at 1 kHz

Stereo Channel Separation: Greater than 80 dB at 1 kHz

PVCA 452 Control: 1 bidirectional RS-232; 1 front panel female USB type-C (USB 2.0, high speed); paging sensor on a 3.5 mm captive screw connector, 3 pole

PVCA 452 Software: Extron Global Configurator Plus and Professional for Windows

PVCA 452 Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 4.2 A, 50 watts

PVCA 452 Power Consumption: Device 18.16 watts; device and power supply 20.55 watts

PVCA 452 Enclosure: Metal; 1.00 in H x 13.1 in W x 3.5 in D (2.5 x 33.3 x 8.9 cm)

PVCA 452 Operating Temperature: +32 to +122 F (0 to +50 C), 10% to 90% noncondensing; convection cooled, no vents

VLP 302 Pendant Microphone: 1 mono via integrated MEMS microphones plus 1 mono unbalanced auxiliary mic input on a 3.5 mm jack; power, volume and function controls; 3.0 in H x 1.47 in W x 1.2 in D (7.6 x 3.7 x 3.0 cm); 2.2 oz (62 g) with battery

Microphone Battery: 1 AA size NiMH or alkaline; minimum 8 hours continuous use; about 5 hours to recharge a 2400 mAh NiMH cell

VLR 302 Receiver: Rack, ceiling or wall mountable; 2 normally open relays; 1 RS-232 port via RJ-45 (38400 baud, 8 data bits, 1 stop bit, no parity); 1 USB; 12 VDC, 0.2 A; 1.66 in H x 2.15 in W x 4.50 in D (4.2 x 5.5 x 11.4 cm); 0.25 lbs (0.11 kg)

VLC 302 Charging Station: External supply 110 to 130 VAC, 50-60 Hz to 5 VDC, 2.6 A regulated via USB Micro B; 5 VDC, 0.5 A; 1.5 in H x 4.4 in W x 3.4 in D (3.9 x 11.3 x 8.6 cm); 0.66 lbs (0.3 kg)

FF 120 Flat Field Speakers: 16 W (rms) continuous pink noise, 32 W (rms) continuous program; 170 degree conical coverage; 8 ohms per speaker; drops into a 2' x 2' or 2' x 4' suspended tile; 3.25 in H x 23.75 in W x 11.75 in D; 4.7 lbs (2.1 kg) each

Mounting Kit: PVM 220 PlenumVault mounting kit; drop ceiling mountable within air-handling space; 15.0 lbs (6.8 kg) maximum load on door; composite enclosure with aluminum door frame and mounting plate; 6.3 in H x 23.8 in W x 23.8 in D (16.1 x 60.5 x 60.5 cm); 16.0 lbs (7.3 kg); UL listed for plenum airspaces per UL 2043; OSHPD anchorage pre-approval

Regulatory Compliance: EMI/EMC: CE, FCC Class B; complies with the appropriate requirements of RoHS and WEEE

Vibration: ISTA 1A in carton (International Safe Transit Association)

Warranty: 3 years parts and labor; microphone battery 90 days
