Extron VGA M-M MD/75 VGA Male-to-Male Cable
- • 75' (22.8 m) male-to-male VGA cable on Extron MHRVGA cable
- • Molded 15-pin HD male connectors at both ends
- • Pin 9 +5 VDC and ID bits carried end to end (VESA DDC v3 source)
- • Overall foil shield inside the molded body limits EMI pickup
- • Grounded VGA shell adds ESD protection at both ends
- • Certified by Extron for AVEdge, Cable Cubby and HSA access enclosures
- • Retired Extron part 26-238-19, still sourced and supported by Ampronix
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

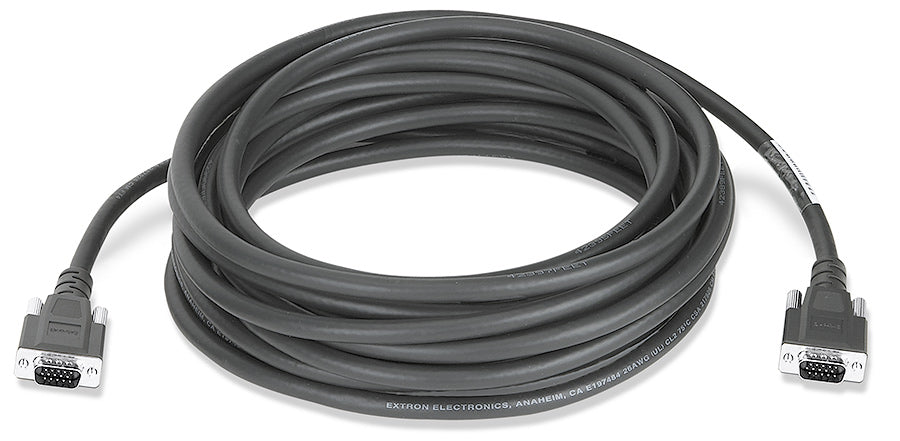

Extron VGA M-M MD/75 (part number 26-238-19) — a 75' (22.8 m) male-to-male VGA cable built on Extron MHRVGA cable.
Seventy-five feet takes the signal out of the room. It is the length used when the rack lives in a service closet, when the projection booth is behind the seating, or when a single cable has to span a ballroom that will be divided differently next week. Extron carries the overall foil shield of its MHRVGA cable all the way into the injection-molded 15-pin HD connector bodies and grounds the shell at both ends, so induced noise from the pathway has somewhere to go other than the video pairs.
Key Capabilities
- Carries computer video and ID bit signals across a 75' (22.8 m) run
- Pin 9 +5 VDC and the ID bits travel end to end when the graphics card meets VESA DDC version 3
- Molded 15-pin HD male connectors at both ends
- VGA shell tied to ground for ESD protection
- Injection-molded body with an overall foil shield for EMI isolation
- Certified by Extron for AVEdge, Cable Cubby and HSA access enclosures
Where It Is Used
Auditoriums and houses of worship with rear projection booths, divisible ballrooms and convention space, campus rooms served from a shared equipment closet, and operations floors where a video wall sits well away from the source rack.
Specifications at a Glance
- Cable length: 75' (22.8 m)
- Connectors: 2 male 15-pin HD, molded
- Cable: Extron MHRVGA
- DDC: pin 9 +5 VDC and all ID bits carried through (VESA DDC v3 source required)
- Status: retired by Extron
Also referenced as Extron VGAMMMD75, VGA-M-M-MD-75, part number 2623819.
