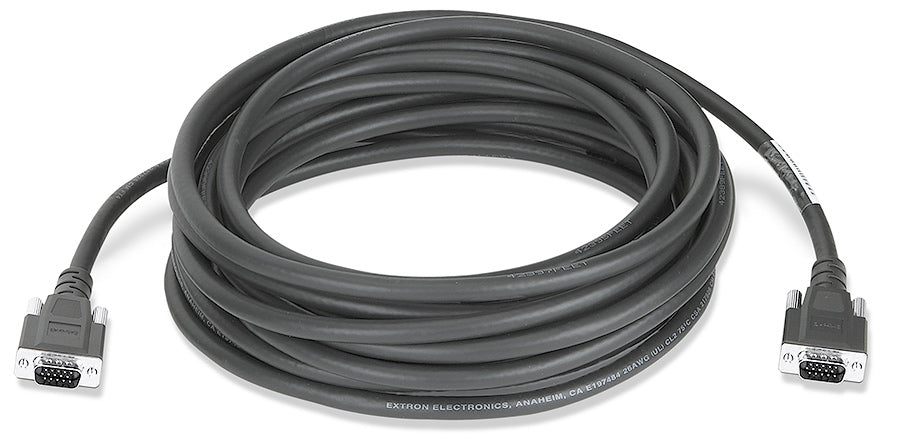

Extron VGA M-M MD/25 (part number 26-238-03) — a 25' (7.6 m) male-to-male VGA cable on Extron MHRVGA cable with molded 15-pin HD connectors.

Twenty-five feet is the length integrators reach for when the source and the display are on opposite sides of a room but still on the same floor plate. Both ends carry a 15-pin HD male connector, so the cable runs from a laptop, document camera or media player directly into a switcher or display input. Extron injection-molds the connector bodies over an overall foil shield and grounds the shell at each end, which is what keeps a run of this length quiet in a pathway shared with lighting.

Key Capabilities

• Carries computer video and ID bit signals across a 25' (7.6 m) run
• Pin 9 +5 VDC and the ID bits travel end to end when the graphics card meets VESA DDC version 3
• Molded 15-pin HD male connectors at both ends
• VGA shell tied to ground for ESD protection
• Injection-molded body with an overall foil shield for EMI isolation
• Certified by Extron for AVEdge, Cable Cubby and HSA access enclosures

Where It Is Used

Divisible meeting rooms, mid-size lecture theatres, courtrooms with an evidence display at the bench, and control or imaging suites where the workstation and the review monitor sit at opposite walls.

Specifications at a Glance

• Cable length: 25' (7.6 m)
• Connectors: 2 male 15-pin HD, molded
• Cable: Extron MHRVGA
• DDC: pin 9 +5 VDC and all ID bits carried through (VESA DDC v3 source required)
• Status: retired by Extron

Also referenced as Extron VGAMMMD25, VGA-M-M-MD-25, part number 2623803.
