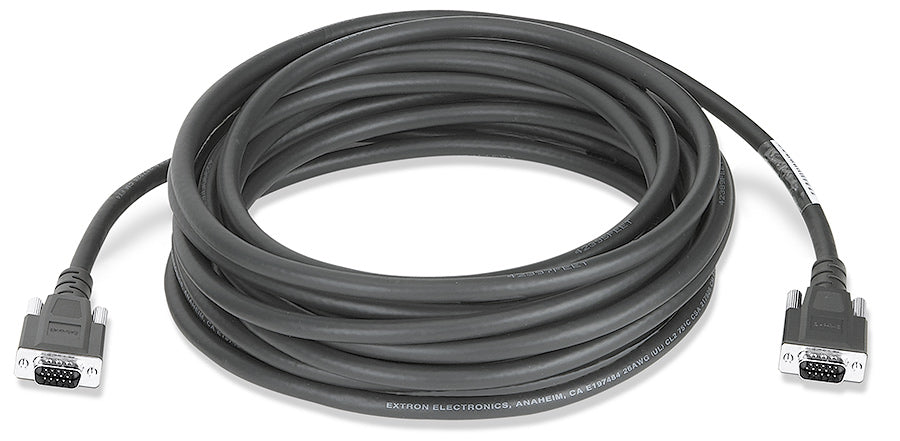

Extron VGA M-M MD/15 (part number 26-238-02) — a 15' (4.5 m) male-to-male VGA cable on Extron MHRVGA cable with molded 15-pin HD ends.

Fifteen feet covers the distance most rooms actually need: podium to ceiling drop, table box to credenza, or rack to the far side of a wall plate. Both terminations are 15-pin HD male, so the assembly links a source device straight to an input without an adapter or gender changer. The molded bodies carry an overall foil shield through the termination rather than stopping it at the backshell, which is what keeps the picture clean where the cable shares a pathway with power.

Key Capabilities

• Carries computer video and ID bit signals across a 15' (4.5 m) run
• Pin 9 +5 VDC and the ID bits travel end to end when the graphics card meets VESA DDC version 3
• Molded 15-pin HD male connectors at both ends
• VGA shell tied to ground for ESD protection
• Injection-molded body with an overall foil shield for EMI isolation
• Certified by Extron for AVEdge, Cable Cubby and HSA access enclosures

Where It Is Used

Boardrooms and mid-size conference rooms, classrooms with a ceiling projector over a short throw, control rooms feeding a nearby monitor bank, and imaging suites where a workstation drives a second display across the bench.

Specifications at a Glance

• Cable length: 15' (4.5 m)
• Connectors: 2 male 15-pin HD, molded
• Cable: Extron MHRVGA
• DDC: pin 9 +5 VDC and all ID bits carried through (VESA DDC v3 source required)
• Status: retired by Extron

Also referenced as Extron VGAMMMD15, VGA-M-M-MD-15, part number 2623802.
