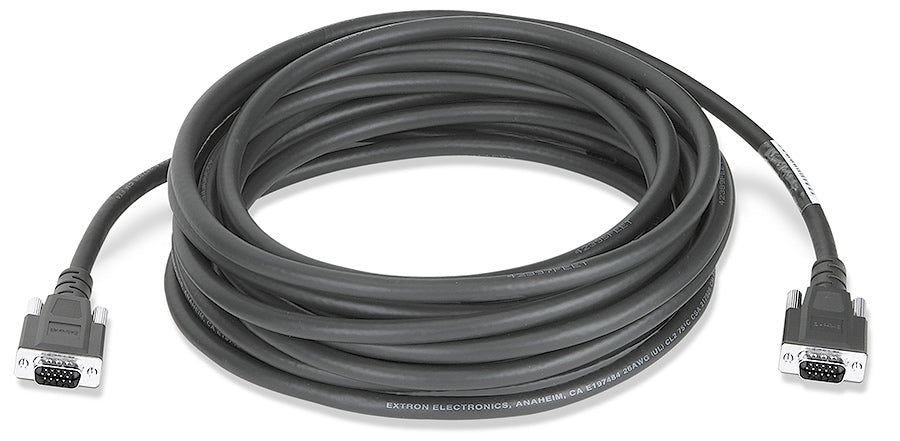

Extron VGA M-M MD/100 VGA Male-to-Male Cable
- • 100' (30.4 m) male-to-male VGA cable on Extron MHRVGA cable
- • Longest standard length in the Extron VGA M-M MD range
- • Molded 15-pin HD male connectors at both ends
- • Pin 9 +5 VDC and ID bits carried end to end (VESA DDC v3 source)
- • Overall foil shield inside the molded body limits EMI pickup
- • Grounded VGA shell adds ESD protection at both ends
- • Certified by Extron for AVEdge, Cable Cubby and HSA access enclosures
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron VGA M-M MD/100 (part number 26-238-20) — a 100' (30.4 m) male-to-male VGA cable, the longest length Extron built in the VGA M-M MD range.
A hundred-foot analogue video run is a structural cable, not a patch lead. It crosses ceiling voids, drops through poles and shares conduit with lighting circuits, and everything about the assembly has to be built for that. Extron uses its MHRVGA cable with an overall foil shield sealed inside injection-molded 15-pin HD connector bodies, and grounds the shell at both terminations. Both ends are male, so the cable connects a source directly to a switcher or display input across the full distance.
Key Capabilities
- Carries computer video and ID bit signals across a 100' (30.4 m) run
- Pin 9 +5 VDC and the ID bits travel end to end when the graphics card meets VESA DDC version 3
- Molded 15-pin HD male connectors at both ends
- VGA shell tied to ground for ESD protection
- Injection-molded body with an overall foil shield for EMI isolation
- Certified by Extron for AVEdge, Cable Cubby and HSA access enclosures
Where It Is Used
Arenas, large auditoriums and houses of worship with projection booths far from the stage, campus buildings where the rack is a closet away, video walls in operations centres, and temporary staging where a single long run beats a chain of couplers.
Specifications at a Glance
- Cable length: 100' (30.4 m)
- Connectors: 2 male 15-pin HD, molded
- Cable: Extron MHRVGA
- DDC: pin 9 +5 VDC and all ID bits carried through (VESA DDC v3 source required)
- Status: current Extron part number
Also referenced as Extron VGAMMMD100, VGA-M-M-MD-100, part number 2623820.
