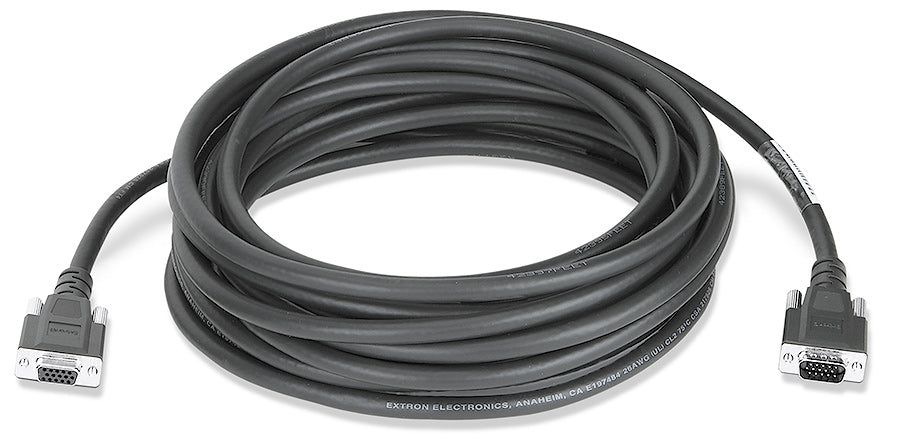

Extron VGA M-F MD/75 (part number 26-112-30) — a 75' (22.8 m) male-to-female VGA extension built on Extron MHRVGA cable.

At seventy-five feet the cable is doing structural work: it crosses a ceiling void, drops a wall, or runs the length of an auditorium, and every metre of that path is shared with lighting and power. Extron's answer here is MHRVGA cable inside an injection-molded connector body with an overall foil shield, plus a shell bonded to ground so static that reaches the plate does not reach the graphics card. The female end lets the run terminate into an existing lead at the display position.

Key Capabilities

• Carries computer video and ID bit signals across a 75' (22.8 m) run
• Pin 9 +5 VDC and the ID bits travel end to end when the graphics card meets VESA DDC version 3
• Molded 15-pin HD male and 15-pin HD female terminations
• VGA shell tied to ground for ESD protection
• Injection-molded body with an overall foil shield for EMI isolation
• Certified by Extron for AVEdge, Cable Cubby and HSA access enclosures

Where It Is Used

Auditoriums, houses of worship and ballrooms with long projector throws, command centres and operations floors with distant video walls, and campus rooms where the rack lives in a separate closet from the presentation position.

Specifications at a Glance

• Cable length: 75' (22.8 m)
• Connectors: 1 male 15-pin HD to 1 female 15-pin HD, molded
• Cable: Extron MHRVGA
• DDC: pin 9 +5 VDC and all ID bits carried through (VESA DDC v3 source required)
• Status: retired by Extron

Also referenced as Extron VGAMFMD75, VGA-M-F-MD-75, part number 2611230.
