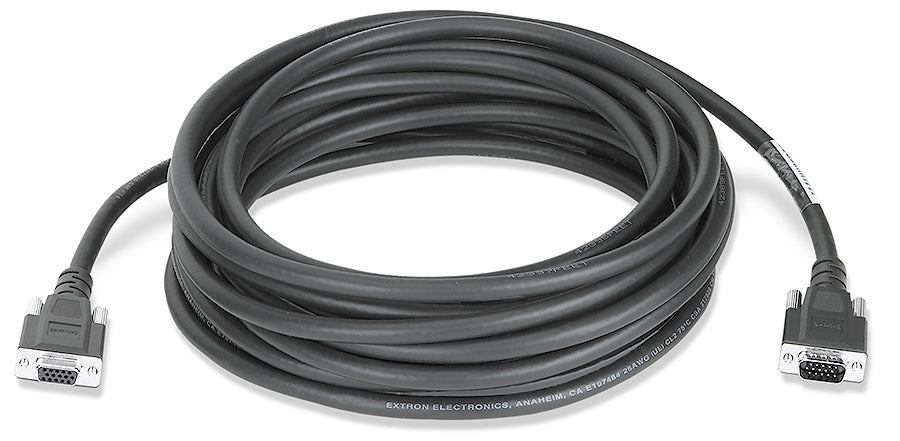

Extron VGA M-F MD/25 (part number 26-112-05) — a 25' (7.6 m) male-to-female VGA extension built on Extron MHRVGA cable with molded 15-pin HD ends.

When a VGA source has to reach a display, projector or wall plate that sits well beyond the reach of a factory lead, this assembly bridges the gap without putting an adapter in the signal path. One end terminates in a 15-pin HD male connector and the other in a 15-pin HD female, so it lengthens an existing VGA run rather than replacing it. Extron builds the assembly on its MHRVGA cable and injection-molds the connector bodies, which keeps terminations stable in furniture and floor boxes that see daily handling.

Key Capabilities

• Carries computer video and ID bit signals across a 25' (7.6 m) run
• Pin 9 +5 VDC and the ID bits travel end to end when the graphics card meets VESA DDC version 3
• Molded 15-pin HD male and 15-pin HD female terminations
• VGA shell tied to ground for ESD protection
• Injection-molded body with an overall foil shield for EMI isolation
• Certified by Extron for AVEdge, Cable Cubby and HSA access enclosures

Where It Is Used

This length suits boardrooms and divisible meeting spaces, lecture halls and training rooms, and control or imaging suites where the display sits across the room from the rack. Because Extron certified it for surface access hardware, integrators also run it inside table boxes and pop-up connectivity wells.

Specifications at a Glance

• Cable length: 25' (7.6 m)
• Connectors: 1 male 15-pin HD to 1 female 15-pin HD, molded
• Cable: Extron MHRVGA
• DDC: pin 9 +5 VDC and all ID bits carried through (VESA DDC v3 source required)
• Status: retired by Extron

Also referenced as Extron VGAMFMD25, VGA-M-F-MD-25, part number 2611205.
