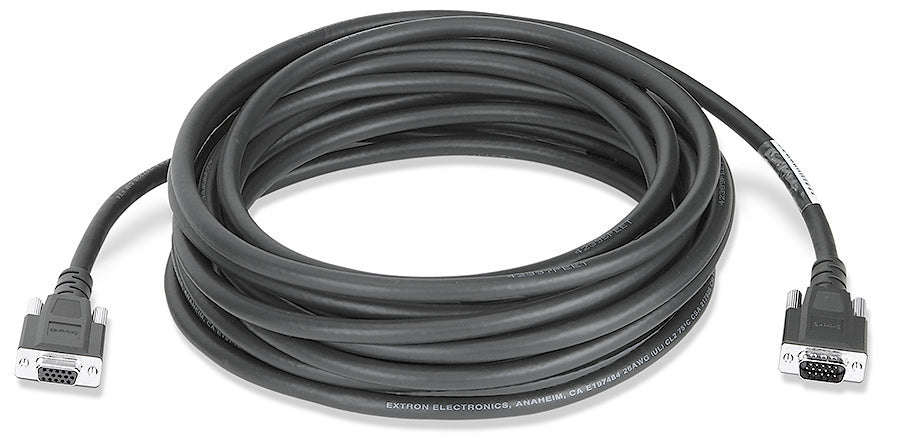

Extron VGA M-F MD/100 (part number 26-112-31) — at 100 ft (30.4 m) this is the longest VGA male to female molded cable in the series. Extron has retired this part number.

A hundred feet is where analog computer video usually starts to lose definition, which is precisely why Extron built this length on MHRVGA cable rather than generic VGA wire. The molded 15-pin HD connectors carry an overall foil shield and a grounded shell, and Pin 9 is passed from end to end so ID bits and the +5 VDC line survive the distance. On a graphics card that complies with VESA DDC version 3, that means the display is still identified correctly at the far end of a long pull.

Key Capabilities

• Longest length in the VGA M-F MD series at 100 ft (30.4 m).
• High performance transmission of computer video and ID bit signals.
• Pin 9 passed through end to end for +5 VDC and ID bit continuity.
• Built on Extron MHRVGA cable, Extron part number 22-220-03.
• Molded 15-pin HD male and female connectors with grounded shells for ESD protection.
• Injection mold with overall foil shield for improved EMI isolation.
• NEC CM rated, non-plenum; certified for AVEdge, Cable Cubby and HSA enclosures.

Where It Is Used

Auditoriums and large lecture halls with long analog projector runs, multi-room legacy installations, staging and rental inventories, and maintenance of installed VGA infrastructure where the source and the display sit at opposite ends of the building.

Specifications at a Glance

• Length: 100 ft (30.4 m), measured tip to tip including connectors
• Connectors: molded 15-pin HD male to 15-pin HD female
• Cable: Extron MHRVGA, NEC CM rated, non-plenum
• Pin 9: passed through end to end
• Lifecycle: retired by Extron

Also referenced as Extron VGAMFMD100, VGA-M-F-MD-100, part number 2611231.
