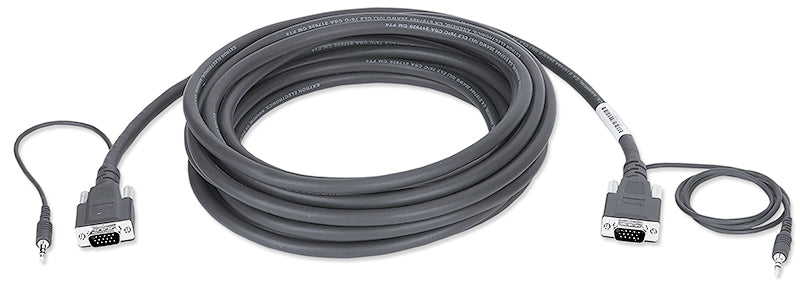

Extron VGA-A M-M MD/6 (part number 26-490-02) — a 6' (1.8 m) male-to-male VGA cable with an integrated analogue stereo audio lead.

This is the presenter cable for rooms that still take VGA and still need sound from the laptop. One assembly carries the video on Extron MHRVGA cable between molded 15-pin HD male connectors and the audio on a stereo mini plug lead at each end. Six feet reaches across a normal meeting table, and the unequal audio pigtails — 24 inches at the source end, 8 inches at the equipment end — mean neither side is left with a loop of spare cable to hide.

Key Capabilities

• Carries computer video, analogue stereo audio and ID bit signals in one 6' (1.8 m) assembly
• Pin 9 +5 VDC and the ID bits travel end to end when the graphics card meets VESA DDC version 3
• Molded 15-pin HD male connectors plus 3.5 mm stereo mini plugs
• Audio lead measures 24 inches on one end and 8 inches on the other
• VGA shell tied to ground for ESD protection
• Injection-molded body with an overall foil shield for EMI isolation

Where It Is Used

Conference tables with pop-up connectivity, huddle rooms, classroom lecterns feeding an audio-capable switcher, and training spaces where a presenter connects a laptop for both picture and sound several times a day.

Specifications at a Glance

• Cable length: 6' (1.8 m)
• Connectors: 2 male 15-pin HD molded, each with a 3.5 mm stereo mini plug lead
• Cable: Extron MHRVGA
• Audio pigtails: 24 in and 8 in
• Status: current Extron part number

Also referenced as Extron VGAAMMMD6, VGA-A-M-M-MD-6, part number 2649002.
