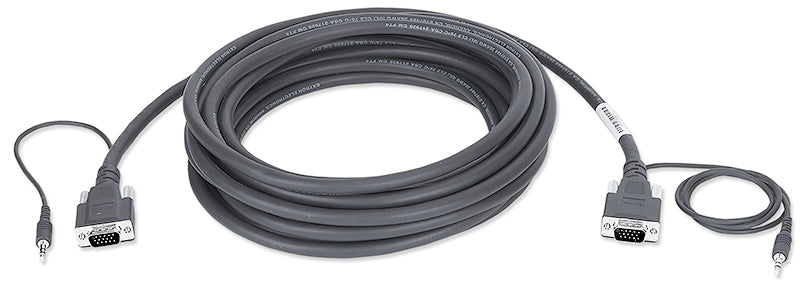

Extron VGA-A M-M MD/50 (part number 26-490-08) — a 50' (15.2 m) male-to-male VGA cable with analogue stereo audio in the same run, and the longest VGA-A M-M MD length Extron built.

Fifty feet of combined video and audio is a single pull instead of two, which is the whole point when the pathway is a conduit sleeve or a poke-through with limited fill. Extron builds the video side on MHRVGA cable with an overall foil shield sealed inside injection-molded 15-pin HD male connector bodies, grounds the shell at both ends, and runs the audio on stereo mini plug leads — 24 inches at one termination, 8 inches at the other.

Key Capabilities

• Carries computer video, analogue stereo audio and ID bit signals in one 50' (15.2 m) assembly
• Pin 9 +5 VDC and the ID bits travel end to end when the graphics card meets VESA DDC version 3
• Molded 15-pin HD male connectors plus 3.5 mm stereo mini plugs
• Audio lead measures 24 inches on one end and 8 inches on the other
• VGA shell tied to ground for ESD protection
• Injection-molded body with an overall foil shield for EMI isolation

Where It Is Used

Auditoriums and houses of worship, large divisible rooms, council chambers with a rack at the back of house, and campus teaching spaces where a single pull has to serve a distant presentation position with both signals.

Specifications at a Glance

• Cable length: 50' (15.2 m)
• Connectors: 2 male 15-pin HD molded, each with a 3.5 mm stereo mini plug lead
• Cable: Extron MHRVGA
• Audio pigtails: 24 in and 8 in
• Status: current Extron part number

Also referenced as Extron VGAAMMMD50, VGA-A-M-M-MD-50, part number 2649008.
