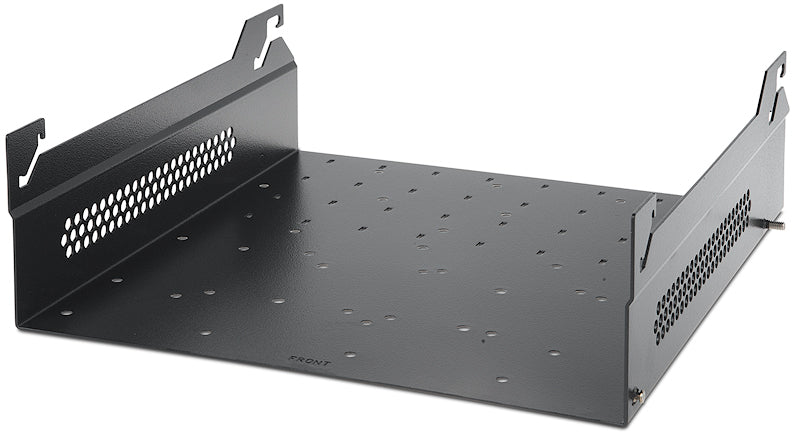

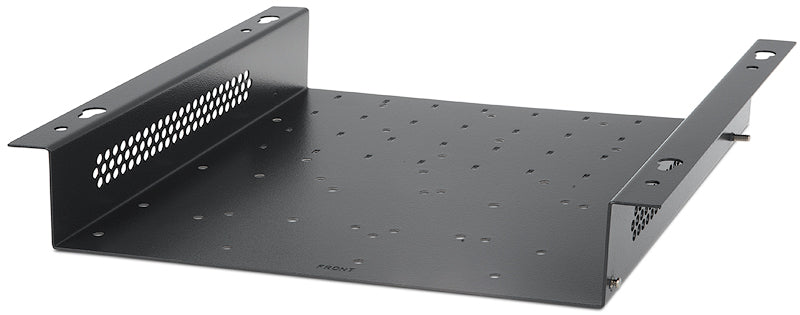

Extron UTS 100 (part number 70-1028-01) — the primary shelf of the UTS 100 Series under-table shelf system, 1U half rack width, in gray.

Where a room has no space for a conventional rack, the UTS 100 mounts a shelf straight to the underside of the table and does away with rails altogether. It will take any workable combination of half-, quarter- and eighth-rack width products, with mounting holes drilled at the 3-inch, 6-inch and 9.5-inch depth positions so devices of different footprints share the same tray. Three rows of wire-tie openings run through the shelf for dressing cable properly rather than letting it hang. Because it is self-supporting, it can sit beside a table leg, in the middle of the span, or right at the edge within reach of whoever is using the room. Additional UTS 150 secondary shelves hook and post onto the UTS 100 when more capacity is needed; the system is rated to 20 lbs (9.1 kg) all in.

Key Capabilities

• Self-supporting 1U, half rack width shelf for under-table mounting

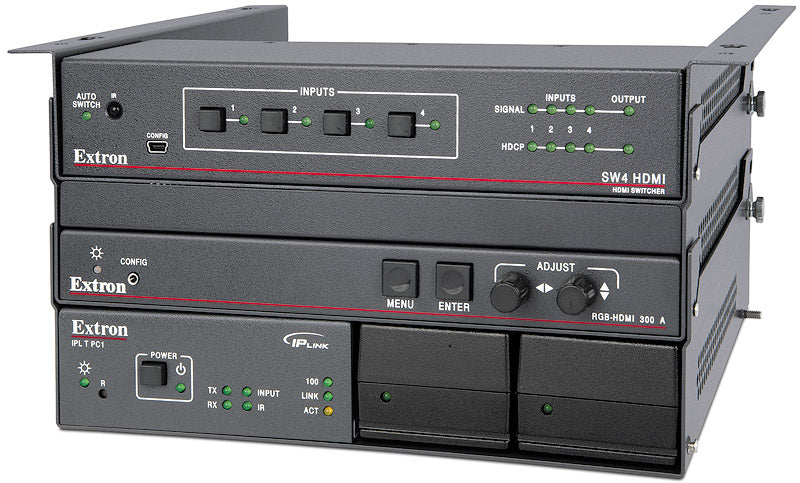

• Holds half-, quarter- and eighth-rack width Extron products
• Mounting holes at the 3, 6 and 9.5-inch depth positions
• Three rows of wire-tie openings for cable management

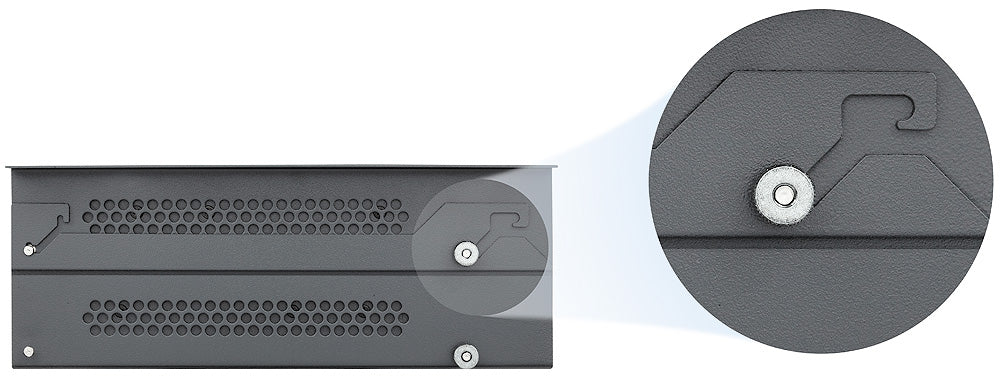

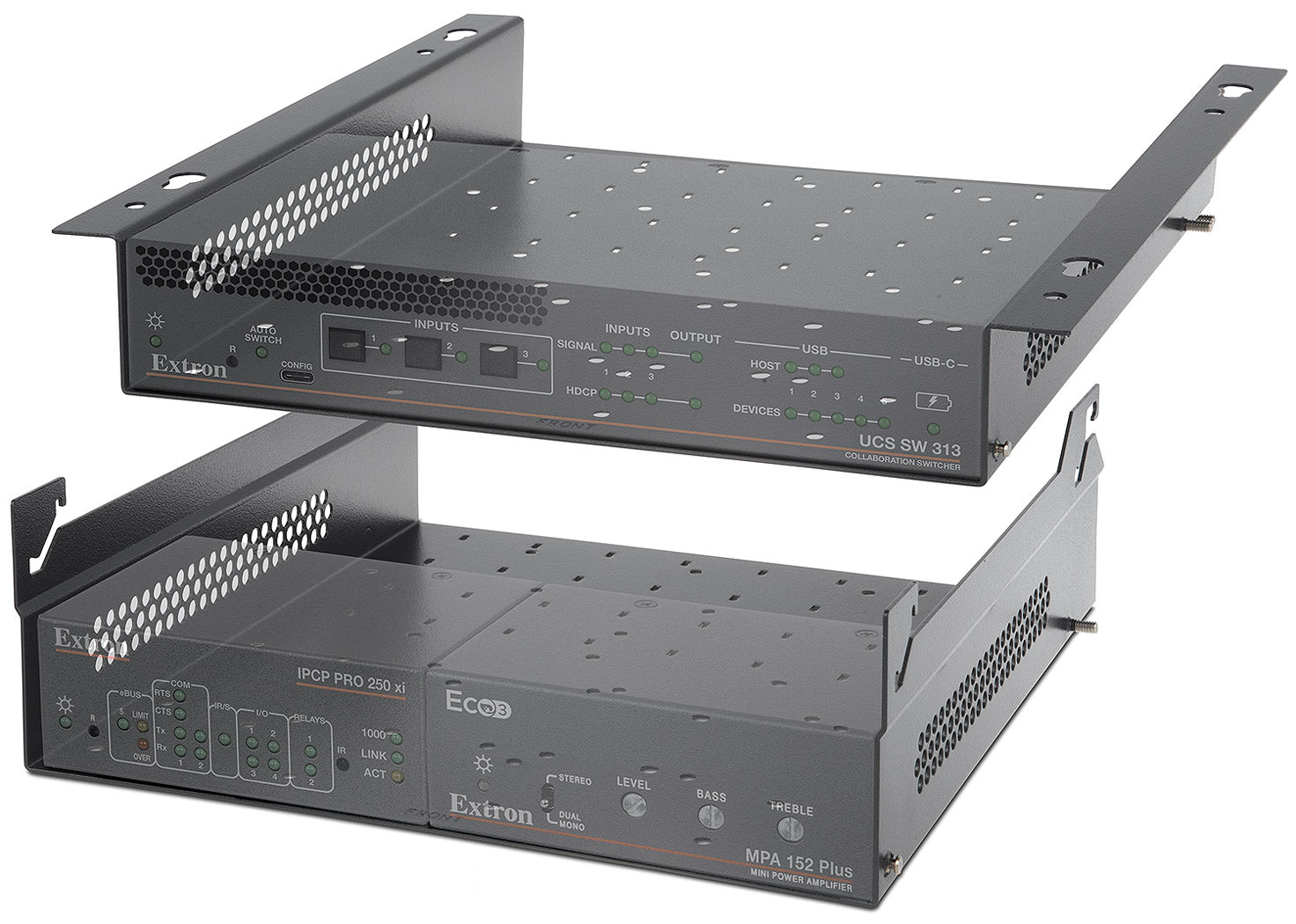

• Expandable with UTS 150 secondary shelves via hook-and-post
• 20 lbs (9.1 kg) total system capacity; steel, gray powder coat

Where It Is Used

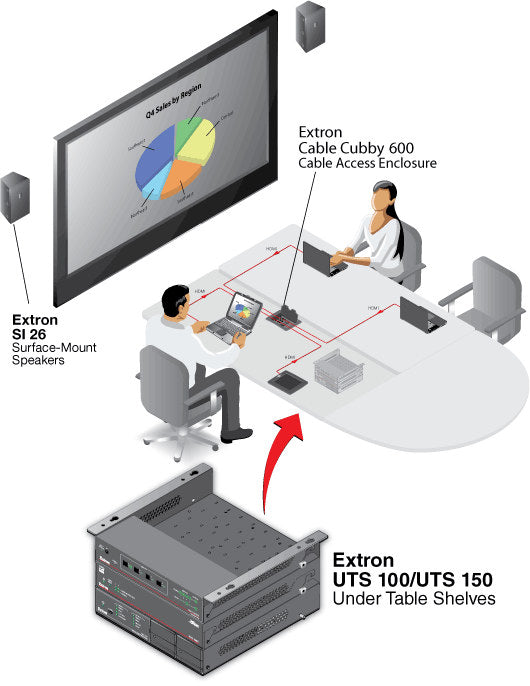

Conference and huddle tables, lecterns, classroom teaching stations, library and study carrels, and clinical workstations — rooms where a rack or credenza is not an option but extenders, scalers and audio interfaces still have to be mounted properly.

Specifications at a Glance

• Model: Extron UTS 100, part number 70-1028-01 (Primary Shelf, gray)
• Enclosure dimensions: 9.45 in L x 10.25 in W x 1.82 in H (24.0 x 26.0 x 4.6 cm)
• Weight: 1.64 lbs; steel
• Maximum load: 20 lbs (9.1 kg) total system weight
• Safety CE, RoHS; Limited Lifetime Performance warranty

Also referenced as Extron UTS100, UTS-100, part number 70102801.
