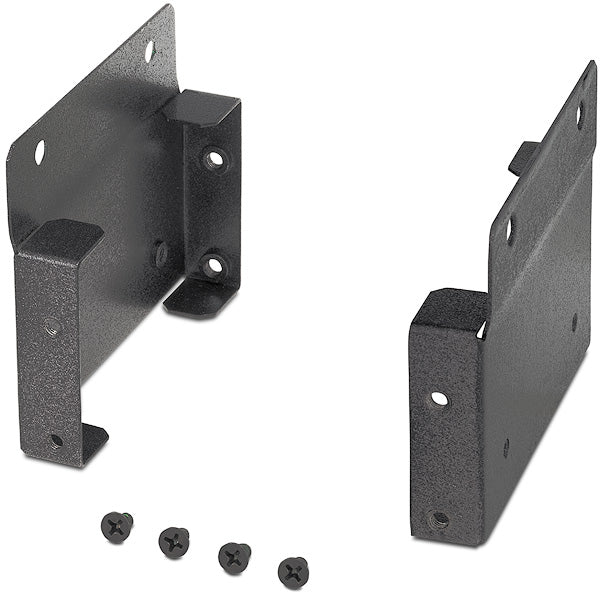

Extron UTM 100 (part number 70-1085-01) — the primary bracket of the UTM 100 Series under-table mounting system, for 1U and 2U full rack width products.

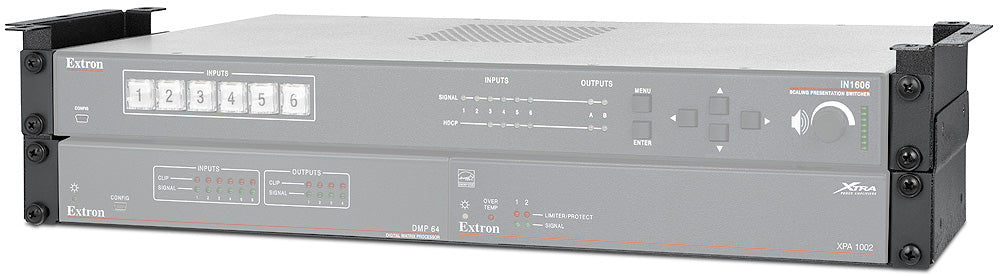

Some rooms simply have nowhere to put a rack. The UTM 100 answers that by turning the underside of a table into the mounting surface. It fixes directly to the furniture and holds a full-rack-width enclosure without rails, leaving a deliberate gap between the equipment and the table top so top-vented devices can still breathe. Extron designs it to work with most of its full-rack enclosures as well as RSF, RSB and RSU rack shelves, which means an existing shelf full of small devices can move under the table as one assembly. Capacity is extended by bolting UTM 150 secondary brackets to the UTM 100, up to a total installed weight of 30 lbs (13.6 kg) for the whole system. Finish is gray powder coat.

Key Capabilities

• Primary under-table bracket for 1U and 2U full rack width products
• Fixes straight to the furniture undersurface, no rack rails needed
• Leaves an air gap for cooling of top-vented enclosures
• Works with Extron full-rack enclosures and RSF, RSB, RSU shelves

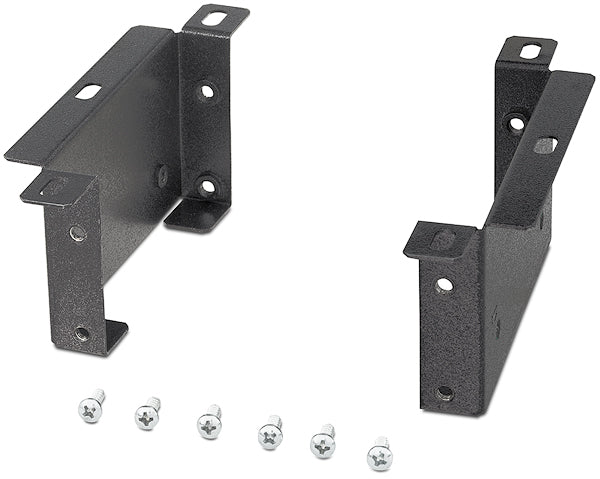

• Expandable with UTM 150 secondary brackets
• 30 lbs (13.6 kg) total system capacity; steel, gray powder coat

Where It Is Used

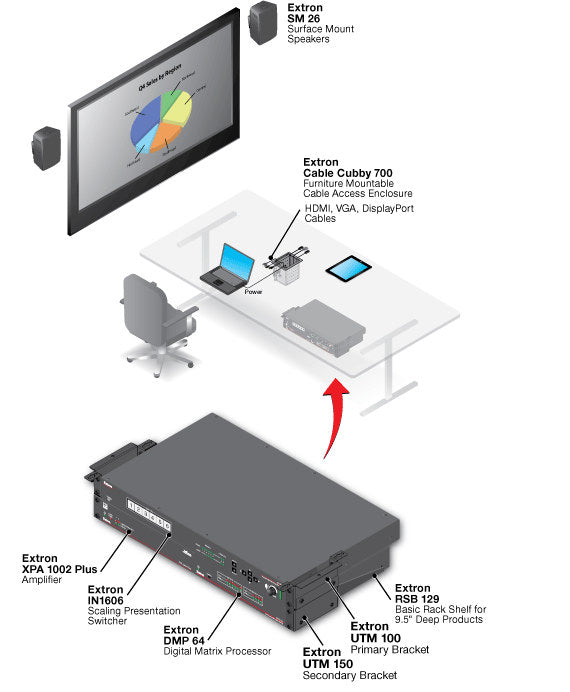

Meeting and conference tables, lecterns, classroom teaching stations, huddle furniture and clinical review desks where the room design rules out a credenza or floor rack but the electronics still have to live nearby.

Specifications at a Glance

• Model: Extron UTM 100, part number 70-1085-01 (Primary Mount, Gray)
• Enclosure dimensions: 1.96 in H x 1.20 in W x 6.00 in D (5.0 x 3.1 x 15.2 cm)
• Weight: 0.4 lbs (0.2 kg); steel
• Maximum load: 30 lbs (13.6 kg) total system weight
• Compliance CE, RoHS, WEEE; Limited Lifetime Performance warranty

Also referenced as Extron UTM100, UTM-100, part number 70108501.
