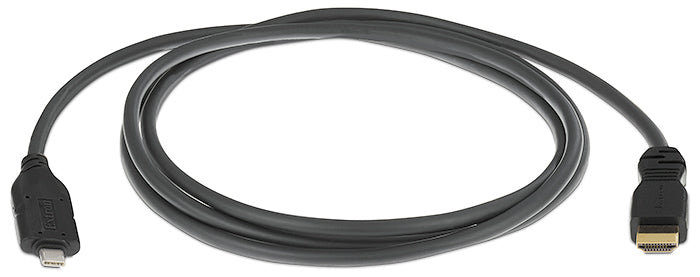

Extron USBC-HDM/6 (part number 26-717-06) — a 6 ft (1.8 m) USB-C male to HDMI male adapter cable that puts a DisplayPort Alt Mode laptop onto an HDMI display at 4K/60.

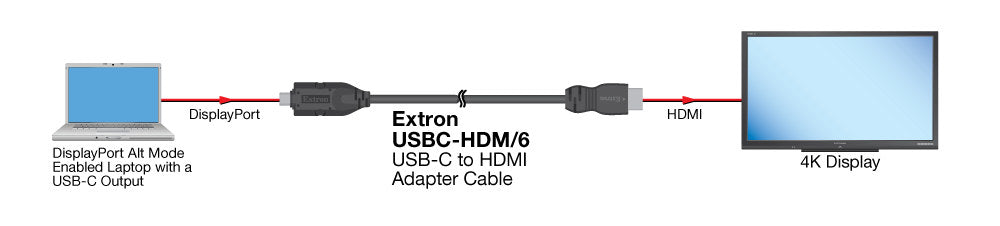

Modern laptops present USB-C; most displays, switchers and recorders still present HDMI. This cable does the conversion inside the connector, so no dongle hangs off the source and nothing needs power. It carries 18 Gbps, which is what 4096x2160 at 60 Hz actually needs, and it passes EDID, HDCP and audio in both directions so the display negotiates properly rather than falling back to a safe mode. Six feet is the working length for a table or lectern to a nearby input plate.

Key Capabilities

• Converts DisplayPort Alt Mode from a USB-C source into an HDMI signal.
• Resolutions to 4096x2160 at 60 Hz and UHD 3840x2160 at 60 Hz.
• 18 Gbps maximum video data rate, up to HDMI 2.0 and HDCP 2.3.
• Frame rates of 24, 25, 30, 50 or 60 fps with 4:4:4 chroma and 8-bit colour.
• Passes EDID, HDCP and audio information between source and display.
• 28 AWG tinned copper conductors, 0.24 in (6.1 mm) diameter, 0.87 in (22 mm) bend radius.
• Gold-plated contacts on both connectors.

Where It Is Used

Meeting-room table boxes and lectern plates fed by USB-C laptops, classroom and training spaces, huddle rooms with HDMI-input displays, production and streaming rigs feeding HDMI capture devices, and clinical or laboratory carts standardised on HDMI monitors.

Specifications at a Glance

• Length: 6 ft (1.8 m)
• Video: up to 4K at 60 Hz, HDMI 2.0, HDCP 2.3
• Maximum video data rate: 18 Gbps
• Connectors: 1 USB-C male to 1 HDMI male
• Cable: 28 AWG, 0.24 in (6.1 mm) diameter, PVC jacket

Also referenced as Extron USBCHDM6, USBC-HDM-6, part number 2671706.
