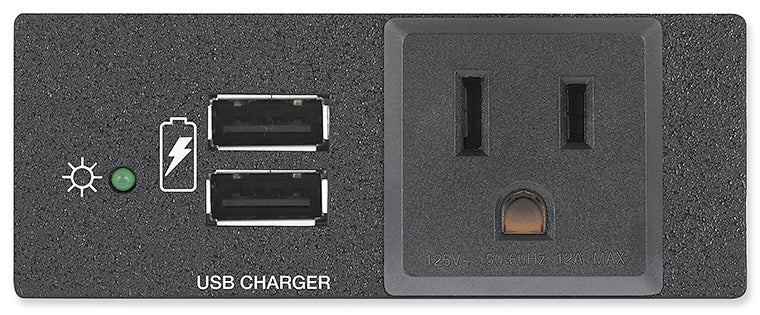

Extron USB PowerPlate 200 AC AAP (part number 60-1937-02) — a double-space plate combining AC power and USB charging in one opening.

Some installations need both a standard electrical outlet and USB charging in the same connectivity plate, without stacking two separate modules. This AC AAP module places one unswitched NEMA 5-15 AC outlet alongside two USB charging ports in a single double-space AAP cutout, keeping the plate layout compact and reducing the number of positions consumed on a table or lectern.

Key Capabilities

• One NEMA 5-15 AC outlet rated 125 VAC, 12 A max, plus two USB ports
• Up to 2.4 A on a single USB port or 3.0 A shared, 15 W total
• 9 ft AC power cord included for the outlet circuit
• External Extron Everlast power supply backed by a 7-year warranty
• Fits standard Extron AAP mounting frames for rack or wall installation

Where It Is Used

Selected for boardrooms, huddle rooms and presentation tables where guests need a standard AC outlet for laptop chargers alongside USB ports for phones, all from one plate position next to existing AV connectors.

Specifications at a Glance

• 1x NEMA 5-15 AC outlet, 2x USB Type A charging ports
• Up to 3.0 A / 15 W shared USB output
• Double-space AAP faceplate, metal enclosure
• External 18 W Everlast power supply
• 3-year product warranty, 7-year Everlast power supply warranty

Also referenced as Extron USBPOWERPLATE200ACAAP, USB-PowerPlate-200-AC-AAP, part number 60193702.
