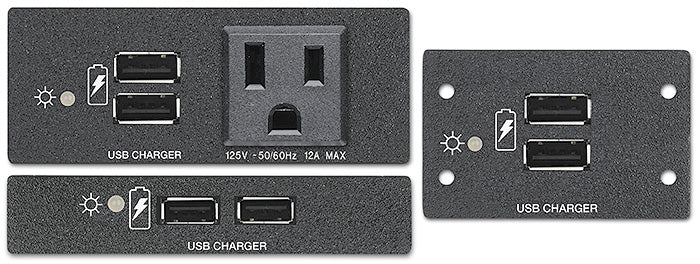

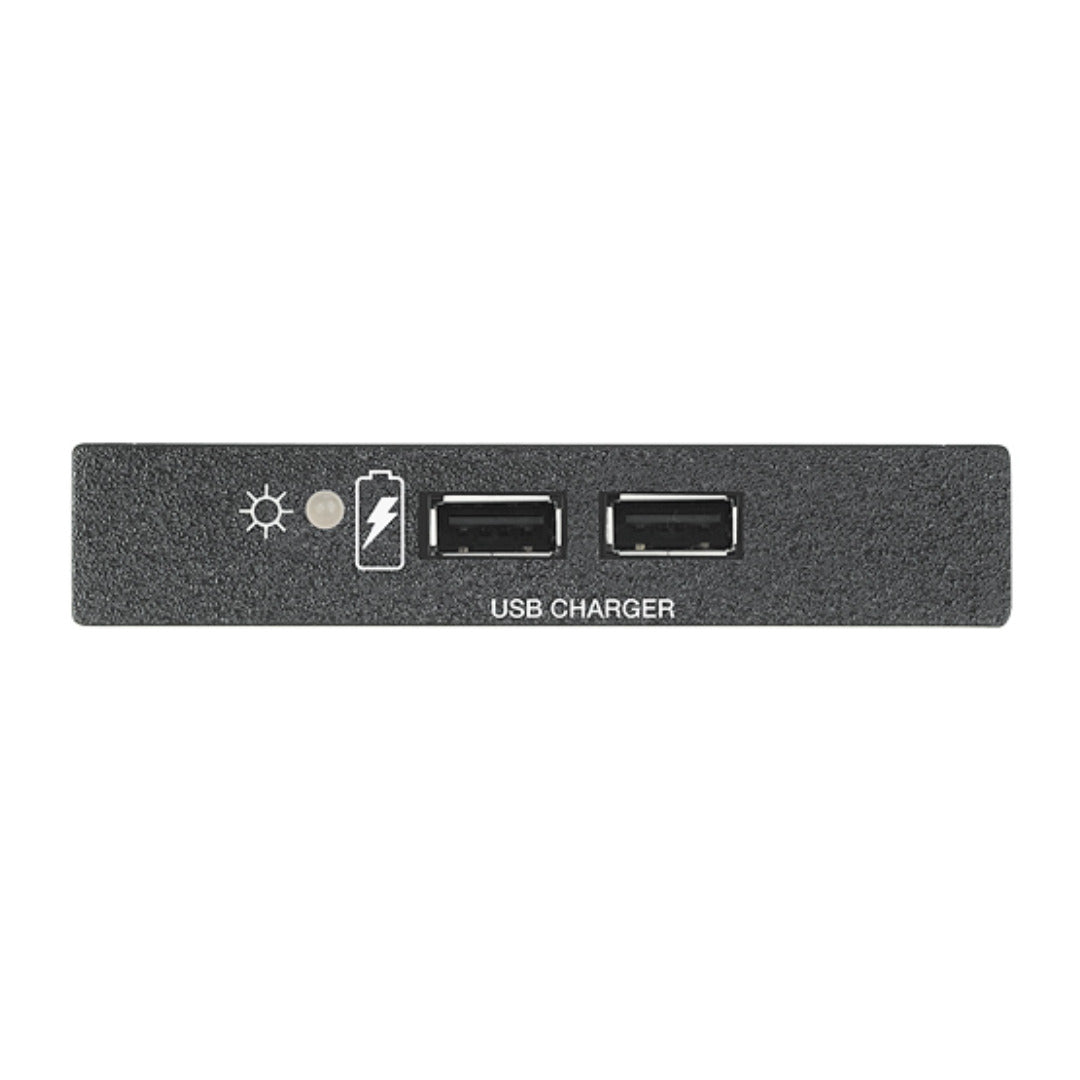

Extron USB PowerPlate 200 AAP (part number 60-1346-02) — a single-space USB charging module for architectural connectivity plates.

Conference tables and lecterns increasingly need a place for guests to charge phones and tablets without dedicating a full outlet strip. The USB PowerPlate 200 AAP delivers two USB charging ports from a single AAP opening, so an integrator can add power without giving up a position for video or audio connectors on the same plate.

Key Capabilities

• Two USB Type A charging ports in one single-space AAP opening
• Up to 2.4 A on a single port or 3.0 A shared across both, 15 W total
• Compatible with iOS and Android charging profiles
• External Extron Everlast power supply backed by a 7-year warranty
• Fits standard Extron AAP mounting frames for rack or wall installation

Where It Is Used

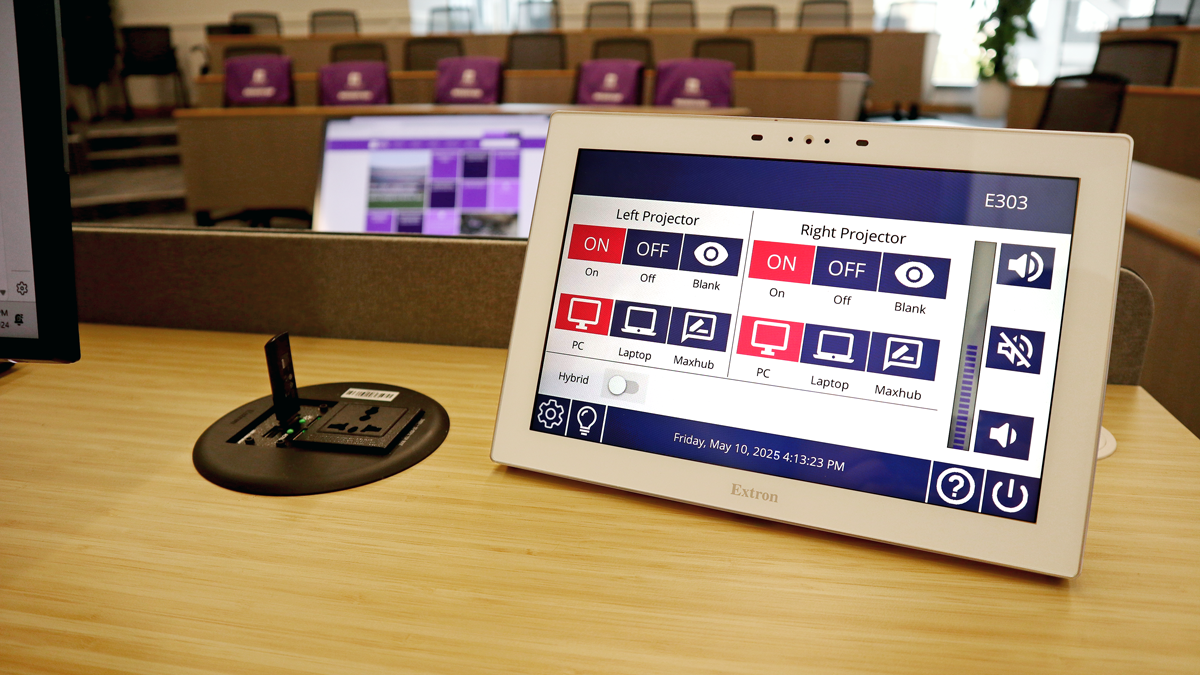

Common in huddle rooms, classroom lecterns and conference tables where the AAP plate already carries HDMI, network or audio modules and a compact charging position is needed alongside them.

Specifications at a Glance

• 2x USB Type A, power only, 5 VDC output
• Up to 3.0 A / 15 W shared across both ports
• Single-space AAP faceplate, metal enclosure
• External 18 W Everlast power supply
• 3-year product warranty, 7-year Everlast power supply warranty

Also referenced as Extron USBPOWERPLATE200AAP, USB-PowerPlate-200-AAP, part number 60134602.
