Details

Manufacturer: Extron | Model: USB HUB4 AAP | Part number: 60-1031-12 (also written 60103112)

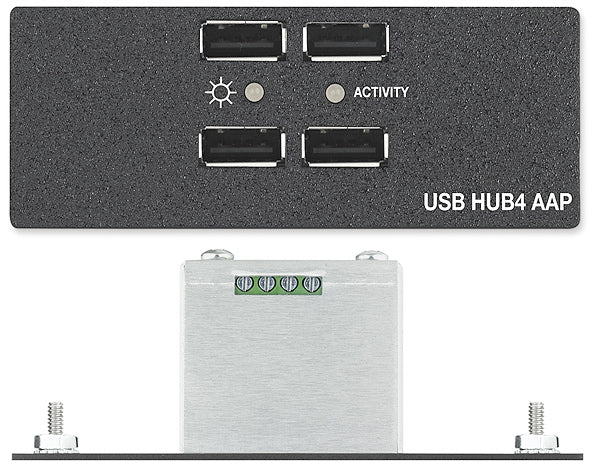

The Extron USB HUB4 AAP (60-1031-12) is a four-port USB 2.0 hub in a black double-space AAP module. It mounts in Extron AAP frames alongside HDMI, VGA, and audio connectivity modules, giving table boxes and lecterns a clean integrated USB hub without a separate enclosure. The hub is powered by an optional external 12 VDC supply. A 6 ft USB A Male to Mini B Male cable is included.

Key capabilities

Four USB 2.0 Type A ports at up to 480 Mbps per port, 500 mA each when externally powered
Black double-space AAP module mounts in any Extron AAP-compatible frame
Accepts host connection via USB Mini B or 5-pole 3.5 mm captive screw (one at a time)
6 ft USB A to Mini B cable included
Requires optional external 12 VDC power supply for port power delivery

Where it is used

Table boxes, wall frames, and lecterns where a clean in-frame USB hub is needed for laptops, cameras, or peripheral devices without adding a separate enclosure to the furniture.

Specifications at a glance

Faceplate: 1.4 in H x 3.5 in W, black finish
Device enclosure: 1.4 in H x 1.4 in W x 1.2 in D
Operating temperature: +32 to +122 F
Warranty: 3-year Extron parts and labor

Also referenced as Extron USBHUB4AAP, USB-HUB4-AAP, part number 60103112.

Specifications

Part Number: 60-1031-12

Manufacturer: Extron

Condition: New

Height: 2.38" (6.0 cm)

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Available USB power: 500 mA shared between 4 ports

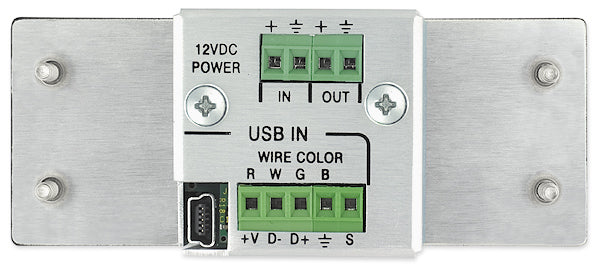

Connectors: 1 female USB mini B or1 female 3.5 mm captive screw connector, 5 pole(Only one port is active at a time.)

Cooling: Convection, no vents

Device: 1.4" H x 1.4" W x 1.2" D (35 mm H x 35 mm W x 30 mm D) Allow at least 1.5" (38 mm) depth in the wall or furniture.

Enclosure type: Metal

Faceplate: 1.4" H x 3.5" W x 0.1" D (35 mm H x 89 mm W x 3 mm D) (double space AAP plate)

Furniture mount: Yes with optional mounting frame or Extron devices with AAP or MAAP openings

Maximum built-in USB hubs: 1

Minimum built-in USB hubs: 1

Number/signal type: 1 USB

Optional built-in USB hubs: 0

Power: 100 VAC to 240 VAC, 50-60 Hz, external; to 12 VDC, 1 A, regulated

Power input: 12 VDC, 300 mA

Product warranty: 3 years parts and labor

Product weight: 0.25 lbs (0.1 kg)

Rack mount: Yes, with optional mounting frame

Regulatory compliance: CE, C-tick, c-UL, FCC Class A, ICES, UL, VCCI Class A

Shipping weight: 1 lb (<1 kg)

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Diagram

Resources

Brochure | USB HUB4 AAP 60-1031-12 | USB HUB4

Manual | USB HUB4 AAP 60-1031-12 | Cleaning Instruction Card

Manual | USB HUB4 AAP 60-1031-12 | USB HUB4 Setup Guide

Manual | USB HUB4 AAP 60-1031-12 | USB HUB4 User Guide

Specifications | USB HUB4 AAP 60-1031-12 | USB HUB4 Series

Panel Drawing | USB HUB4 AAP 60-1031-12 | USB HUB4 AAP

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron USB HUB4 AAP 60-1031-12

Name: Extron USB HUB4 AAP 60-1031-12
Brand: Extron
SKU: EXTRON-USBHUB4AAP-60103112
Availability: InStock

Manufacturer: Extron

Type: USB for Pro AV

Extron USB HUB4 AAP 60-1031-12 Black

• 4-port USB 2.0 hub in a black AAP architectural mounting plate form factor
• Expands one USB host port into four device ports for keyboards, mice and more
• Fits Extron architectural mounting systems for clean in-wall or in-table installs
• Powered by optional external 12 VDC supply
• USB 2.0 at up to 480 Mbps per port
