Details

Manufacturer: Extron | Model: USB Extender xi T D | Part number: 60-1966-12 (also written 60196612)

The Extron USB Extender xi T D (part number 60-1966-12 / 60196612) is the Decorator-form transmitter of Extron's USB Extender xi Series, designed for wall plate and furniture installations. The xi T D integrates directly into a standard single-gang Decorator opening — matching Extron cable cubby accessories and Decorator wall plates — while delivering the same USB 2.0 extension, PoE, and device emulation capabilities as the standard xi T (60-1964-12). Extension up to 330 ft point-to-point or 1,980 ft over a Gigabit Ethernet network. Ampronix is an authorized Extron distributor and carries a full range of Extron USB extension products.

Key capabilities

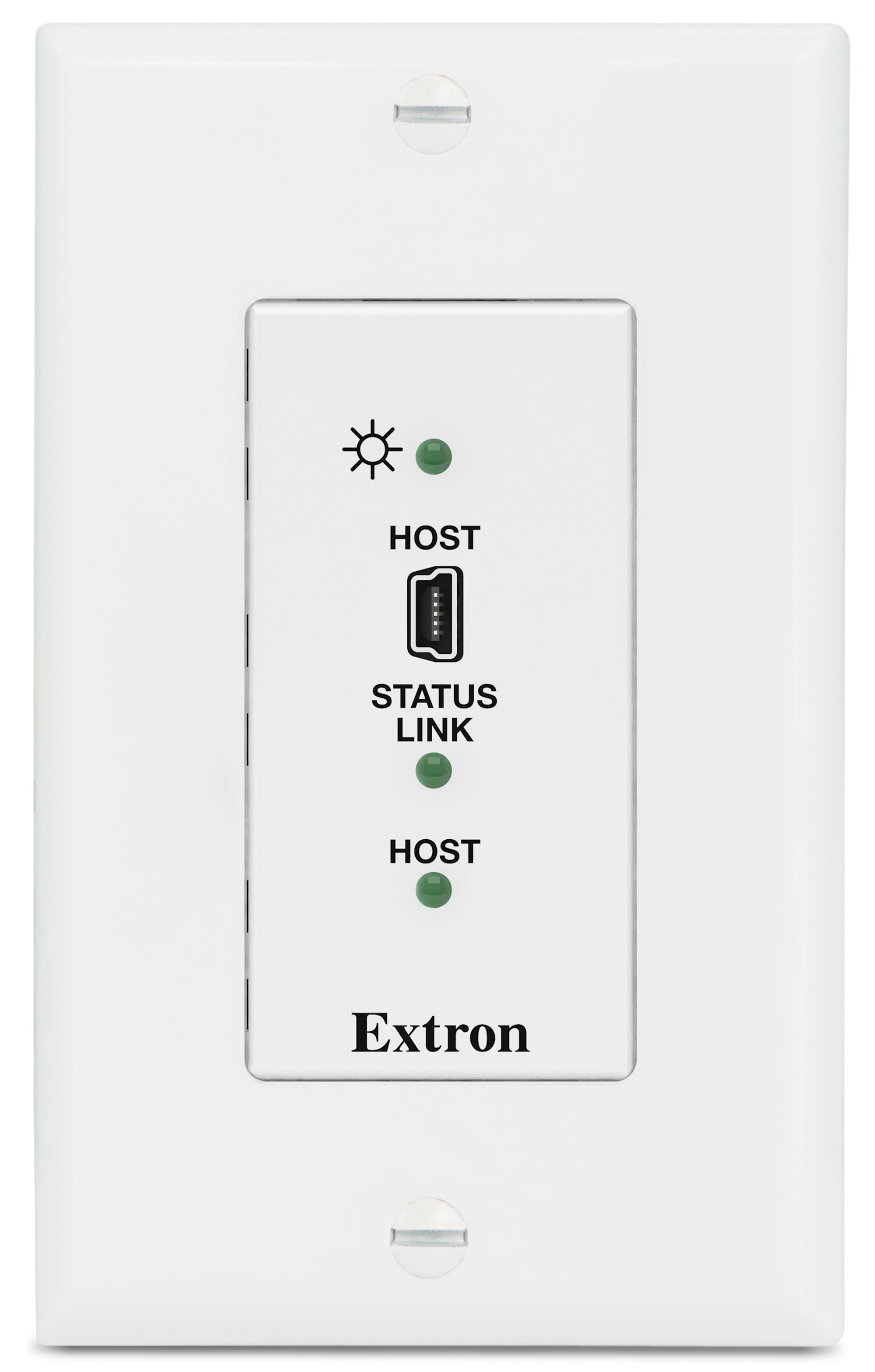

Decorator form factor: single-gang wall plate install; matches Extron cable cubby and Decorator accessories
USB 2.0 extension: 1,980 ft (600 m) over Gigabit Ethernet; 330 ft (100 m) point-to-point
USB device emulation for reliable host booting; supports all USB 2.0 transfer types
PoE 802.3af Class 3 or external 12 VDC, 1 A; RJ-45 Gigabit + RS-232/422/485; fanless metal
0.7 lbs; 7-year Everlast PSU warranty; 3-year product warranty. Global Configurator Plus/Professional
New | Authorized Extron Distributor Ampronix | Part# 60-1966-12 / 60196612

Where it is used

The Extron USB Extender xi T D (60-1966-12) is installed in cable cubbies, conference table boxes, and Decorator wall plates in classrooms, boardrooms, and huddle spaces for clean USB access at the presentation surface without exposed cabling.

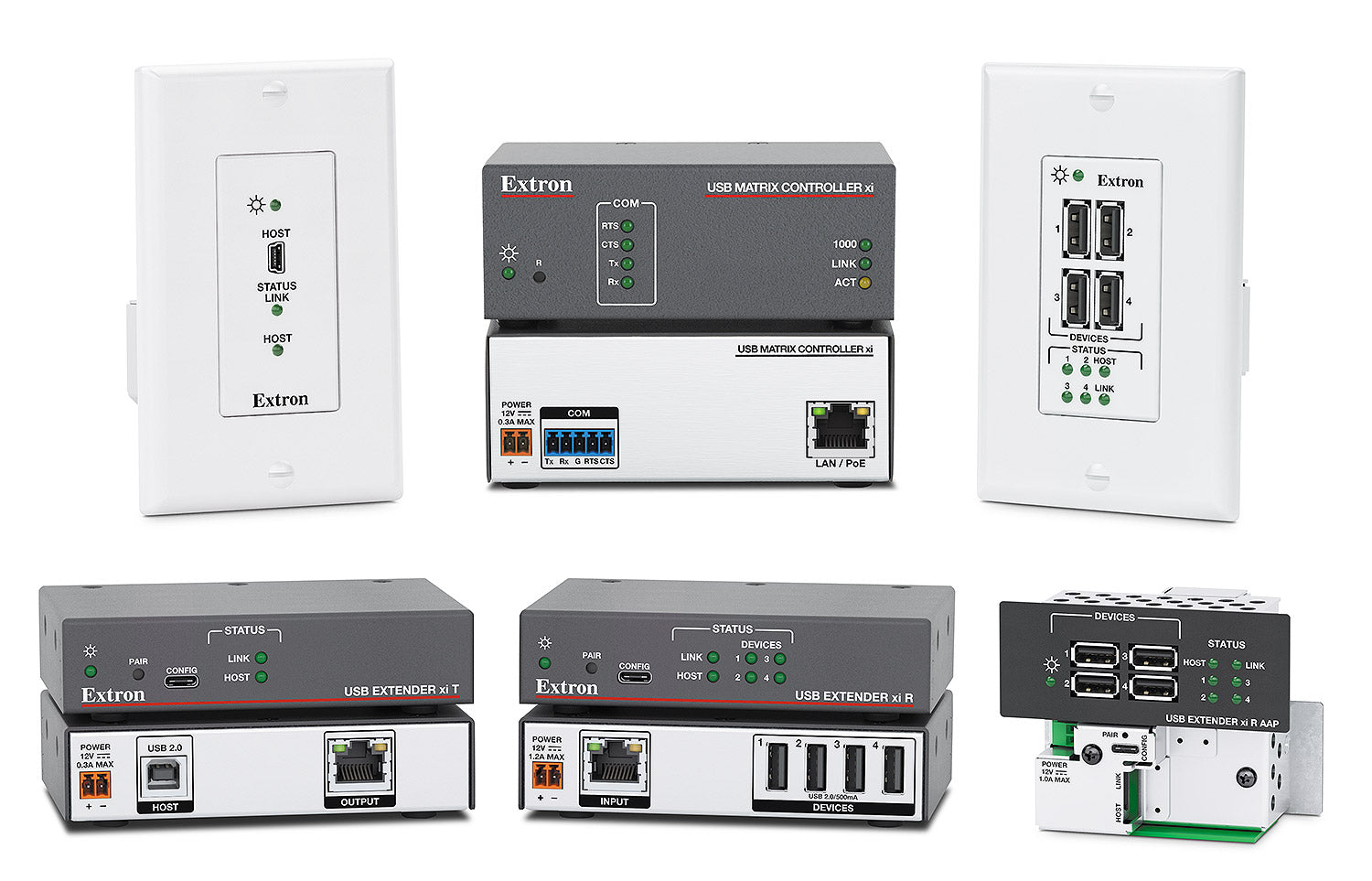

System components and compatible part numbers

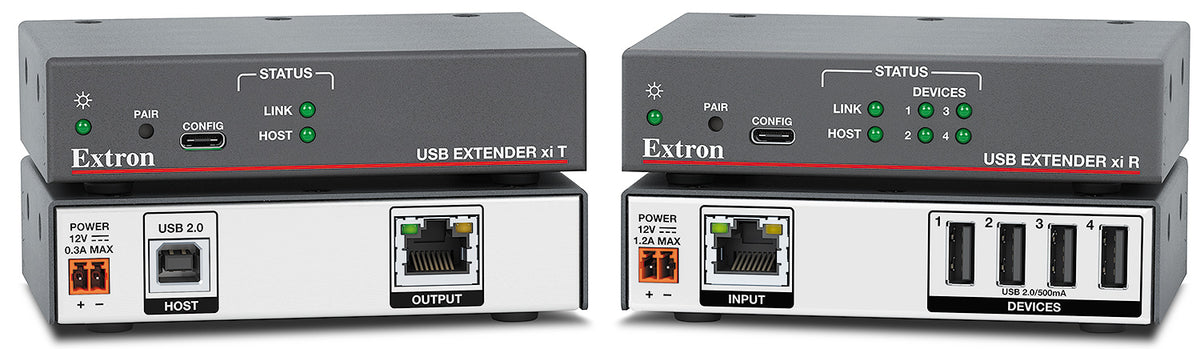

Receiver (remote side): Extron USB Extender xi R D, part# 60-1966-13 - matching Decorator-form receiver, or the standard xi R (60-1964-13)
Network switching: Extron USB Matrix Controller xi, part# 60-2022-01 - enables many-to-many USB routing across multiple links

Specifications at a glance

Part number: 60-1966-12 / 60196612; form: Decorator single-gang; USB: 2.0
Range: 330 ft P2P; 1,980 ft networked; power: PoE 802.3af or 12 VDC

Frequently asked questions

Is the Extron USB Extender xi T D 60-1966-12 available new? - Yes, the Extron USB Extender xi T D (60-1966-12) is available new from Ampronix, an authorized Extron distributor.
What is the difference between the Extron USB Extender xi T D and the standard xi T? - The xi T D (60-1966-12) fits a single-gang Decorator wall plate opening for flush installs, while the standard xi T (60-1964-12) is a quarter-rack chassis for rack, furniture, or wall mounting; both share the same USB 2.0 extension performance.
Does Ampronix support the Extron USB Extender xi T D? - Yes, as an authorized Extron distributor Ampronix offers sales and support for the full USB Extender xi Series, including the xi T D (60-1966-12) and xi R D (60-1966-13).
Does the Extron USB Extender xi T D work with the standard xi R? - Yes, the xi T D pairs with either the Decorator-form xi R D (60-1966-13) or the standard xi R (60-1964-13).

Also referenced as: ExtronUSBExtenderxiTD, USB Extender xi T Decorator, Extron Decorator USB transmitter, part number 60196612, 60-1966-12.

Specifications

Part Number: 60-1966-12

Manufacturer: Extron

Condition: New

Height: 3.0" (7.6 cm)

All supported: IPv4, UDP, DHCP, Unicast

Available USB power: 500 mA per port

Baud rate and protocol: 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;no parity (default), even, or odd parity

Configuration software: Global Configurator® Plus and Professional

Connector: 1 female RJ-45 connector

Connectors: 1 female USB type B

Control apps: Extron Control

Cooling: Convection, no vents

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Data transfer types: Bulk, control, interrupt, and isochronous

Default settings: Link speed and duplex level = autodetectedIP address = 192.168.254.250Subnet mask = 255.255.255.0Gateway = 0.0.0.0DHCP = offDNS = 127.0.0.1

Device: 2.5 watts

Device and power supply: 3.4 watts

Enclosure dimensions: 1.7" H x 4.3" W x 6.0" D (1U high, quarter rack wide) (43 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Faceplate: 1.4" H x 3.5" W x 0.1 " D (36 mm H x 89 mm W x 2.5 mm D) Double-space AAP

Flash: 8 GB

Furniture mount: Yes, with optional bracket kit

Hardware: TouchLink® Pro touchpanels, Network Button Panels, or eBUS® button panels

IP Configuration: Static IP (default) or DHCP

Maximum built-in USB hubs: 2

Minimum built-in USB hubs: 0

Network interface controllers (NICs): 1: 1 LAN

Number/signal type: 1 USB

Optional built-in USB hubs: Peripheral emulation enabled: 1 1:n network pairing enabled: 1

Over the network: Up to 1980' (600 m)**

Point to point: Up to 330' (100 m)

Power input requirements: 12 VDC, 1 A, 12 watts, max. Or power over Ethernet (PoE) (complies with PoE 802.3af, class 3)

Power supply: External

Product warranty: 3 years parts and labor

Product weight: 0.7 lbs (0.3 kg)

Programming software: Global Scripter®

Protocol: Ethernet

Protocols: DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X , NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 bidirectional RS-232, RS-422, RS-485

RS-232 (default): Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS

RS-422: Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+

RS-485: Pins 1 and 2 (tied together) = data-, 3 = Gnd, 4 and 5 (tied together) = data+

Rack mount: Yes, with optional 1U rack shelf or back of the rack mounting kit

Receiver: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts

Receiver HUB power output: 5 VDC, 500 mA per port

Regulatory compliance: CE, c-UL, KCC, C-tick, FCC Class A, ICES, RoHS, VCCI Class AUL, WEEE

Resource management software: GlobalViewer® Enterprise

SDRAM: 1 GB

Standards: IEEE 802.3u (100Base-T), IEEE 802.3ab (1000Base-T)

Temperature/humidity: Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing

Termination standards: TIA 568B

Transmitter: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts

Transport: TCP/IP, UDP

USB Extender xi Rack Mount: 1.0" H x 4.3" W x 3.0" D (quarter rack width) (25 mm H x 109 mm W x 76 mm D) (Depth excludes connectors.)

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

USB host support: xHCI (USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Utilities: Toolbelt, embedded web page

Vibration: ISTA 1A in carton (International Safe Transit Association)

Diagram

Resources

Brochure | USB Extender xi T D 60-1966-12 | USB Extender xi Series

Specifications | USB Extender xi T D 60-1966-12 | USB Extender xi T/R Series

Panel Drawing | USB Extender xi T D 60-1966-12 | USB Extender xi Series
