Details

Manufacturer: Extron | Model: USB Extender Plus D T | Part number: 60-1473-13 (also written 60147313)

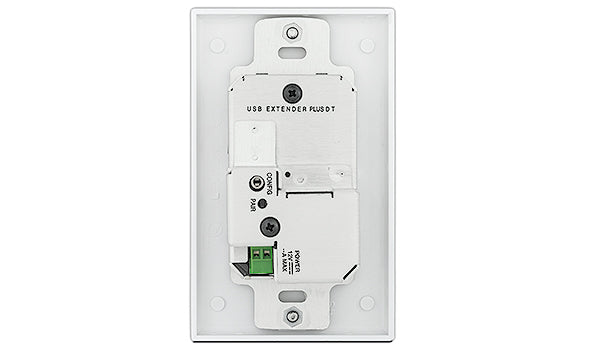

The Extron USB Extender Plus D T (60-1473-13) is the decorator-wallplate transmitter in the USB Extender Plus family. It mounts flush in a standard single-gang wall box and connects to a USB host via a Type B port, forwarding USB signals to a matching receiver over Gigabit Ethernet at up to 1,980 ft or over direct CATx at 330 ft. The white decorator finish blends with standard US wallplates in finished spaces. Peripheral emulation lets the host boot without a locally attached keyboard.

Key capabilities

Decorator single-gang wall form factor, white finish, for finished spaces
Extends USB 2.0 at up to 480 Mbps to 1,980 ft over Gigabit Ethernet or 330 ft over CATx
Peripheral emulation at the host end
Pairs with the USB Extender Plus D R (60-1473-23) decorator receiver
Powered by PoE or optional 12 VDC external supply

Where it is used

Boardrooms, lecture halls, and auditoriums where a wallplate USB source point needs to blend architecturally and connect to a rack-mounted host PC over the building network or a single CATx run.

Specifications at a glance

Mounting: standard US single-gang electrical box
Host connector: 1 USB Type B female
Network: 10/100/1000Base-T, IPv4, UDP, DHCP and unicast supported
Operating temperature: +32 to +122 F

Also referenced as Extron USBExtenderPlusDT, USB-Extender-Plus-D-T, part number 60147313.

Specifications

Part Number: 60-1473-13

Manufacturer: Extron

Condition: New

Height: 3.0" (7.6 cm)

All supported: IPv4, UDP, DHCP, Unicast

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Available USB power: 500 mA per port

Baud rate and protocol: 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;no parity (default), even, or odd parity

Connectors: 1 female USB type B

Cooling: Convection, no vents

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Data transfer types: Bulk, Control, Interrupt, and Isochronous

Default settings: Link speed and duplex level = autodetected IP address = 192.168.254.250 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS: 127.0.0.1

Device: 2.5 watts

Device and power supply: 3.4 watts

Enclosure dimensions: 1.0" H x 4.3" W x 6.0" D (1U high, quarter rack wide) (25 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Faceplate: 1.4" H x 3.5" W x 0.1 " D (36 mm H x 89 mm W x 2.5 mm D) Double-space AAP

Flash: 512 MB

Furniture mount: Yes, with optional bracket kit

IP Configuration: Static IP (default) or DHCP

Maximum built-in USB hubs: 2

Minimum built-in USB hubs: 0

Network interface controllers (NICs): 1

Number/signal type: 1 USB

Optional built-in USB hubs: Peripheral emulation enabled: 1 1:n network pairing enabled: 1

Over the network: Up to 1980' (600 m)**

Point to point: Up to 330' (100 m)

Power input requirements: 12 VDC, 1 A, 12 watts, max. Or power over Ethernet (PoE) (complies with PoE 802.3af, class 3)

Power supply: External

Product warranty: 3 years parts and labor

Product weight: 0.6 lbs (0.3 kg)

Protocol: Ethernet

Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 bidirectional RS-232

Rack mount: Yes, with optional 1U rack shelf or back of the rack mounting kit

Receiver: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts

Receiver HUB power output: 5 VDC, 500 mA per port

Regulatory compliance: UL, c-UL, CE, FCC Class A, C-Tick, RoHS, WEEE, KC* *Only USB Extender Plus T, USB Extender Plus R, and USB Extender Plus AAP R models

SDRAM: 512 MB

Standards: IEEE 802.3u (100Base-T), IEEE 802.3ab (1000Base-T)

Termination standards: TIA 568B

Transmitter: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts

Transport: TCP/IP, UDP

USB Extender Plus Rack Mount: 1.0" H x 4.3" W x 6.0" D (quarter rack width) (25 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

USB host support: xHCI (USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Vibration: ISTA 1A in carton (International Safe Transit Association)

Diagram

Resources

Brochure | USB Extender Plus D T 60-1473-13 | USB Extender Plus Series

Brochure | USB Extender Plus D T 60-1473-13 | Everlast Power Supplies

Brochure | USB Extender Plus D T 60-1473-13 | Gamme USB Extender Plus

Brochure | USB Extender Plus D T 60-1473-13 | Serie USB Extender Plus (USB-Extender-Plus-Series_BR_A4_SP_RevA.pdf)

Brochure | USB Extender Plus D T 60-1473-13 | Serie USB Extender Plus (USB-Extender-Plus-Series_BR_A4_IT_RevA.pdf)

Brochure | USB Extender Plus D T 60-1473-13 | USB Extender Plus-Serie

Brochure | USB Extender Plus D T 60-1473-13 | Серия USB Extender Plus

Brochure | USB Extender Plus D T 60-1473-13 | Alimentatori Everlast

Brochure | USB Extender Plus D T 60-1473-13 | Everlast 电源

Brochure | USB Extender Plus D T 60-1473-13 | Everlast-Netzteile

Brochure | USB Extender Plus D T 60-1473-13 | Fuentes de alimentación Everlast

Brochure | USB Extender Plus D T 60-1473-13 | Sources d'alimentation Everlast

Brochure | USB Extender Plus D T 60-1473-13 | USB Extender Plusシリーズ

Manual | USB Extender Plus D T 60-1473-13 | Cleaning Instruction Card

Manual | USB Extender Plus D T 60-1473-13 | USB Extender Plus Series User Guide

Manual | USB Extender Plus D T 60-1473-13 | USB Extender Plus T/R Setup Guide

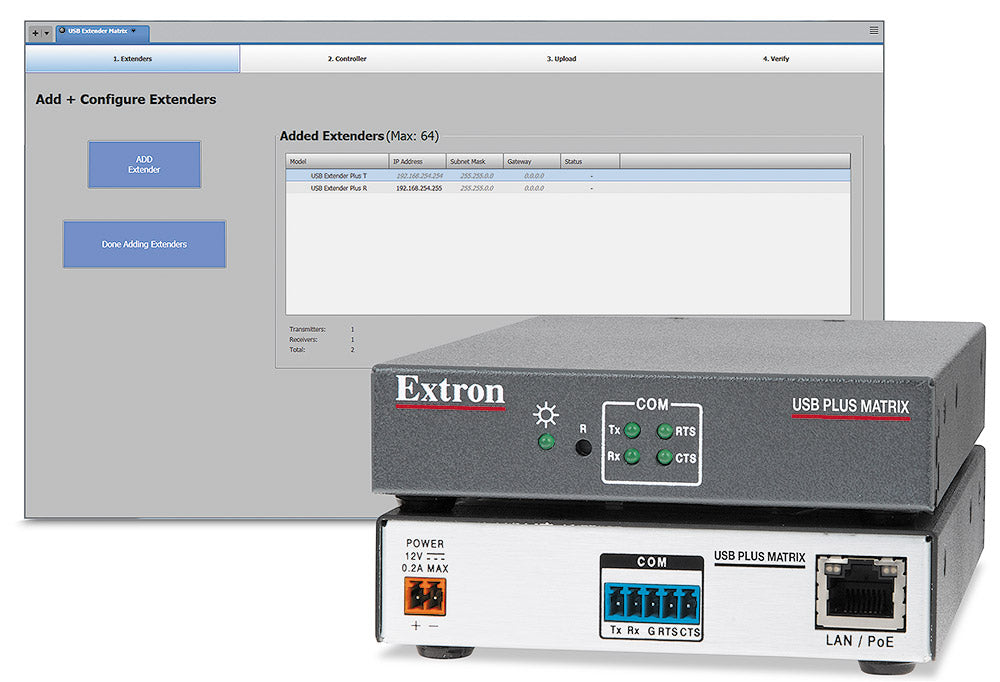

Manual | USB Extender Plus D T 60-1473-13 | USB Plus Matrix Controller Setup Guide

Specifications | USB Extender Plus D T 60-1473-13 | USB Extender Plus T/R Series

Panel Drawing | USB Extender Plus D T 60-1473-13 | USB Extender Plus Series

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron USB Extender Plus D T 60-1473-13

Name: Extron USB Extender Plus D T 60-1473-13
Brand: Extron
SKU: EXTRON-USBEXTENDERPLUSDT-60147313
Availability: InStock

Manufacturer: Extron

Type: USB for Pro AV

Extron USB Extender Plus D T 60-1473-13 Decorator Transmitter

• Decorator wallplate USB transmitter for single-gang wall installations
• Extends USB 2.0 to 1,980 ft (600 m) via Gigabit Ethernet or 330 ft via CATx
• Connects to a USB host computer via USB type B port
• Powered by PoE or optional 12 VDC external supply
• Works with the matching USB Extender Plus D R receiver
