Details

Manufacturer: Extron | Model: USB Extender Plus D R | Part number: 60-1473-23 (also written 60147323)

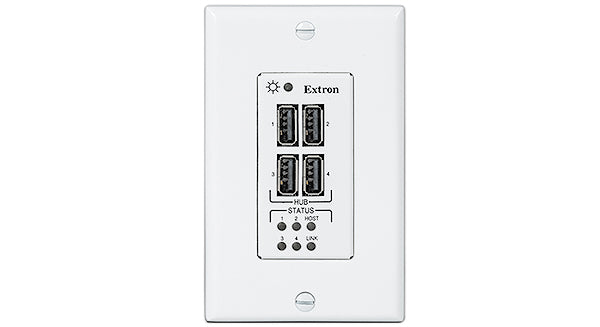

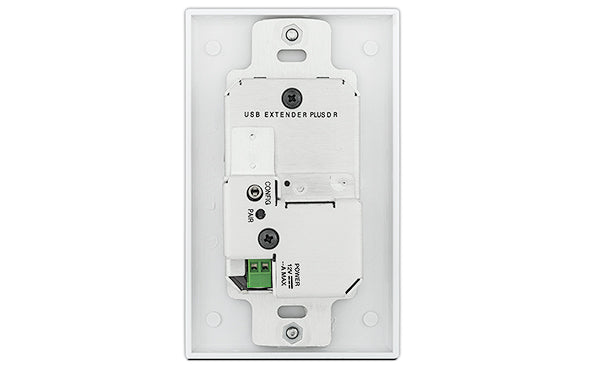

The Extron USB Extender Plus D R (60-1473-23) is the decorator-wallplate receiver in the USB Extender Plus family. It mounts flush in a standard single-gang wall box at the display end and routes USB signals from the matching transmitter to connected peripherals through its built-in four-port active hub. Each hub port supplies up to 500 mA. The white decorator finish matches standard US wallplates in finished spaces.

Key capabilities

Decorator single-gang wall form factor, white finish
Extends USB 2.0 at up to 480 Mbps to 1,980 ft over Gigabit Ethernet or 330 ft over CATx
Built-in 4-port active USB 2.0 hub, 500 mA per port
Pairs with the USB Extender Plus D T (60-1473-13) decorator transmitter
Powered by PoE or optional 12 VDC external supply

Where it is used

Boardrooms, lecture halls, and auditoriums where a flush wallplate USB hub at the display needs to blend architecturally while connecting to a rack-mounted host PC over the building network.

Specifications at a glance

Mounting: standard US single-gang electrical box
Peripheral ports: 4 x USB Type A female, 500 mA each
Network: 10/100/1000Base-T, IPv4, UDP, DHCP and unicast supported
Operating temperature: +32 to +122 F

Also referenced as Extron USBExtenderPlusDR, USB-Extender-Plus-D-R, part number 60147323.

Specifications

Part Number: 60-1473-23

Manufacturer: Extron

Condition: New

Height: 3.0" (7.6 cm)

All supported: IPv4, UDP, DHCP, Unicast

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Available USB power: 500 mA per port

Baud rate and protocol: 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;no parity (default), even, or odd parity

Connectors: 1 female USB type B

Cooling: Convection, no vents

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Data transfer types: Bulk, Control, Interrupt, and Isochronous

Default settings: Link speed and duplex level = autodetected IP address = 192.168.254.250 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS: 127.0.0.1

Device: 2.5 watts

Device and power supply: 3.4 watts

Enclosure dimensions: 1.0" H x 4.3" W x 6.0" D (1U high, quarter rack wide) (25 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Faceplate: 1.4" H x 3.5" W x 0.1 " D (36 mm H x 89 mm W x 2.5 mm D) Double-space AAP

Flash: 512 MB

Furniture mount: Yes, with optional bracket kit

IP Configuration: Static IP (default) or DHCP

Maximum built-in USB hubs: 2

Minimum built-in USB hubs: 0

Network interface controllers (NICs): 1

Number/signal type: 1 USB

Optional built-in USB hubs: Peripheral emulation enabled: 1 1:n network pairing enabled: 1

Over the network: Up to 1980' (600 m)**

Point to point: Up to 330' (100 m)

Power input requirements: 12 VDC, 1 A, 12 watts, max. Or power over Ethernet (PoE) (complies with PoE 802.3af, class 3)

Power supply: External

Product warranty: 3 years parts and labor

Product weight: 0.6 lbs (0.3 kg)

Protocol: Ethernet

Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 bidirectional RS-232

Rack mount: Yes, with optional 1U rack shelf or back of the rack mounting kit

Receiver: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts

Receiver HUB power output: 5 VDC, 500 mA per port

Regulatory compliance: UL, c-UL, CE, FCC Class A, C-Tick, RoHS, WEEE, KC* *Only USB Extender Plus T, USB Extender Plus R, and USB Extender Plus AAP R models

SDRAM: 512 MB

Standards: IEEE 802.3u (100Base-T), IEEE 802.3ab (1000Base-T)

Termination standards: TIA 568B

Transmitter: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts

Transport: TCP/IP, UDP

USB Extender Plus Rack Mount: 1.0" H x 4.3" W x 6.0" D (quarter rack width) (25 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

USB host support: xHCI (USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Vibration: ISTA 1A in carton (International Safe Transit Association)

Diagram

Resources

Brochure | USB Extender Plus D R 60-1473-23 | USB Extender Plus Series

Brochure | USB Extender Plus D R 60-1473-23 | Everlast Power Supplies

Brochure | USB Extender Plus D R 60-1473-23 | Gamme USB Extender Plus

Brochure | USB Extender Plus D R 60-1473-23 | Serie USB Extender Plus (USB-Extender-Plus-Series_BR_A4_SP_RevA.pdf)

Brochure | USB Extender Plus D R 60-1473-23 | Serie USB Extender Plus (USB-Extender-Plus-Series_BR_A4_IT_RevA.pdf)

Brochure | USB Extender Plus D R 60-1473-23 | USB Extender Plus-Serie

Brochure | USB Extender Plus D R 60-1473-23 | Серия USB Extender Plus

Brochure | USB Extender Plus D R 60-1473-23 | Alimentatori Everlast

Brochure | USB Extender Plus D R 60-1473-23 | Everlast 电源

Brochure | USB Extender Plus D R 60-1473-23 | Everlast-Netzteile

Brochure | USB Extender Plus D R 60-1473-23 | Fuentes de alimentación Everlast

Brochure | USB Extender Plus D R 60-1473-23 | Sources d'alimentation Everlast

Brochure | USB Extender Plus D R 60-1473-23 | USB Extender Plusシリーズ

Manual | USB Extender Plus D R 60-1473-23 | Cleaning Instruction Card

Manual | USB Extender Plus D R 60-1473-23 | USB Extender Plus Series User Guide

Manual | USB Extender Plus D R 60-1473-23 | USB Extender Plus T/R Setup Guide

Manual | USB Extender Plus D R 60-1473-23 | USB Plus Matrix Controller Setup Guide

Specifications | USB Extender Plus D R 60-1473-23 | USB Extender Plus T/R Series

Panel Drawing | USB Extender Plus D R 60-1473-23 | USB Extender Plus Series

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron USB Extender Plus D R 60-1473-23

Name: Extron USB Extender Plus D R 60-1473-23
Brand: Extron
SKU: EXTRON-USBEXTENDERPLUSDR-60147323
Availability: InStock

Manufacturer: Extron

Type: USB for Pro AV

Extron USB Extender Plus D R 60-1473-23 Decorator Receiver

• Decorator wallplate USB receiver for single-gang wall installations
• Extends USB 2.0 to 1,980 ft (600 m) via Gigabit Ethernet or 330 ft via CATx
• Built-in 4-port USB 2.0 hub, 500 mA per port for keyboards, mice and storage
• Powered by PoE or optional 12 VDC external supply
• Works with the matching USB Extender Plus D T transmitter
