Extron UPI 100 (part number 60-2062-01) — a quarter-rack USB-C power inserter that supplies up to 100 watts of power delivery to compatible Extron USB-C endpoints.

Worth being precise about what this box does: it does not power the Extron device itself. It feeds a dedicated power insertion port on that device, which then converts the supply to the USB-C standard and passes power delivery through to whatever laptop is plugged in at the endpoint. That separation is what lets a transmitter or wallplate charge a notebook without a bulky local brick at the user position. Output is on a 2-pole 5 mm captive screw connector, so the installer chooses conductor gauge and run length to suit the room.

Key Capabilities

• Delivers up to 100 watts of USB-C power delivery to the Extron endpoint.
• 2-pole, 5 mm captive screw power output for field-terminated cable.
• Runs on 100-240 VAC at 50-60 Hz, 1.4 A maximum input.
• At 12 AWG, reaches 330 ft (100 m) for 60 W output or 80 ft (24 m) for 100 W.
• Front and rear Power/Fault LED for at-a-glance status checks.
• ZipClip 200 bracket included for tabletop, rack rail, rack shelf or furniture mounting.
• Quarter rack width: four units fit side by side on a single rack shelf.

Where It Is Used

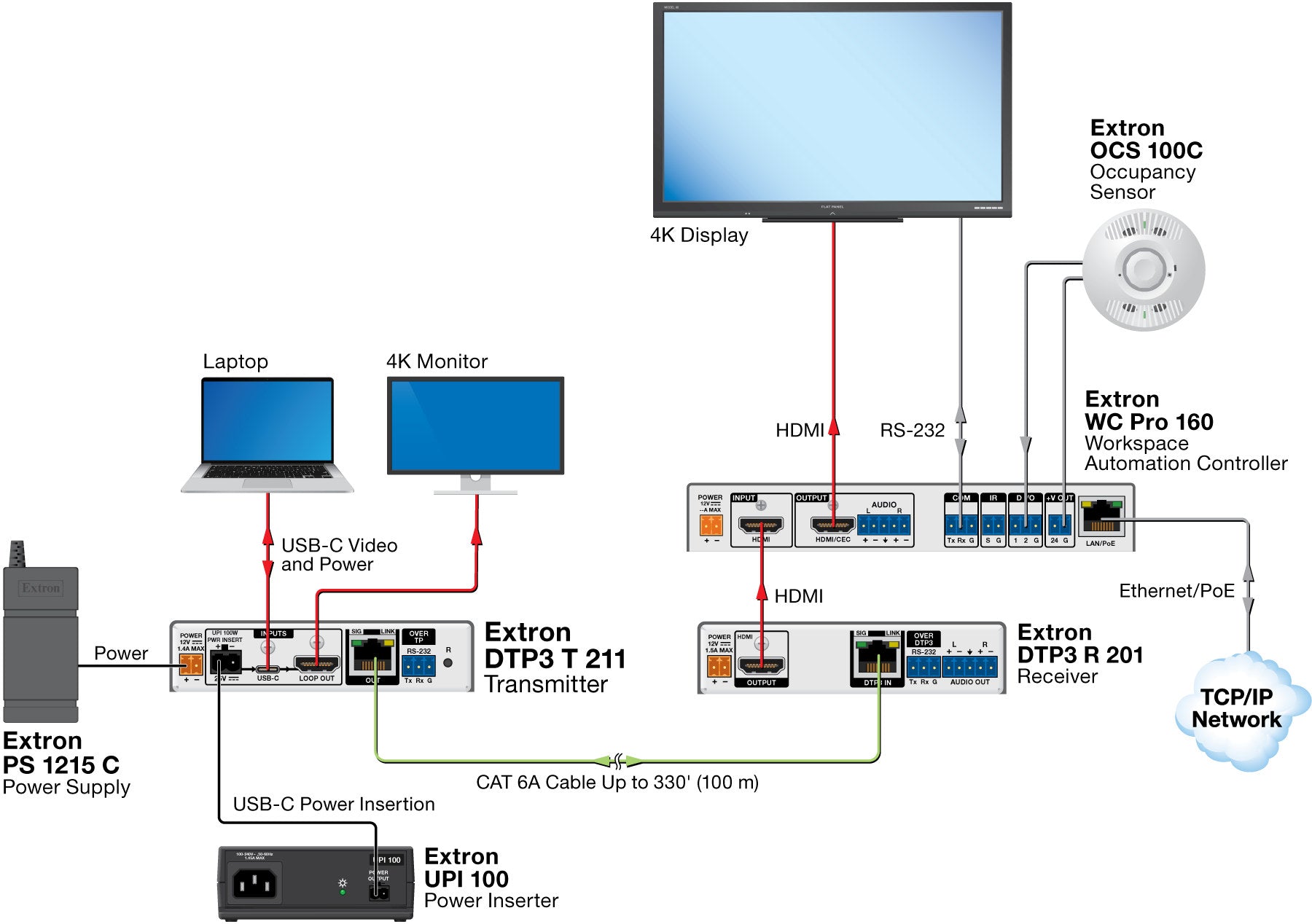

Deployed alongside USB-C transmitters and wallplates in conference rooms, huddle spaces, classrooms and lecture halls where presenters expect their laptop to charge from the same connection that carries video. Note that Extron does not rate it for air handling spaces or wall cavities, so plan a serviceable location.

Specifications at a Glance

• Power output: up to 100 W of USB-C power delivery to the Extron endpoint
• Termination: 2-pole, 5 mm captive screw
• Cable reach at 100 W: 80 ft (12 AWG), 50 ft (14 AWG), 30 ft (16 AWG), 20 ft (18 AWG)
• Cable reach at 60 W: 330 ft (12 AWG), 220 ft (14 AWG), 140 ft (16 AWG), 85 ft (18 AWG)
• Compliance: FCC Class A; Class I product requiring a protective earth connection

Also referenced as Extron UPI100, UPI-100, part number 60206201.
