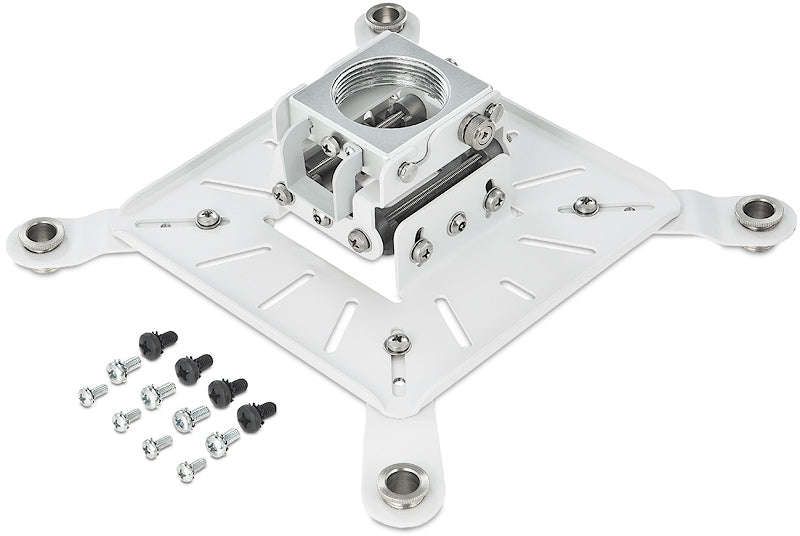

Extron UPB 125 (part number 70-902-03) — universal projector mounting bracket in white, rated for projectors up to 40 lbs (18.1 kg).

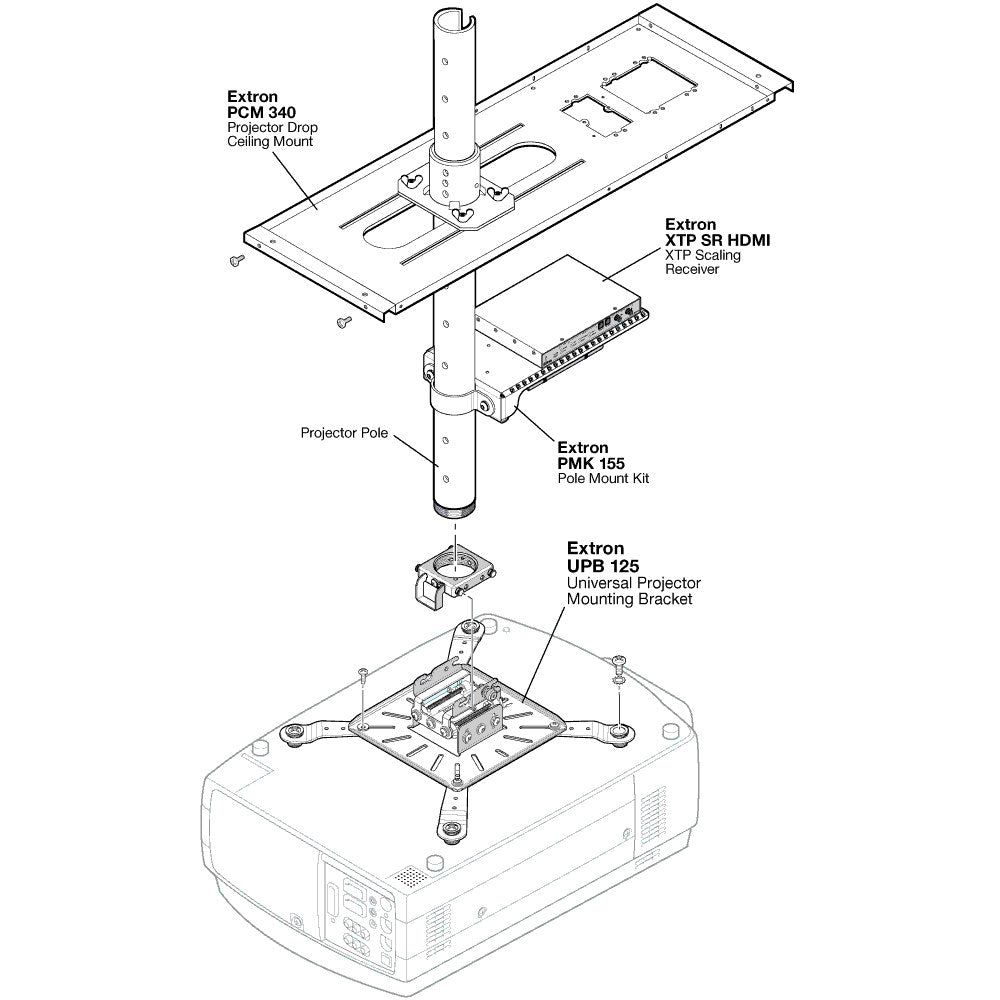

Every projector manufacturer sells its own mount, which means an integrator either stocks a dozen of them or waits on a special order. The UPB 125 removes that problem: one bracket, the projector hardware in the box, and a two-piece design that separates the ceiling-side arm from the projector-side plate. Alignment is handled on three independent axes — up to 5 degrees of roll, 20 degrees of pitch and a full 360 degrees of yaw — so the image can be squared to the screen without fighting one adjustment against another. Once the geometry is right it can be locked, and it survives the projector being taken down for a lamp or filter change: refit the arm assembly and the alignment comes back with it. The bracket accepts a 1.5-inch outside-diameter, 11.5 NPT/NPS pipe.

Key Capabilities

• Fits most projectors weighing up to 40 lbs (18.1 kg)
• Independent roll, pitch and yaw adjustment for exact alignment
• Adjustment range: 5 deg roll, 20 deg pitch, 360 deg yaw
• Settings hold when the projector is removed for servicing
• Accepts 1.5 in o.d., 11.5 NPT/NPS pipe; arm reaches 7.8 in from the corner
• Projector mounting hardware supplied; white powder coat finish

Where It Is Used

Ceiling-mounted projection in classrooms, lecture theatres, boardrooms, houses of worship, auditoriums and simulation rooms — particularly on estates that run several projector brands and want one mounting standard across all of them.

Specifications at a Glance

• Model: Extron UPB 125, part number 70-902-03
• Maximum load capacity: 40 lbs (18.1 kg)
• Projector bracket: 3.2 in H x 7.0 in W x 7.0 in D (81 x 178 x 178 mm)
• Weight: 2.7 lbs (1.2 kg); metal construction
• Compliance CE, c-UL, UL; 3 years parts and labor warranty

Also referenced as Extron UPB125, UPB-125, part number 7090203.
