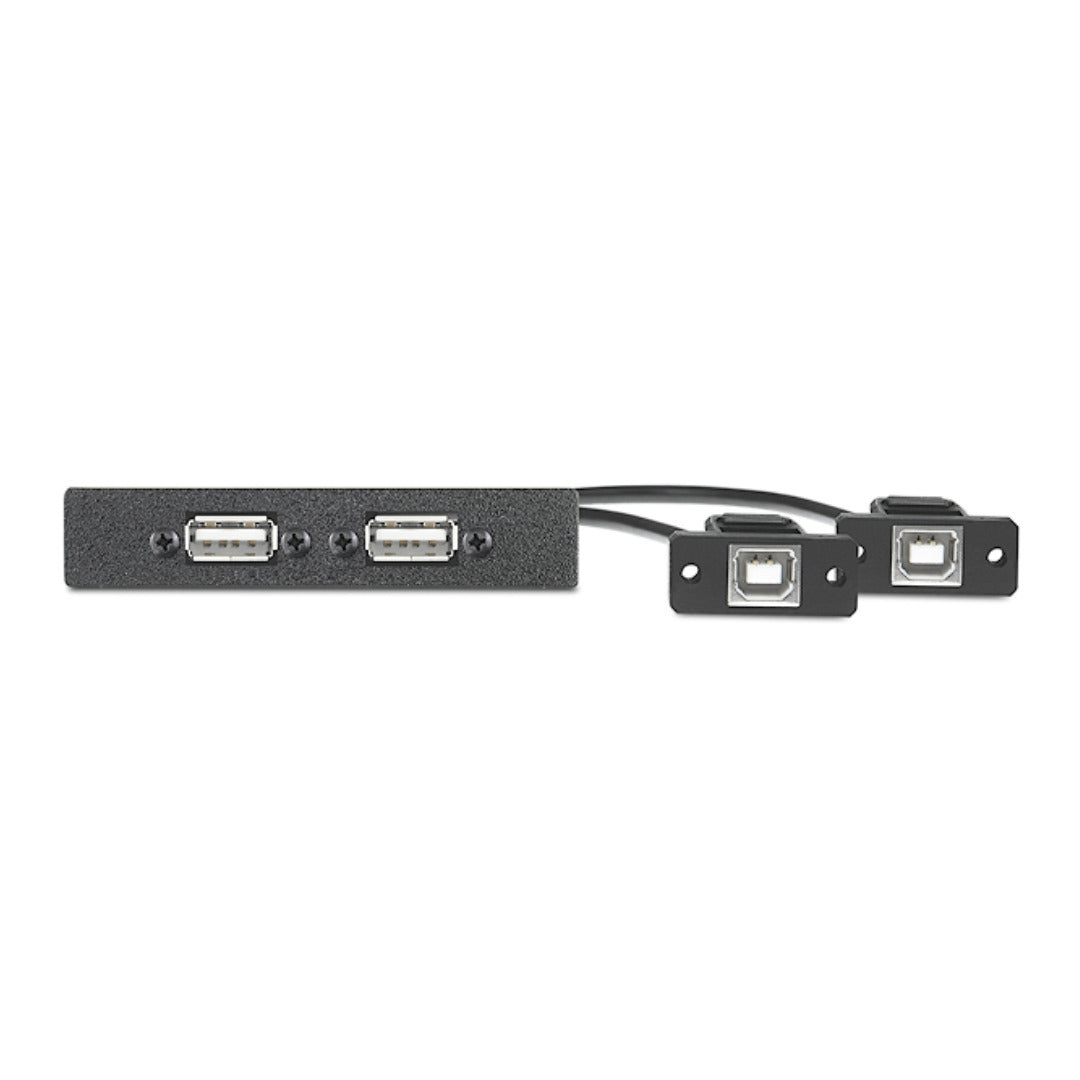

Extron Two USB A Female to Two USB B Female on Pigtails (part number 70-382-13) — a single space AAP connectivity module that surfaces two SuperSpeed USB ports and terminates behind the plate in Type B female connectors.

Users get two Type A jacks on an 89 mm metal plate. Installers get two 328 mm tails ending in Type B female connectors, ready for the host cable from a codec, DSP, camera hub or room computer. Both connector ends are reversible, so orientation stops mattering during a blind connection under furniture. Data throughput follows the USB 3.2 Gen 1 specification, giving 5 Gbps SuperSpeed on each path — headroom for a conferencing camera and a peripheral hub at the same time. Allow up to 58 mm of rear depth so the leads can be dressed instead of kinked.

Key Capabilities

• Pair of USB Type A female to Type B female paths, reversible connectors
• SuperSpeed throughput of 5 Gbps per path
• 12.90 in. (328 mm) leads at 0.25 in. (6.4 mm) outer diameter
• Single space AAP metal plate, 0.7 in. H x 3.5 in. W x 0.1 in. D
• Under 0.20 lb, negligible load on a mounting frame
• Compatible with optional Extron AAP mounting frames

Where It Is Used

University lecture rooms, corporate meeting spaces running bring-your-own-device conferencing, healthcare review rooms and training suites. It is the module to specify when the equipment side of the run presents a USB B port rather than a cable end, which covers most codecs, cameras and audio interfaces.

Specifications at a Glance

• Standard: USB 3.2 Gen 1, 5 Gbps SuperSpeed
• Connectors: 2x Type A female to Type B female, reversible
• Cable length: 12.90 in. (328 mm); OD 0.25 in. (6.4 mm)
• Faceplate: single space AAP, 18 mm H x 89 mm W x 3 mm D
• Rear clearance: up to 2.3 in. (58 mm) for cable management

Also referenced as Extron AAP 70-382-13, part number 7038213, two USB A to USB B pigtail AAP module.
