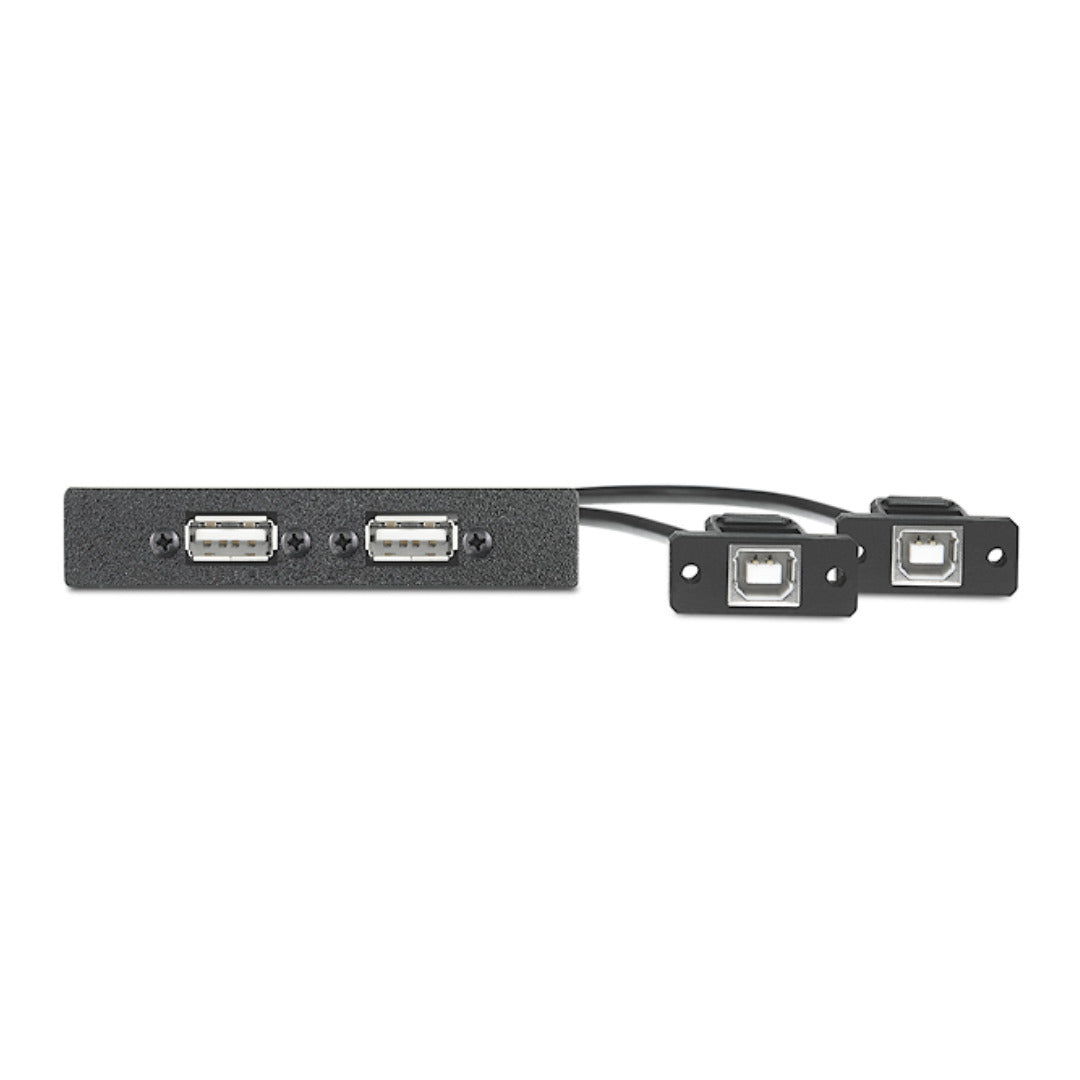

Extron Two USB A Female to Two USB B Female on Pigtails (part number 70-382-12) — a single space AAP module presenting two USB Type A ports at the surface and two Type B female tails behind it.

The point of a Type B tail is that it mates directly with the host cable coming out of a room PC, codec or camera hub, so the installer does not need a gender changer buried in the furniture. Extron specifies both connectors as reversible, which is a practical detail when the work happens by feel under a table. Each path carries USB 3.2 Gen 1 SuperSpeed traffic at 5 Gbps across a 328 mm lead of 6.4 mm outer diameter. The plate is metal, weighs under 0.20 lb, and drops into any Extron AAP mounting frame.

Key Capabilities

• Two reversible USB Type A female to Type B female pass-through paths
• USB 3.2 Gen 1 SuperSpeed rated at 5 Gbps
• 328 mm (12.90 in.) pigtails, 6.4 mm (0.25 in.) outer diameter
• Single space AAP faceplate, 18 mm H x 89 mm W x 3 mm D
• Metal construction under 0.20 lb
• Needs up to 58 mm behind the plate for cable management

Where It Is Used

Conference and huddle rooms with a fixed camera and speakerphone, classroom instructor positions built around a shared PC, and medical or command-center workstations where peripherals live at the desk while the host sits in a rack. Anywhere the far end of the run is a device port, this module removes an adapter from the chain.

Specifications at a Glance

• Standard: USB 3.2 Gen 1, SuperSpeed 5 Gbps
• Connectors: 2x USB Type A female to Type B female, reversible
• Cable: 328 mm (12.90 in.), 6.4 mm (0.25 in.) OD
• Faceplate: single space AAP, metal, 18 x 89 x 3 mm
• Compliance and warranty: RoHS; 3 years parts and labor
