Extron Two USB A Female to Two USB B Female on Pigtails (part number 70-1235-03) — a single space AAP connectivity module carrying two SuperSpeed USB paths from the tabletop back to a host device.

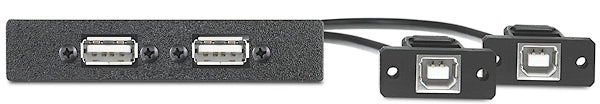

Users see two Type A female ports on a metal AAP plate 89 mm wide. Behind the plate, each port terminates in a Type B female connector on a 328 mm lead, ready to accept the host cable from a room PC, conferencing codec or USB hub. The connectors are reversible, which removes the usual guesswork when working blind under furniture. Data throughput follows USB 3.2 Gen 1 at 5 Gbps, and Extron asks for as much as 58 mm of rear clearance so the pigtails can be dressed properly rather than kinked.

Key Capabilities

• Pair of reversible USB Type A female to Type B female connections
• USB 3.2 Gen 1 SuperSpeed, 5 Gbps
• 328 mm (12.90 in.) leads, 6.4 mm (0.25 in.) outer diameter
• Single space AAP metal plate measuring 18 x 89 x 3 mm
• Under 0.20 lb, so it adds no meaningful load to a mounting frame
• Drops into an optional Extron AAP mounting frame

Where It Is Used

Meeting rooms and lecture theatres running bring-your-own-device conferencing, healthcare and imaging review rooms with shared workstations, and training suites where a camera and a peripheral hub both need a host connection. It suits any position where the equipment end of the run is a device port, not a cable end.

Specifications at a Glance

• Standard: USB 3.2 Gen 1, SuperSpeed 5 Gbps
• Connectors: 2x USB Type A female to Type B female, reversible
• Cable length: 328 mm (12.90 in.); OD 6.4 mm (0.25 in.)
• Faceplate: single space AAP, 18 mm H x 89 mm W x 3 mm D, metal
• Rear clearance: allow up to 58 mm (2.3 in.) for cable management
