Extron Two USB A Female to Two USB B Female on Pigtails (part number 70-1235-02) — a single space AAP module that puts two SuperSpeed USB connections at the table and hands the installer USB B tails behind it.

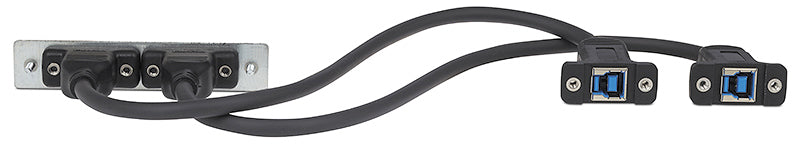

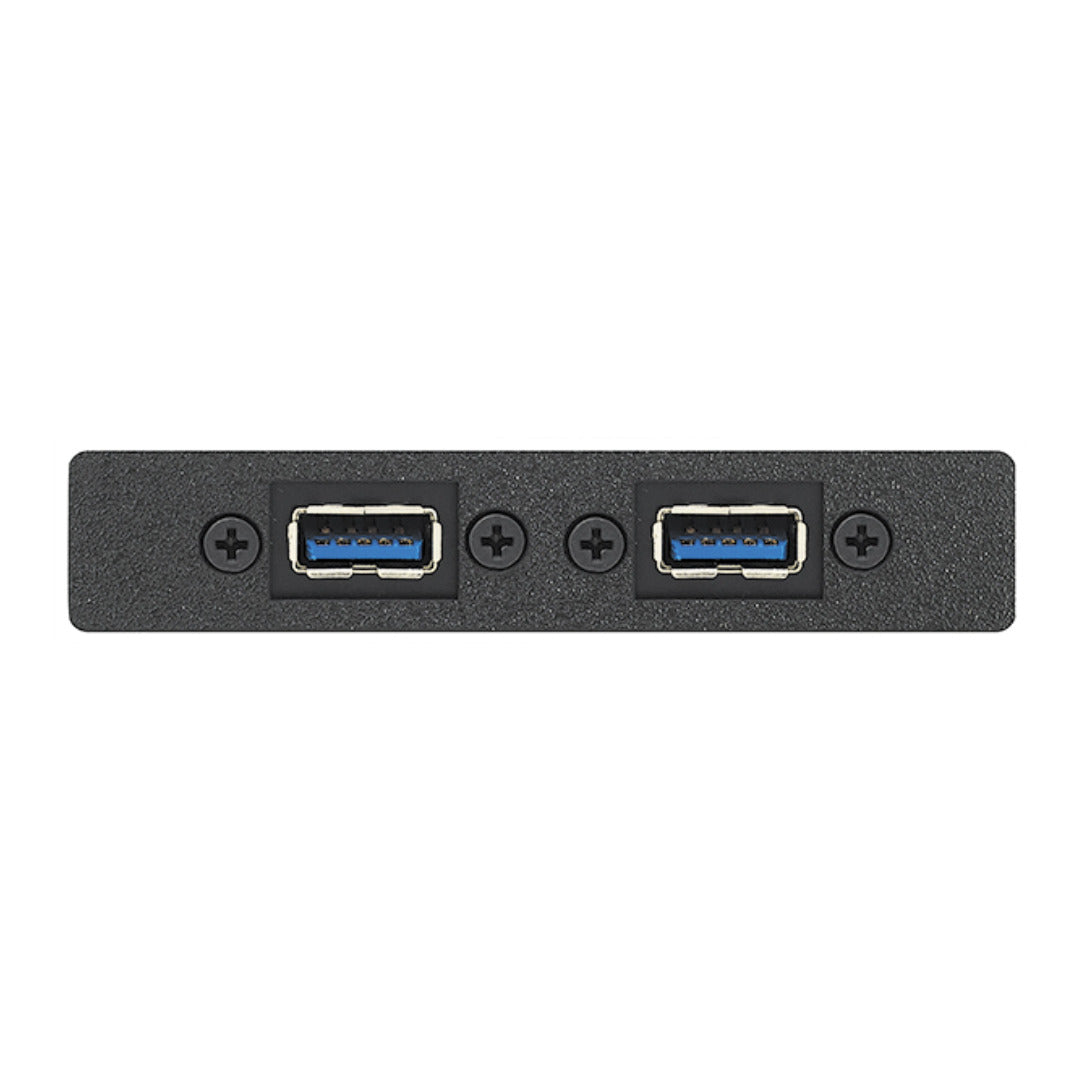

The front of the plate carries two Type A female ports for users; the rear tails end in Type B female connectors, which is what a room PC, codec, DSP or USB camera hub expects on its host side. Extron rates the connectors as reversible, so orientation is not a hunt-and-peck exercise for whoever is under the table. Throughput is USB 3.2 Gen 1 SuperSpeed at 5 Gbps, which is the practical floor for a modern conference camera or a shared USB hub. Budget up to 2.3 in. of depth behind the faceplate for the tails and their cable management.

Key Capabilities

• Two USB 3.2 Gen 1 Type A female to Type B female paths, reversible connectors
• SuperSpeed data rate of 5 Gbps per path
• 12.90 in. (328 mm) pigtails at 0.25 in. (6.4 mm) outer diameter
• Single space AAP faceplate, 0.7 in. H x 3.5 in. W x 0.1 in. D (18 x 89 x 3 mm)
• Metal enclosure, under 0.20 lb
• Mounts into an optional Extron AAP mounting frame

Where It Is Used

Video conference rooms and huddle spaces that run a camera and a speakerphone off one table position, university classrooms with a shared instructor PC, and control rooms where operators plug peripherals into a rack-mounted host. The USB B tails make it a natural fit wherever the far end is a device rather than a cable.

Specifications at a Glance

• Standard: USB 3.2 Gen 1, SuperSpeed 5 Gbps
• Connectors: 2x Type A female to Type B female, reversible
• Cable: 12.90 in. (328 mm), 0.25 in. (6.4 mm) OD
• Faceplate: single space AAP; allow up to 2.3 in. (58 mm) depth for cable management
• Compliance and warranty: RoHS; 3 years parts and labor

Also referenced as Extron AAP 70-1235-02, part number 70123502, two USB A to USB B pigtail AAP module.
