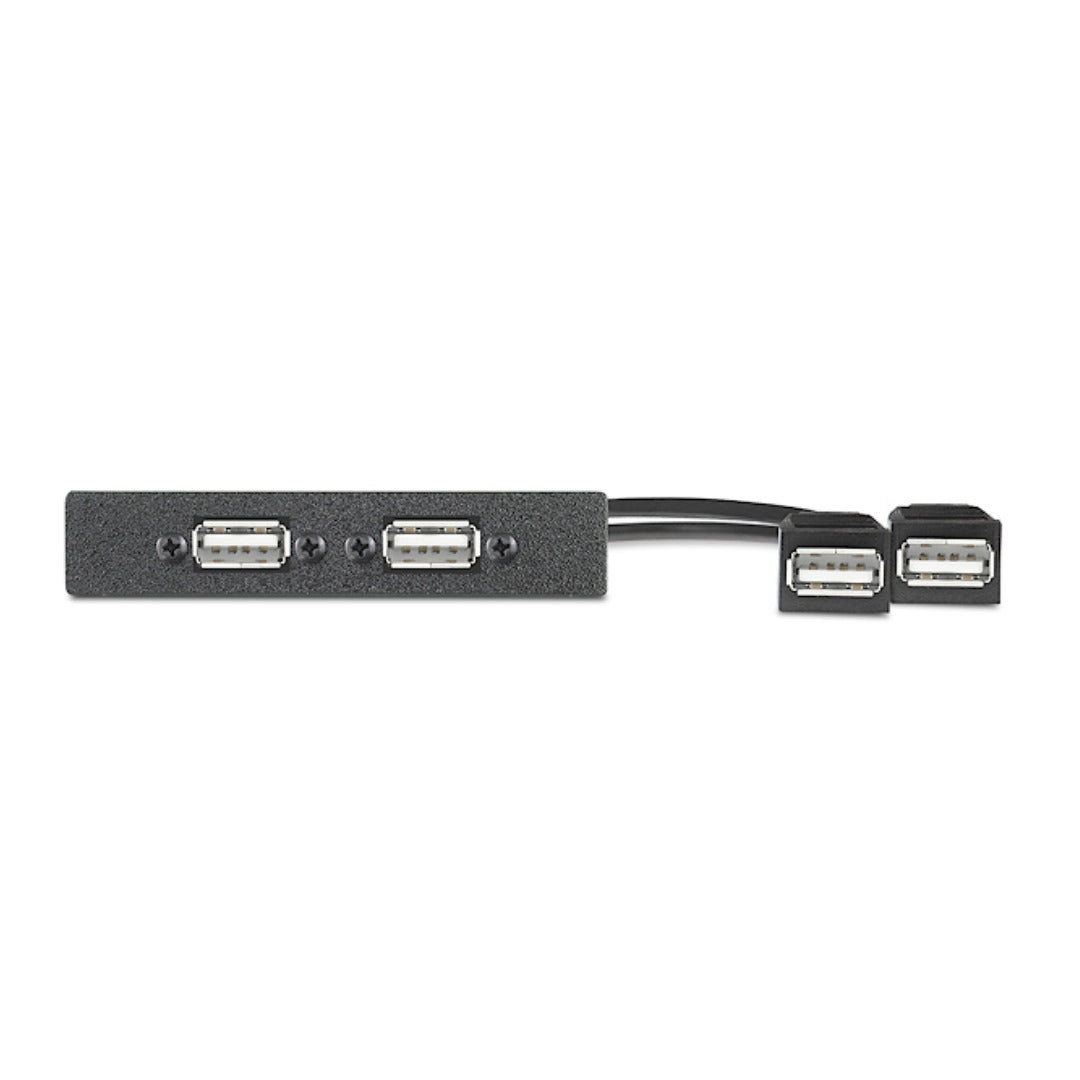

Extron Two USB A Female to Female on 10" Pigtails (part number 70-454-13) — a single space AAP connectivity module presenting a pair of USB 2.0 Type A ports at the surface, with flying leads for the back-of-house connection.

Each of the two front jacks runs to a Type A female barrel 312 mm behind the plate. Because both ends are Type A female, the installer chooses the length and routing of a standard USB A-to-A or A-to-device cable rather than being locked to a fixed tail. The plate itself is metal and weighs under 0.1 lb, so it adds nothing meaningful to the load on a mounting frame. Data moves at USB 2.0 high speed, 480 Mbps. Extron calls for a minimum of 40 mm behind the faceplate to keep the cable bend radius safe.

Key Capabilities

• Two USB Type A female to Type A female pass-through connections
• USB 2.0 high speed throughput, 480 Mbps
• 312 mm (12.30 in.) leads, 4.6 mm (0.18 in.) outer diameter
• Single space AAP metal plate measuring 18 x 89 x 3 mm
• Requires 40 mm (1.6 in.) rear clearance for connector and bend radius
• Installs in an optional Extron AAP mounting frame

Where It Is Used

Higher-education classrooms, corporate meeting rooms, healthcare conference and reading rooms, and training suites. Integrators use it to surface a room PC's or codec's USB ports where presenters can actually reach them, and to give visiting laptops a fixed, labelled connection point on the table.

Specifications at a Glance

• Standard: USB 2.0, 480 Mbps high speed
• Connectors: 2x USB 2.0 Type A female to Type A female
• Cable length: 312 mm (12.30 in.); OD 4.6 mm (0.18 in.)
• Faceplate: single space AAP, 18 mm H x 89 mm W x 3 mm D; metal enclosure
• Weight under 0.1 lb; RoHS and WEEE compliant; 3 year parts and labor warranty

Also referenced as Extron AAP 70-454-13, part number 7045413, two USB A female pigtail AAP module.
