Extron Two USB A Female to Female on 10" Pigtails (part number 70-454-12) — a single space AAP module that brings two USB 2.0 Type A connections to the working face of a table box, mounting frame or lectern.

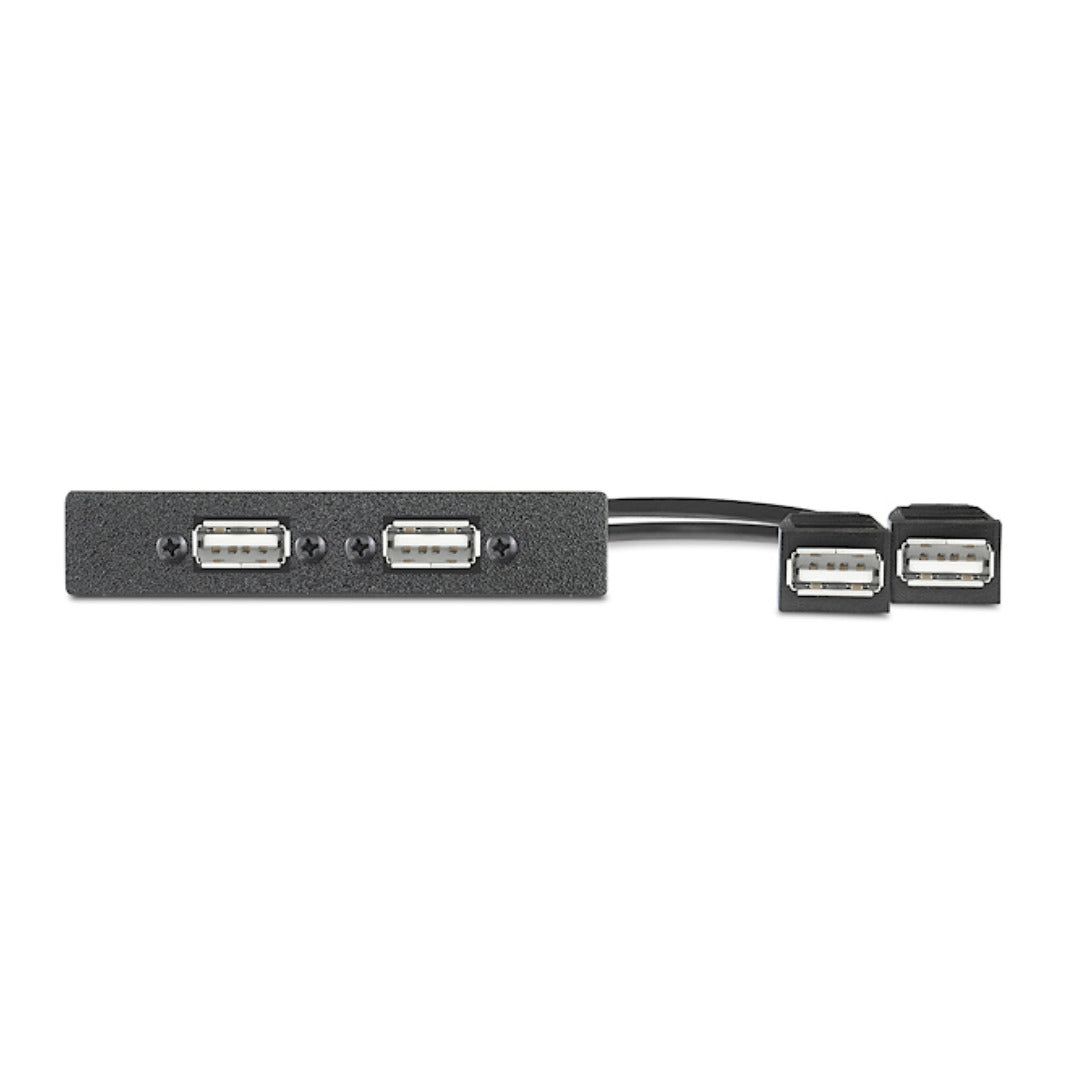

The module is a metal AAP plate carrying two Type A female jacks on the front, each wired back to a Type A female barrel on the end of a 12.30 in. lead. That arrangement lets the installer terminate the run behind the furniture with an ordinary off-the-shelf USB A cable instead of a custom panel connector, and swap that cable later without pulling the plate. Throughput is USB 2.0 high speed at 480 Mbps, enough for keyboards, mice, touch overlays, webcams and flash storage on a shared position. Allow at least 1.6 in. of clearance behind the faceplate so the pigtails bend without straining the jacket.

Key Capabilities

• Two USB 2.0 Type A female to Type A female pass-through paths on one plate
• High speed data at 480 Mbps
• 12.30 in. (312 mm) pigtails with a slim 0.18 in. (4.6 mm) outer diameter
• Single space AAP faceplate, 0.7 in. H x 3.5 in. W x 0.1 in. D (18 x 89 x 3 mm)
• Metal enclosure weighing under 0.1 lb
• Drops into an optional Extron AAP mounting frame

Where It Is Used

Conference and boardroom tables, classroom instructor stations, lecterns, training rooms and imaging reading rooms — any position where a user needs to reach a USB port without crawling under the furniture. It is also a common way to extend a room PC's USB ports to the tabletop for camera, touch display or peripheral connections.

Specifications at a Glance

• Standard: USB 2.0, high speed 480 Mbps
• Connectors: 2x USB 2.0 Type A female to Type A female
• Cable: 12.30 in. (312 mm) long, 0.18 in. (4.6 mm) OD
• Faceplate: single space AAP, 0.7 in. H x 3.5 in. W x 0.1 in. D; allow 1.6 in. (40 mm) depth
• Compliance and warranty: RoHS, WEEE; 3 years parts and labor

Also referenced as Extron AAP 70-454-12, part number 7045412, two USB A female pigtail AAP module.
