Extron TMK 130 AAP (part number 70-1031-03) — under-table mounting bracket for up to three AAP AV Connectivity Modules, in black.

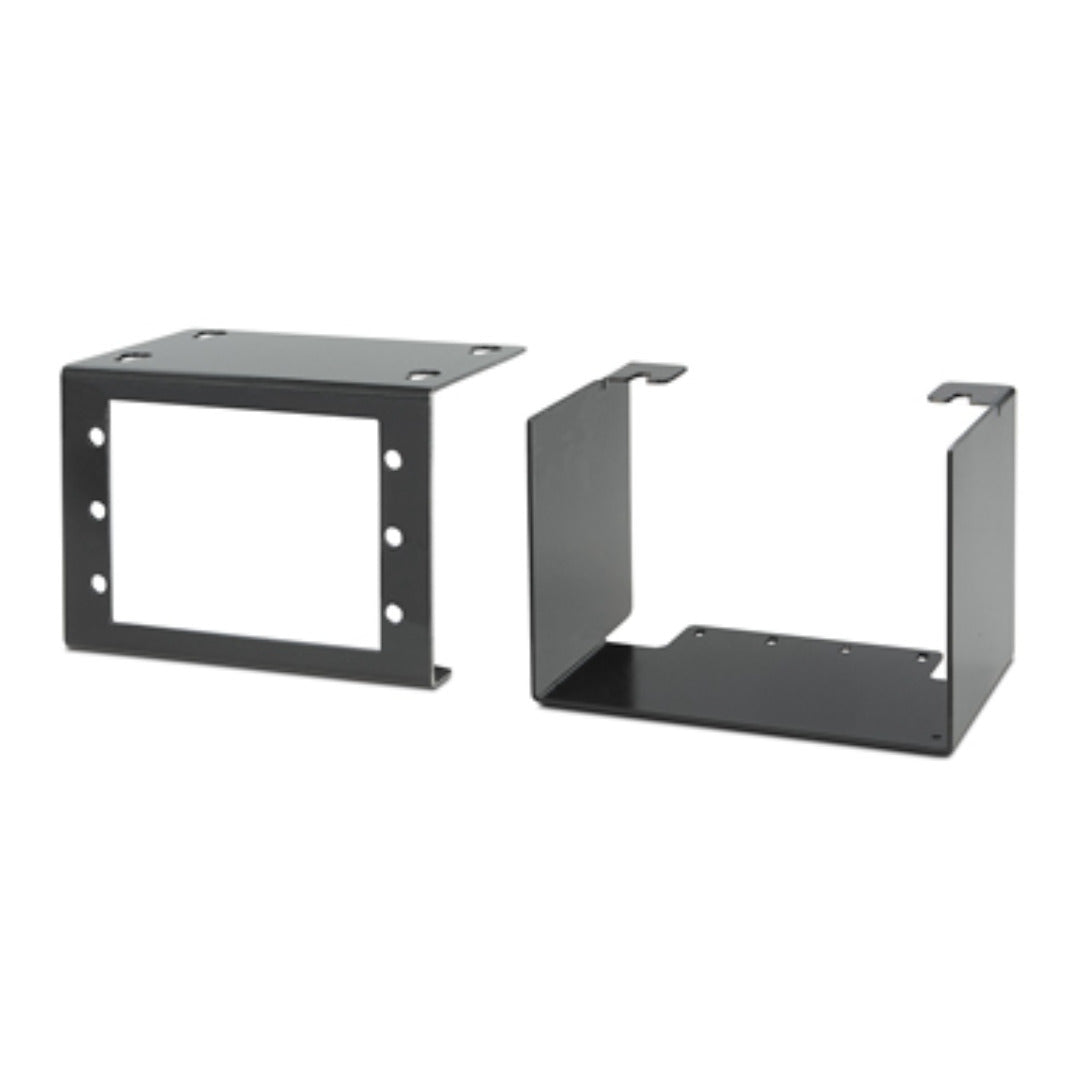

Same two-piece construction as the TMK 120 AAP, but taller: 2.7 inches instead of 2.0, which is what buys the third AAP position. The upper section leaves the AAP lugs, washers and nuts fully accessible during assembly and provides keyhole slots for fixing the mount to the underside of the furniture; the lower section closes around the plates and their cable tails. Rounded edges keep clothing from catching, and the flat sides mean a row of mounts butts together cleanly. Extron builds the TMK 130 AAP in the same black powder coat as the TMK 110 D and TMK 120 R, so mixed under-table assemblies read as a single unit.

Key Capabilities

• Accommodates up to three AAP AV Connectivity Modules

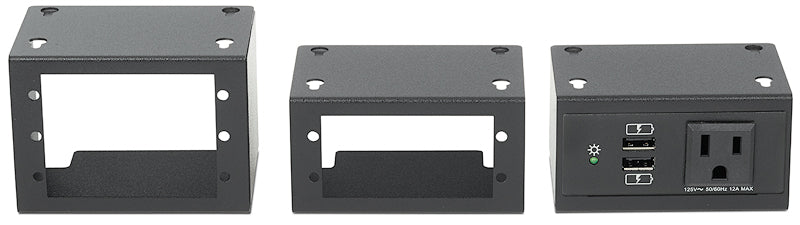

• 2.7 in tall body, the deeper option in the TMK 100 AAP Series
• Upper section keeps AAP mounting hardware fully reachable
• Keyhole openings for attachment to the table surface
• Steel, 2.5 x 3.75 x 2.7 in (6.4 x 9.5 x 6.9 cm), 0.5 lbs (0.3 kg)
• Black powder coat matched to other TMK under-table mounts

Where It Is Used

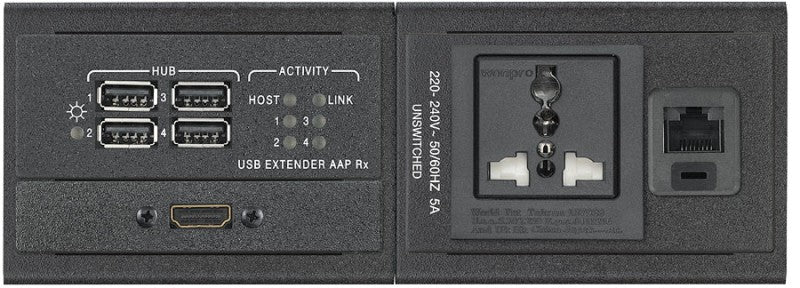

Larger meeting tables and lecterns that need a full complement of connections in one place: video, audio, network and power plates grouped under a single position in boardrooms, lecture halls, training suites and command-desk furniture.

Specifications at a Glance

• Model: Extron TMK 130 AAP, part number 70-1031-03
• Enclosure dimensions: 2.5 in L x 3.75 in W x 2.7 in H (6.4 x 9.5 x 6.9 cm)
• Weight: 0.5 lbs (0.3 kg); steel construction
• Regulatory compliance: CE, RoHS
• Warranty: Extron Limited Lifetime Performance

Also referenced as Extron TMK130AAP, TMK-130-AAP, part number 70103103.
