Extron TMK 120 AAP (part number 70-1031-01) — under-table mounting bracket for up to two AAP AV Connectivity Modules, in black.

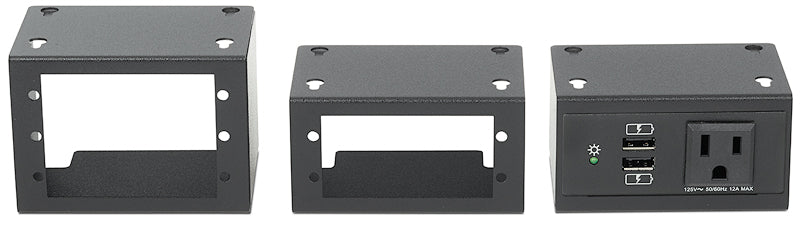

The TMK 120 AAP is built in two parts. The upper half exposes the AAP mounting lugs, washers and nuts so a plate can be fitted without contortions, and carries keyhole openings for fixing the assembly to the underside of the table. The lower half wraps around the finished plate and the cable tails behind it, keeping both out of sight and out of the way of knees. Edges and corners are rounded to stop clothing catching, and the sides are flush so a run of mounts can be installed shoulder to shoulder. Pair it with the TMK 110 D for decorator-style modules or the TMK 120 R for Retractor cable retraction modules when a table needs a mixed set of connections.

Key Capabilities

• Takes up to two AAP AV Connectivity Modules
• Two-piece design gives full access to the AAP lugs and hardware
• Keyhole openings for attachment to the furniture surface
• Lower housing shields the plate and its cable tails
• Steel, 2.5 x 3.75 x 2.0 in (6.4 x 9.5 x 5.1 cm), 0.4 lbs (0.2 kg)
• Black powder coat matching TMK 110 D and TMK 120 R mounts

Where It Is Used

Meeting and boardroom tables, training rooms, university lecture benches, collaboration furniture and clinical workstations, where HDMI, VGA, audio, network or power AAP plates need to be brought to the user's seat rather than the rack.

Specifications at a Glance

• Model: Extron TMK 120 AAP, part number 70-1031-01
• Enclosure dimensions: 2.5 in L x 3.75 in W x 2.0 in H (6.4 x 9.5 x 5.1 cm)
• Weight: 0.4 lbs (0.2 kg); steel construction
• Regulatory compliance: CE, RoHS
• Warranty: Extron Limited Lifetime Performance

Also referenced as Extron TMK120AAP, TMK-120-AAP, part number 70103101.
