Details

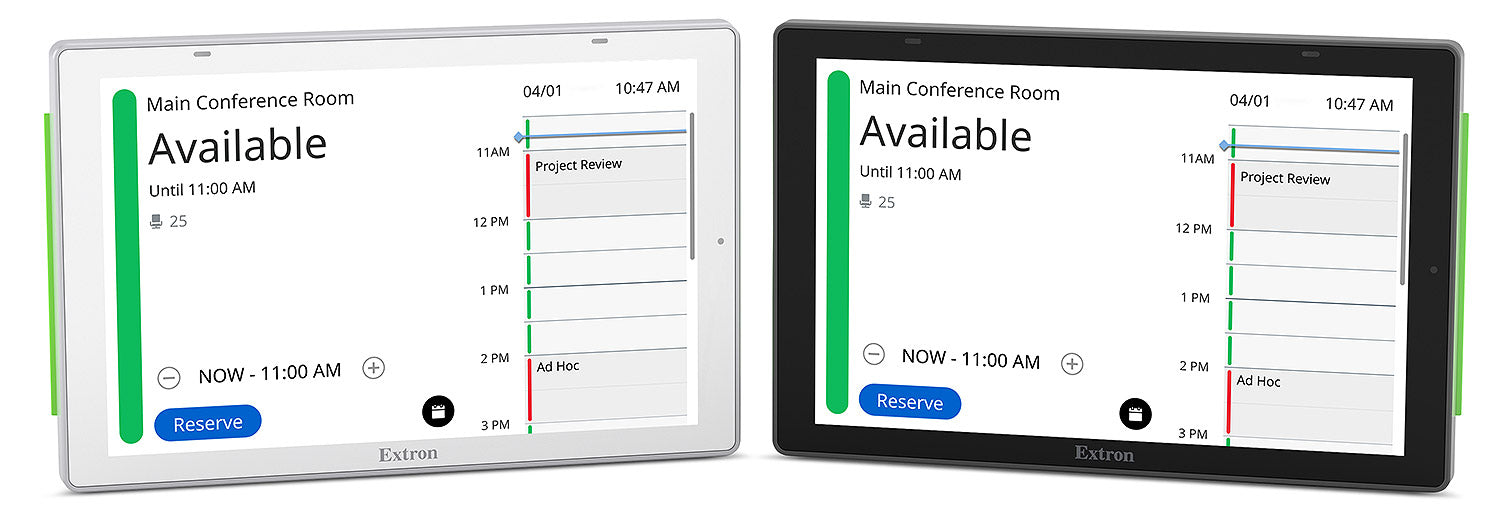

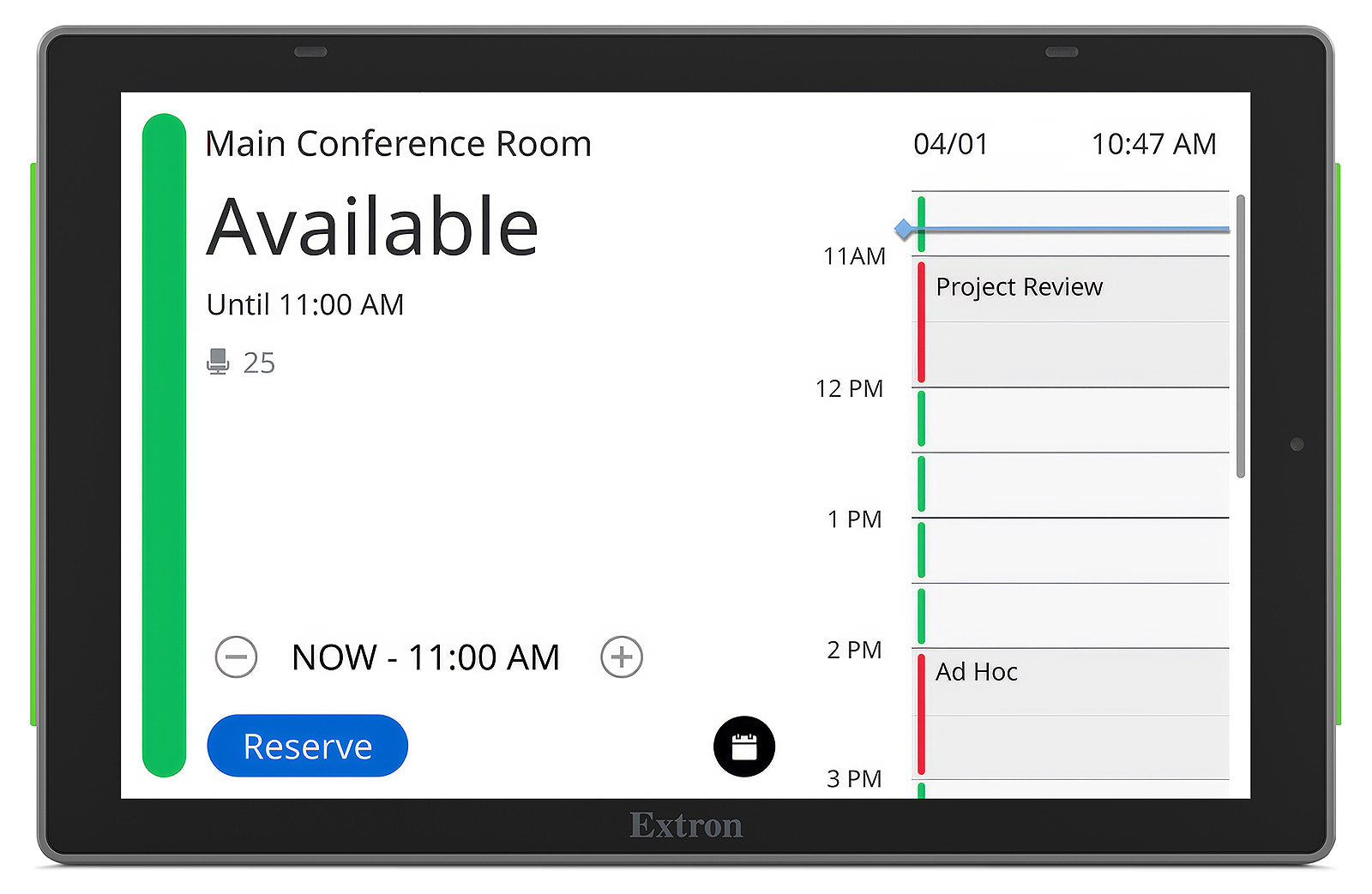

Extron TLS 835M (part number 60-1996-102) — a black 8 inch IPS scheduling touchpanel built for real-time room booking, check-in, and release.

This panel works natively with Extron control systems to unify AV and room-status management under one interface, and it scales alongside Extron Wayfinding for campuses running many rooms from a single scheduling platform. A single PoE Ethernet cable handles both power and data, while onboard red/green LEDs give an instant occupancy read at a glance.

Key Capabilities

8" projected-capacitive IPS touchscreen at 1280x800 resolution
420 nit brightness with 1200:1 contrast for bright-lobby readability

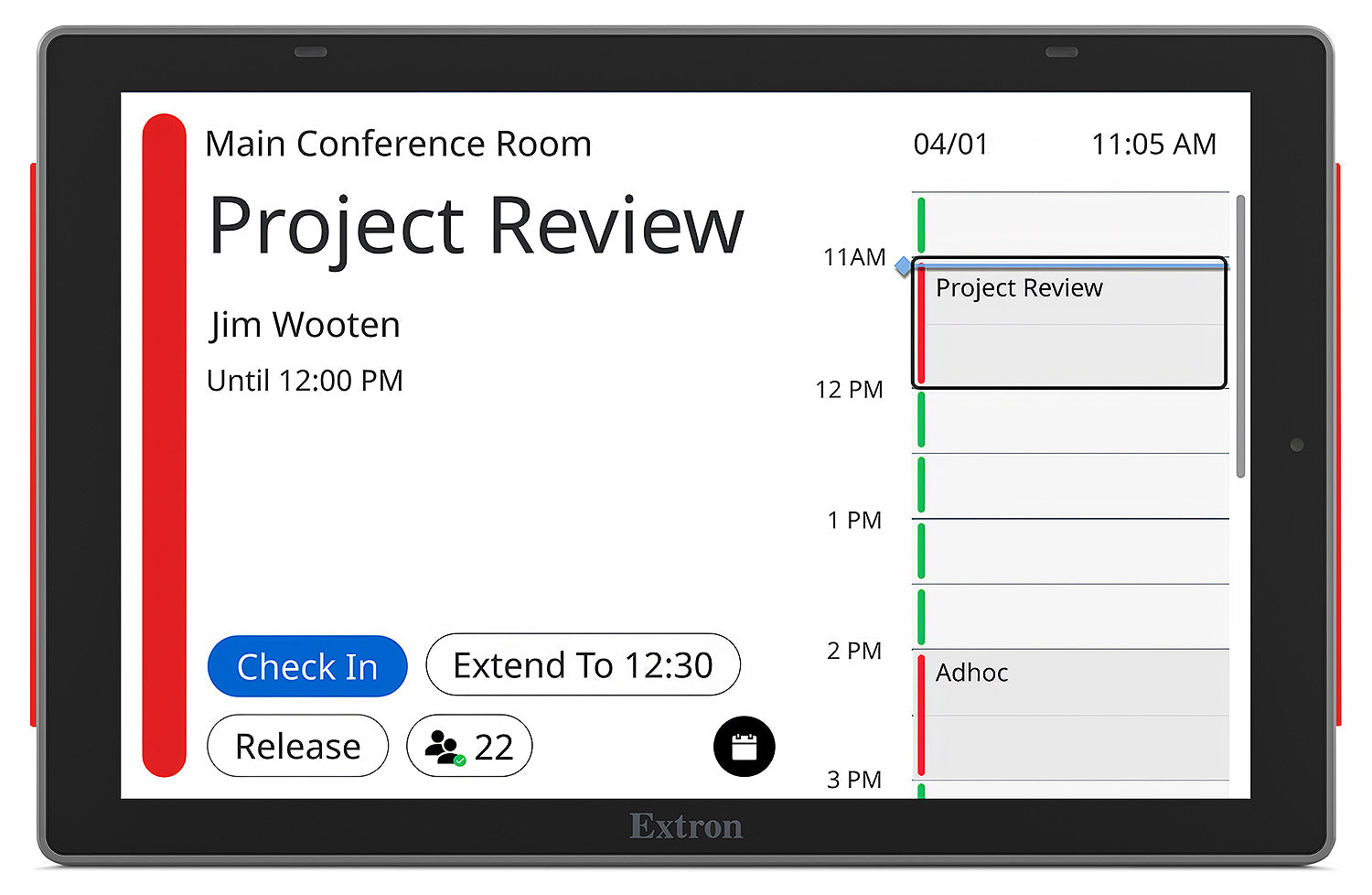

Book, check-in, release, or extend a reservation with a single touch
Powered by PoE (802.3af class 3) or 9 VDC USB-C — 12.3 W device draw
4GB DDR4 RAM with 64GB eMMC storage for fast, local UI response

Where It Is Used

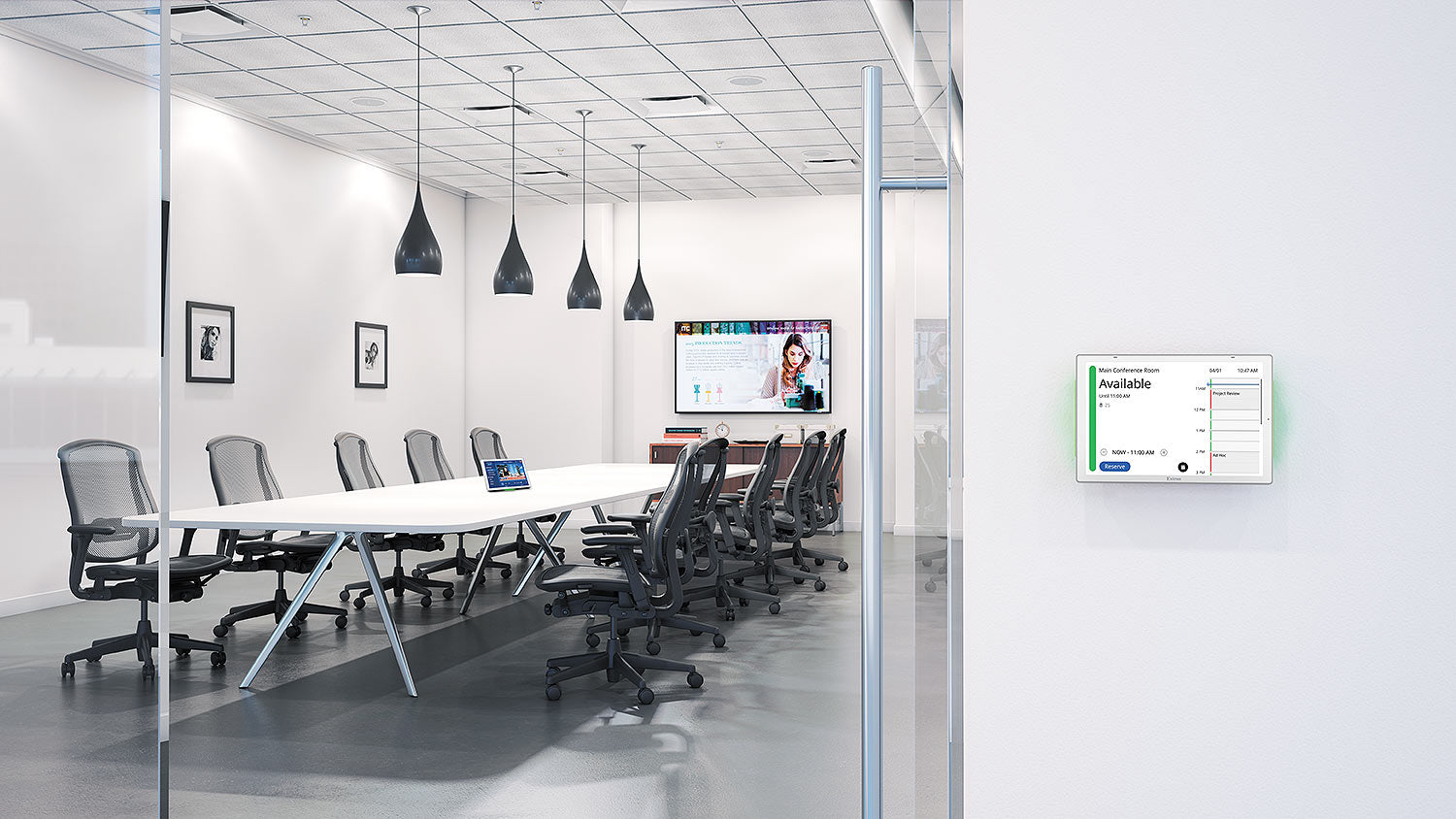

Enterprise facilities teams specify the TLS 835M for boardrooms and larger conference spaces that need a bigger, brighter status display than a 5" or 7" panel, and where scheduling data feeds into wider space-analytics platforms.

Specifications at a Glance

8.0" (20.3 cm) IPS touchscreen, 1280x800 (WXGA), 188.7 PPI
PoE 802.3af class 3 or 9 VDC 3A USB-C power
Enclosure 5.09" H x 8.00" W x 1.26" D
Operating range +32 to +104°F, storage -4 to +140°F

Also referenced as Extron TLS835M, TLS-835M, part number 601996102.

Specifications

Part Number: 60-1996-102

Manufacturer: Extron

Model: TLS 835M

Condition: New

Screen type: IPS TFT active matrix color LCD

Size: 8.0" (20.3 cm) diagonal

Resolution: 1280x800 (WXGA)

Pixel density: 188.7 PPI

Aspect ratio: 16:10

Color depth: 24 bit, 16.7 million colors

Brightness: 420 nits (cd/m²)

Contrast: 1200:1

Backlight: LED with auto brightness control

Viewing angle: ±80° horizontal, ±80° vertical

Touch screen: Projected capacitive

RAM: 4GB DDR4

Storage: 64GB eMMC (32GB usable project storage)

Audio channels: Mono or stereo

Speaker output: 2 stereo

Configuration software: Room Agent (TLS 835M Series); Global Configurator Plus and Professional, GUI Designer (TLP Pro 835M Series)

Control apps: Extron Control

Resource management software: GlobalViewer Enterprise

Utilities: Toolbelt, Embedded web page

Motion sensor: On/off

Light sensor: Auto/manual

Connectors: 1 female RJ-45 connector

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Protocols: DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X, IPv4, LLDP, NTP, SFTP, SMTP, SNMP, SSH, SSL, TLS, TCP/IP, UDP/IP

USB: 1 high-speed USB 2.0, 1 USB-C receptacle

Digital input: 1 configurable digital input, 3.5 mm captive screw connector (2 pole)

Power input requirements: 9 VDC 3A (USB-C) or Power over Ethernet (PoE 802.3af, class 3)

Power supply: Not included

Power consumption (PoE): 12.3 W device; 15.8 W device and power injector (PI115)

Power consumption (USB-C): 9.5 W device; 11.1 W device and power supply

Auxiliary USB power output: 5 VDC, 500 mA

Mounting: Wall, furniture, or rack

Enclosure type: Plastic

Enclosure dimensions: 5.09" H x 8.00" W x 1.26" D (129 mm H x 203 mm W x 32.0 mm D); touchpanel projects 0.84" (21.3 mm) from the mounting surface

Ambient temperature/humidity: Storage -4 to +140°F (-20 to +60°C) / 10-90% noncondensing; Operating +32 to +104°F (0 to +40°C) / 10-90% noncondensing

Cooling: Convection

Regulatory compliance: CE, C-Tick, c-UL, FCC Class A, ICES, RoHS, UKCA, UL, VCCI, WEEE

Product warranty: 3 years parts and labor; touchpanel display and overlay components covered for 1 year

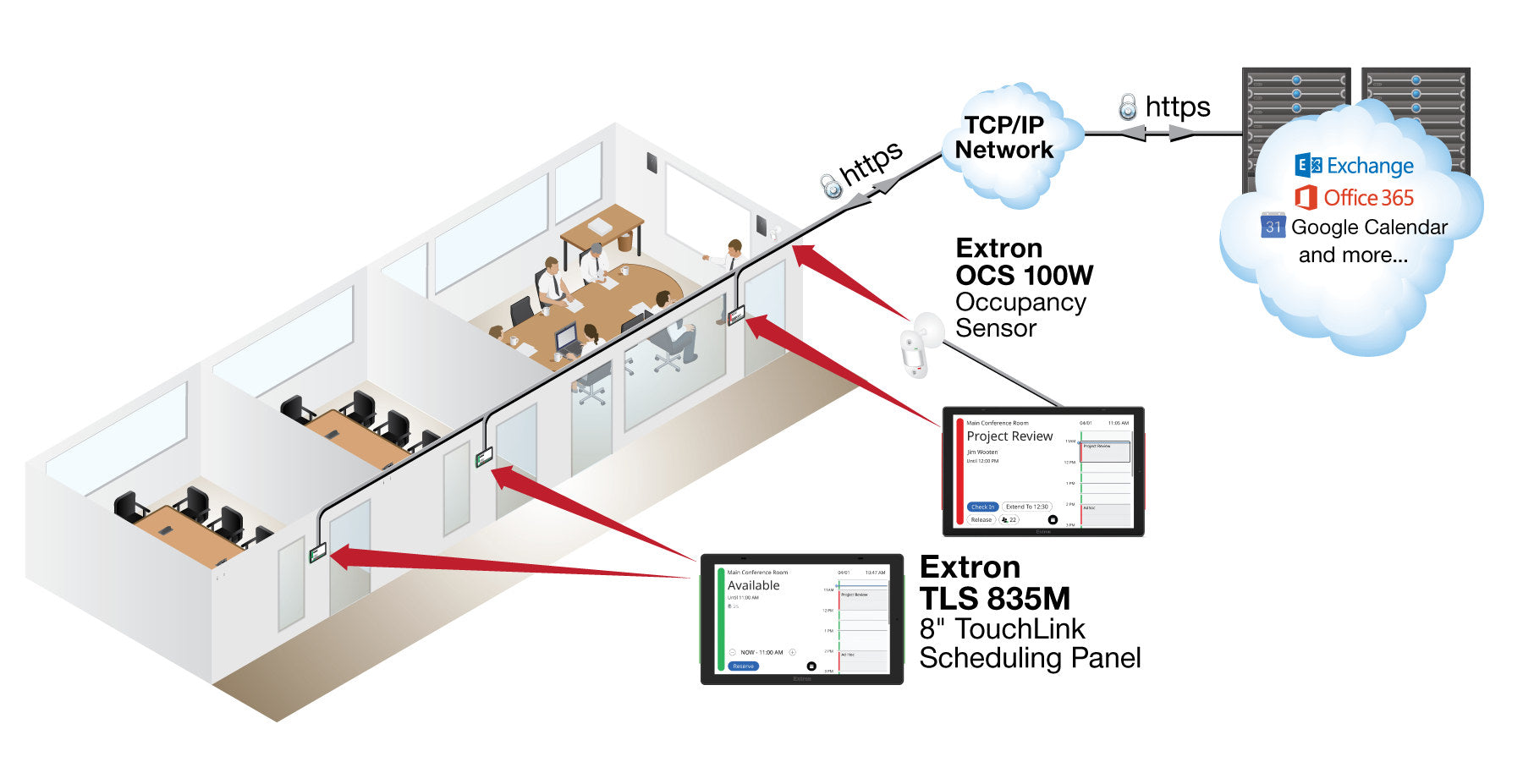

Diagram

Resources

Manual | TLS 835M 60-1996-102 | Cleaning Instruction Card

Manual | TLS 835M 60-1996-102 | TLP Pro 535M, 835M, 1035M and TLS 835M, 1035M Setup Guide

Manual | TLS 835M 60-1996-102 | TLS Scheduling Panels Ports, Protocols, and Licenses Document

Specifications | TLS 835M 60-1996-102 | TLP Pro 835M Series and TLS 835M

Panel Drawing | TLS 835M 60-1996-102 | TLS 835M
