Extron TLS 525M 5" Wall Mount Room Scheduling Panel 60-1561-113
Extron TLS 525M 5" Wall Mount Room Scheduling Panel 60-1561-113
Extron TLS 525M Room Scheduling Panel
- • 5" 800x480 capacitive touchscreen with scratch-resistant Gorilla Glass
- • Powered by PoE 802.3af class 3 — 6.5 W device draw, no local outlet
- • OAuth two-factor login and QR code booking for Microsoft 365 and Google
- • Auto light and motion sensors for adaptive brightness and presence
- • Configured with free Extron Room Agent software, no processor required
- • Compact 4.03 x 6.08 x 1.22 in enclosure fits tight door-side mounting
- • Red/green LEDs show room status visible from down the hall
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

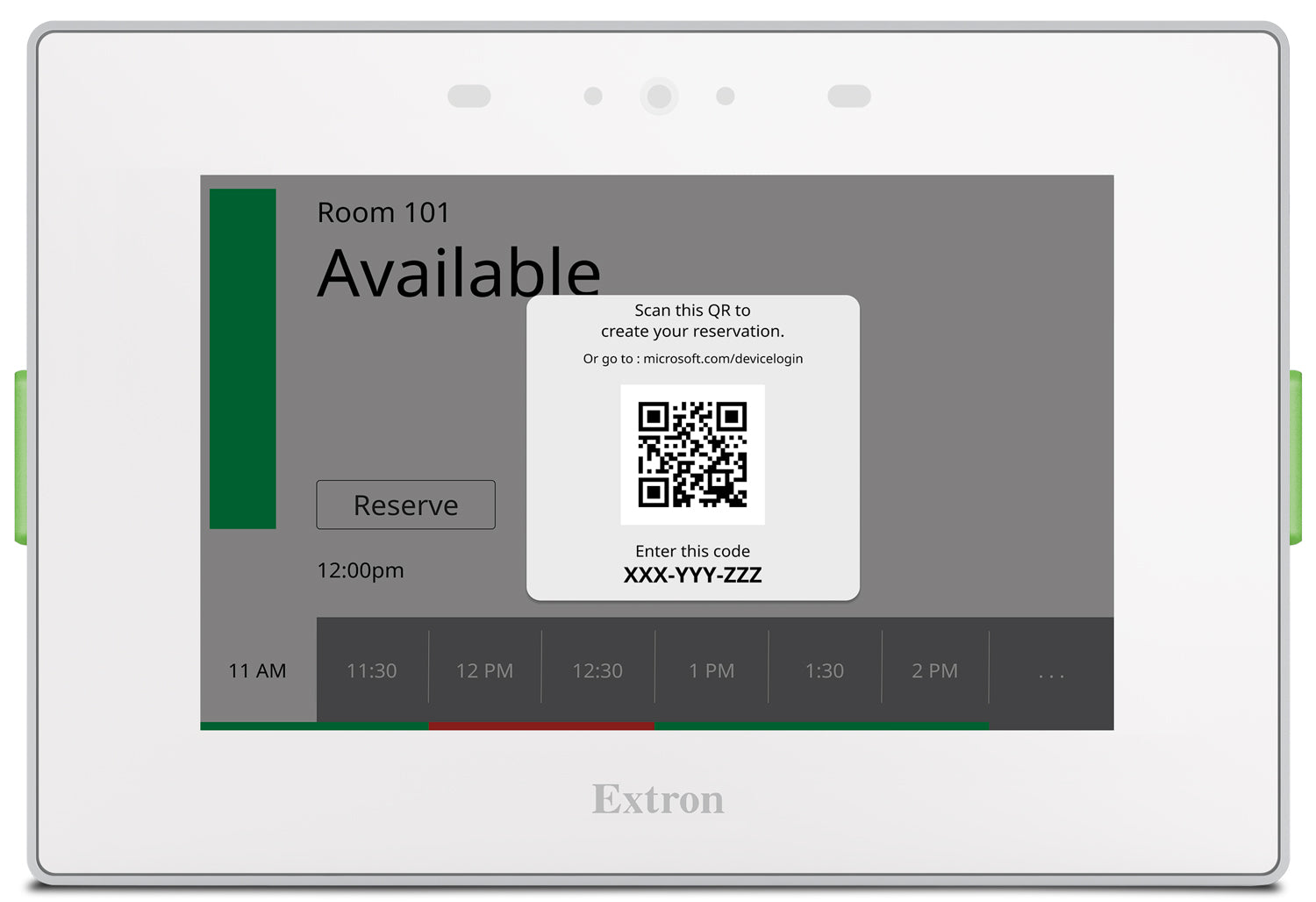

Extron TLS 525M (part number 60-1561-113) — a compact 5 inch PoE scheduling touchpanel built for single-room booking outside any conference space.
Integrators mount this white wall panel beside a meeting room door and let it operate independently of any control processor. It pairs directly with Microsoft Exchange, Office 365, Google Calendar, 25Live, EMS, NFS, and Ad Astra, so front-desk staff and employees can check availability or grab an open slot in seconds. A single Ethernet run carries both power and data, and the panel reports occupancy from down the hallway thanks to its red and green status LEDs.
Key Capabilities
- 800x480 capacitive touchscreen protected by scratch-resistant Gorilla Glass
- Powered entirely over PoE (802.3af class 3) — no local outlet needed
- OAuth two-factor sign-in and QR code booking for Microsoft 365 and Google Calendar
- Built-in ambient light and motion sensing for automatic brightness and presence detection
- Configured through free Extron Room Agent software with no external processor
Where It Is Used
Facilities teams deploy the TLS 525M outside huddle rooms, small conference rooms, and classroom doors where a compact footprint matters more than a large display. Its stand-alone design suits multi-tenant offices and campuses that need many scheduling panels without adding rack processors at every door.
Specifications at a Glance
- 5" (12.7 cm) WVGA capacitive touchscreen, 800x480, 186.6 PPI
- PoE 802.3af class 3 power, 6.5 W device draw
- Enclosure 4.03" H x 6.08" W x 1.22" D, 0.80 lbs
- Operating range +32 to +104°F, storage -4 to +140°F
Also referenced as Extron TLS525M, TLS-525M, part number 601561113.
