Extron TLS 525M 60-1561-102 Black Wall Mount 5-Inch Scheduling Panel
- • Black wall-mount 5-inch scheduling touchpanel, 800x480 display
- • PoE powered, Microsoft 365 and Google Calendar integration, no subscription
- • QR code booking lets users reserve a space without touching the panel
- • On-demand reservations from panel or mobile device
- • Wall-mount version; choose 60-1561-112 for shelf/freestanding mounting
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Extron | Model: TLS 525M | Part number: 60-1561-102 (also written 60156110)
The Extron TLS 525M (60-1561-102) is the black wall-mount 5-inch room scheduling touchpanel. It connects directly to Microsoft 365 and Google Calendar over your network using PoE for power and data on one cable, so no separate power supply is needed at the wall box. A pair of red/green LEDs signal room status from down the corridor. QR code booking, two-factor authentication for Microsoft 365, and direct reservation from the panel are all standard. White version: 60-1561-103.
Key capabilities
- 5-inch capacitive touchscreen, 800x480, 850 nits, edge-to-edge Gorilla Glass
- Direct Microsoft 365 and Google Calendar integration, no additional processor needed

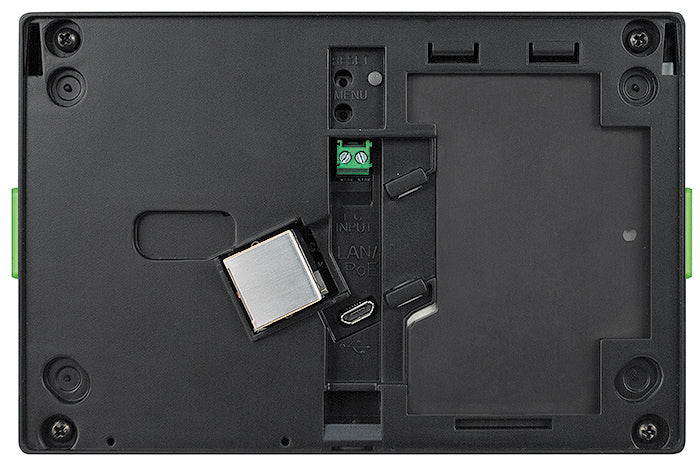

- PoE power and data on a single RJ-45 cable

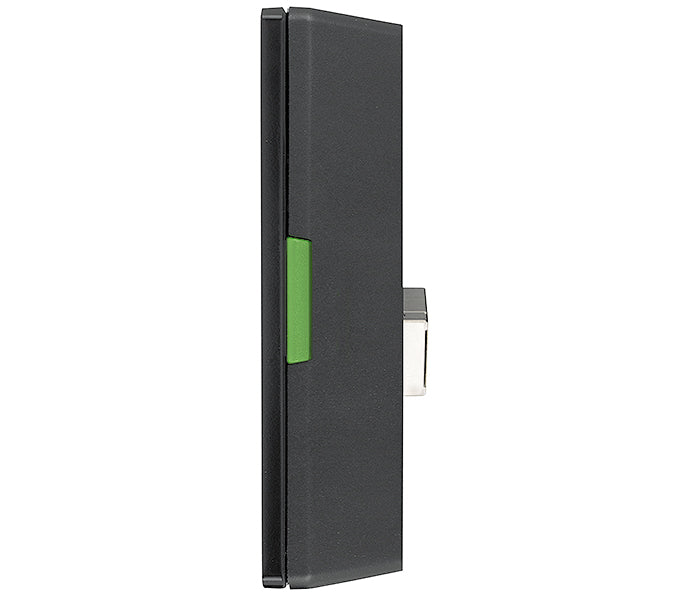

- Red/green status LEDs visible from a distance for quick room availability check

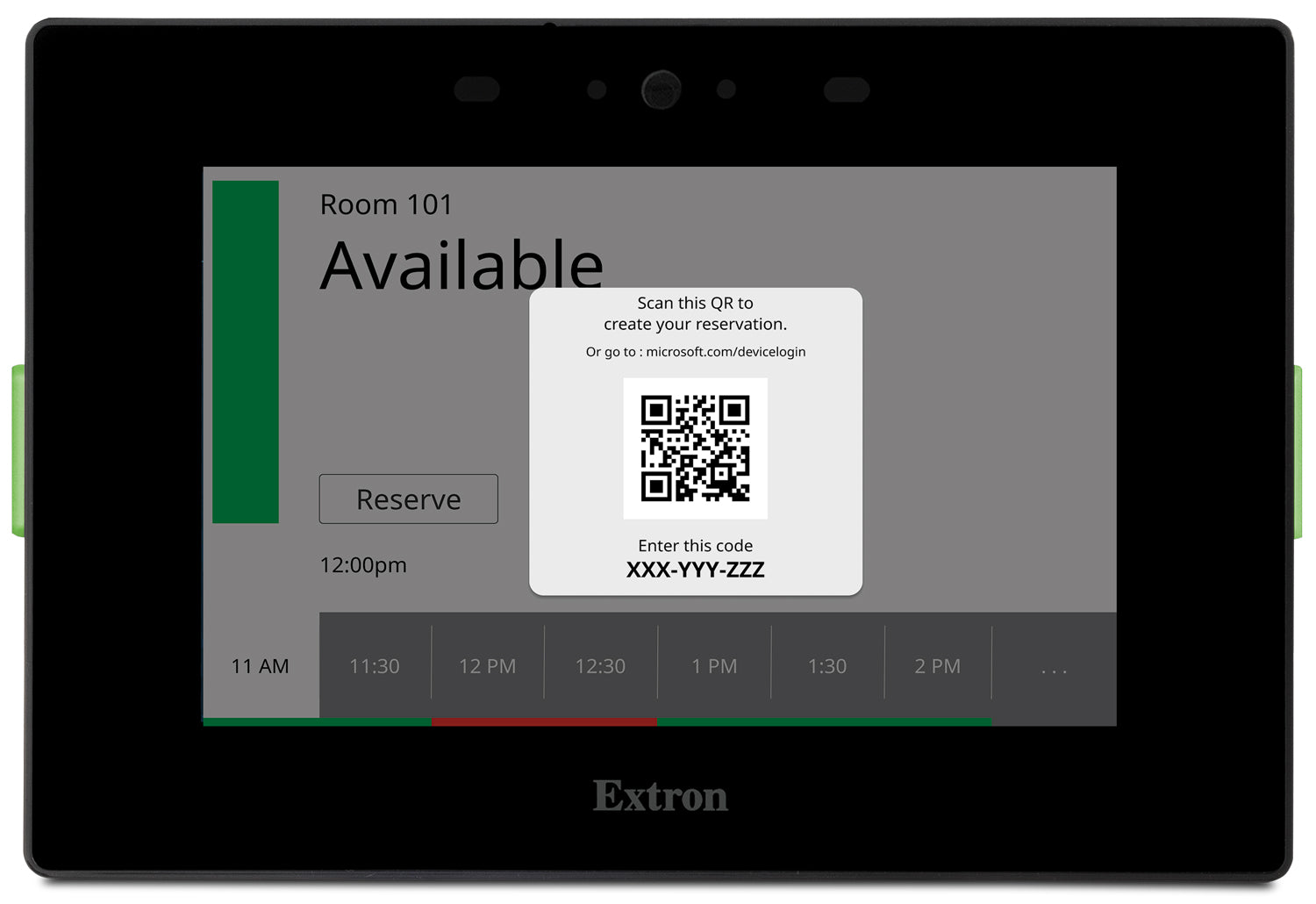

- QR code booking and Microsoft 365 two-factor authentication support
- Configured via Global Configurator Plus and Professional software
Where it is used
Conference rooms, boardrooms, huddle spaces, and classrooms where calendar-integrated room scheduling needs a clean, low-profile display outside the door.
Specifications at a glance
- Screen: 5 in, 800x480, 850 nits, 24-bit color
- Power: PoE (802.3af); no local supply needed
- Depth: 2.75 in; operating temp: +32 to +104 F
- Finish: black; white version is 60-1561-103
Also referenced as Extron TLS525M, TLS-525M, part number 60156110.
Specifications
Specifications

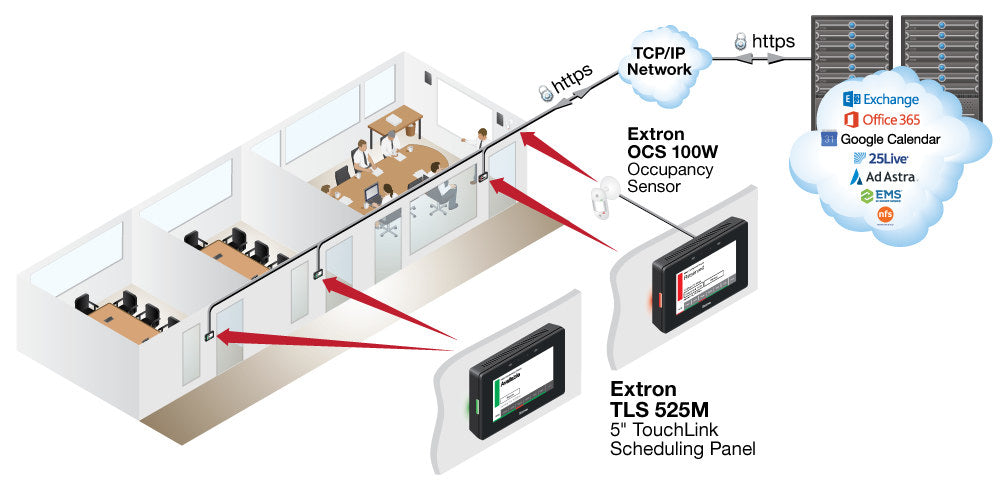

Diagram
