Details

Part number 60-1566-113 — White, Wall Mount, Scheduling

The part number 60-1566-113 designates the white wall-mount TLS 1025M scheduling panel. Integrators select this model to establish a calendar connection without separate processors or added scheduling software, allowing the unit to link directly to Microsoft Exchange, Office 365, Google Calendar, 25Live, EMS, NFS, and Ad Astra.

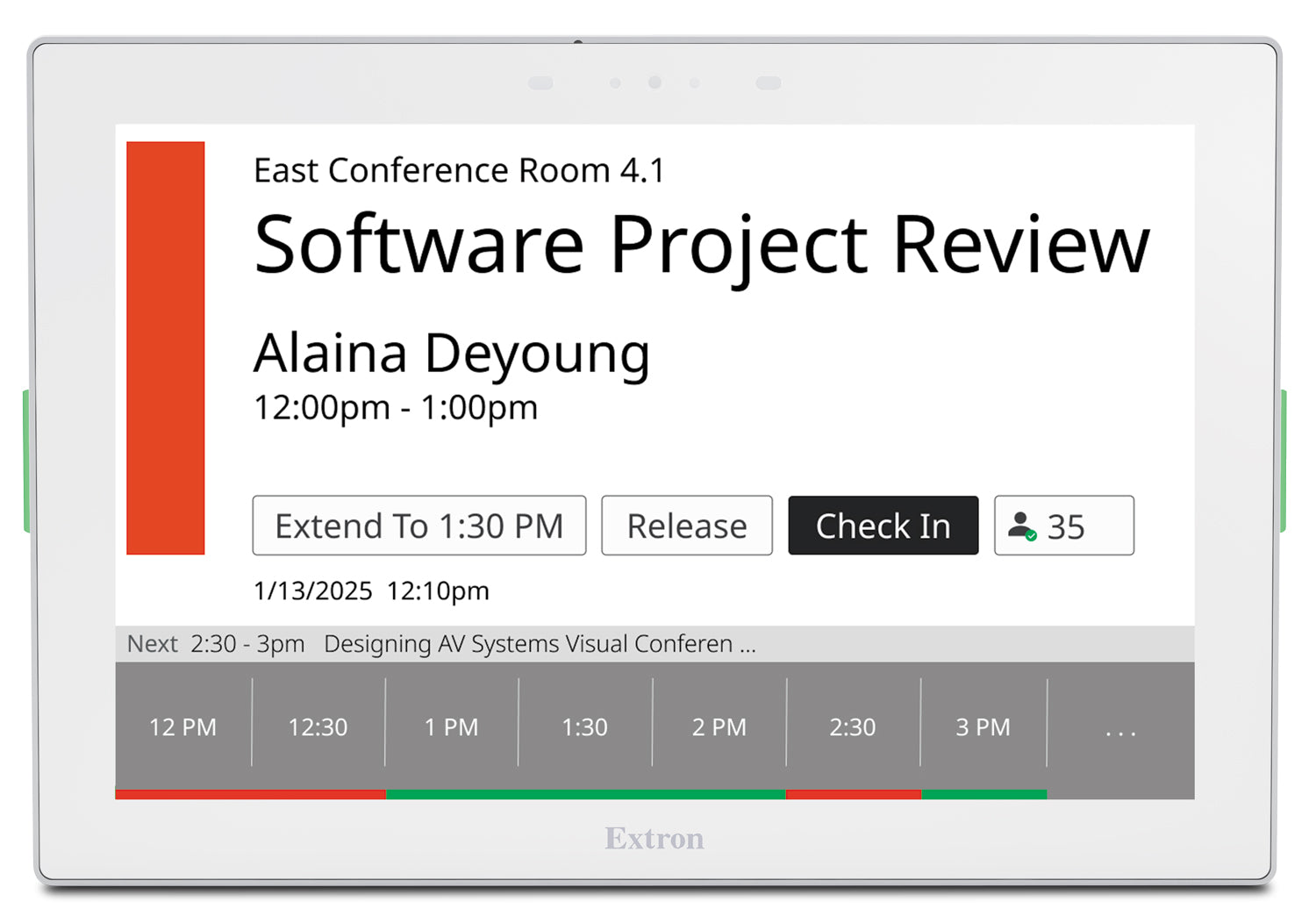

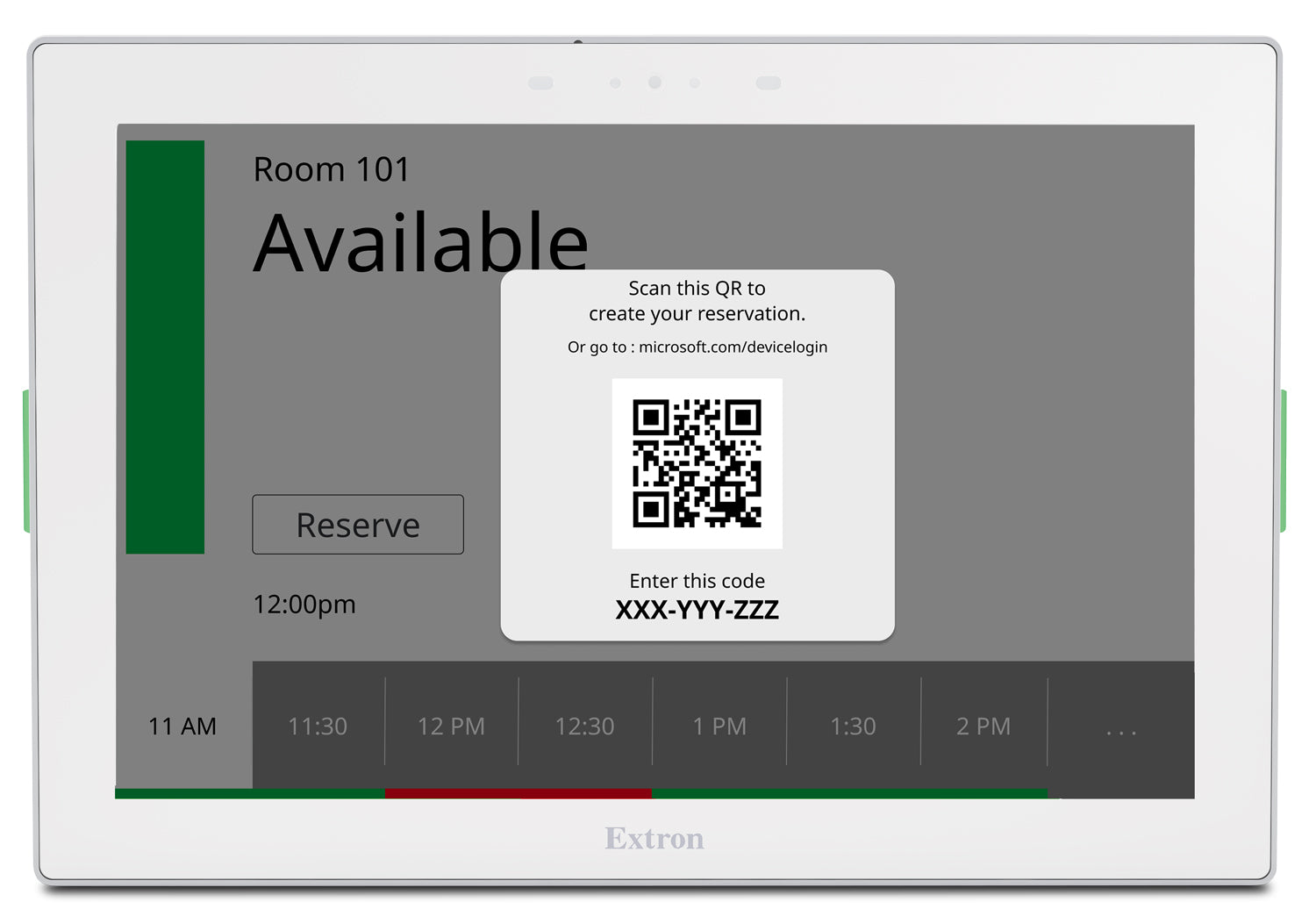

This configuration suits conference rooms, boardrooms, huddle spaces, and classrooms. A 10 in capacitive edge-to-edge glass display delivers 1280x800 resolution with Gorilla Glass protection. Power over Ethernet supplies both power and data through one cable, while red and green LEDs indicate room status from a distance. On-demand reservations occur from the panel or connected devices, and the system supports QR code booking for Microsoft 365 and Google Calendars without annual subscription or maintenance fees. Depth measures 2.75 in (7.0 cm).

Specifications

Part Number: 60-1566-113

Manufacturer: Extron

Condition: New

60-1566-112: 2.75" (7.0 cm)

60-1566-113: 2.75" (7.0 cm)

Ambient temperature/humidity: Storage: -4 to +140 °F (-20 to +60 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing

Aspect ratio: 16:10

Audio channels: Mono or stereo

Backlight: LED

Bit depth: Unsigned 8-bit Signed 16-bit Signed 24-bit Signed 32-bit

Brightness: 420 nits (cd/m2)

Color depth: 24 bit, 16.7 million colors

Configuration software: Global Configurator Plus and Professional, GUI Designer

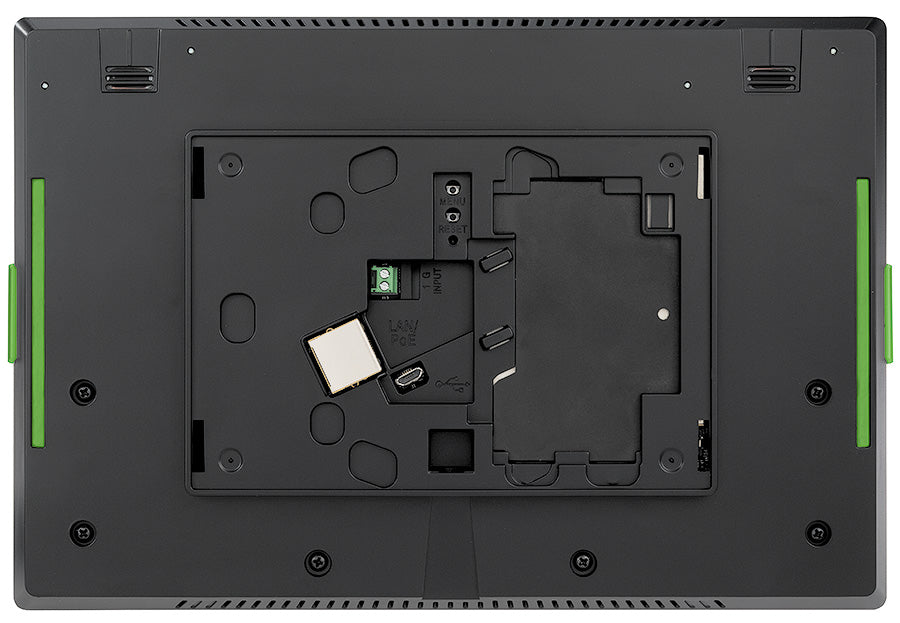

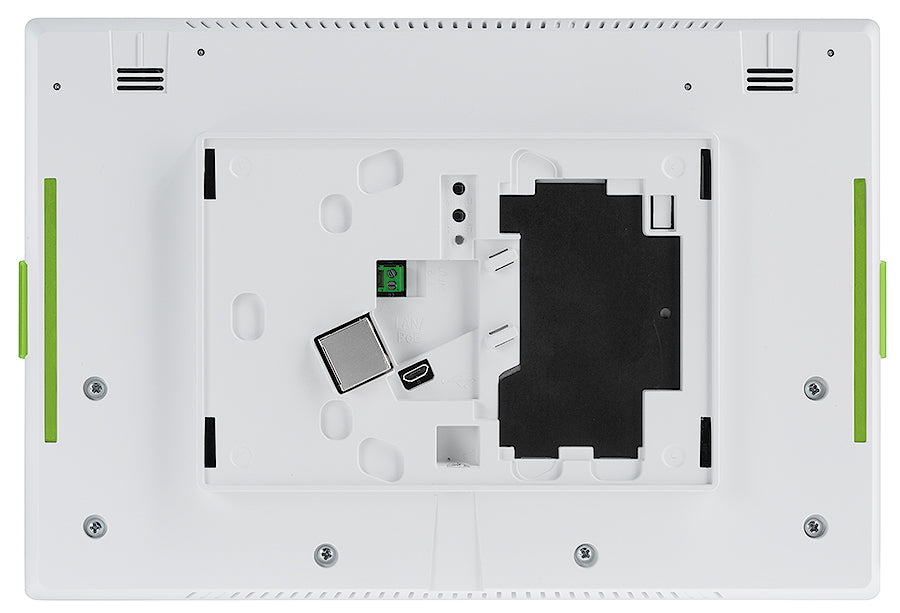

Connectors: 1 female RJ-45 connector

Container format: WAV (Microsoft RIFF)

Contrast: 800:1

Control apps: Extron Control

Cooling: Convection, vents on back

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Default settings: Link speed and duplex level: autodetectedIP address = 192.168.254.251Subnet mask = 255.255.255.0Default gateway = 0.0.0.0DHCP = offDNS = 127.0.0.1

Device: 12.9 watts

Device and power injector: 14.7 watts

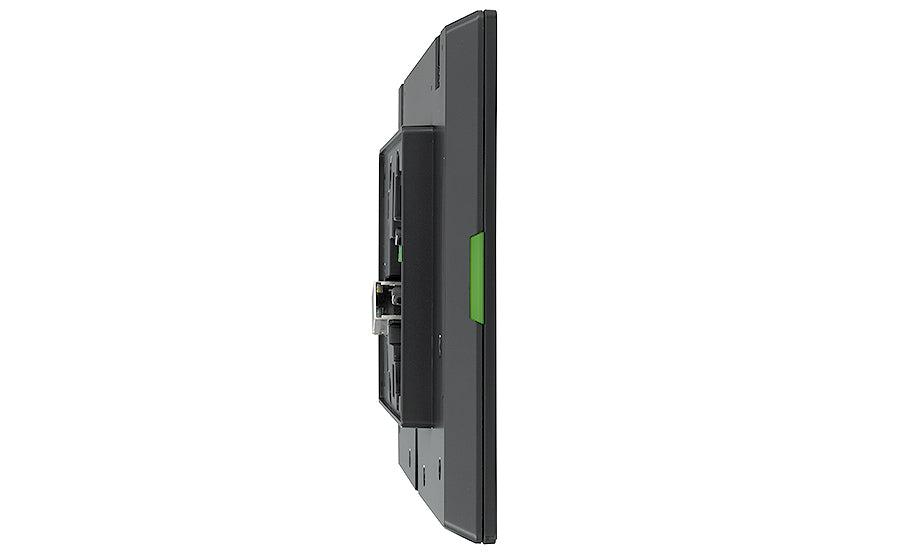

Enclosure dimensions: 6.84" H x 10.13" W x 1.26" D (174 mm H x 257 mm W x 32 mm D) Touchpanel projects 0.65" (17 mm) from the mounting surface

Enclosure type: Plastic

Encoding: LPCM (uncompressed)

Frequency response: 750 Hz to 20 kHz, ±5 dB

Input impedance: ≥10k ohms

Input voltage range: 0 to 24 VDC, clamped at +30 VDC

Light sensor: Auto/manual

Max. data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

Motion sensor: On/off

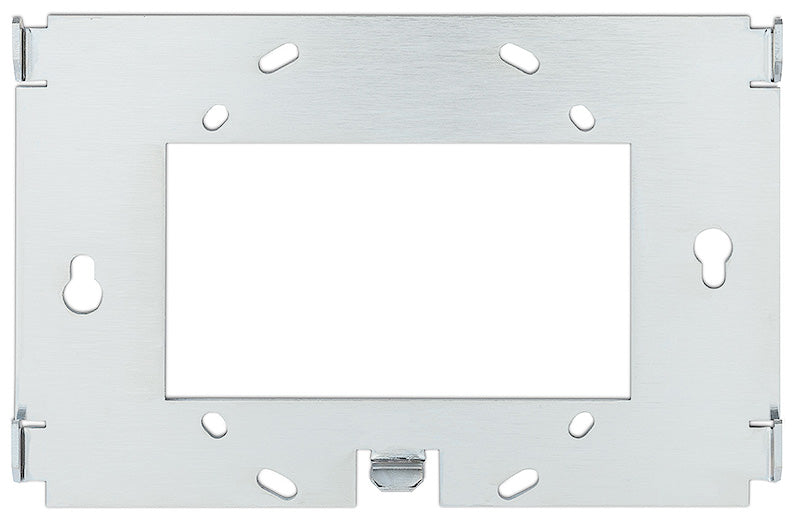

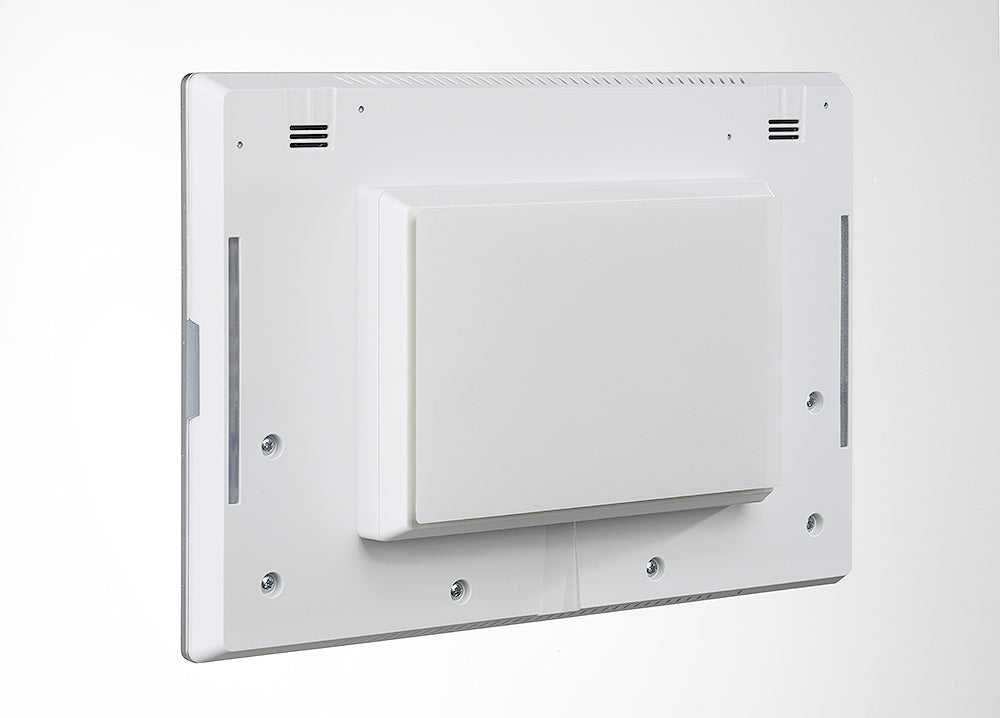

Mounting: Wall, furniture, glass, or rack

Pin configuration: 1 = Digital input, 1 = Gnd

Pixel density: 149 PPI

Power input requirements: Power over Ethernet (PoE 802.3af, class 3)

Power supply: Not included

Product warranty: 3 years parts and labor; touchpanel display and overlay components are covered for 1 year

Product weight: 2.05 lbs (0.92 kg)

Programmable pullup: 1k ohms to +5 VDC

Programming software: ControlScript Programming

Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1x, SFTP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 high-speed USB 2.0 device

RAM: 2 GB

Regulatory compliance: BIS, CE, c-UL, UL, C-Tick, FCC Class A, ICES, KC, VCCI, RoHS, and WEEE.

Resolution: 1280x800 (WXGA)

Resource management software: GlobalViewer Enterprise

Sampling rate: Up to 192 kHz

Screen type: TFT Active matrix Color LCD

Size: 10.1" (25.7 cm), measured diagonally

Speaker output: 2 mono, 89 dB Max. SPL @ 0.1 m

Standards: USB 2.0, USB 1.1, USB 1.0 compatible

Storage: 8 GB

Threshold high to low: 2.0 VDC

Threshold low to high: 2.8 VDC

Touch screen: Capacitive

Transparency: 8 bit

USB: 5 VDC, 275 mA

Utilities: Toolbelt, Embedded web page

Viewing angle: ±85° horizontal, ±85° vertical

Diagram

Resources

Brochure | TLS 1025M 60-1566-113 | Room Scheduling (Room_Scheduling_revD1.pdf)

Brochure | TLS 1025M 60-1566-113 | Collaborer en toute sécurité - Guide d'application pour les systèmes audiovisuels Extron

Brochure | TLS 1025M 60-1566-113 | Creación de experiencias de reunión más seguras - Guía de aplicación para sistemas AV Extron

Brochure | TLS 1025M 60-1566-113 | Raumbuchung

Brochure | TLS 1025M 60-1566-113 | Reserva de salas

Brochure | TLS 1025M 60-1566-113 | Réservation de salles

Brochure | TLS 1025M 60-1566-113 | Room Scheduling (Room-Scheduling_BR_US_IT_RevD1.pdf)

Brochure | TLS 1025M 60-1566-113 | Room Scheduling System (会議室予約システム)

Brochure | TLS 1025M 60-1566-113 | Room Scheduling 系统

Brochure | TLS 1025M 60-1566-113 | Sichere Zusammenarbeit in Meetingbereichen - Leitfaden für Extrons AV-Systeme

Brochure | TLS 1025M 60-1566-113 | Una collaborazione più sicura negli spazi meeting - Guida applicativa per i sistemi AV di Extron

Brochure | TLS 1025M 60-1566-113 | Бронирование переговорных

Brochure | TLS 1025M 60-1566-113 | Создание более безопасных условий для проведения встреч - Руководство по применению для AV‑систем Extron

Manual | TLS 1025M 60-1566-113 | Cleaning Instruction Card

Manual | TLS 1025M 60-1566-113 | Room Agent User Guide

Manual | TLS 1025M 60-1566-113 | TLP Pro x25 Series and TLS x25 Series User Guide

Manual | TLS 1025M 60-1566-113 | TLS Scheduling Panels Ports, Protocols, and Licenses Document

Specifications | TLS 1025M 60-1566-113 | TLP Pro 1025M Series and TLS 1025M

Panel Drawing | TLS 1025M 60-1566-113 | TLS 1025M

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron TLS 1025M 60-1566-113

Name: Extron TLS 1025M 60-1566-113
Brand: Extron
SKU: EXTRON-TLS1025M-601566113
Availability: InStock

Manufacturer: Extron

Type: Room Scheduling

Extron TLS 1025M 60-1566-113 White Shelf Mount Scheduling Panel

• White shelf-mount 10-inch touchpanel for room and desk scheduling
• WXGA 1280x800 display, PoE powered, no subscription fees
• Connects to Microsoft 365, Google Calendar, and Extron room booking
• On-demand reservations from panel, QR code, or mobile device
• Stand-alone operation: no external control processor required
