Part number 60-1566-112 — Black, Wall Mount, Scheduling

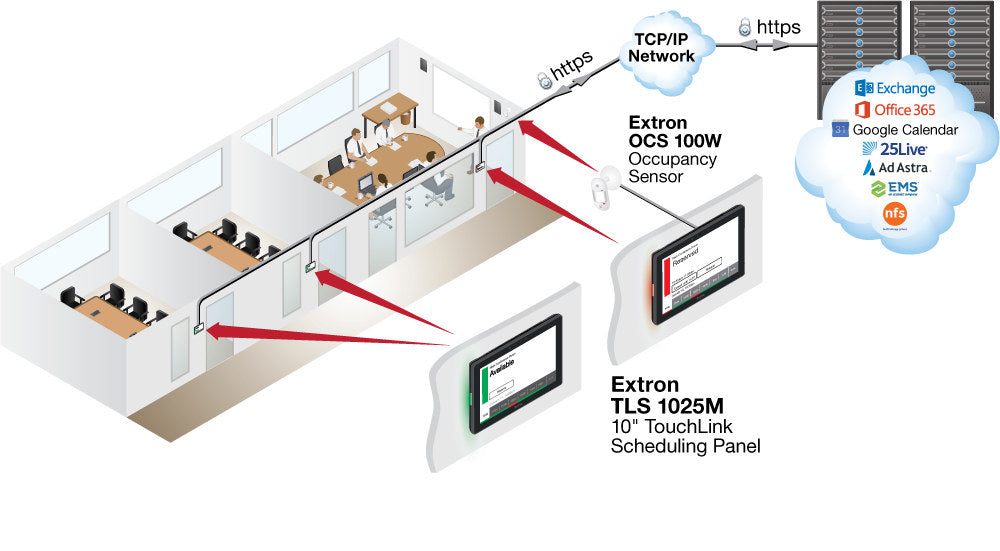

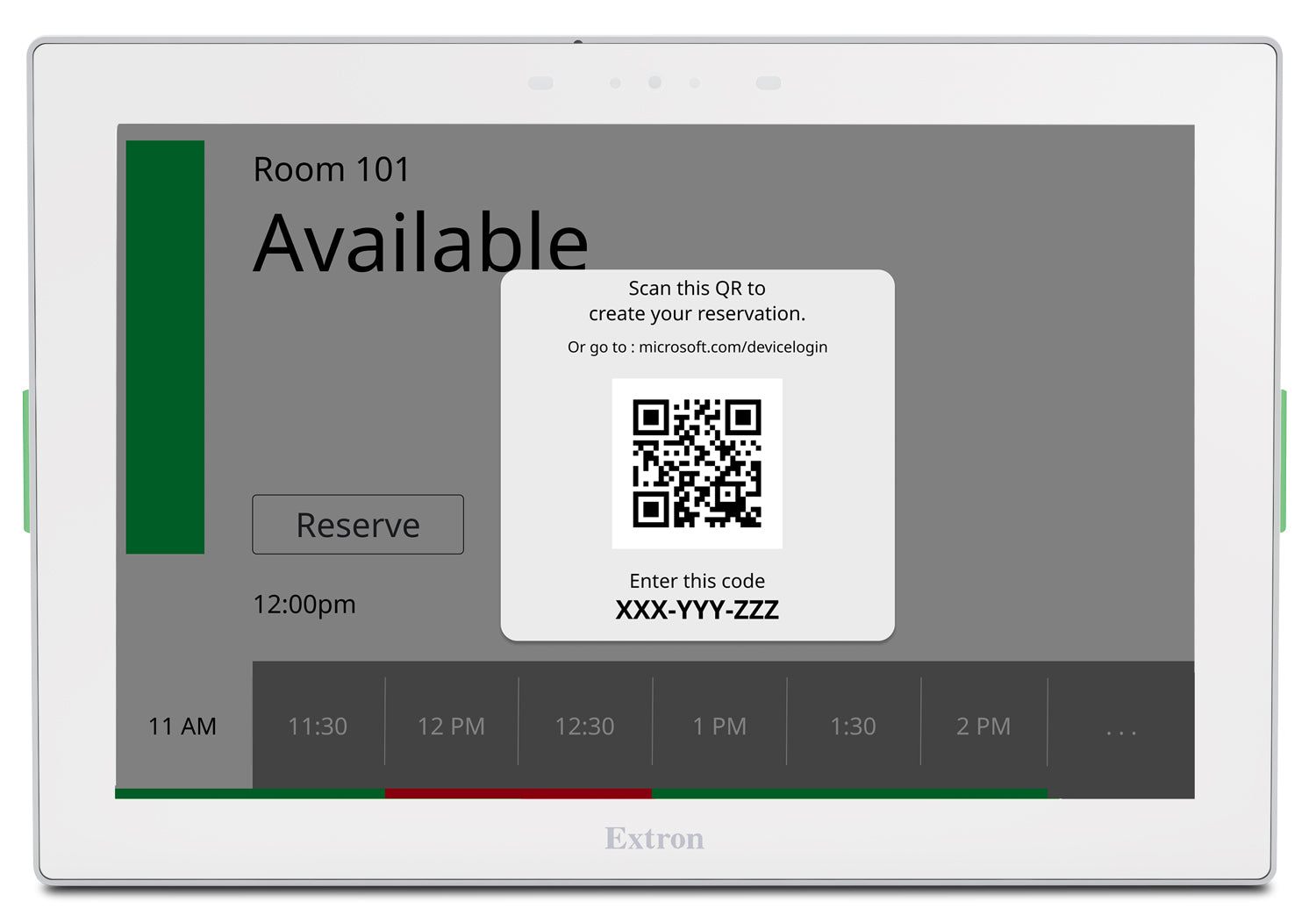

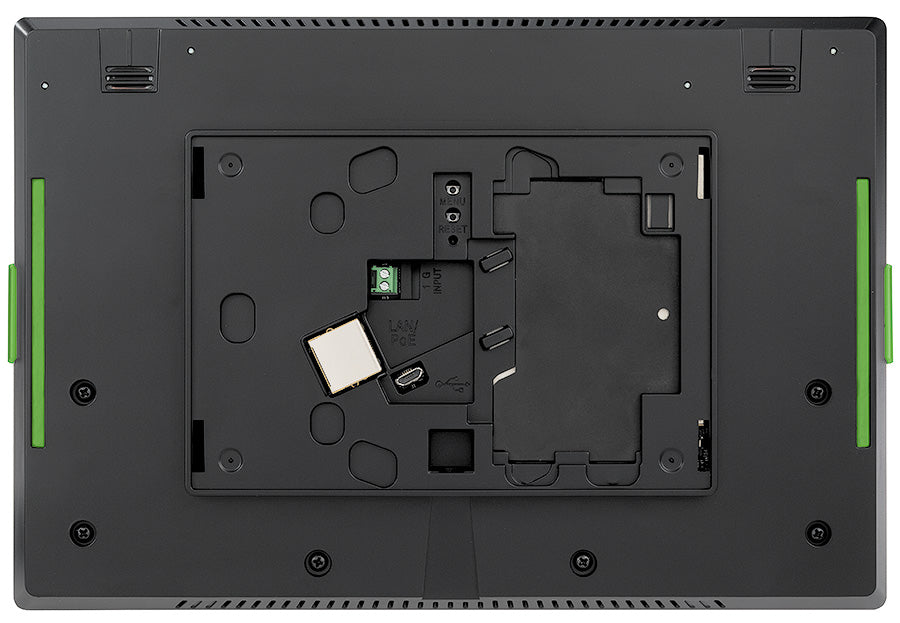

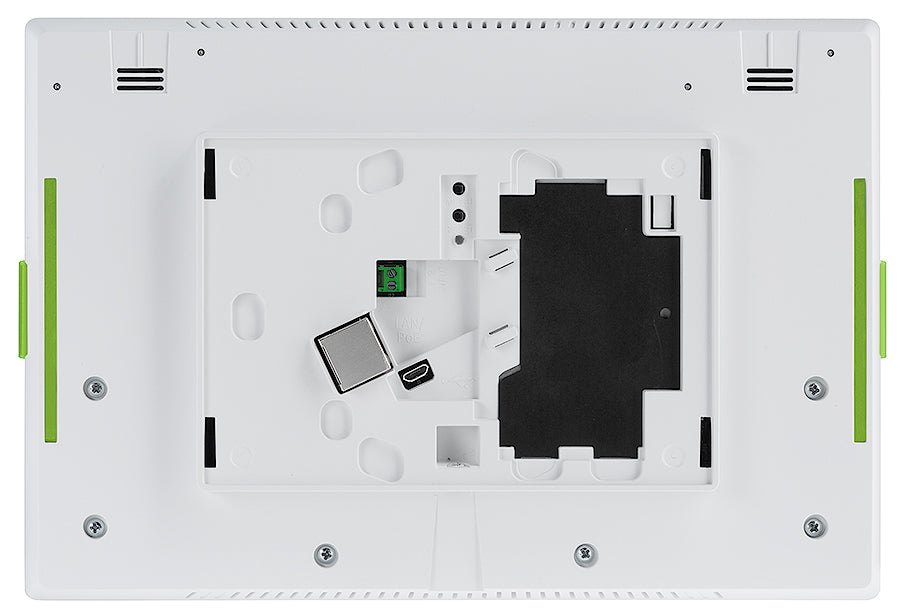

The part number 60-1566-112 designates the black wall-mount version of the TLS 1025M scheduling panel. Integrators choose this model when a calendar connection must be established without separate processors or added scheduling software, allowing the unit to link directly to Microsoft Exchange, Office 365, Google Calendar, 25Live, EMS, NFS and Ad Astra for on-demand reservations from touchpanels, computers or mobile devices.

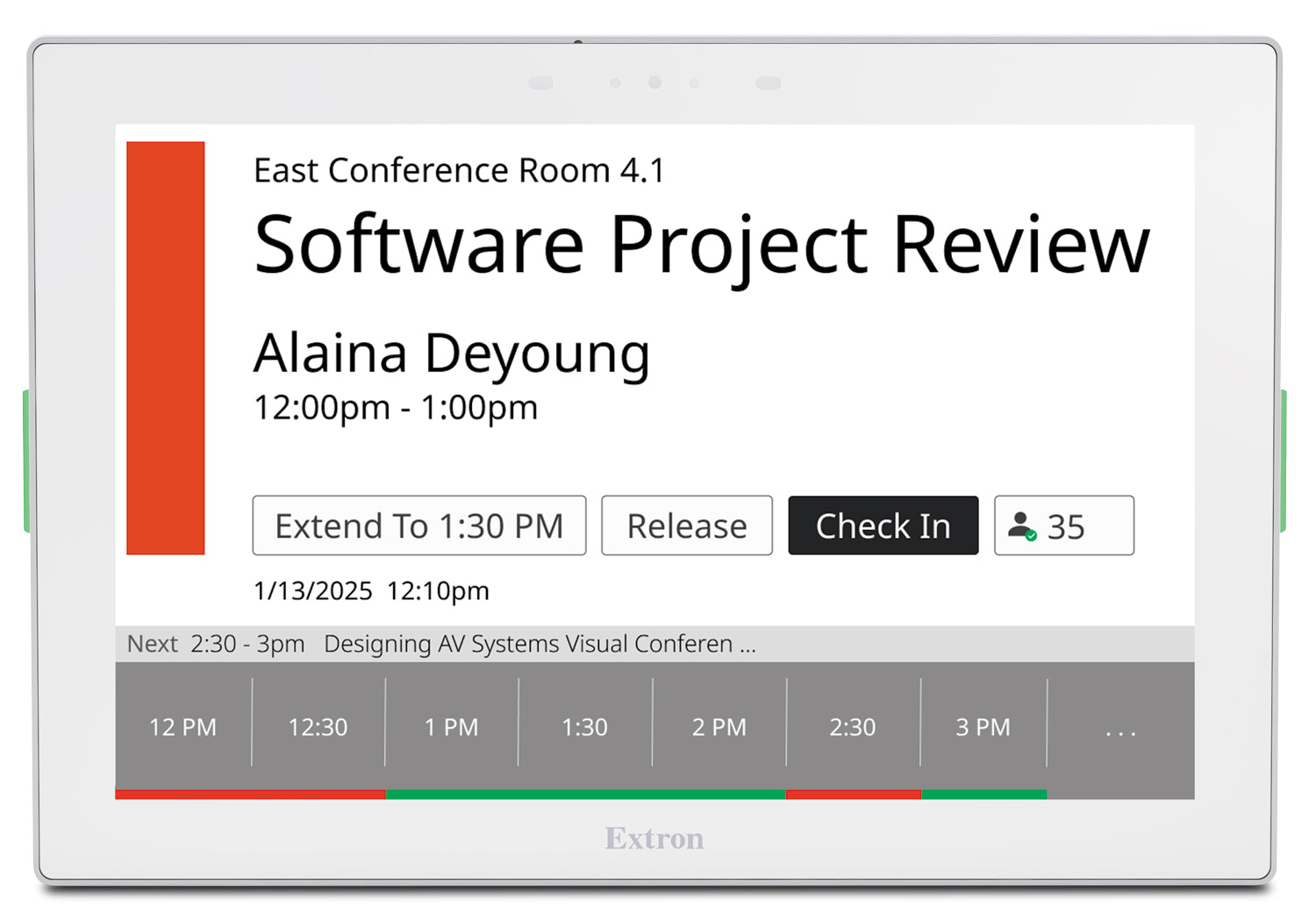

This configuration fits conference rooms, boardrooms, huddle spaces and classrooms. The 10 in capacitive screen displays 1280x800 resolution at 420 nits brightness with 800:1 contrast and 24-bit color depth. Power and data travel over one RJ-45 connector via PoE. Red and green LEDs show room status from a distance while QR code support handles Microsoft 365 and Google bookings. Storage operates from -4 to +140 °F at up to 90% humidity, and no subscription or maintenance fees are required.

Specifications

Part Number: 60-1566-112

Manufacturer: Extron

Condition: New

60-1566-112: 2.75" (7.0 cm)

60-1566-113: 2.75" (7.0 cm)

Ambient temperature/humidity: Storage: -4 to +140 °F (-20 to +60 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing

Aspect ratio: 16:10

Audio channels: Mono or stereo

Backlight: LED

Bit depth: Unsigned 8-bit Signed 16-bit Signed 24-bit Signed 32-bit

Brightness: 420 nits (cd/m2)

Color depth: 24 bit, 16.7 million colors

Configuration software: Global Configurator Plus and Professional, GUI Designer

Connectors: 1 female RJ-45 connector

Container format: WAV (Microsoft RIFF)

Contrast: 800:1

Control apps: Extron Control

Cooling: Convection, vents on back

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Default settings: Link speed and duplex level: autodetectedIP address = 192.168.254.251Subnet mask = 255.255.255.0Default gateway = 0.0.0.0DHCP = offDNS = 127.0.0.1

Device: 12.9 watts

Device and power injector: 14.7 watts

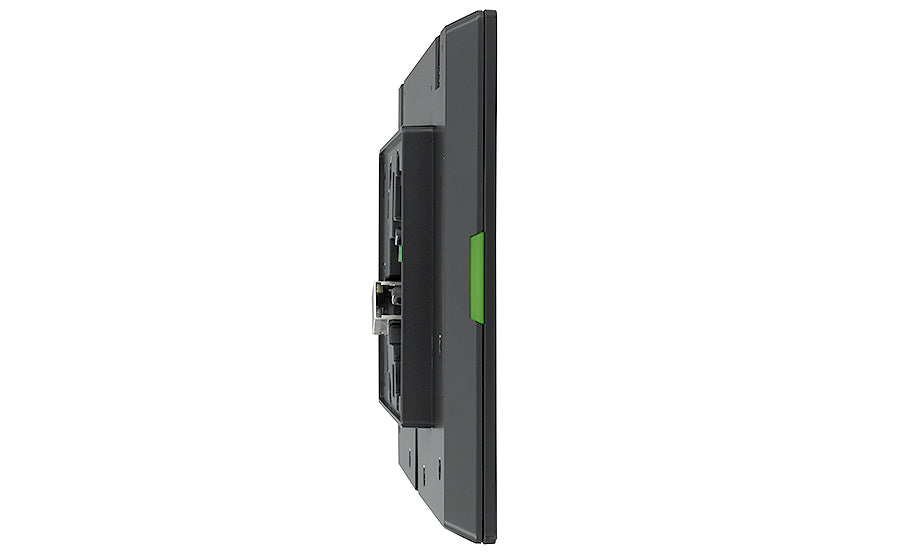

Enclosure dimensions: 6.84" H x 10.13" W x 1.26" D (174 mm H x 257 mm W x 32 mm D) Touchpanel projects 0.65" (17 mm) from the mounting surface

Enclosure type: Plastic

Encoding: LPCM (uncompressed)

Frequency response: 750 Hz to 20 kHz, ±5 dB

Input impedance: ≥10k ohms

Input voltage range: 0 to 24 VDC, clamped at +30 VDC

Light sensor: Auto/manual

Max. data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

Motion sensor: On/off

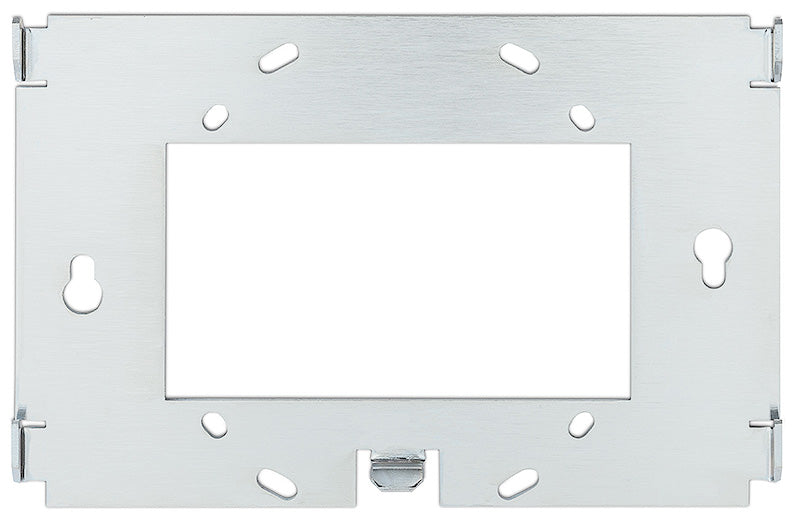

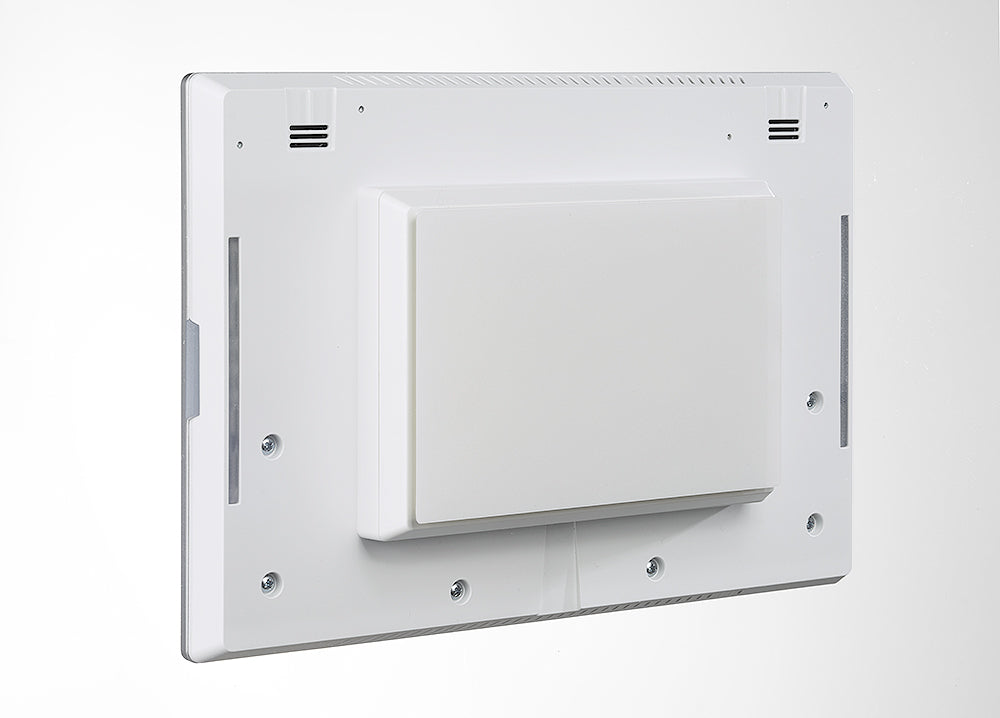

Mounting: Wall, furniture, glass, or rack

Pin configuration: 1 = Digital input, 1 = Gnd

Pixel density: 149 PPI

Power input requirements: Power over Ethernet (PoE 802.3af, class 3)

Power supply: Not included

Product warranty: 3 years parts and labor; touchpanel display and overlay components are covered for 1 year

Product weight: 2.05 lbs (0.92 kg)

Programmable pullup: 1k ohms to +5 VDC

Programming software: ControlScript Programming

Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1x, SFTP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 high-speed USB 2.0 device

RAM: 2 GB

Regulatory compliance: BIS, CE, c-UL, UL, C-Tick, FCC Class A, ICES, KC, VCCI, RoHS, and WEEE.

Resolution: 1280x800 (WXGA)

Resource management software: GlobalViewer Enterprise

Sampling rate: Up to 192 kHz

Screen type: TFT Active matrix Color LCD

Size: 10.1" (25.7 cm), measured diagonally

Speaker output: 2 mono, 89 dB Max. SPL @ 0.1 m

Standards: USB 2.0, USB 1.1, USB 1.0 compatible

Storage: 8 GB

Threshold high to low: 2.0 VDC

Threshold low to high: 2.8 VDC

Touch screen: Capacitive

Transparency: 8 bit

USB: 5 VDC, 275 mA

Utilities: Toolbelt, Embedded web page

Viewing angle: ±85° horizontal, ±85° vertical

Diagram

Resources

Brochure | TLS 1025M 60-1566-112 | Room Scheduling (Room_Scheduling_revD1.pdf)

Brochure | TLS 1025M 60-1566-112 | Collaborer en toute sécurité - Guide d'application pour les systèmes audiovisuels Extron

Brochure | TLS 1025M 60-1566-112 | Creación de experiencias de reunión más seguras - Guía de aplicación para sistemas AV Extron

Brochure | TLS 1025M 60-1566-112 | Raumbuchung

Brochure | TLS 1025M 60-1566-112 | Reserva de salas

Brochure | TLS 1025M 60-1566-112 | Réservation de salles

Brochure | TLS 1025M 60-1566-112 | Room Scheduling (Room-Scheduling_BR_US_IT_RevD1.pdf)

Brochure | TLS 1025M 60-1566-112 | Room Scheduling System (会議室予約システム)

Brochure | TLS 1025M 60-1566-112 | Room Scheduling 系统

Brochure | TLS 1025M 60-1566-112 | Sichere Zusammenarbeit in Meetingbereichen - Leitfaden für Extrons AV-Systeme

Brochure | TLS 1025M 60-1566-112 | Una collaborazione più sicura negli spazi meeting - Guida applicativa per i sistemi AV di Extron

Brochure | TLS 1025M 60-1566-112 | Бронирование переговорных

Brochure | TLS 1025M 60-1566-112 | Создание более безопасных условий для проведения встреч - Руководство по применению для AV‑систем Extron

Manual | TLS 1025M 60-1566-112 | Cleaning Instruction Card

Manual | TLS 1025M 60-1566-112 | Room Agent User Guide

Manual | TLS 1025M 60-1566-112 | TLP Pro x25 Series and TLS x25 Series User Guide

Manual | TLS 1025M 60-1566-112 | TLS Scheduling Panels Ports, Protocols, and Licenses Document

Specifications | TLS 1025M 60-1566-112 | TLP Pro 1025M Series and TLS 1025M

Panel Drawing | TLS 1025M 60-1566-112 | TLS 1025M
