Details

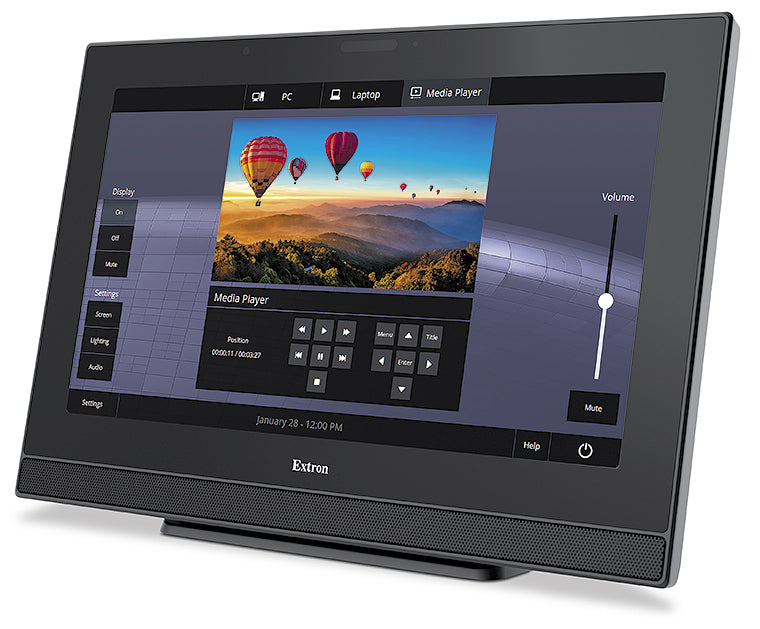

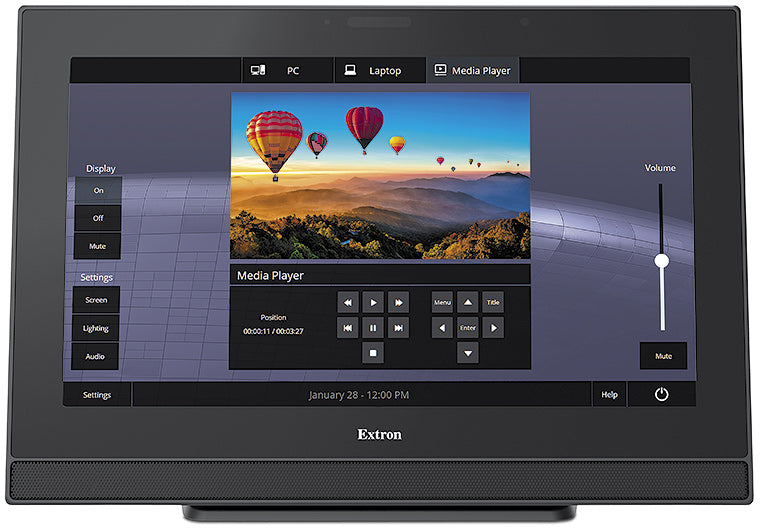

Extron TLP Pro 1525TG (part number 60-1790-12) is a 15.6 in. tabletop touchpanel on a tilting stand, with a built-in HDMI input and an XTP input for a video preview window.

A 340-nit TFT LCD with 500:1 contrast and capacitive touch gives operators a large, responsive interface, while the onboard HDMI (HDCP compliant) and XTP inputs let integrators preview a live source directly on the panel without routing through a separate display. The base tilts through a 40-degree range and can also mount to an optional VESA D 100mm kit. Built-in stereo speakers and a line-level audio output add sound feedback and pass-through, and two USB 2.0 ports support peripherals at the panel. The unit accepts 12 VDC or Power over Ethernet (802.3at, Class 4).

Key Capabilities

15.6 in. capacitive touchscreen, 1366x768 (WXGA), 500:1 contrast, 340 nits
Built-in HDMI (HDCP compliant) and XTP video inputs for on-panel source preview
Tabletop stand tilts through a 40-degree range; optional VESA D 100mm mount
Accepts 12 VDC or PoE+ (802.3at, Class 4) power
2 GB RAM, 8 GB storage, 2 high-speed USB 2.0 ports
Stereo speakers (90 dB max SPL) plus a 3.5 mm line-level audio output
3-year parts and labor warranty, 1-year on display and overlay components

Where It Is Used

Integrators specify the TLP Pro 1525TG for boardroom and control room tables where a large, tiltable touch interface with live HDMI or XTP source preview is needed.

Specifications at a Glance

Display: 15.6 in. WXGA (1366x768), capacitive touch, 500:1 contrast
Video input: 1 HDMI, 1 XTP (330 ft / 100 m over CAT 5e/6/7)
Power: 12 VDC or PoE+ 802.3at Class 4 (23.9-26.4W with injector, 21.3-25.4W with power supply)
Enclosure: 11.0 in. H x 16.1 in. W x 9.37 in. D, 13.90 lbs (6.30 kg)
Regulatory: BIS, CE, FCC Class B, c-UL, UL, RoHS, WEEE

Also referenced as Extron TLPPro1525TG, TLP-Pro-1525TG, part number 60179012.

Specifications

Part Number: 60-1790-12

Manufacturer: Extron

Model: TLP Pro 1525TG

Condition: New

Screen type: TFT Active matrix color LCD, capacitive touch

Resolution: 1366x768 (WXGA), 100.45 PPI, 16:9 aspect ratio

Brightness/contrast: 340 nits (cd/m2), 500:1 contrast, LED backlight, 8-bit alpha channel transparency

Viewing angle: ±85° horizontal, ±80° vertical

Memory: 2 GB RAM, 8 GB storage

XTP interconnection: Signal transmission distance 330' (100m) over CAT 5e/6/7 UTP or STP (24 AWG or better, 400 MHz bandwidth); TIA/EIA T568A or T568B termination

Video input: 1 HDMI (HDCP compliant, female HDMI type A), 1 XTP (shared female RJ-45); resolution range 640x480 to 1920x1200 @60Hz, includes 480p/576p/720p/1080p/2K; 18.75-75 kHz horizontal, 24-75 Hz vertical; DVI 1.0, HDMI 1.4, HDCP 1.4

Video processing: 8/10/12-bit HDMI pixel depth, 165 MHz pixel clock, 1 billion colors (10-bit processing)

Ethernet: 1 female RJ-45 (shared with XTP video input), 10/100Base-T half/full duplex autodetect; DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, SFTP, SSH, TCP/IP, UDP/IP

USB: 2 high-speed USB 2.0, 2 USB type A connectors, USB 2.0/1.1/1.0 compatible, up to 480 Mbps

Sensors: Motion (on/off), light (auto/manual)

Control software: Global Configurator Plus/Professional, GUI Designer, ControlScript Programming, Extron Control, GlobalViewer Enterprise, Toolbelt, embedded web page

Audio output (speaker): 2 stereo, 90 dB max SPL @ 0.1m, 400 Hz-20 kHz ±5 dB; WAV/LPCM uncompressed, 8/16/24/32-bit, up to 192 kHz, mono or stereo, 48 kHz audio sampling rate

Audio output (line level): 1 stereo unbalanced via 3.5mm stereo mini jack (tip L, ring R, sleeve GND); 50 ohms unbalanced, ±0.1 dB gain error, -10 dBV nominal level, >+8.2 dBV Hi-Z max, >7.1 dBm at 600 ohm max

Power input requirements: 12 VDC or Power over Ethernet (802.3at, Class 4); power supply not included

Power consumption (with PI 140 injector, XTP): 23.9 W device, 26.4 W device and power injector

Power consumption (with PS 1230 power supply): 21.3 W device, 25.4 W device and power supply

Auxiliary power output (USB): 5 VDC, up to 275 mA on a single port; up to 275 mA total on both ports

Thermal dissipation (with PI 140 injector, XTP): 76.8 BTU/hr device, 85.2 BTU/hr device and power injector

Thermal dissipation (with PS 1230 power supply): 67.8 BTU/hr device, 81.8 BTU/hr device and power supply

Ambient temperature/humidity: Storage: -4 to +140 °F (-20 to +60 °C), 5% to 90% noncondensing; Operating: +32 to +140 °F (0 to +60 °C), 5% to 90% noncondensing

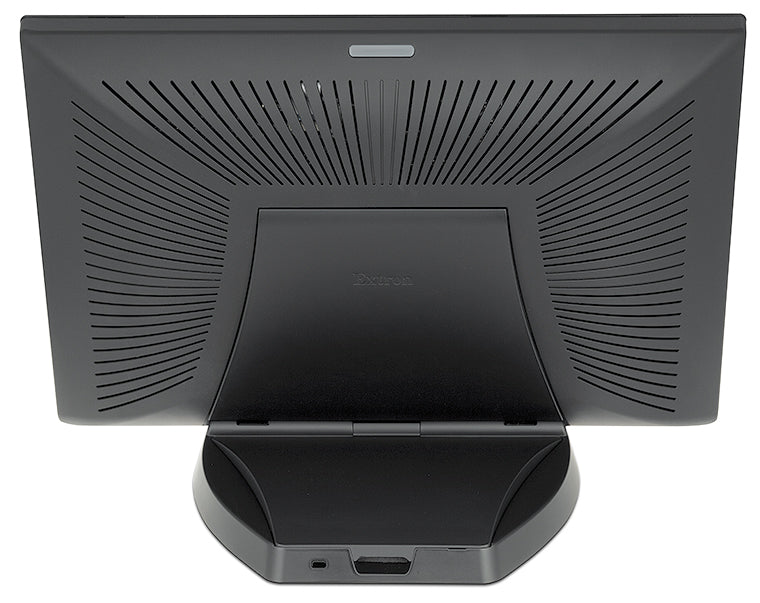

Cooling: Convection, vents on rear top and sides

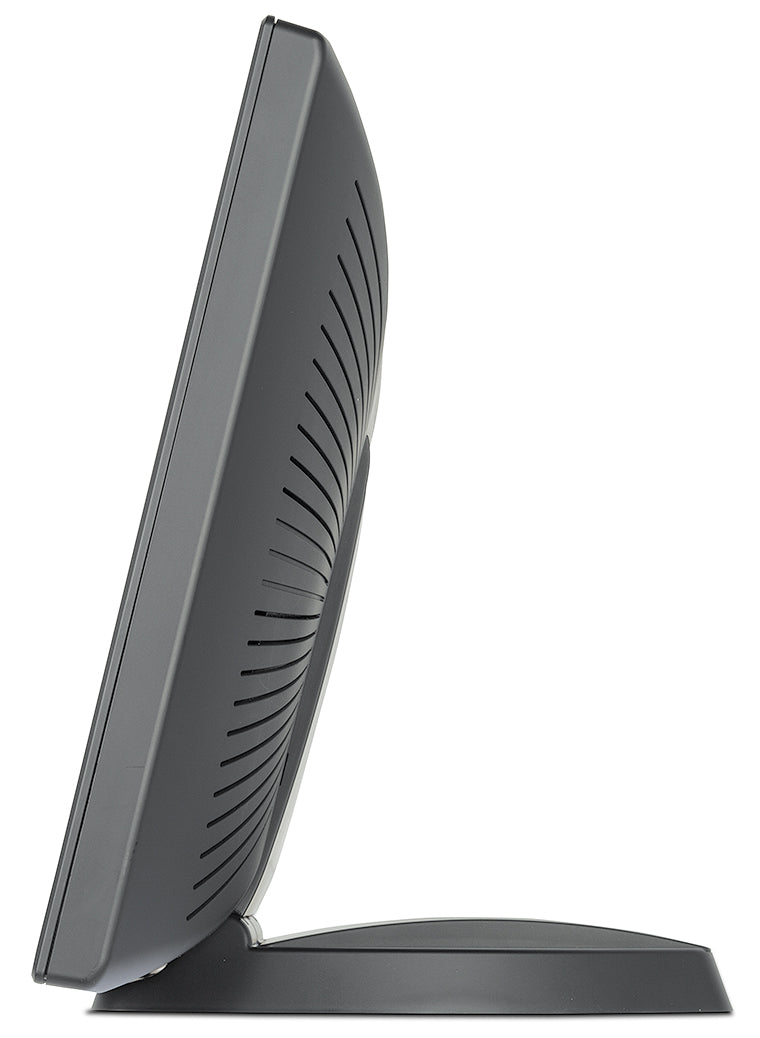

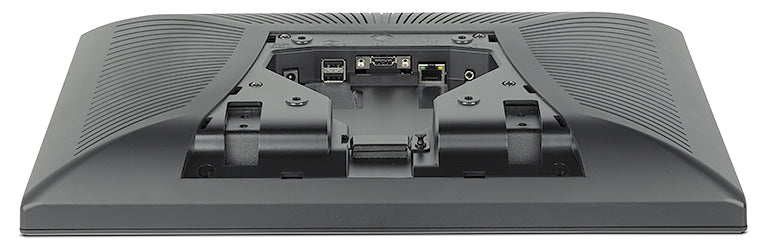

Mounting: Set on tabletop or mount to optional VESA D 100mm panel mount kit; tilts through a 40° range

Enclosure: Plastic, 11.0" H x 16.1" W x 9.37" D (280 mm H x 408 mm W x 238 mm D); max height includes base, height/depth vary with tilt angle

Product weight: 13.90 lb (6.30 kg)

Regulatory compliance: BIS, CE, C-Tick, FCC Class B, ICES, VCCI, c-UL, UL, RoHS, WEEE

Warranty: 3 years parts and labor; touchpanel display and overlay components covered for 1 year

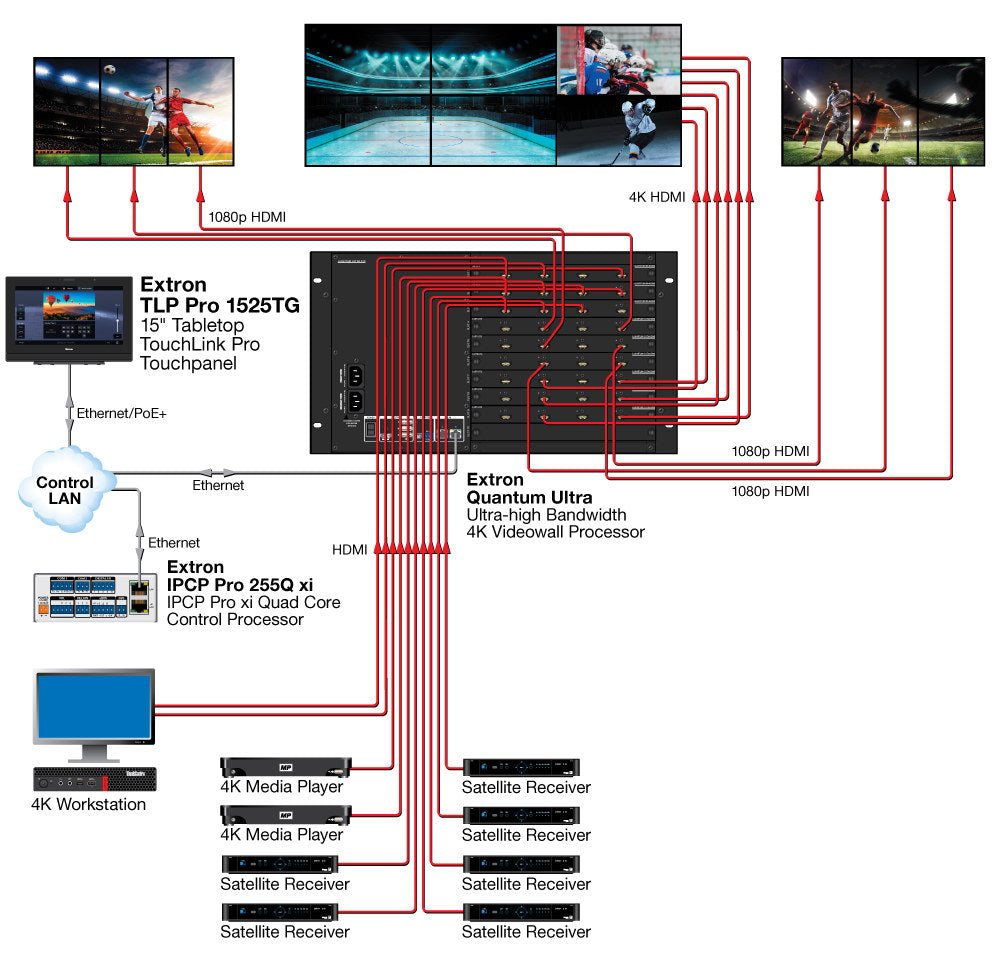

Diagram

Resources

Brochure | TLP Pro 1525TG 60-1790-12 | TouchLink Pro (touchlink-pro_revC8.pdf)

Brochure | TLP Pro 1525TG 60-1790-12 | TouchLink Pro (TouchLink-Pro_BR_A4_SP_RevC7.pdf)

Brochure | TLP Pro 1525TG 60-1790-12 | TouchLink Pro (TouchLink-Pro_BR_A4_RU_RevC7.pdf)

Brochure | TLP Pro 1525TG 60-1790-12 | TouchLink Pro (TouchLink-Pro_BR_A4_IT_RevC8.pdf)

Brochure | TLP Pro 1525TG 60-1790-12 | TouchLink Pro (TouchLink-Pro_BR_A4_FR_RevC8.pdf)

Manual | TLP Pro 1525TG 60-1790-12 | Cleaning Instruction Card

Manual | TLP Pro 1525TG 60-1790-12 | Control Systems Network Ports, Protocols, and Licenses

Manual | TLP Pro 1525TG 60-1790-12 | TLP Pro 1225 Series, 1525 Series, and 1725 Series User Guide

Manual | TLP Pro 1525TG 60-1790-12 | TLP Pro 1225TG, 1525TG, and 1725TG Setup Guide

Specifications | TLP Pro 1525TG 60-1790-12 | TLP Pro 1525TG

Panel Drawing | TLP Pro 1525TG 60-1790-12 | TLP Pro 1525TG
