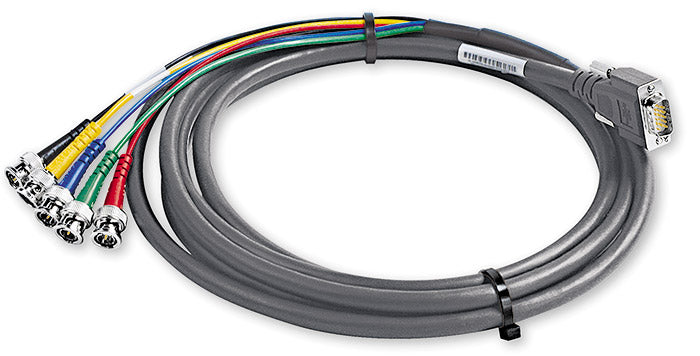

Extron SYM BNCM/25 (part number 26-533-04) — a 25 ft (7.6 m) VGA to five-BNC-male cable for RGBHV runs that cross a meeting room.

Twenty-five feet is the working distance between a lectern or credenza and a projector on the opposite wall, or between a rack in a closet and the display it serves next door. Extron builds the run as one piece: a molded 15-pin HD male connector at the source, five color-coded 75 ohm BNC male plugs at the display, and MHR-5 mini high resolution cable in between. Each of the five coaxes carries its own foil and braid shield, which is what keeps sync clean once the run gets long enough to matter.

Key Capabilities

• Red, green, blue, horizontal sync and vertical sync each get a dedicated 75 ohm coaxial path.
• 25 ft (7.6 m) in a single continuous assembly, with no barrel joints along the way.
• 26 AWG conductors, individually shielded with 100% aluminum foil and a 95% tinned copper serve.
• Male BNC plugs connect directly to display, switcher and DA inputs.
• Grounded 15-pin HD shell gives electrostatic discharge somewhere to go at the source end.
• NEC CM rated, non-plenum jacket.

Where It Is Used

Conference and training rooms, houses of worship, staging and rental inventories, control-room operator desks, and clinical or laboratory imaging spaces where displays still take five-wire component video on BNC.

Specifications at a Glance

• Length: 25 ft (7.6 m)
• Connectors: one 15-pin HD male to five 75 ohm BNC male
• Cable: Extron MHR-5, five 26 AWG coaxial conductors
• Nominal impedance: 75 ohms
• Rating: NEC CM, non-plenum

Also referenced as Extron SYMBNCM25, SYM-BNCM-25, part number 2653304.
