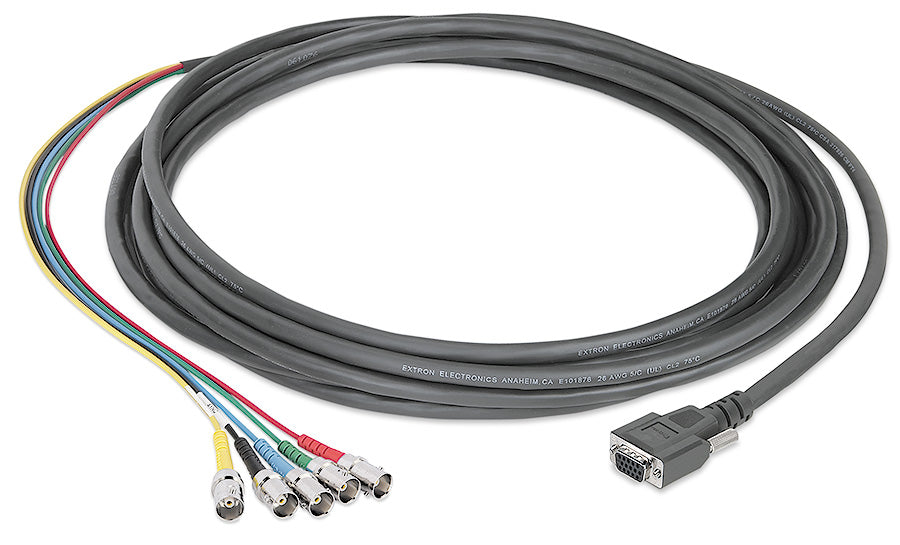

Extron SYF BNCF/25 (part number 26-532-04) — a 25 ft (7.6 m) VGA female to five-BNC-female breakout on Extron MHR-5 cable.

At twenty-five feet the practical argument for Extron's mini high resolution construction is at its strongest. Five ordinary 75 ohm coaxial runs of this length make a bundle that is heavy, stiff and difficult to get through existing raceway; MHR-5 cable, part 22-020-03, is smaller in diameter and far more flexible, so the pull is realistic. The five female BNCs are colour coded, the moulded VGA female shell is grounded against ESD, and the injection moulding includes an overall foil shield. NEC CL2 rated.

Key Capabilities

• 25 ft (7.6 m) VGA female to five BNC female breakout
• Smaller diameter and more flexible than regular coaxial cable
• Five colour-coded 75 ohm female BNC connectors
• Extron MHR-5 cable, part number 22-020-03
• Grounded VGA shell and an overall foil shield
• NEC CL2 rated cable

Where It Is Used

Room-to-rack runs where a VGA source has to land on an RGBHV switcher or distribution amplifier in another part of the space, plus projector feeds in larger classrooms and lecture theatres.

Specifications at a Glance

• Length: 25 ft (7.6 m), measured tip-to-tip including connectors
• Connectors: one female 15-pin HD, five female 75 ohm BNC
• Cable: Extron MHR-5, part number 22-020-03
• Rating: NEC CL2

Also referenced as Extron SYFBNCF/25, SYF-BNCF-25, part number 2653204.
